Exhaust Gas NOx Sensor: Diagrams




Component Connector End Views

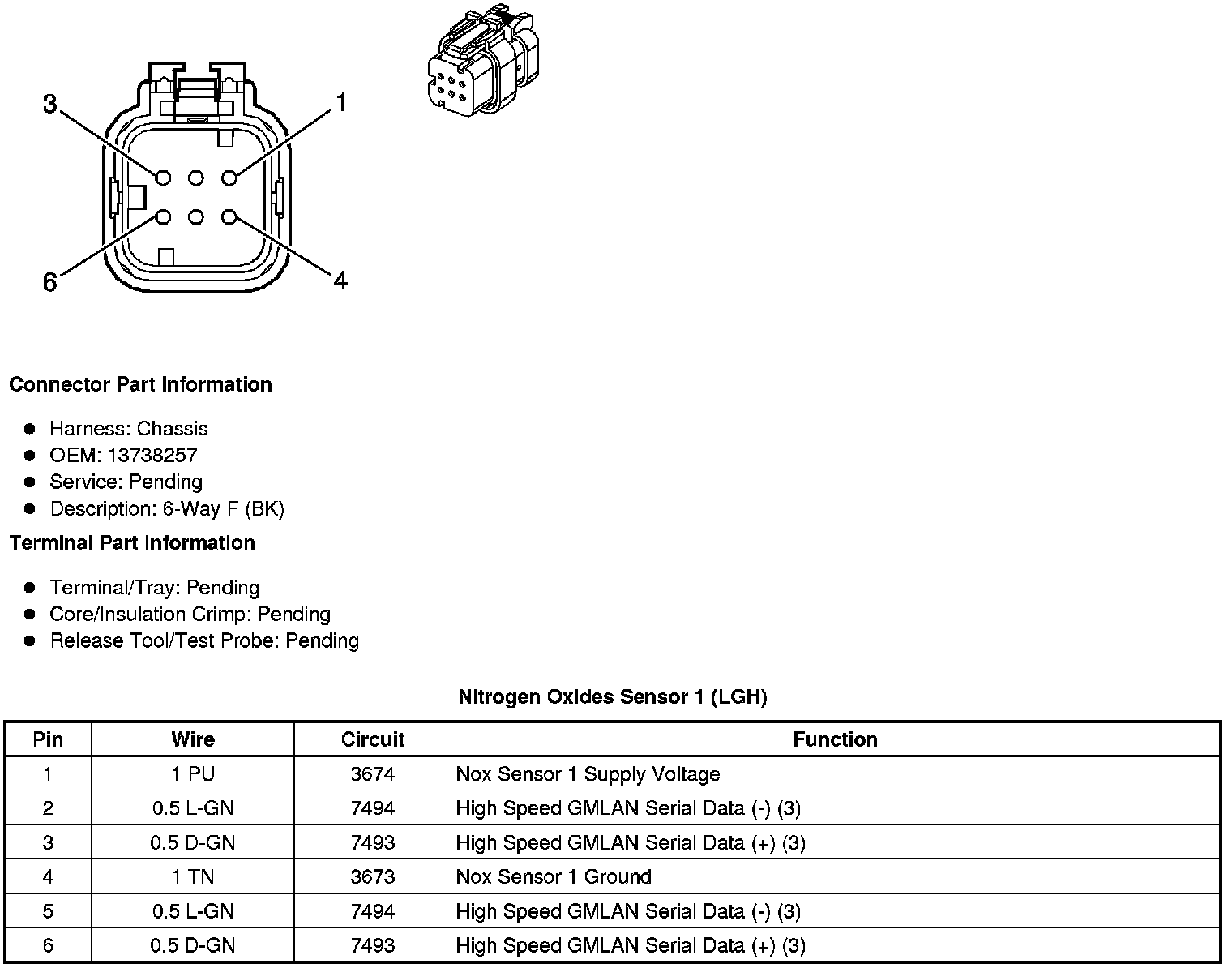

Nitrogen Oxides Sensor 1 (LGH)

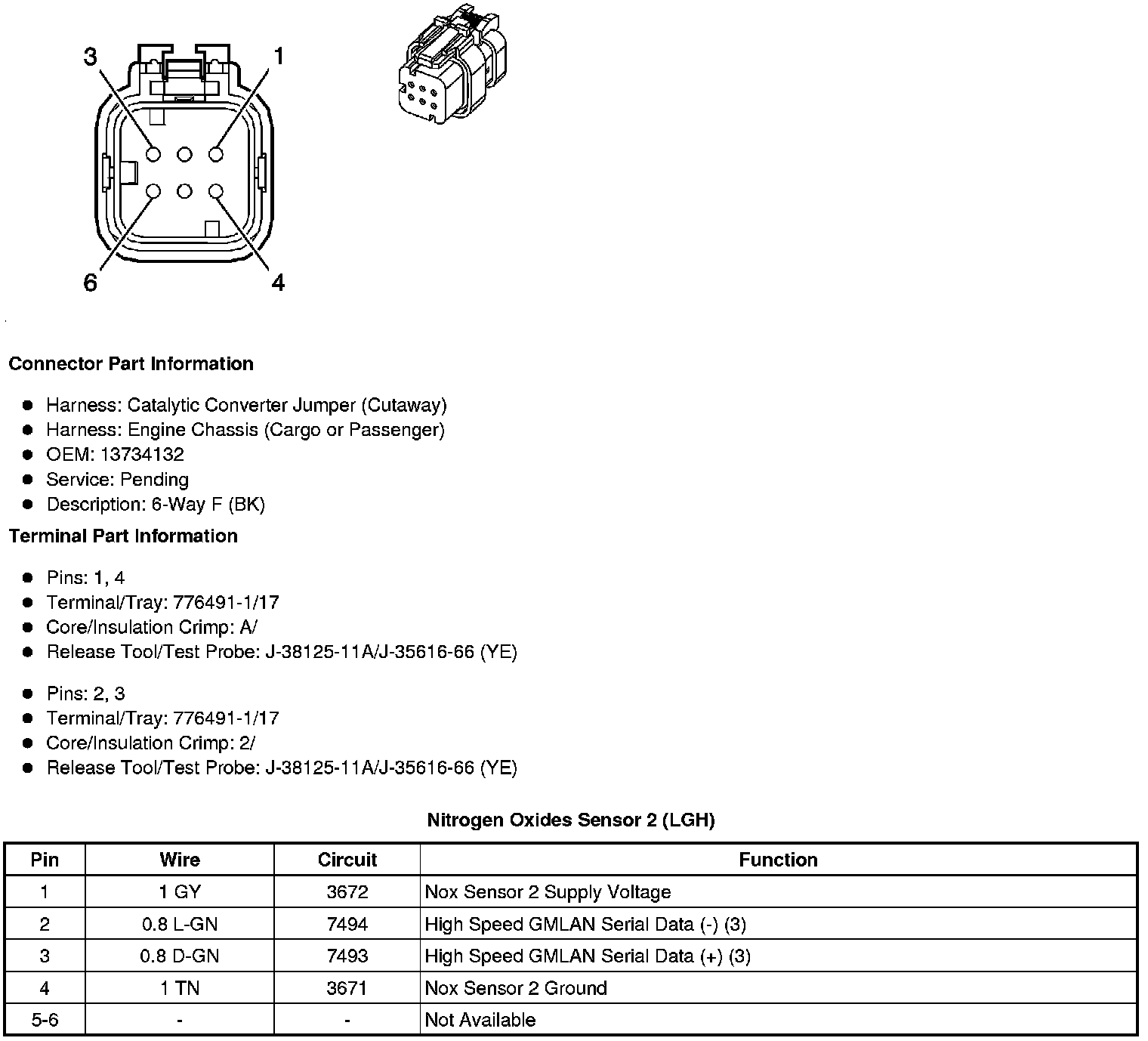

Nitrogen Oxides Sensor 2 (LGH)
