G110




Harness Routing Views

Left Front of Engine Harness Routing (LGH)




5 - G110




Ground Views

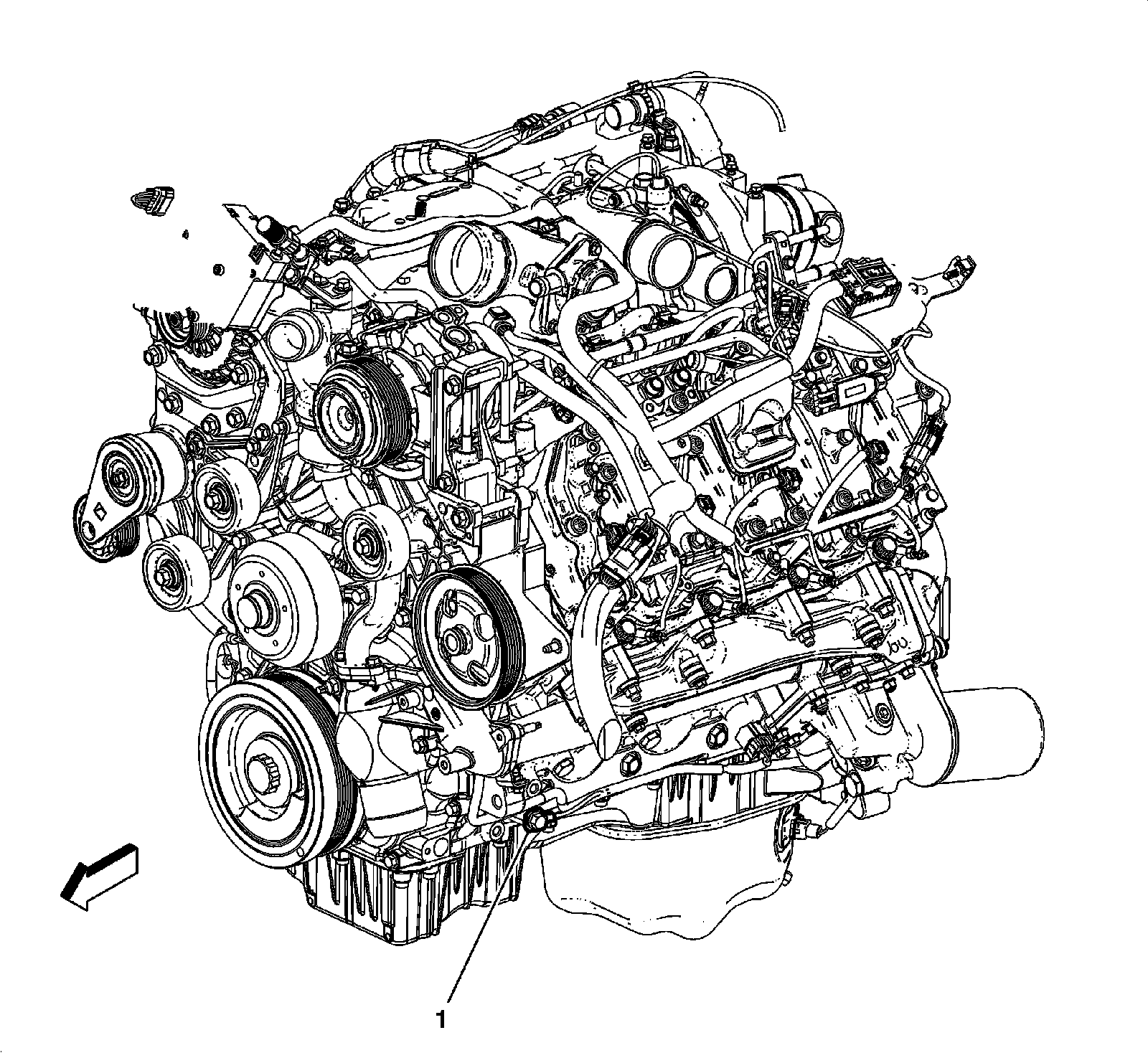

G110 (LGH)




1 - G110
