Headlights/Daytime Running Lights (DRL) Schematics
HEADLIGHTS/DAYTIME RUNNING LIGHTS (DRL) SCHEMATICS

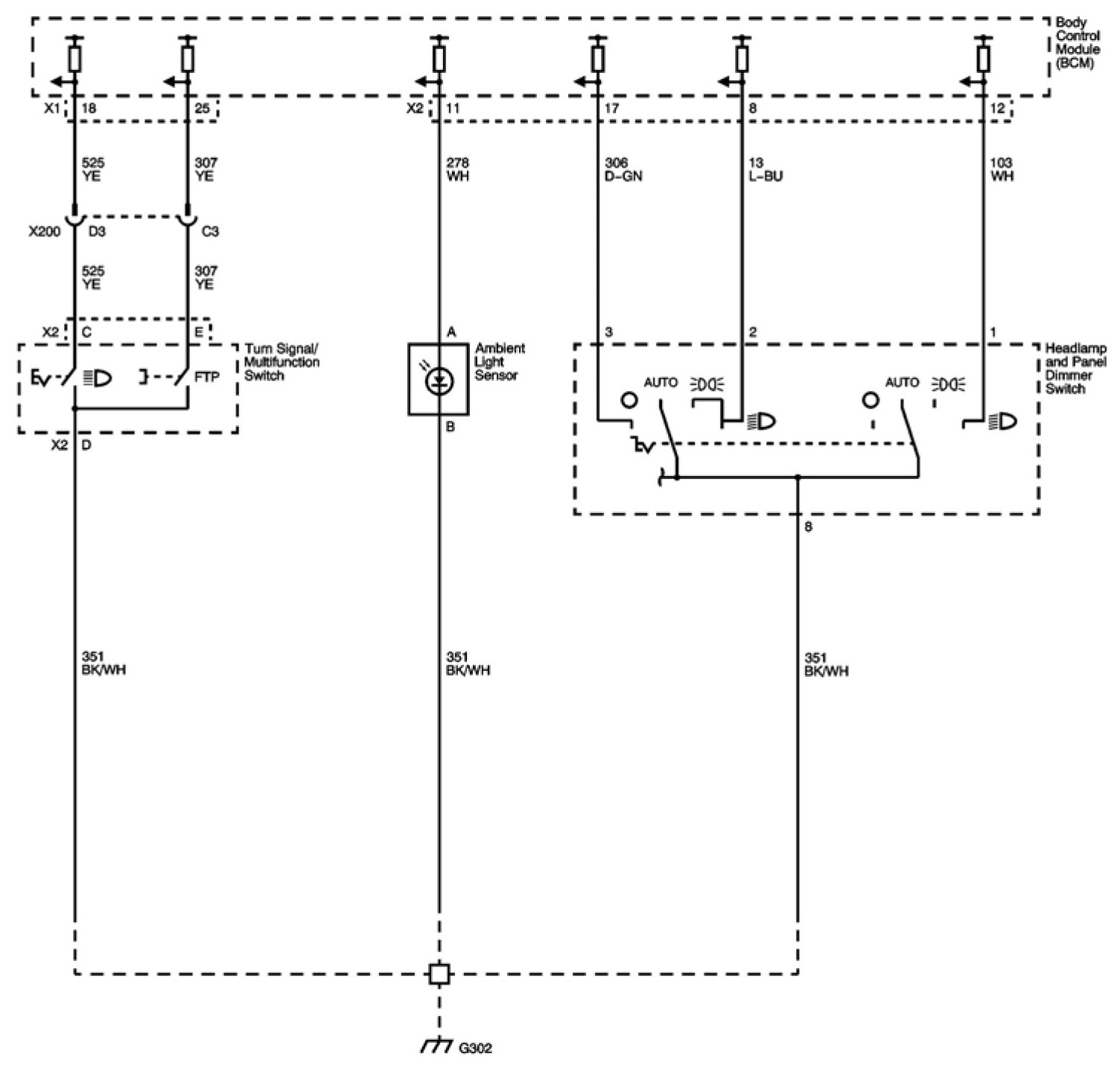

Headlamp and Daytime Running Lamp Controls
Low Beam and Daytime Running Lights (DRL)

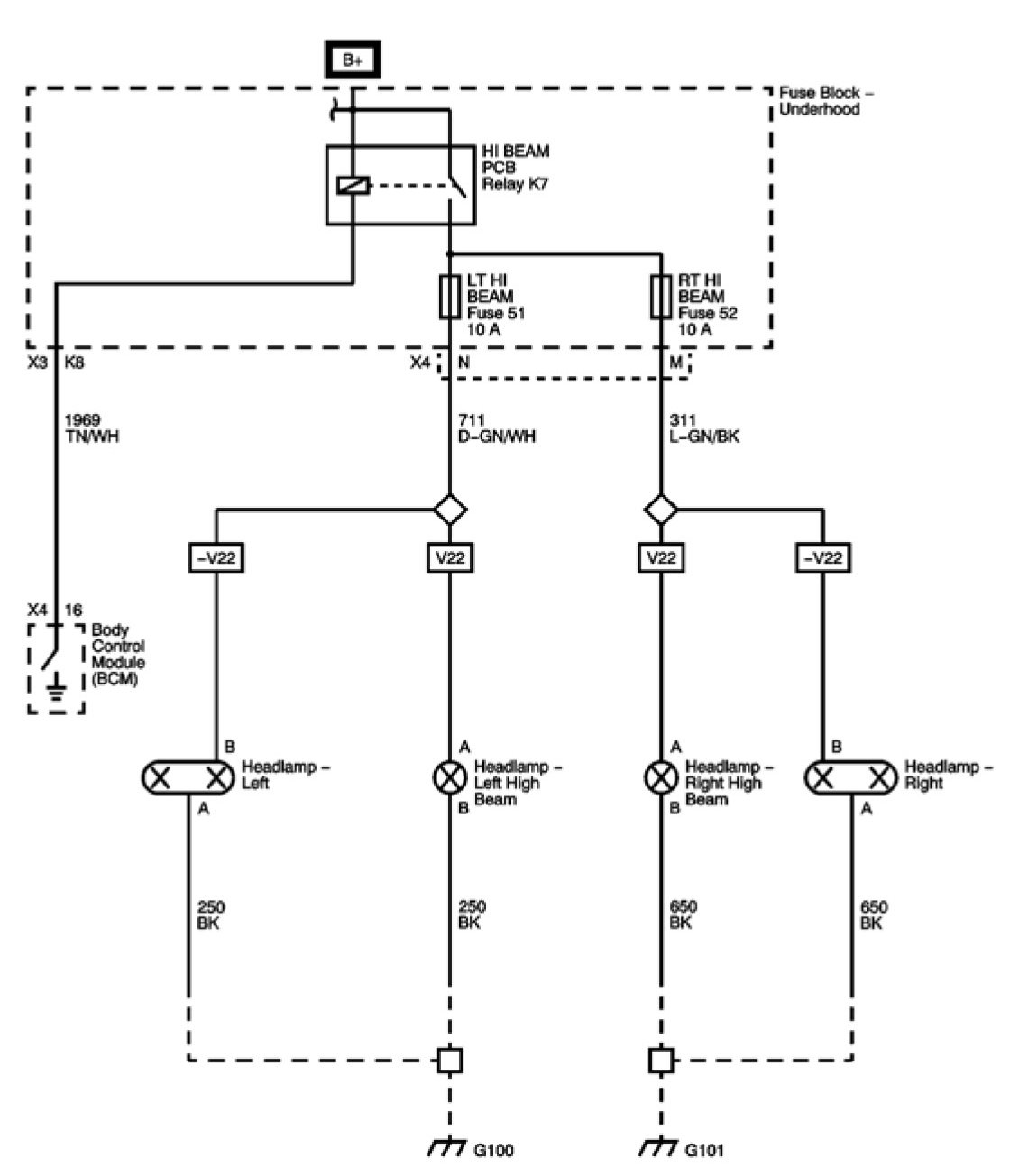

High Beams
HEADLIGHTS/DAYTIME RUNNING LIGHTS (DRL) SCHEMATICS
Headlamp and Daytime Running Lamp Controls
Low Beam and Daytime Running Lights (DRL)
High Beams
