Home >> Chevy Truck >> 2011 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram

System Diagram




Component Connector End Views

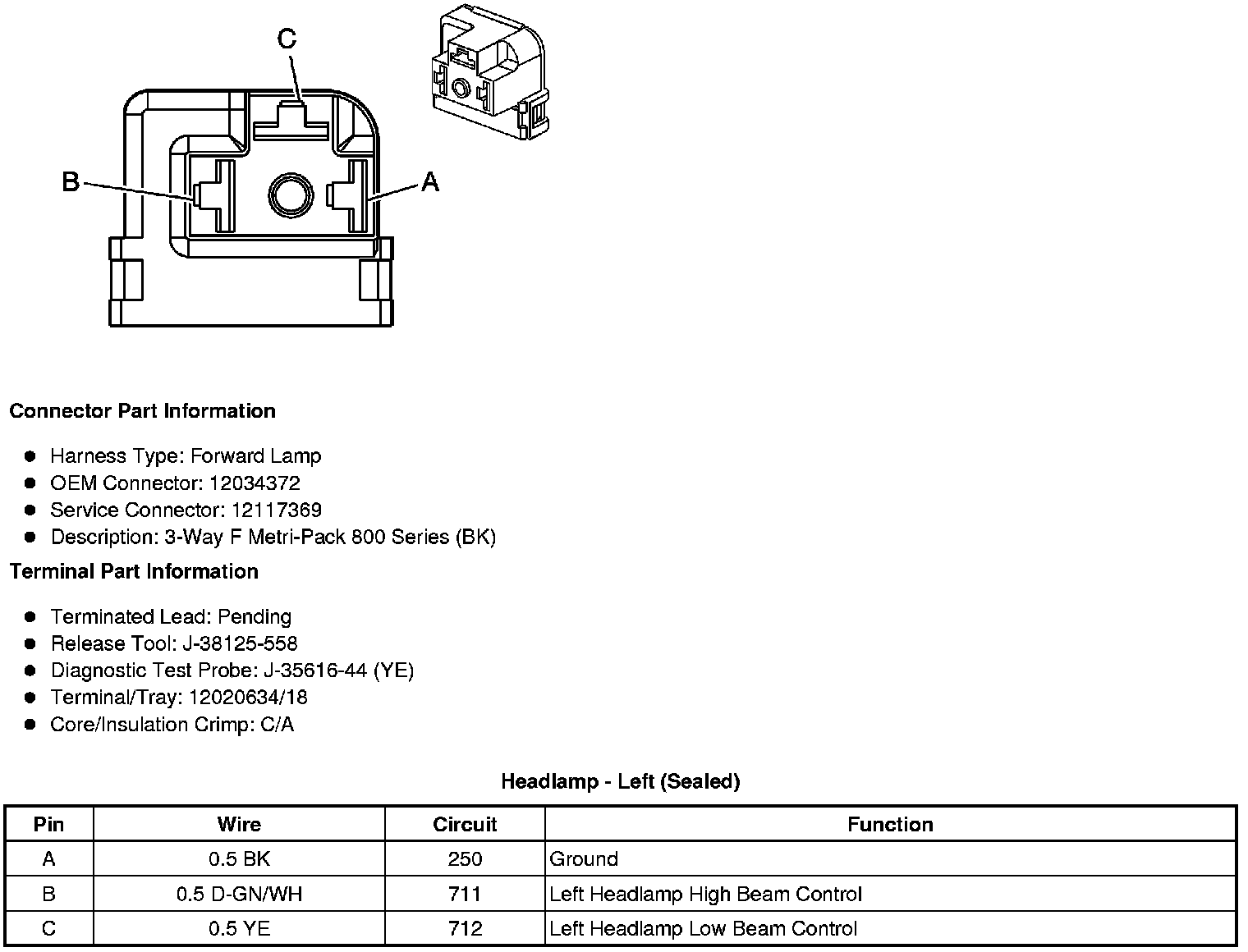

Headlamp - Left (Sealed)

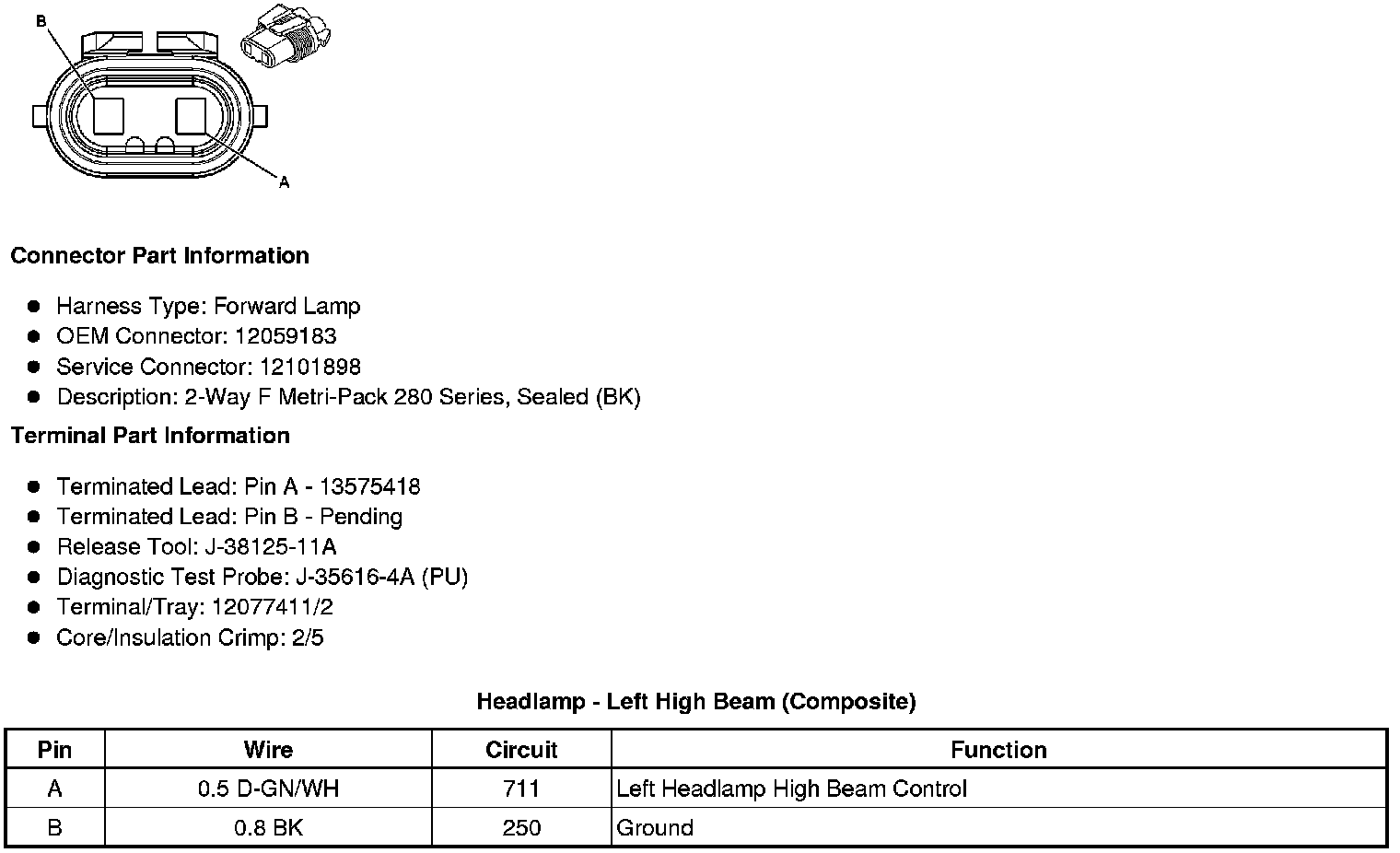

Headlamp - Left High Beam (Composite)

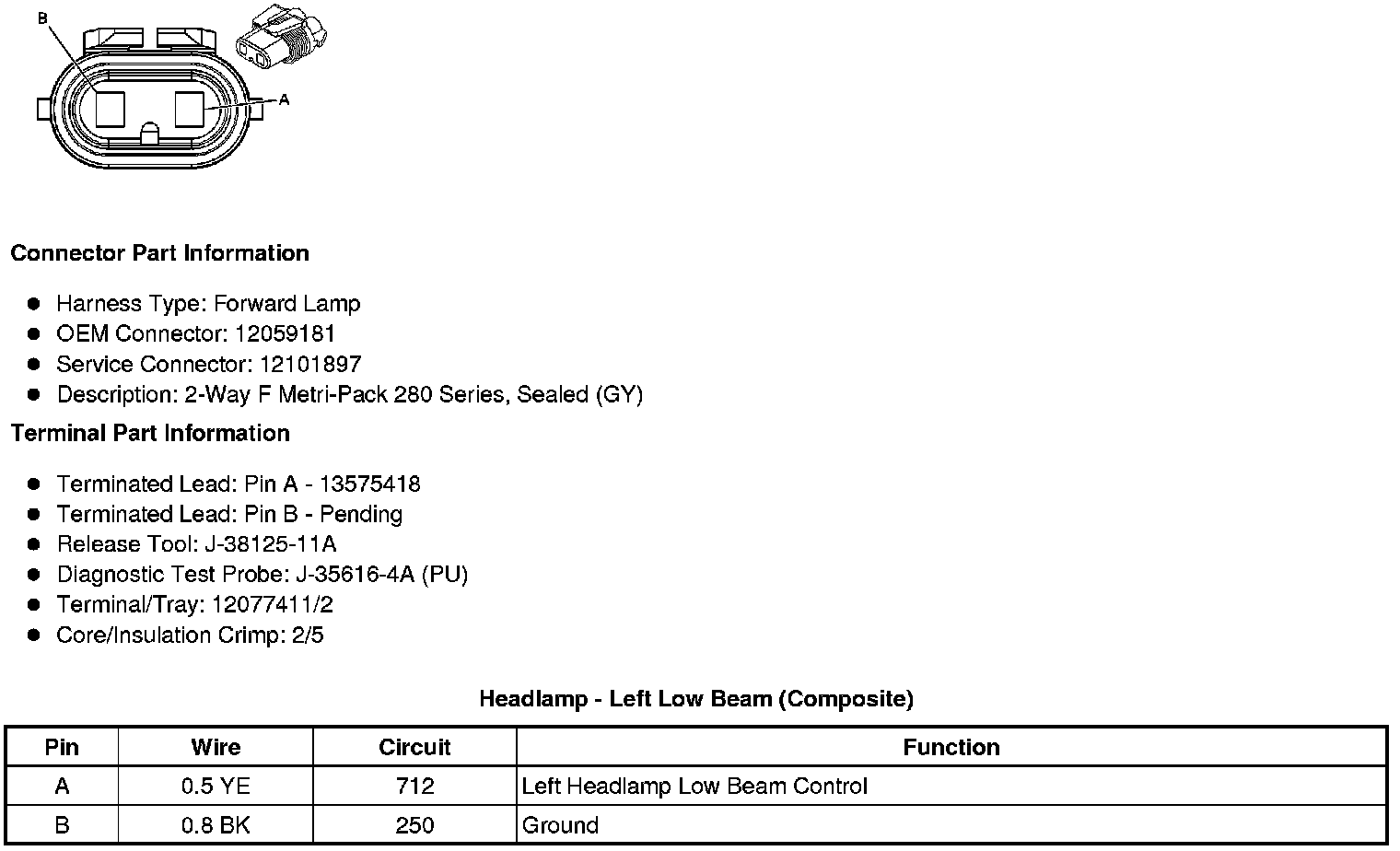

Headlamp - Left Low Beam (Composite)





Headlamp - Right (Sealed)

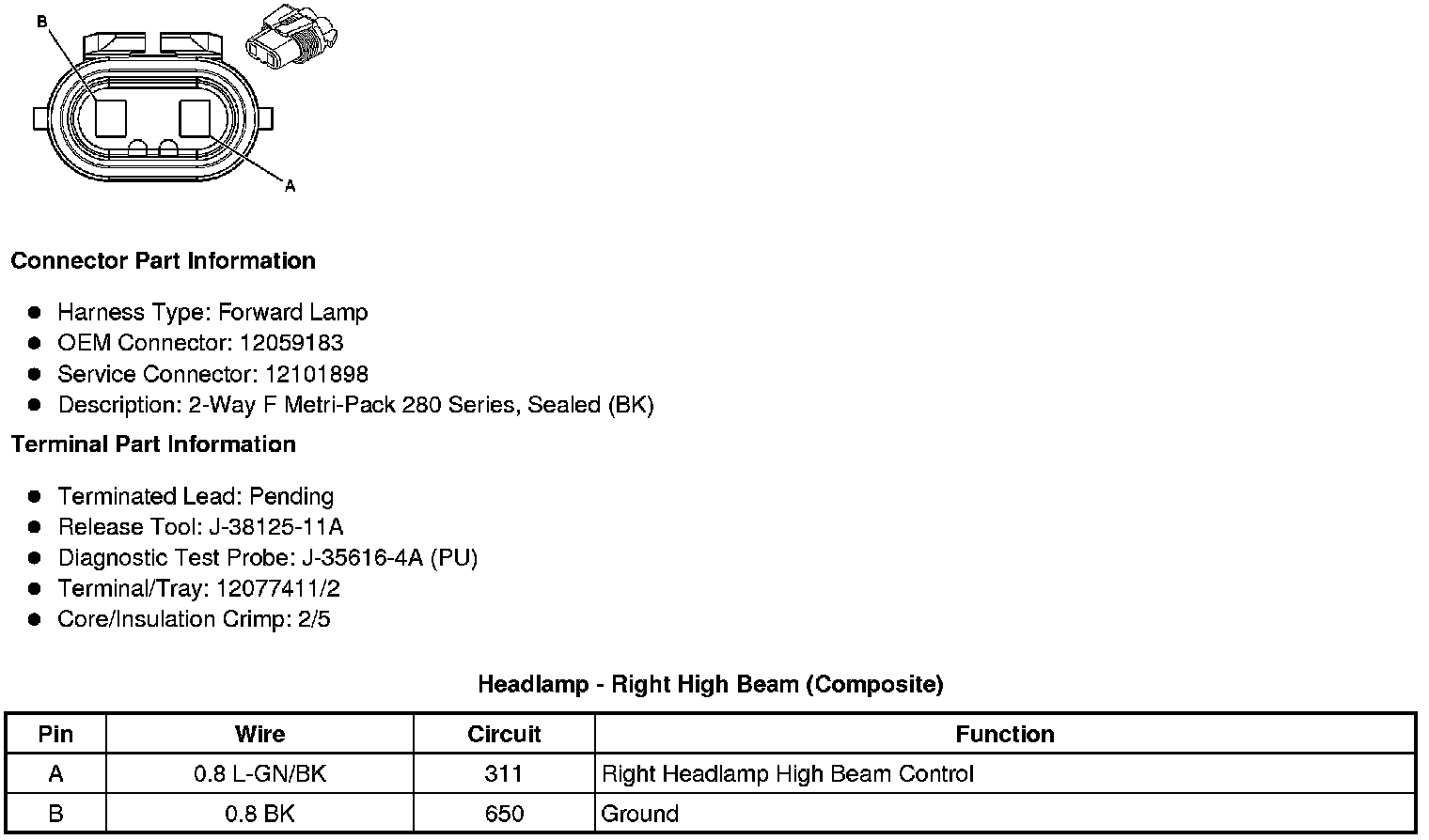

Headlamp - Right High Beam (Composite)

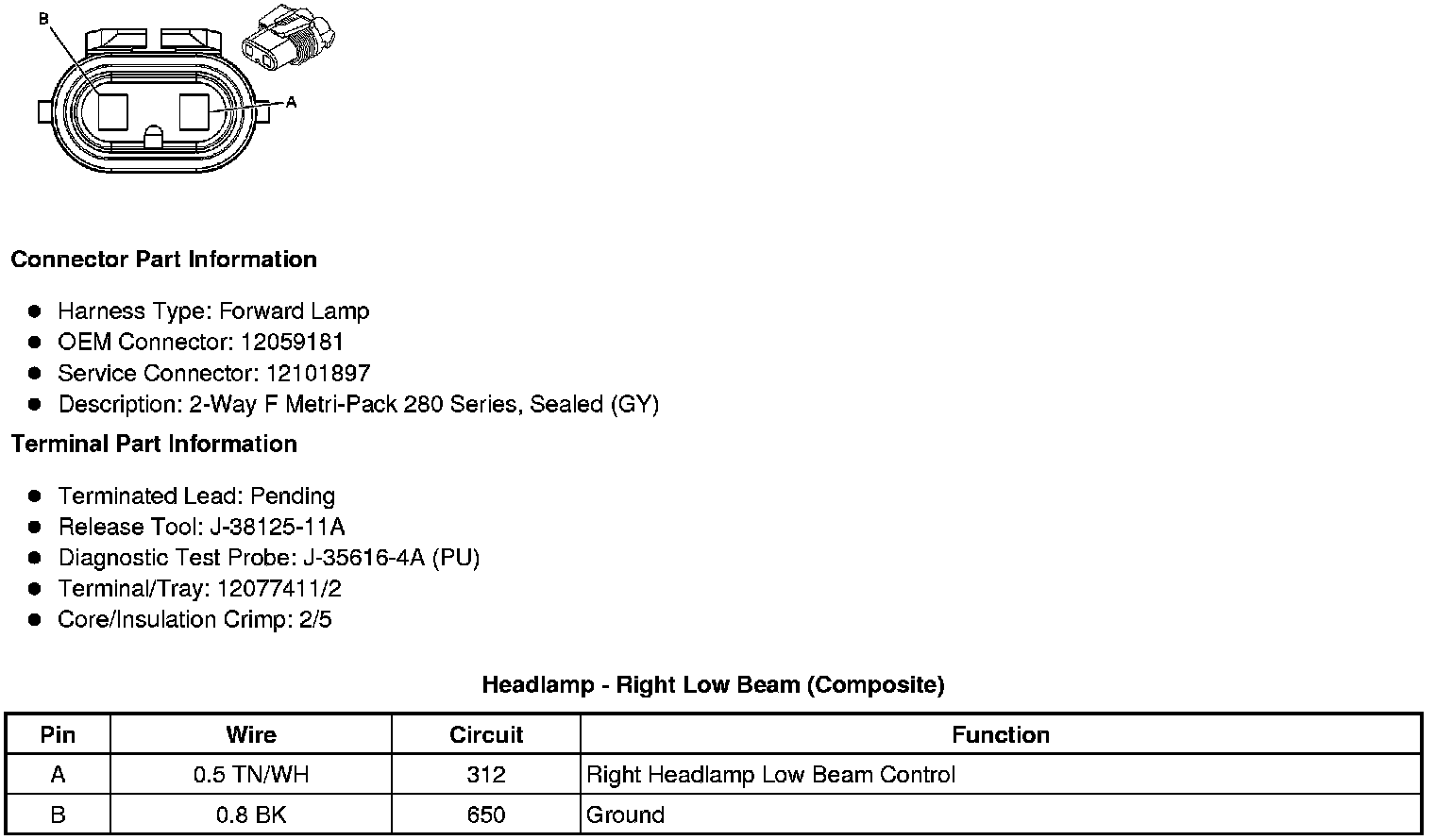

Headlamp - Right Low Beam (Composite)
