Front Bumper Fascia Air Deflector Replacement (Light Duty)

Front Bumper Fascia Air Deflector Replacement (Light Duty)


Removal Procedure

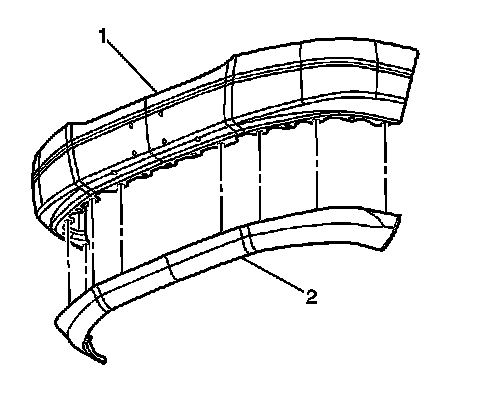

1.Using pliers, gently squeeze the retainer tabs to release the air deflector (2) from the front bumper (1).

2.Remove the air deflector (2) from the front bumper (1).

Installation Procedure





1.Install the air deflector (2) to the front bumper (1).

2.Install and fully seat the retainer tabs that retain the air deflector (2) to the front bumper (1).
