X297

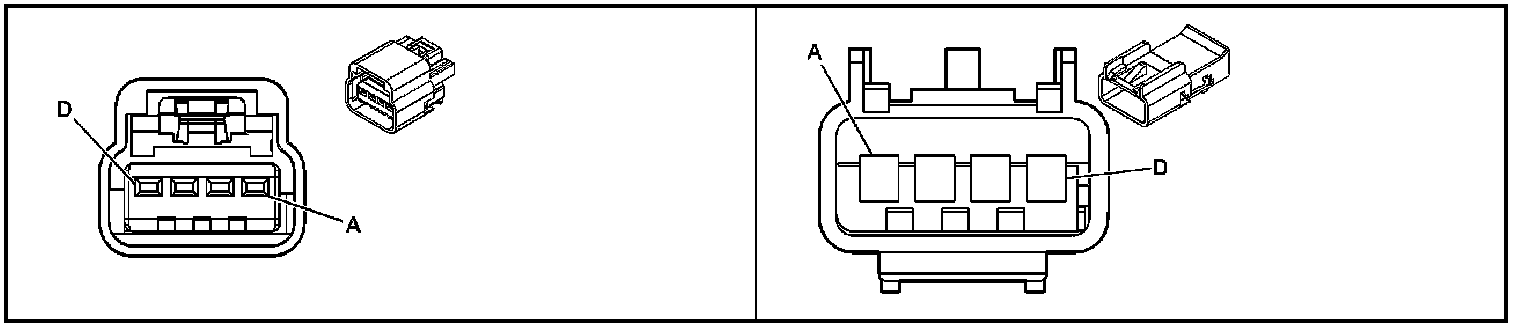

Inline Harness Connector End Views

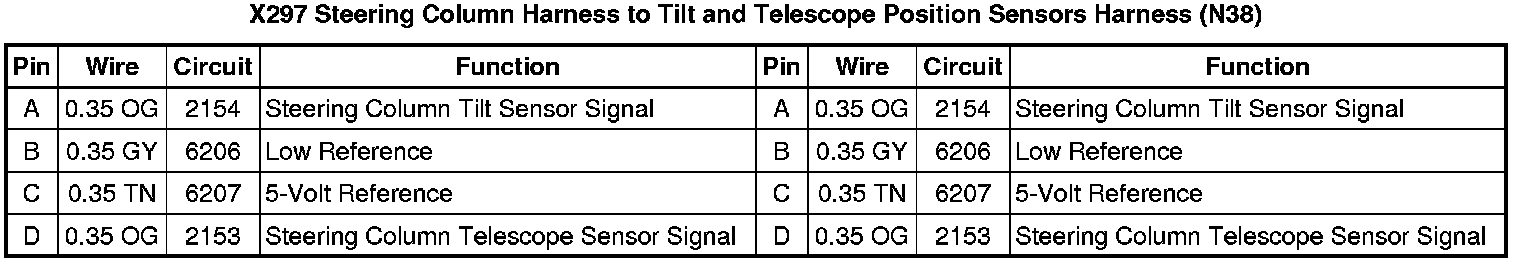

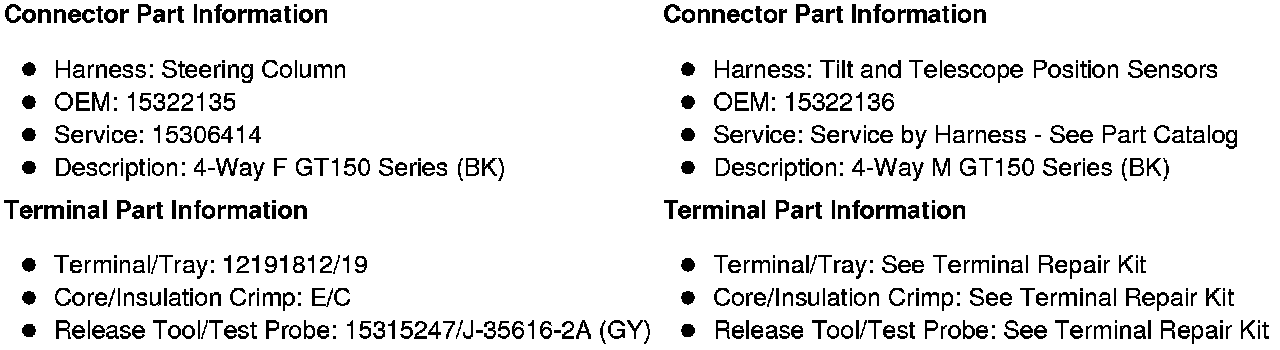

X297 Steering Column Harness to Tilt and Telescope Position Sensors Harness (N38)
