Parking Assist Distance Sensor: Locations

Luggage Compartment/Rear of Vehicle Component Views

Rear of the Vehicle (W49)




1 - Radio Antenna
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Rear Window Defogger Grid
4 - Backup Lamp - Right
5 - Tail Lamp - Right
6 - Side Marker Lamp - Right Rear
7 - Tail/Stop and Turn Signal Lamp - Right
8 - Rearview Camera (UVC)
9 - Object Alarm Sensor - Right Rear Corner (UD7)
10 - Object Alarm Sensor - Right Rear Middle (UD7)
11 - Trailer Connector (V92)
12 - License Lamp - Left and License Lamp - Right
13 - Object Alarm Sensor - Left Rear Middle (UD7)
14 - Object Alarm Sensor - Left Rear Corner (UD7)
15 - Tail/Stop and Turn Signal Lamp - Left
16 - Side Marker Lamp - Left Rear
17 - Tail Lamp - Left
18 - Backup Lamp - Left

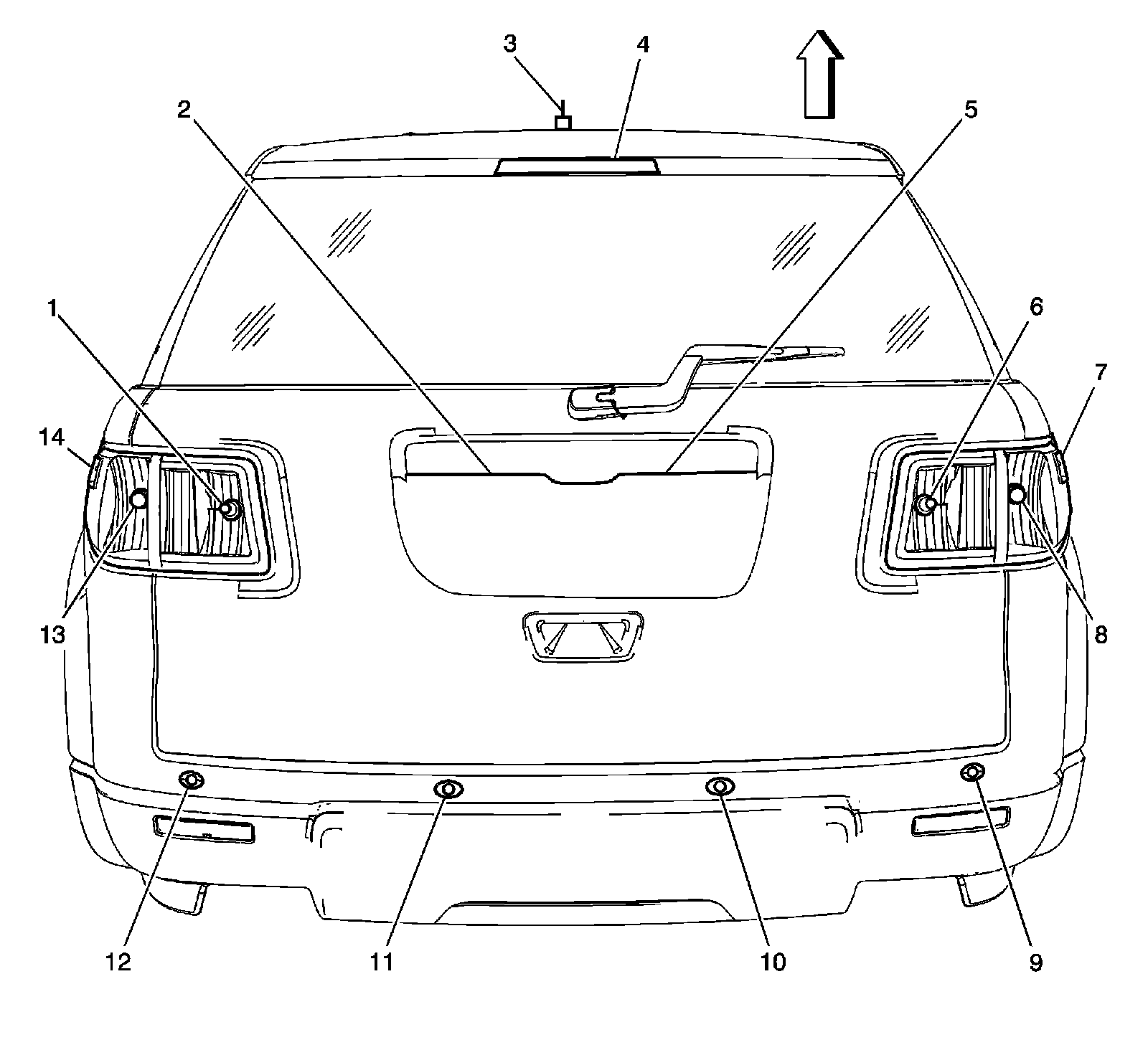

Rear of the Vehicle (WDA)




1 - Backup Lamp - Left
2 - License Lamp - Left
3 - Radio Antenna
4 - Center High Mounted Stop Lamp (CHMSL)
5 - License Lamp - Right
6 - Backup Lamp - Right
7 - Side Marker Lamp - Right Rear
8 - Tail/Stop and Turn Signal Lamp - Right
9 - Object Alarm Sensor - Right Rear Corner (UD7)
10 - Object Alarm Sensor - Right Rear Middle (UD7)
11 - Object Alarm Sensor - Left Rear Middle (UD7)
12 - Object Alarm Sensor - Left Rear Corner (UD7)
13 - Tail/Stop and Turn Signal Lamp - Left
14 - Side Marker Lamp - Left Rear

Rear of the Vehicle (X88)




1 - Side Marker Lamp - Left Rear
2 - Tail/Stop and Turn Signal Lamp - Left
3 - Backup Lamp - Left
4 - Center High Mounted Stop Lamp (CHMSL)
5 - Radio Antenna
6 - Backup Lamp - Right
7 - Tail/Stop and Turn Signal Lamp - Right
8 - Side Marker Lamp - Right Rear
9 - Object Alarm Sensor - Right Rear Corner (UD7)
10 - Object Alarm Sensor - Right Rear Middle (UD7)
11 - License Lamp - Right
12 - License Lamp - Left
13 - Object Alarm Sensor - Left Rear Middle (UD7)
14 - Object Alarm Sensor - Left Rear Corner (UD7)
15 - Rear Window Defogger Grid

Rear of the Vehicle - Z88




1 - Center High Mounted Stop Lamp (CHMSL)
2 - Radio Antenna
3 - Rear Window Defogger Grid
4 - Back Up Lamp - Right
5 - Tail Lamp - Right
6 - Side Marker Lamp - Right Rear
7 - Tail Lamp Assembly - Right
8 - Tail Lamp - Inner Right
9 - Object Alarm Sensor - Right Rear Corner (UD7)
10 - Object Alarm Sensor - Right Rear Middle (UD7)
11 - License Lamp - Left and License Lamp - Right
12 - Object Alarm Sensor - Left Rear Middle (UD7)
13 - Object Alarm Sensor - Left Rear Corner (UD7)
14 - Tail Lamp - Inner Left
15 - Tail Lamp - Left
16 - Side Marker Lamp - Left Rear
17 - Tail Lamp Assembly - Left
18 - Back Up Lamp - Left
