Connector Views




Component Connector End Views

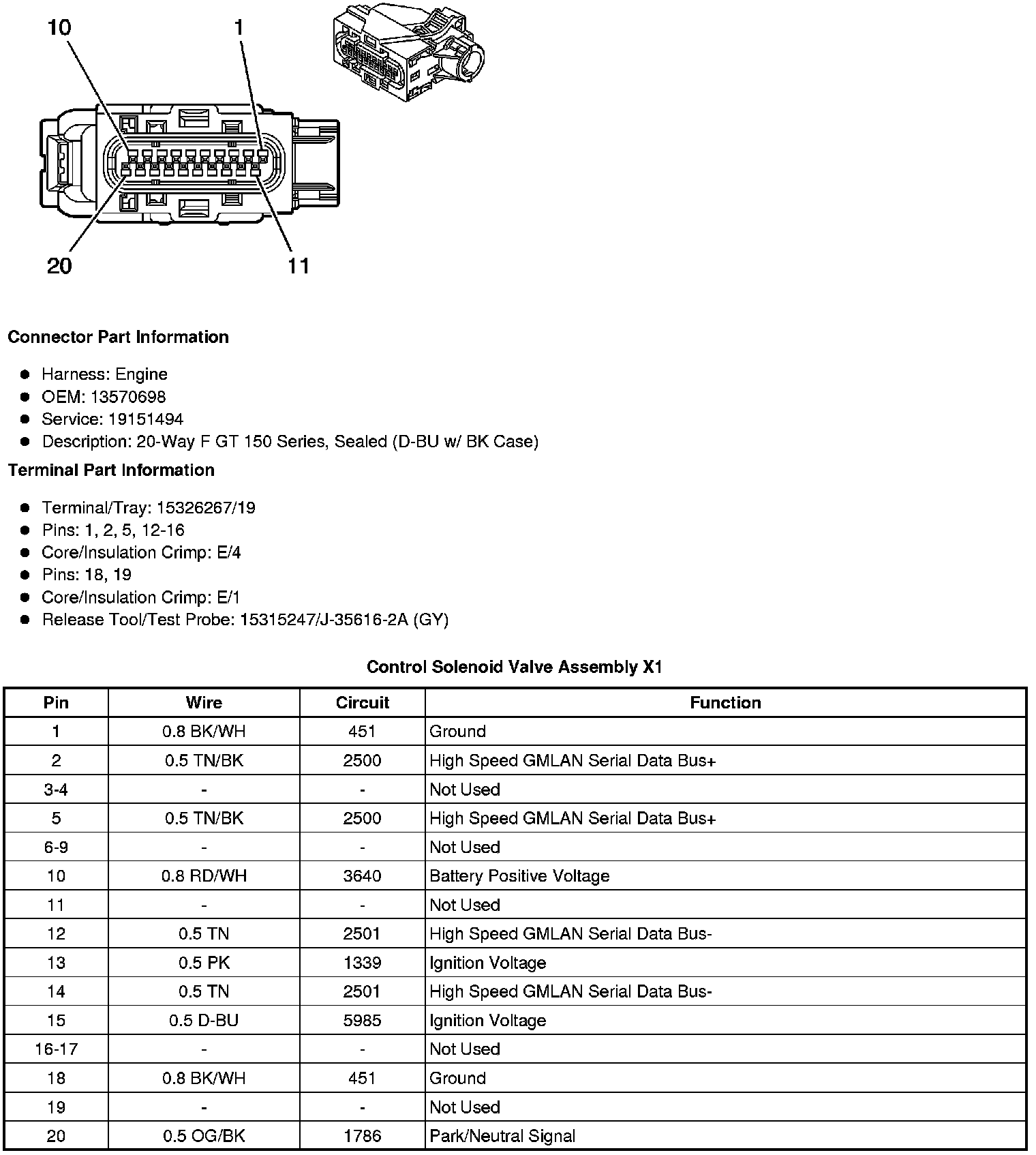

Control Solenoid Valve Assembly X1

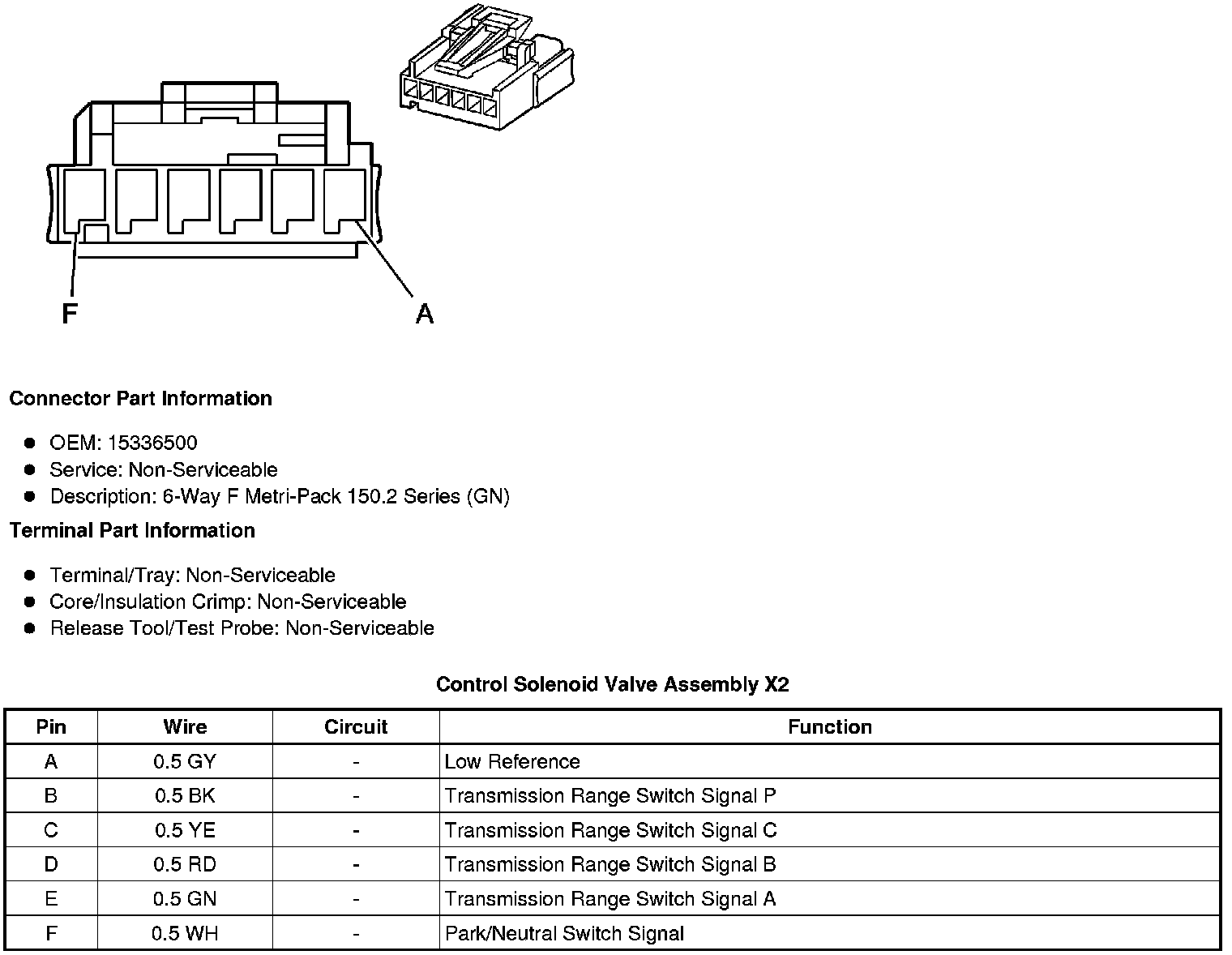

Control Solenoid Valve Assembly X2

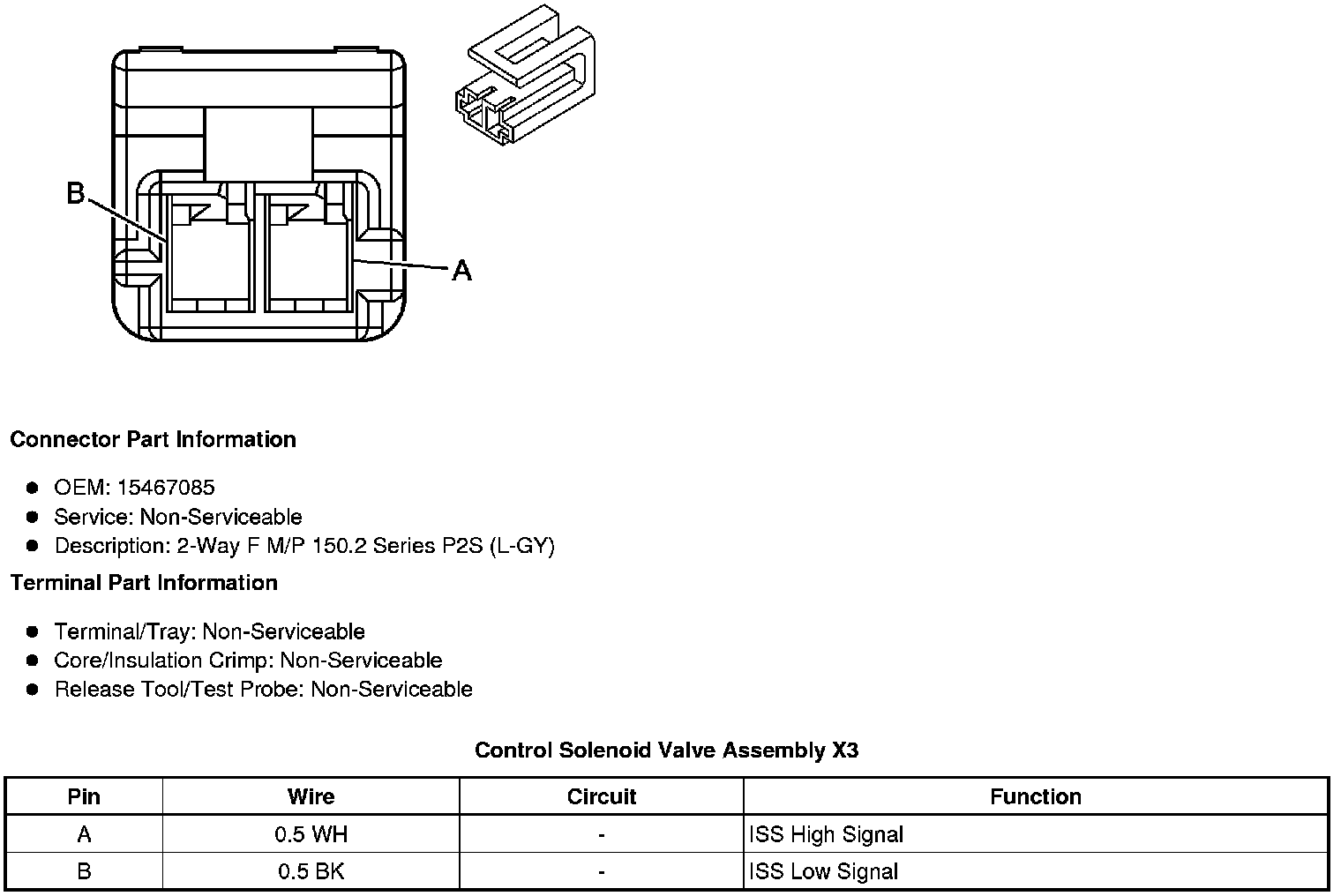

Control Solenoid Valve Assembly X3

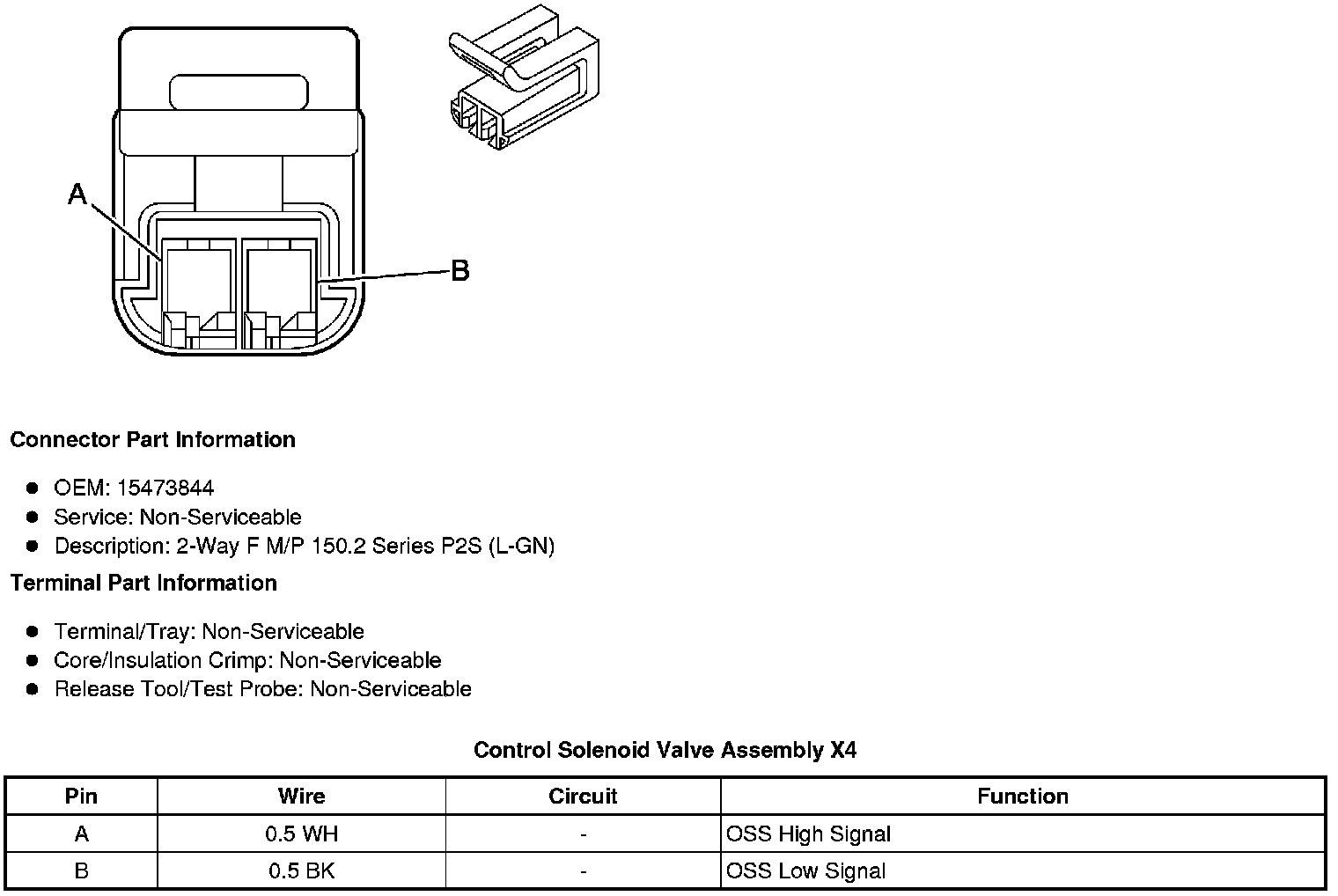

Control Solenoid Valve Assembly X4
