Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1

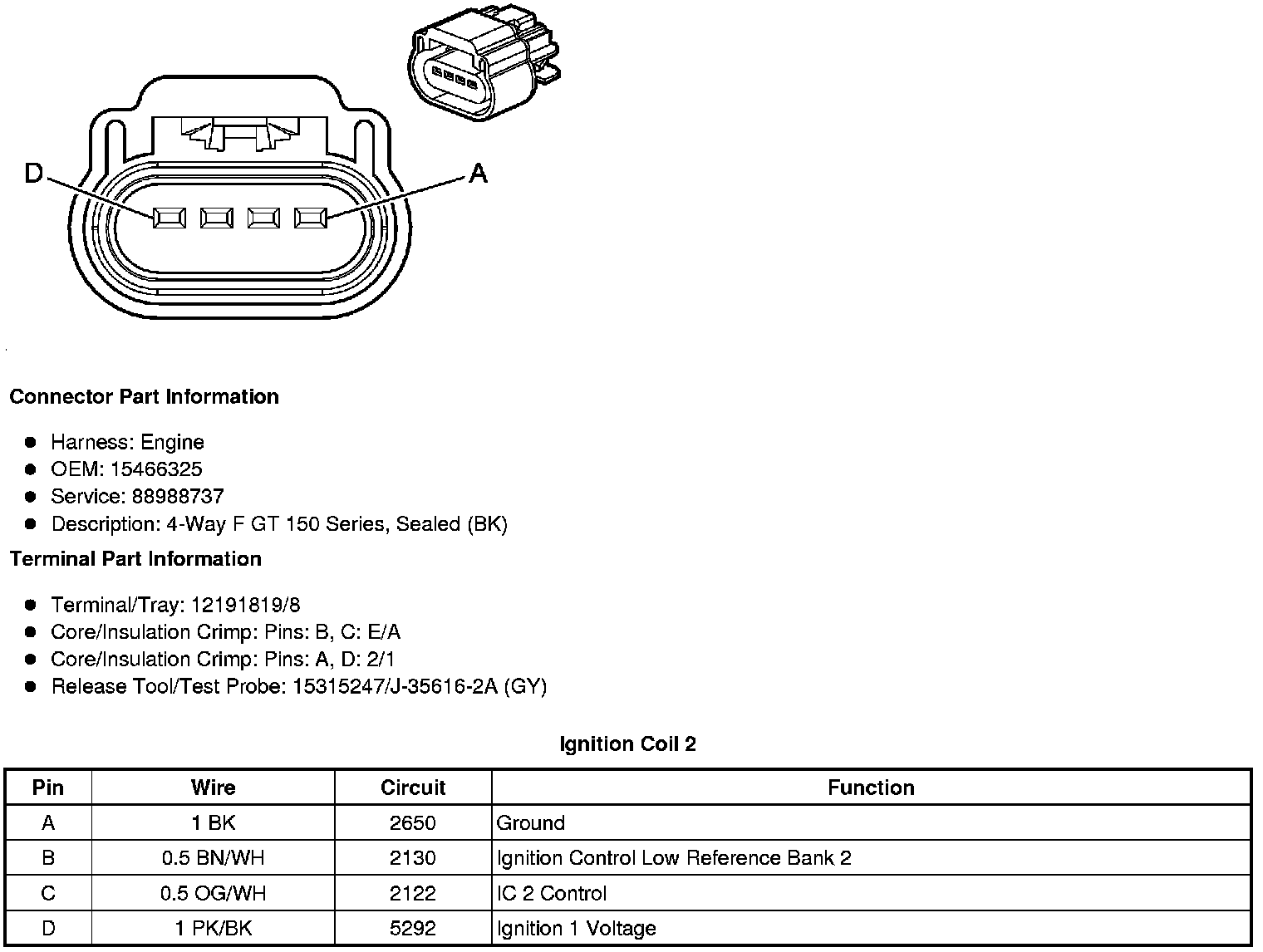

Ignition Coil 2






Ignition Coil 3






Ignition Coil 4






Ignition Coil 5






Ignition Coil 6
