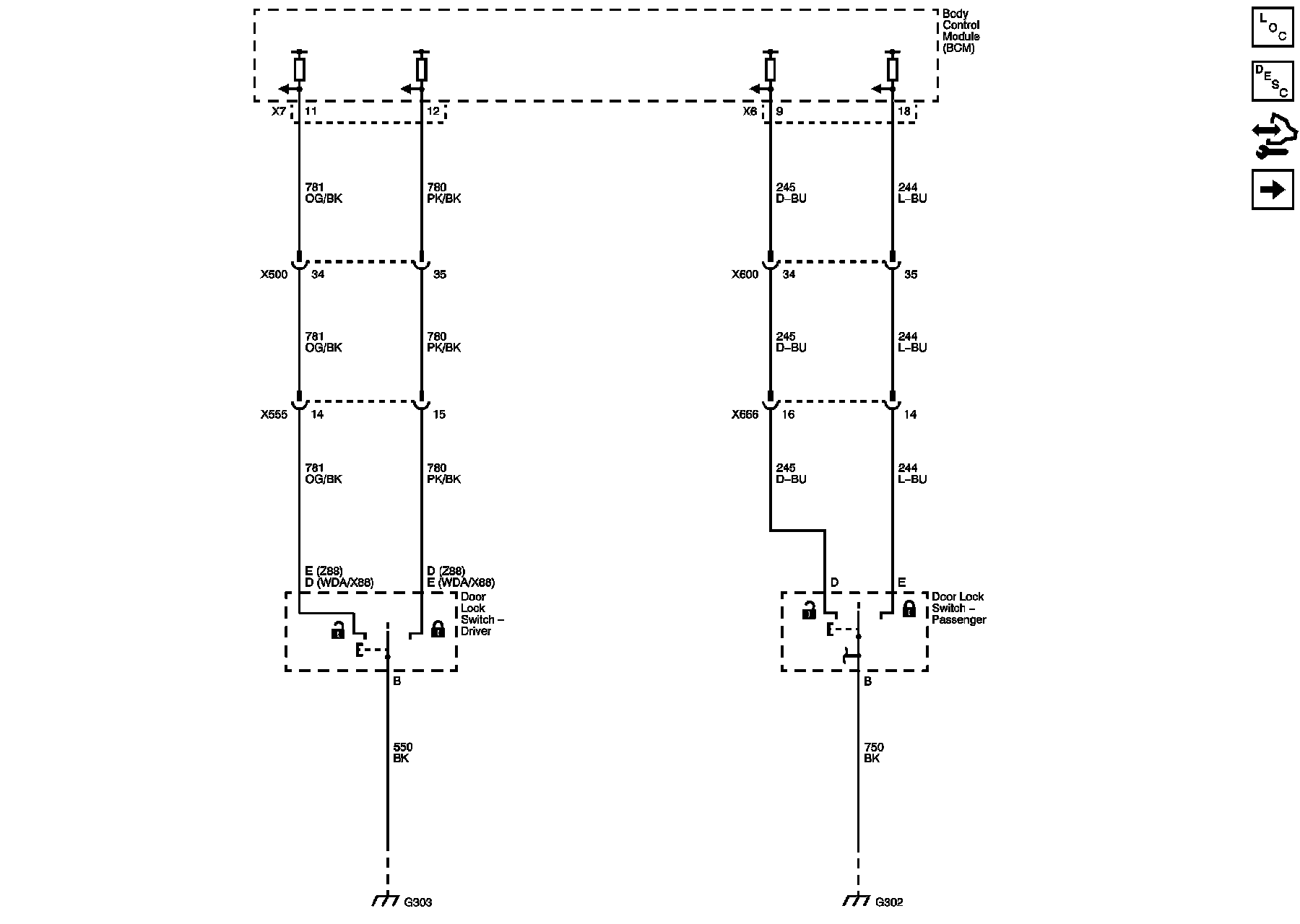

Door Lock/Indicator Schematics (except AXE)

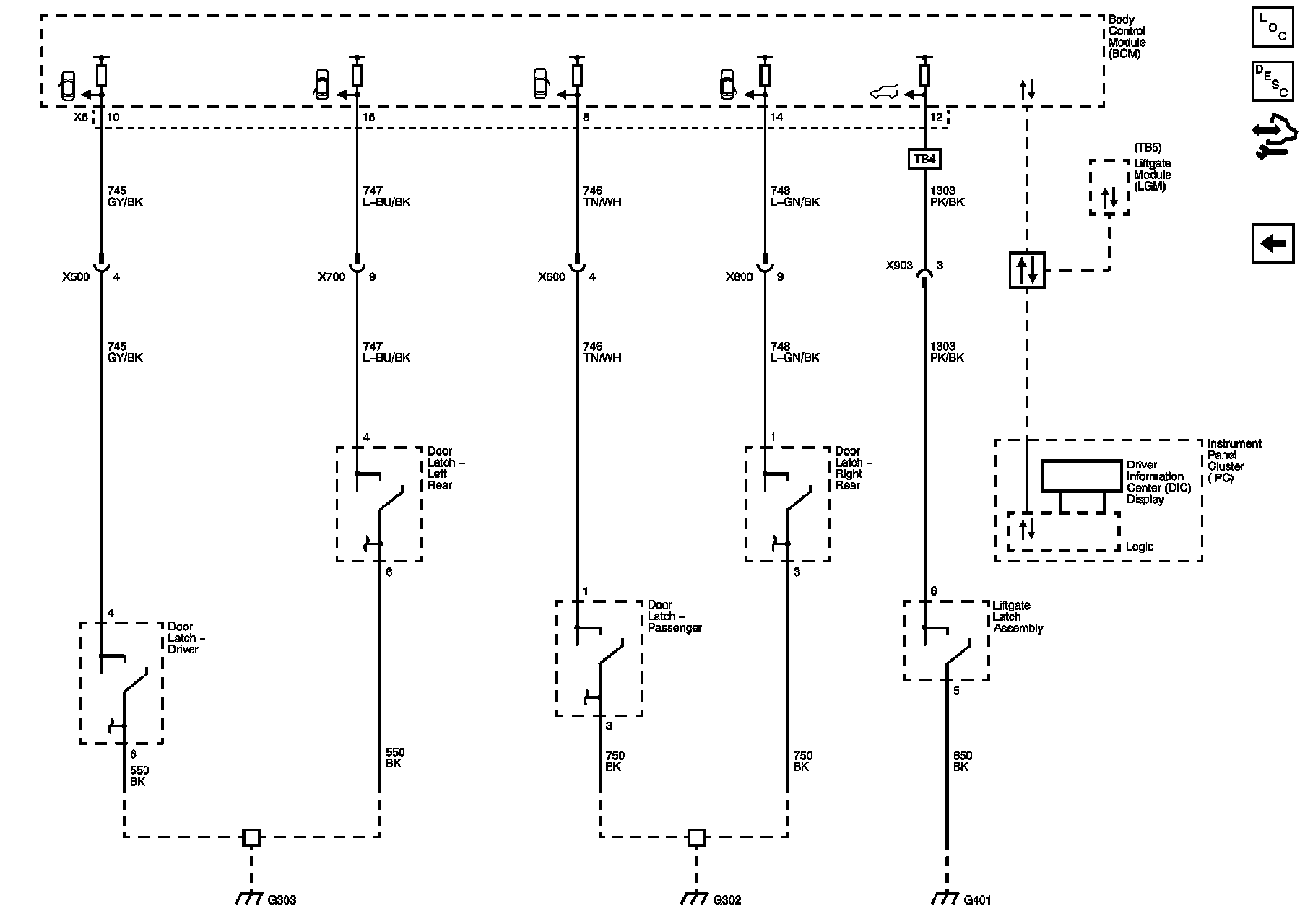

Door Lock/Indicator Schematics (except AXE)

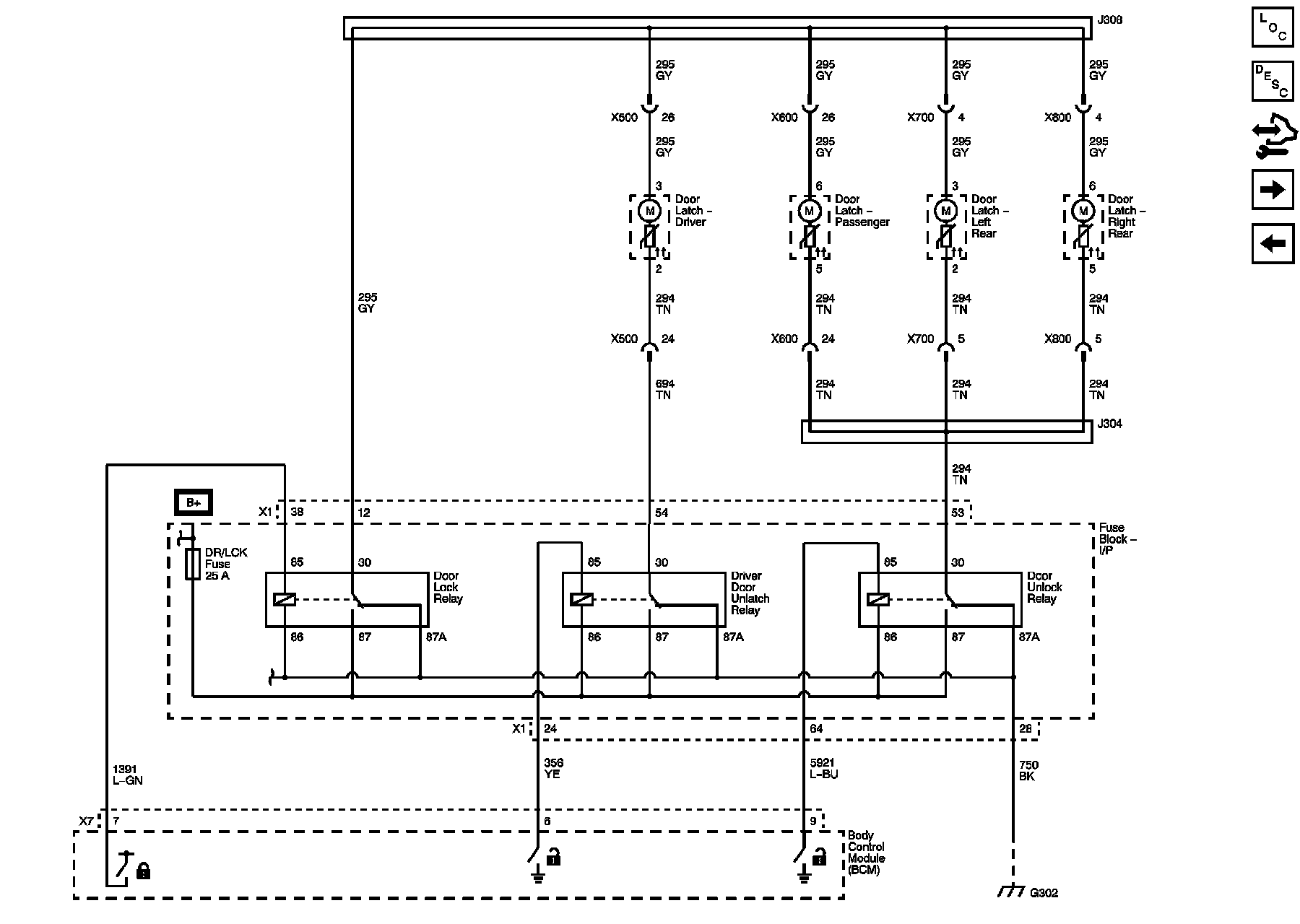

Door Lock/Indicator Schematics (except AXE)
