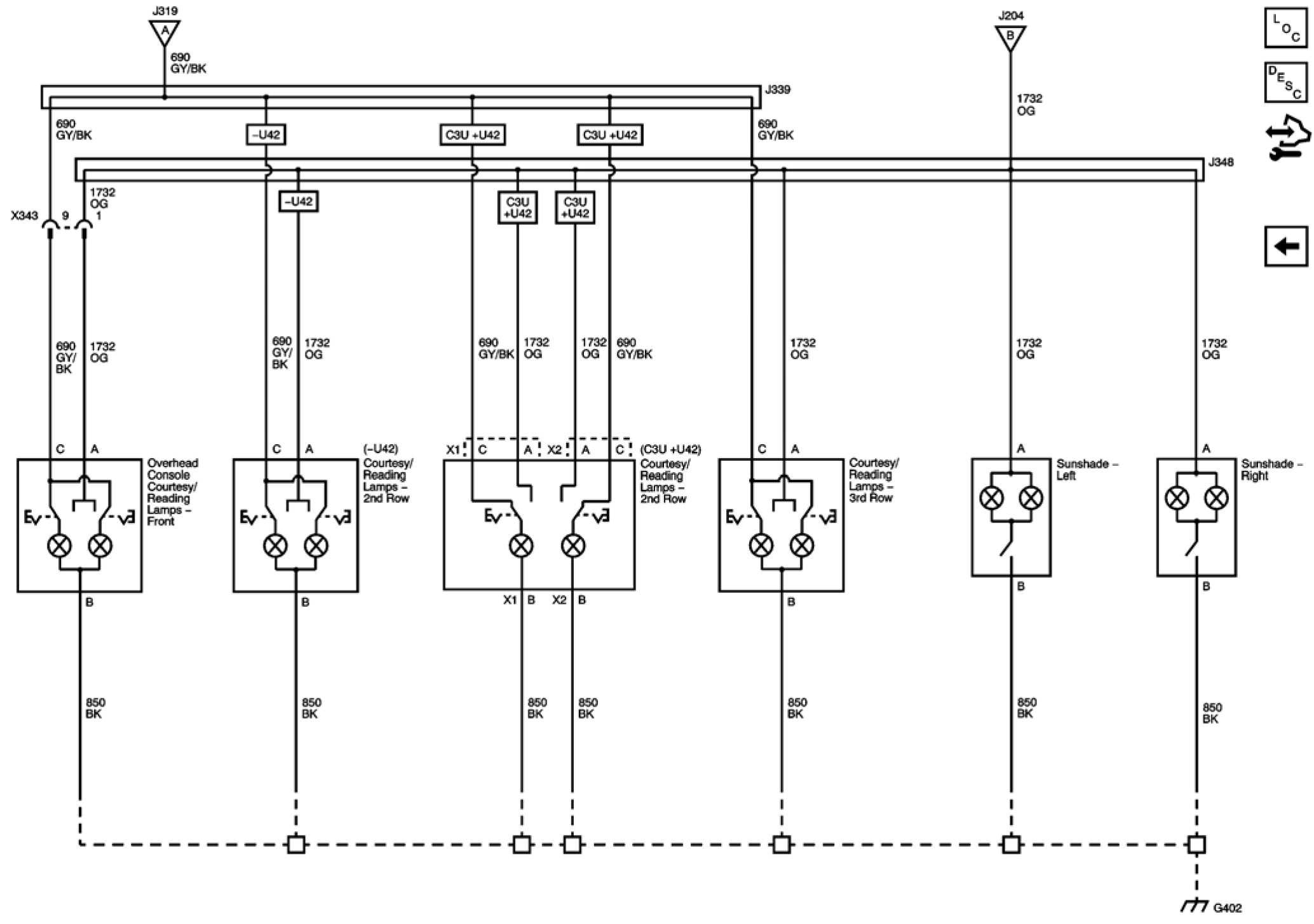

Interior Lights Schematics




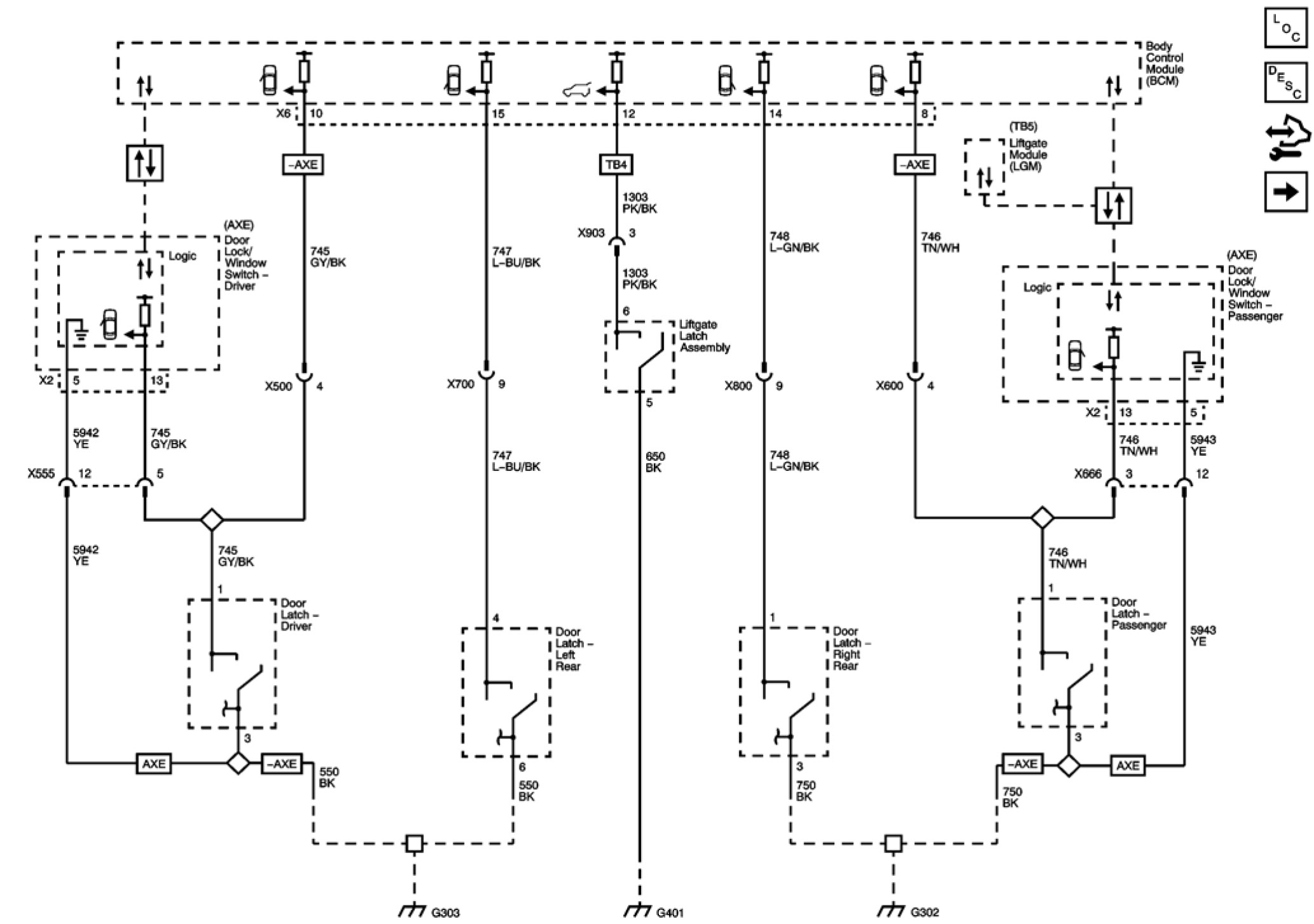

Door Switches

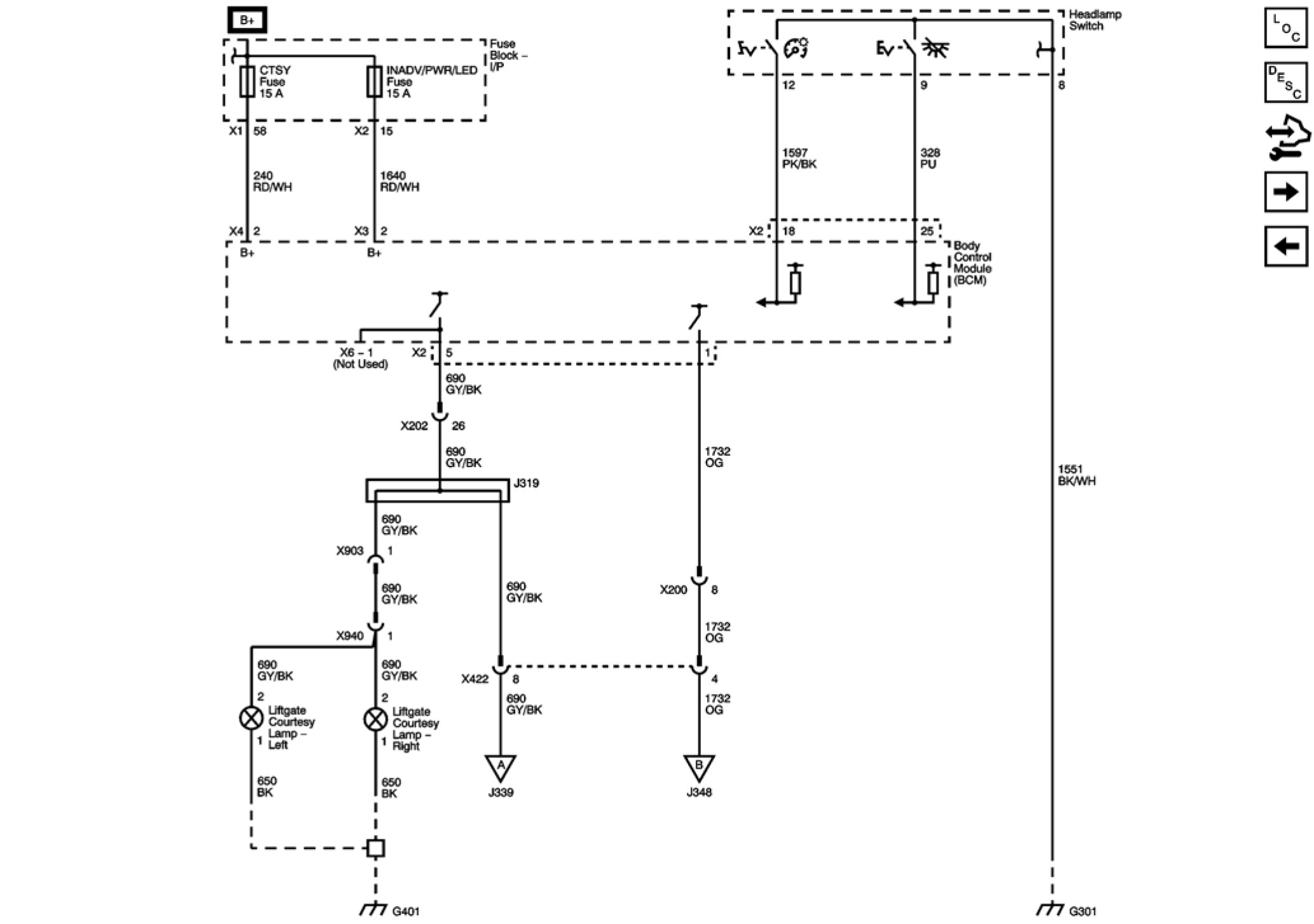

Headlamp Switch and Power, and Liftgate Lamps





Roof
