Interior Lights Dimming Schematics

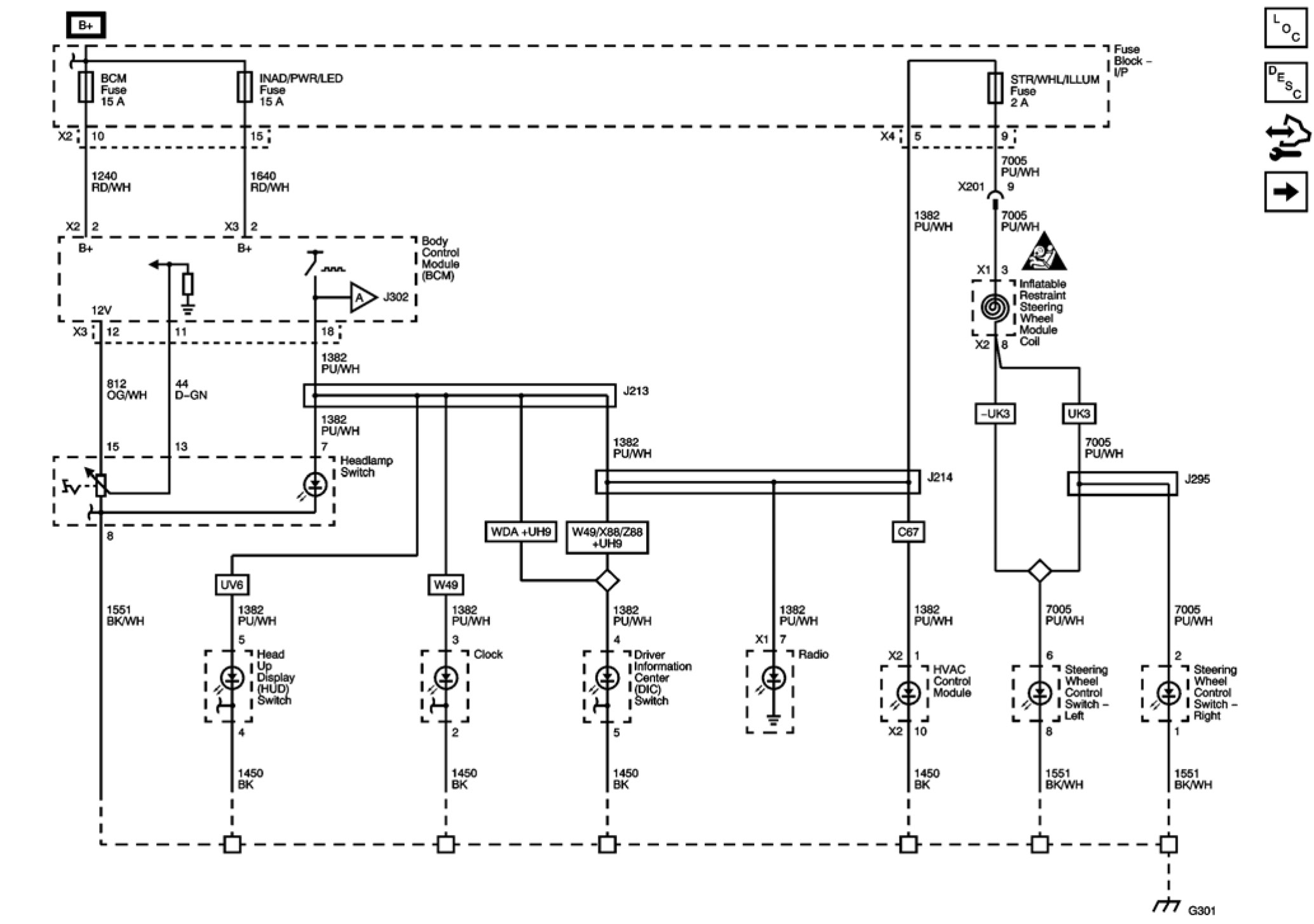

Controls, I/P, and Steering Wheel LEDs

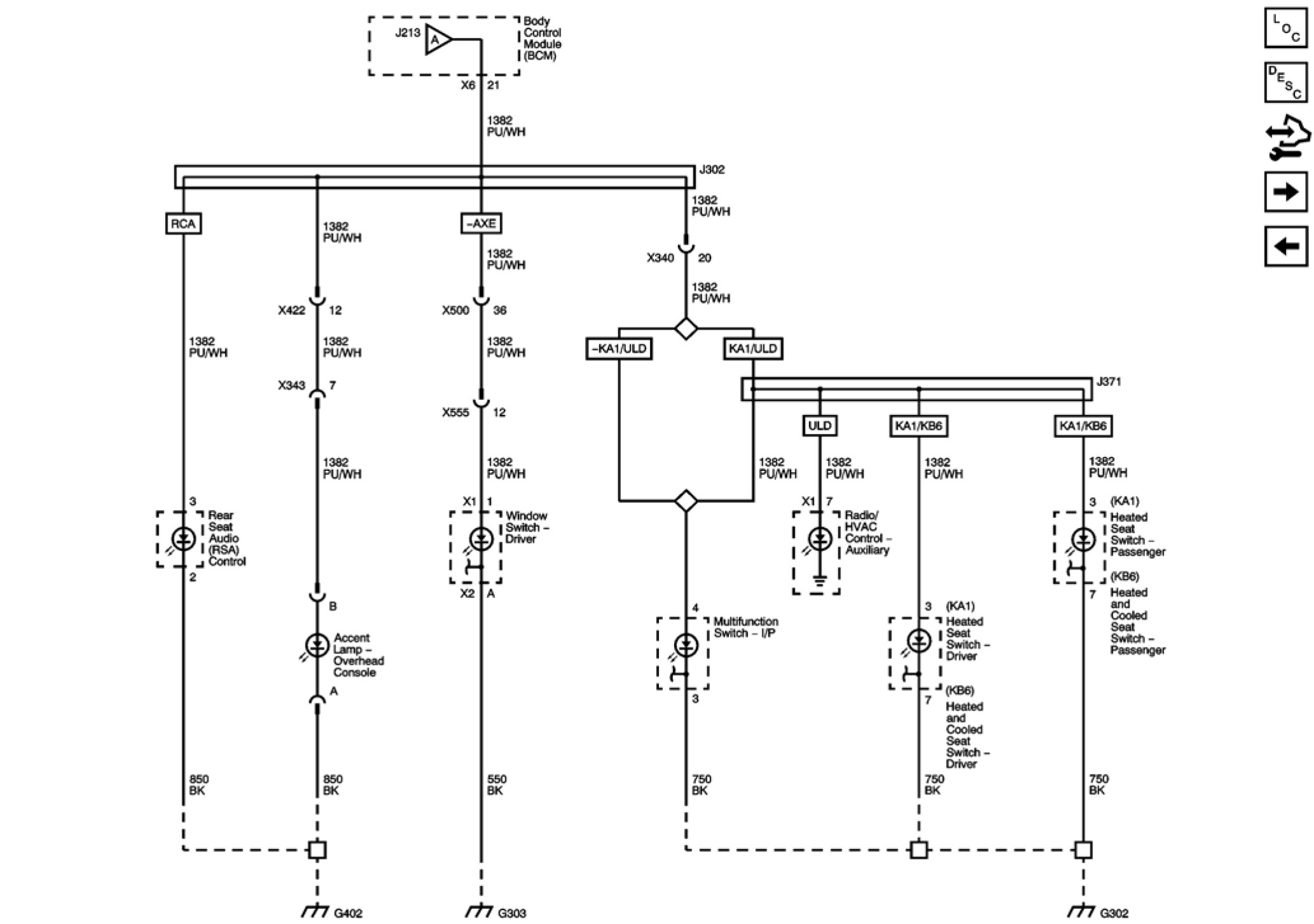

Console and Driver Door LEDs

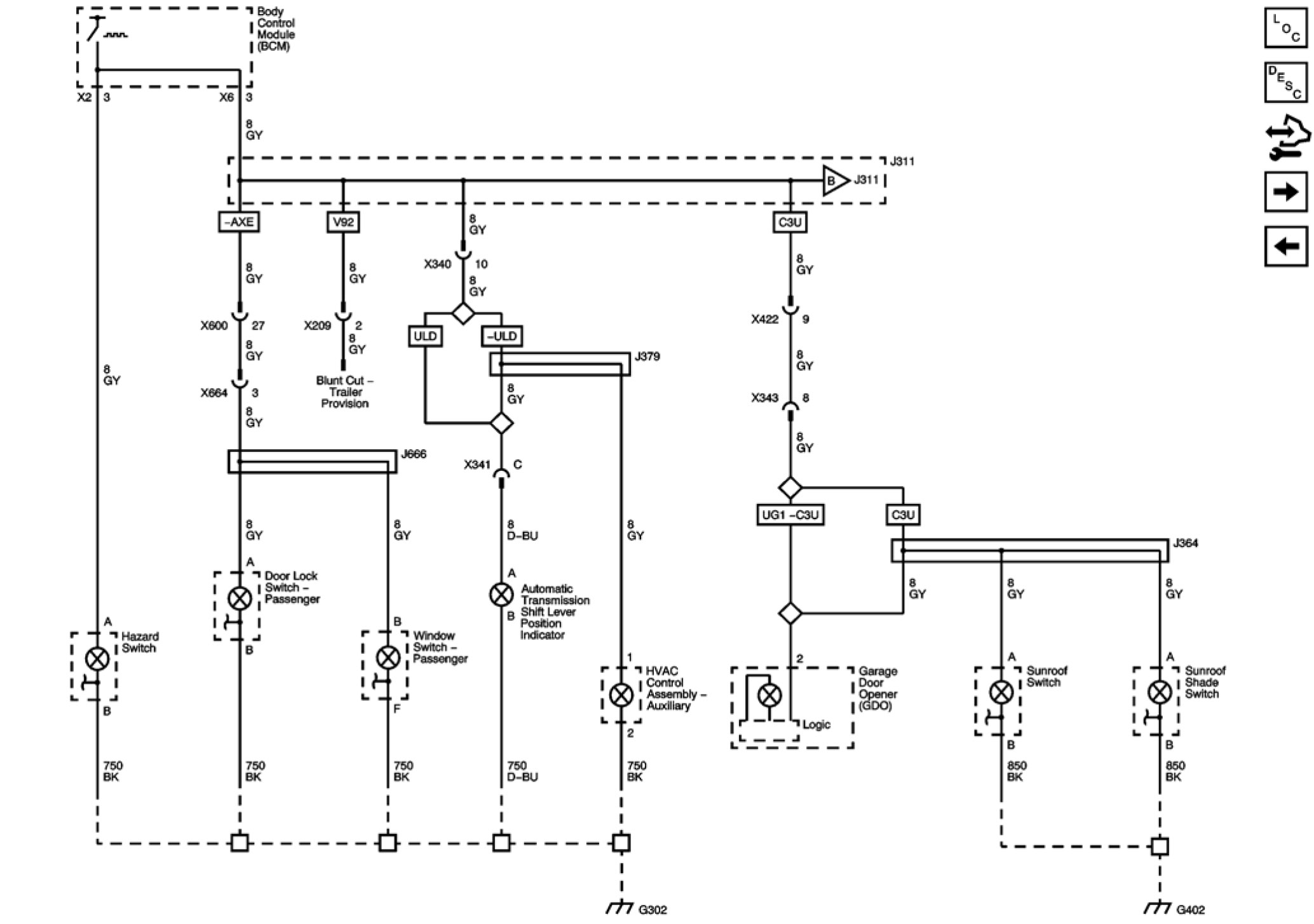

Console, I/P, Passenger Door, and Roof Lamps

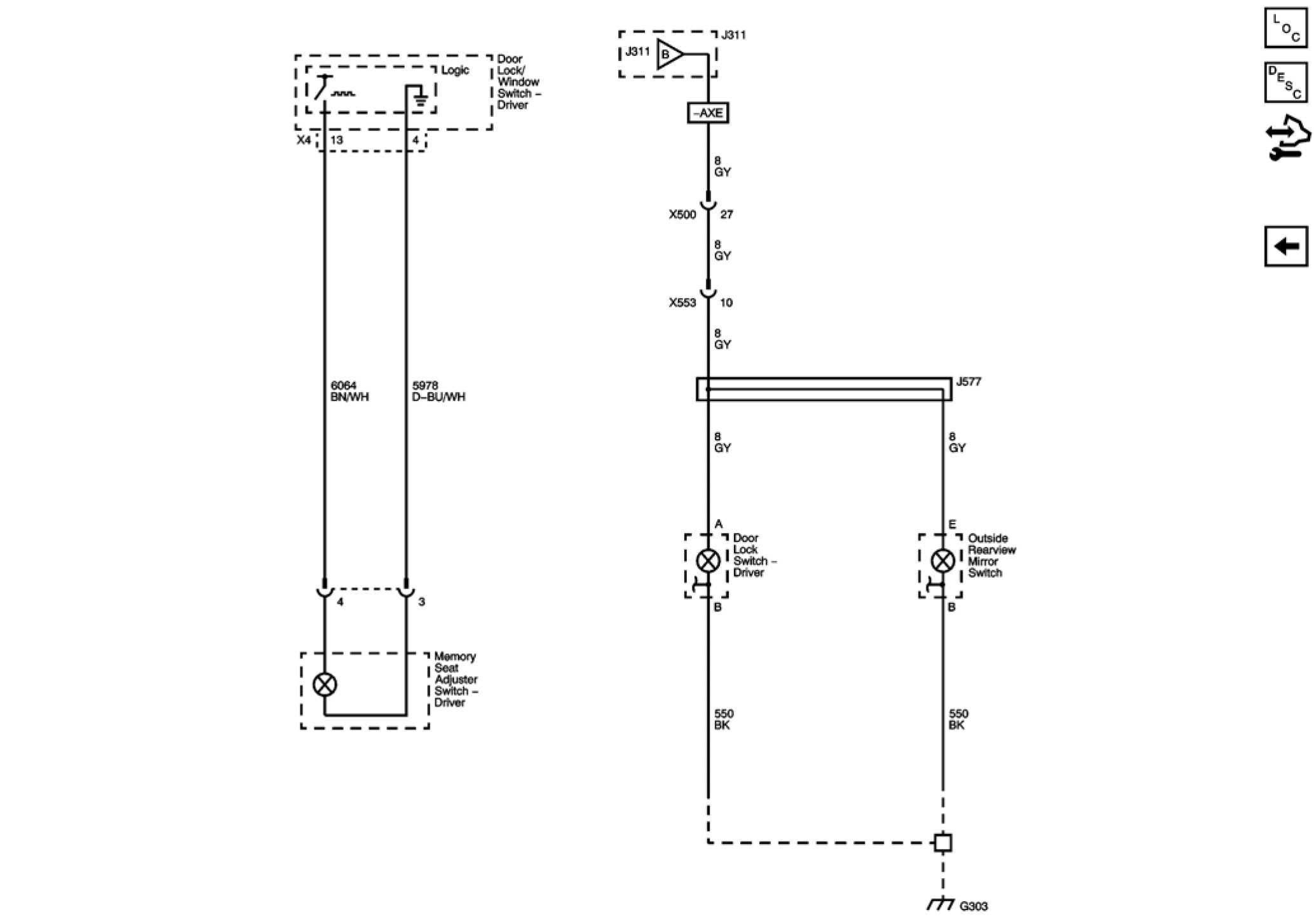

Driver Door Lamps
Controls, I/P, and Steering Wheel LEDs
Console and Driver Door LEDs
Console, I/P, Passenger Door, and Roof Lamps
Driver Door Lamps
