Instrument Cluster Schematics
Instrument Cluster Schematics
Instrument Cluster Schematics

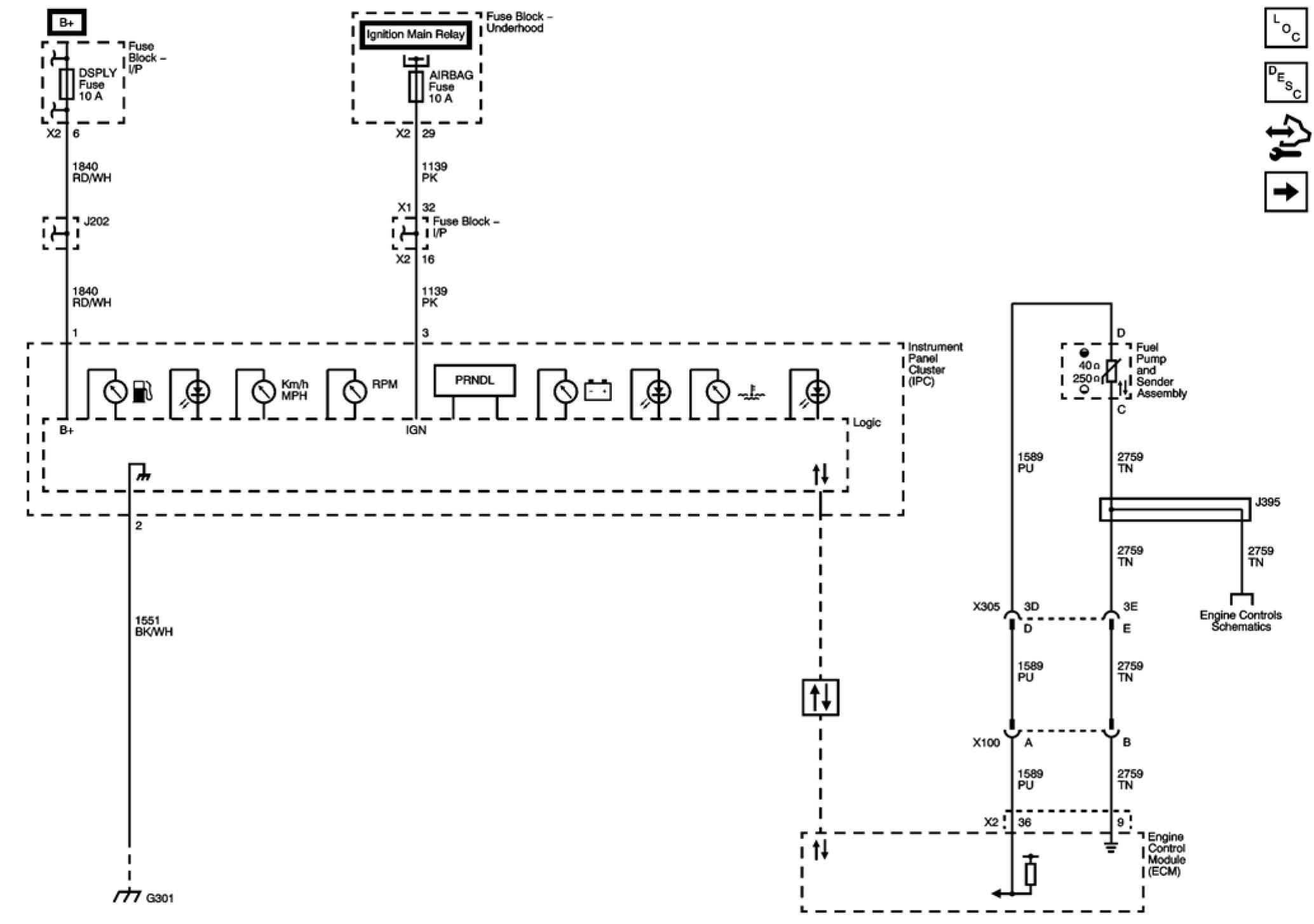

Gages, Ground, and Power

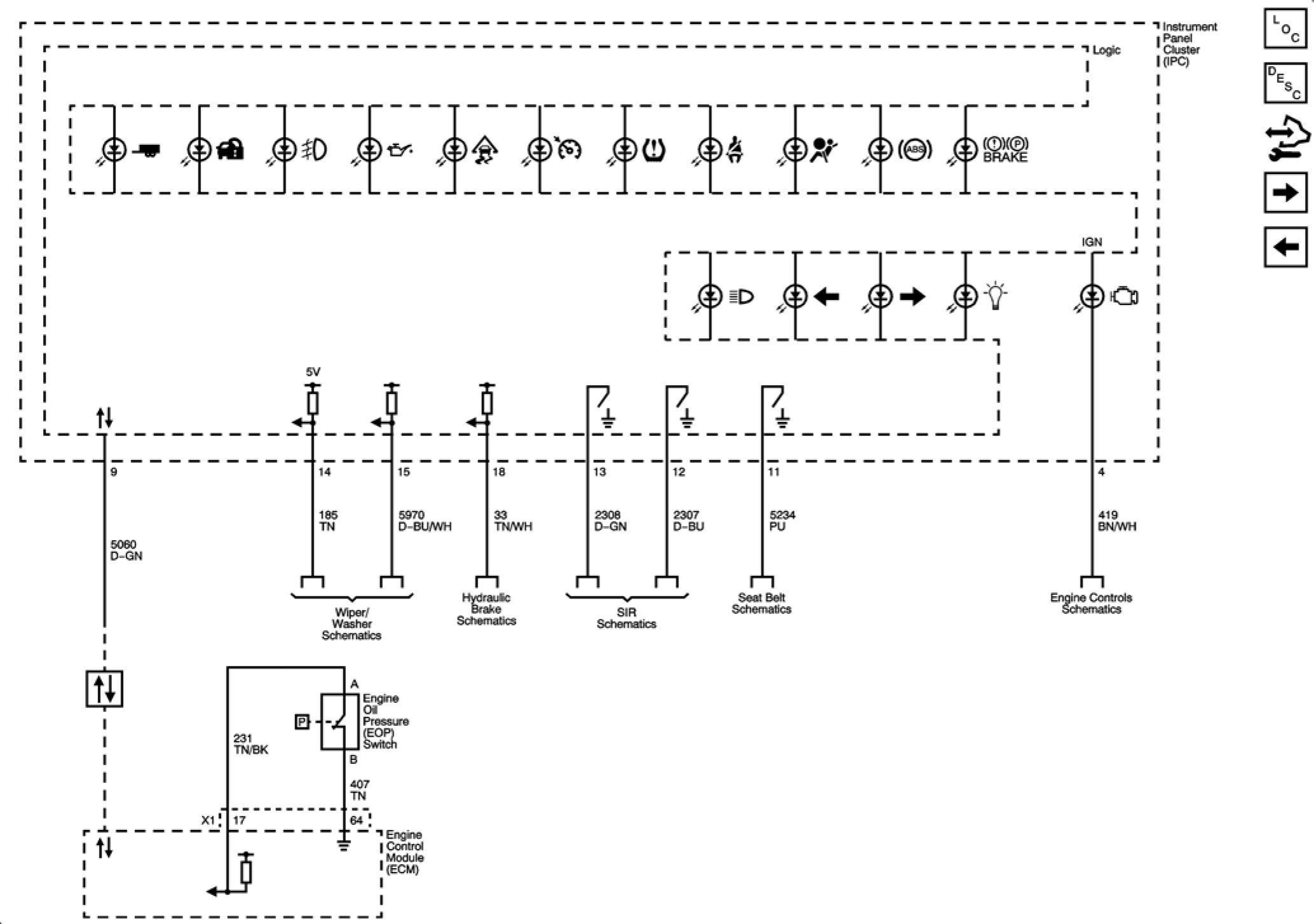

Indicators and Lighting

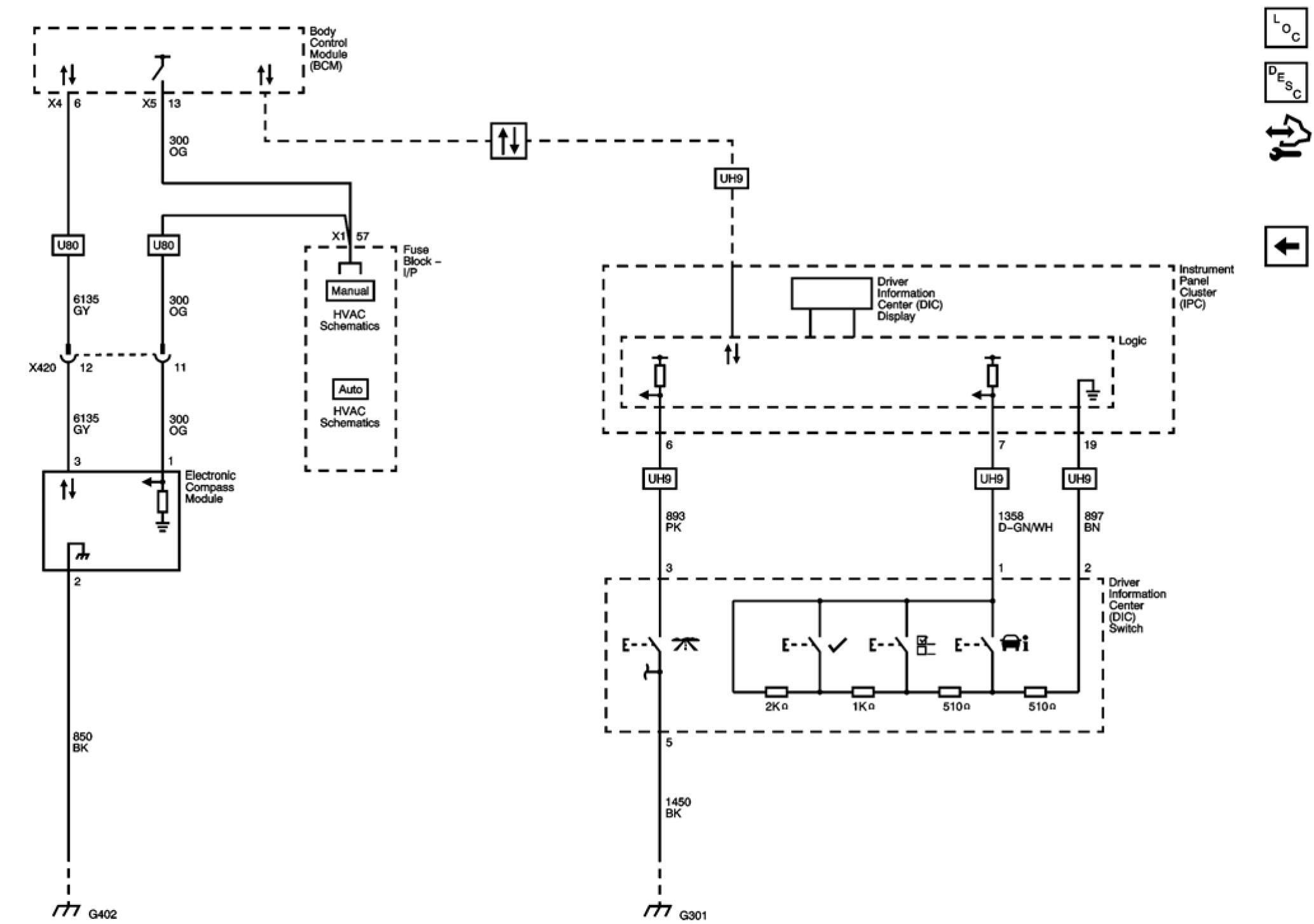

DIC with UH9 and U80
