HVAC - Manual

HVAC Schematics

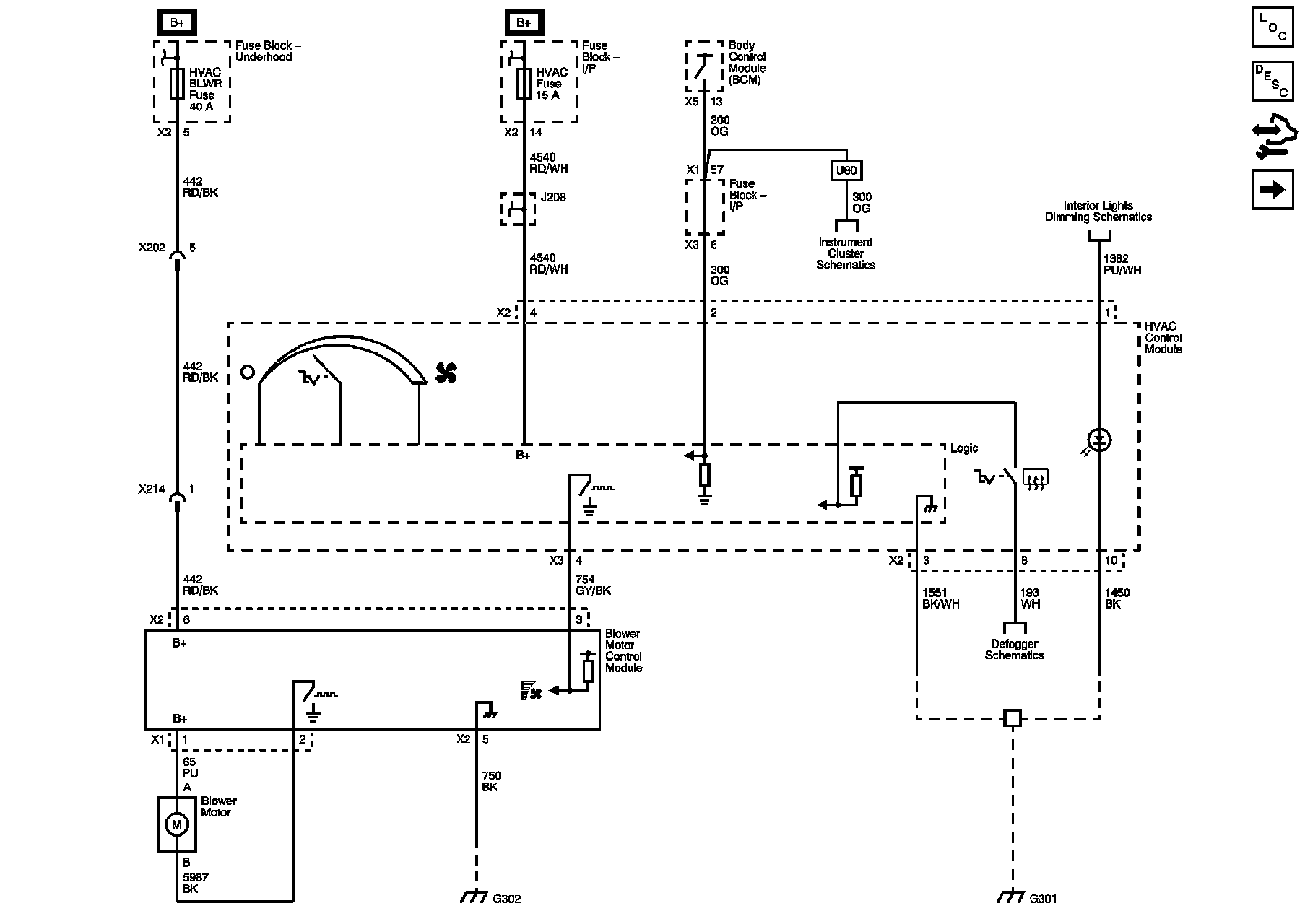

Module Power and Ground, Blower Control, and Subsystem References

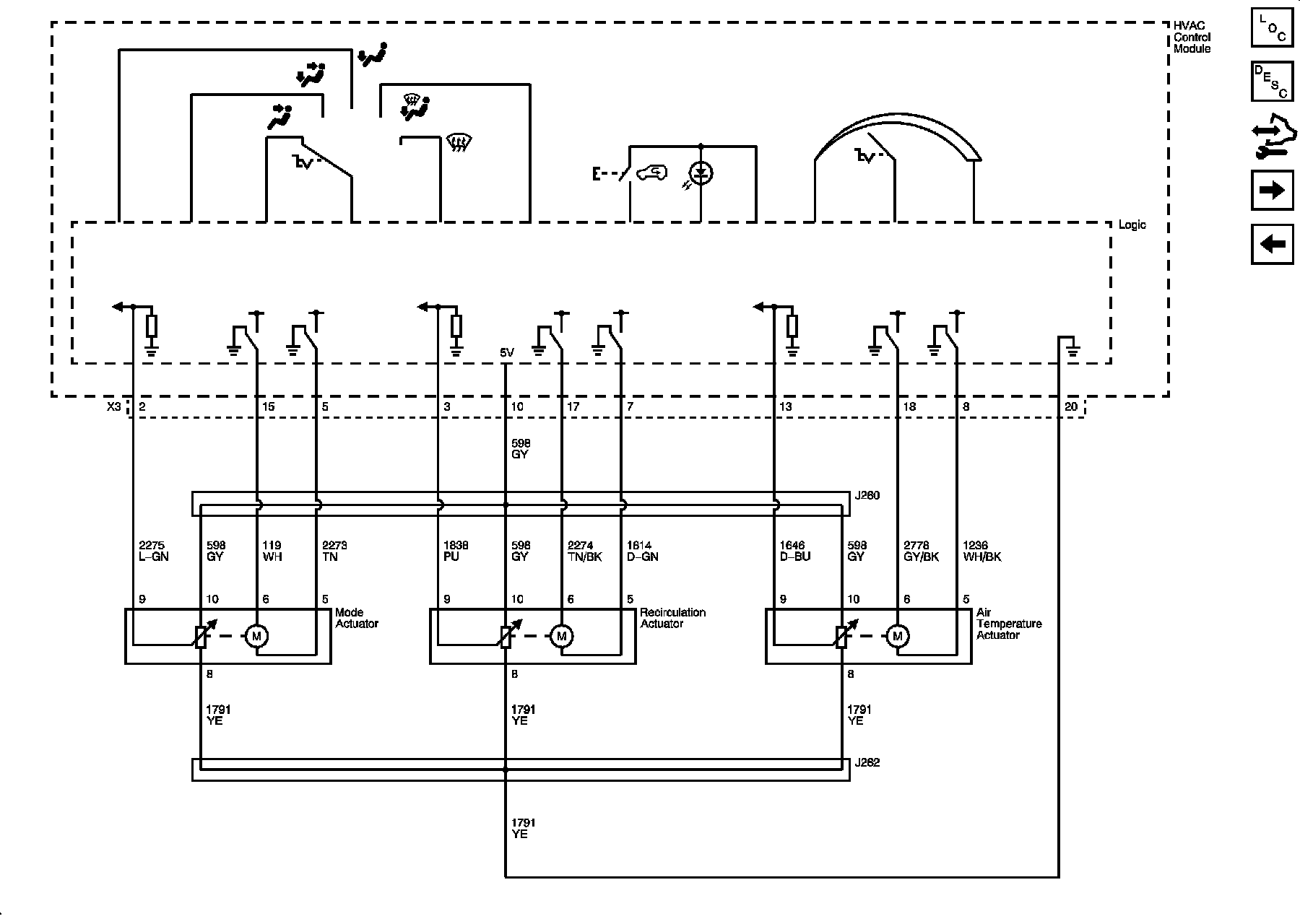

Actuators

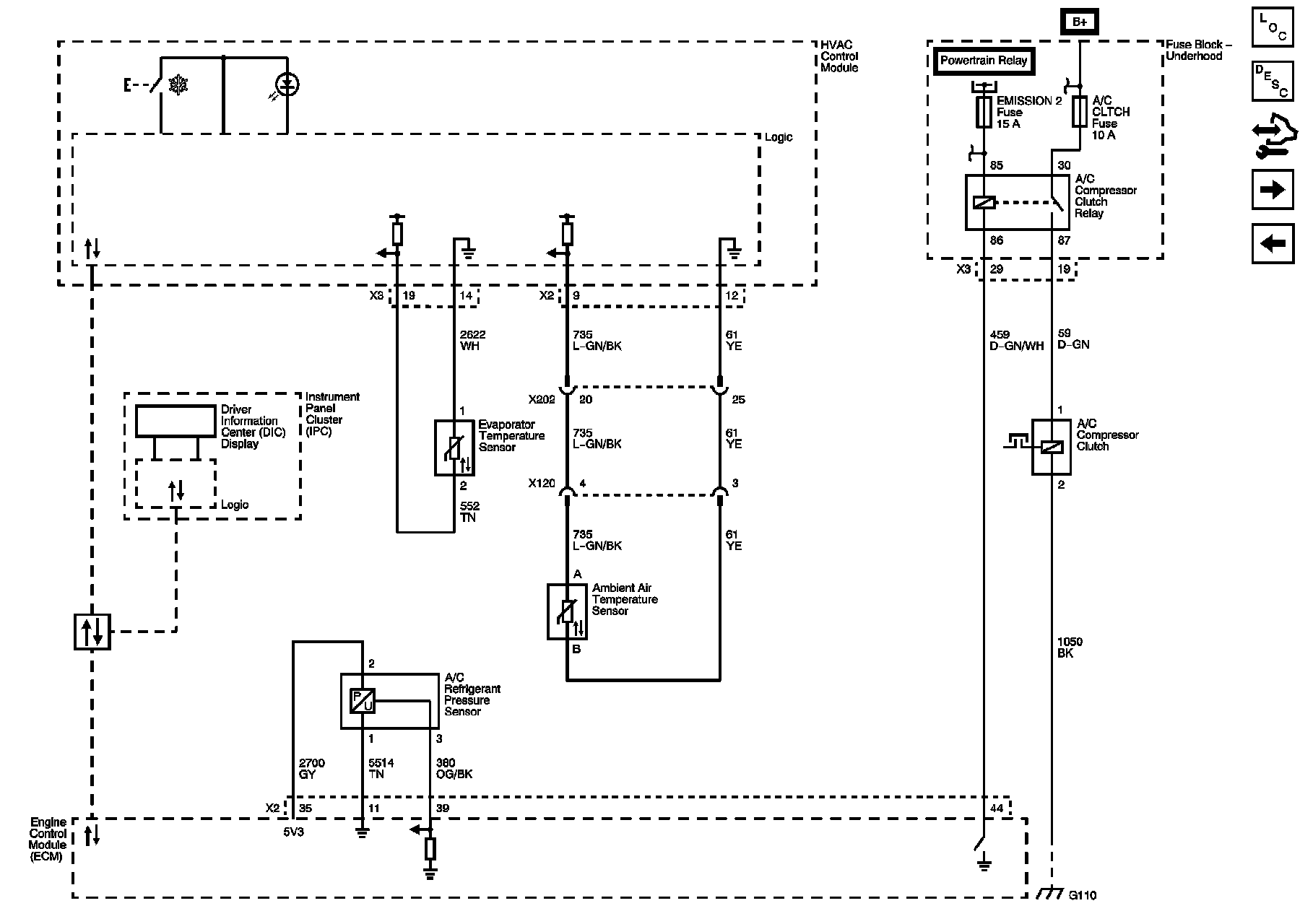

Compressor Controls

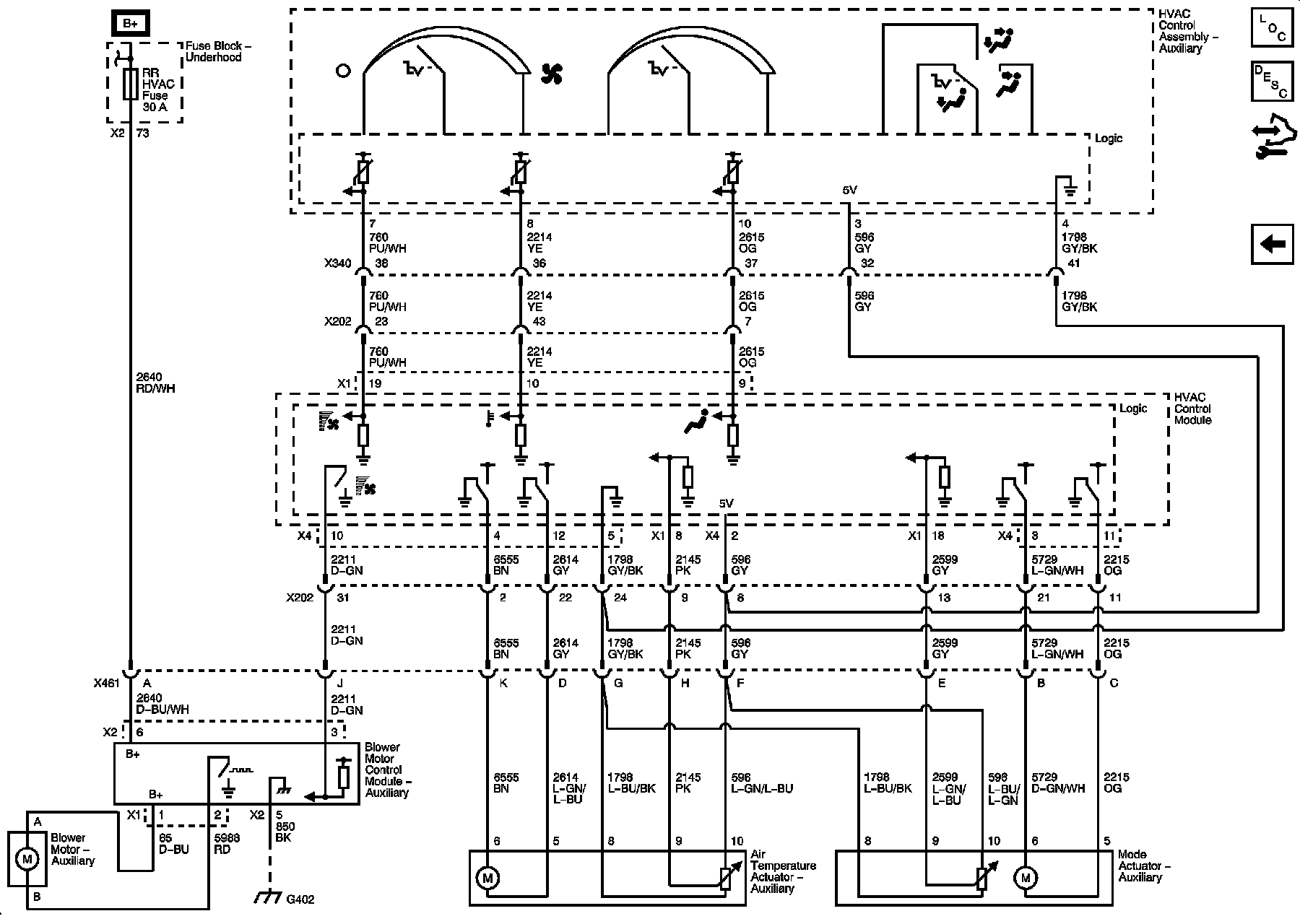

Rear HVAC
