Headlamp Motor




Component Connector End Views

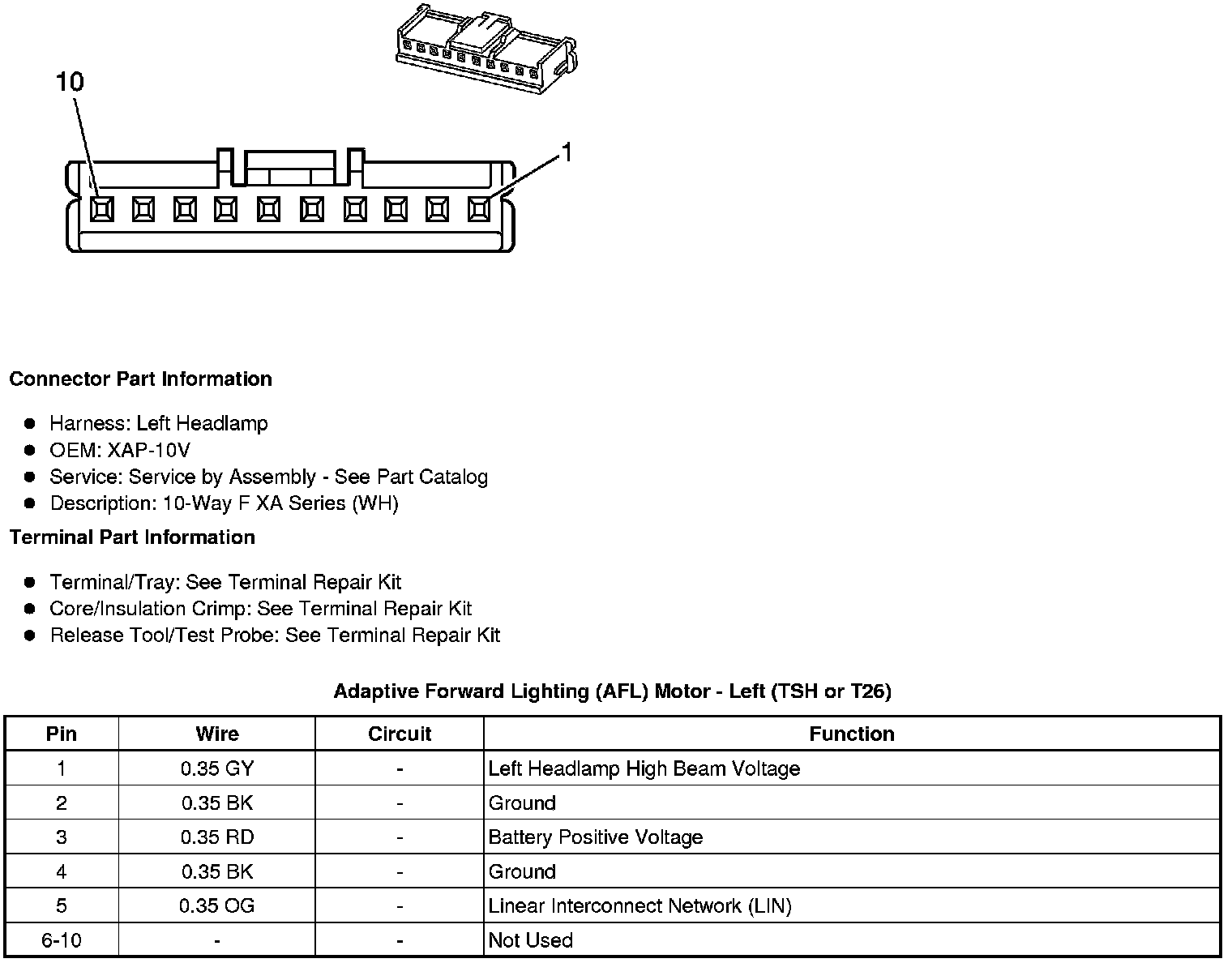

Adaptive Forward Lighting (AFL) Motor - Left (TSH or T26)






Adaptive Forward Lighting (AFL) Motor - Right (TSH or T26)
