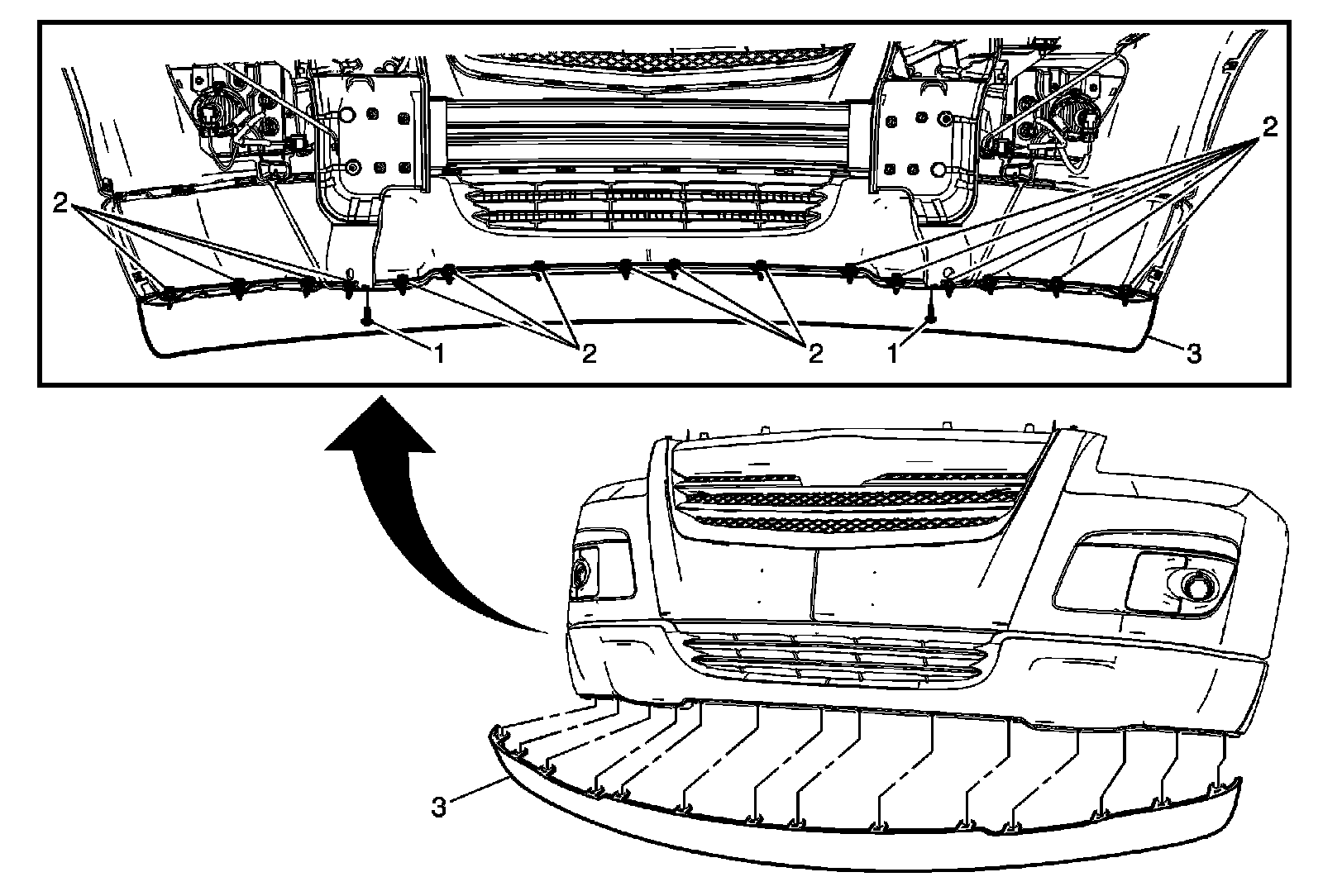

Front Air Deflector Replacement (Outlook)

Front Air Deflector Replacement (OUTLOOK)

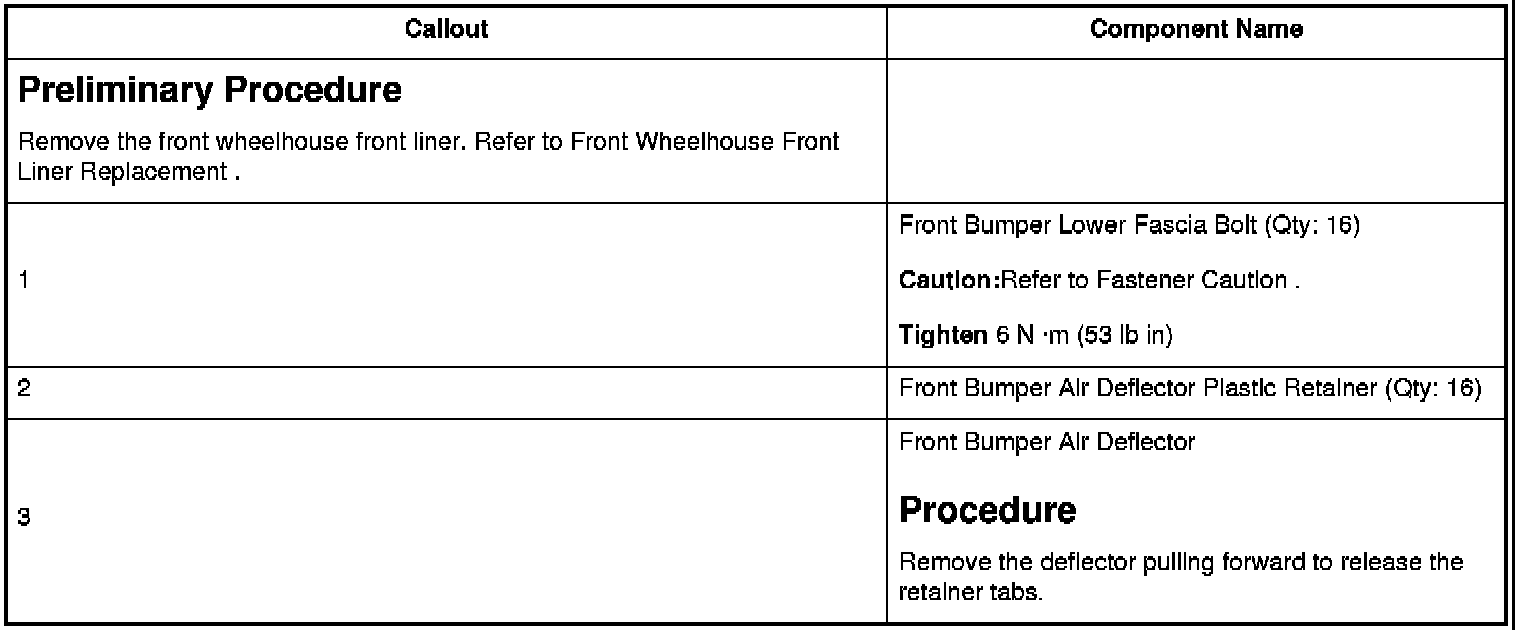

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
Procedure
