ECM

DTC P0562 (ECM)

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions)provides an overview of each diagnostic category.

DTC Descriptor
DTC P0562
- System Voltage Low - ECM

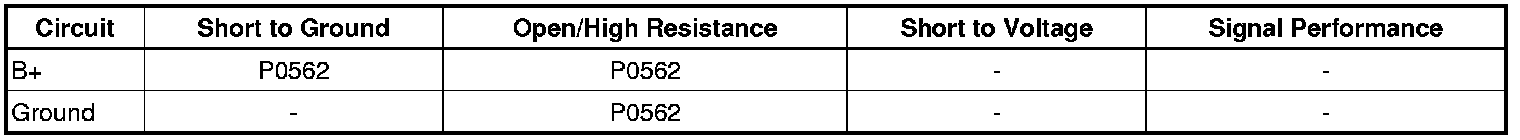

Diagnostic Fault Information





Circuit/System Description

The engine control module (ECM) monitors the system voltage to ensure that the voltage stays within the proper range. Damage to components, and incorrect data may occur if the voltage is out of range.

Conditions for Running the DTC

The engine is running.

Conditions for Setting the DTC

The ECM detects that the system voltage is less than 9 V for 5 seconds.

Action Taken When the DTC Sets

DTC P0562 is a type C DTC.

Conditions for Clearing the DTC

DTC P0562 is a type C DTC.

Diagnostic Aids

A low voltage DTC in multiple modules indicates a concern in the charging system.

Reference Information
Schematic Reference

Engine Controls Schematics ([1][2]Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Charging System Description and Operation (Description and Operation)
Electrical Information Reference

* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Powertrain Diagnostic Trouble Code (DTC) Type Definitions)
Scan Tool Reference

Programming and Relearning (Programming and Relearning)for scan tool information

Circuit/System Testing

1. Engine running, accessories OFF, measure and record the battery voltage at the battery terminals. The voltage should be between 12.6 and 15.0 V.

• If not within the specified range, refer to Charging System Test (Acadia or Enclave) ().

2. Ignition OFF, disconnect the harness connectors at the ECM.
3. Ignition OFF and scan tool disconnected, open and close the driver door, and wait 1 minute. Test for less than 5 Ohms between the ground circuit terminal 73 X2 and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

4. Verify that a test lamp illuminates between the B+ circuit terminal 20 X1 and ground.

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

5. Install a 3A jumper wire between the PWR/TRN relay control circuit terminal 40 X1 and ground.
6. Ignition ON, verify that a test lamp illuminates between the ignition circuit terminals listed below and ground.

* Terminal 18 X1
* Terminal 19 X1
* Terminal 13 X2

7. If all circuits test normal, replace the ECM.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

Programming and Relearning (Programming and Relearning)- for ECM replacement, setup, and programming.
