Home >> Chevy Truck >> 2010 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X400 - X499 >> X401

X401

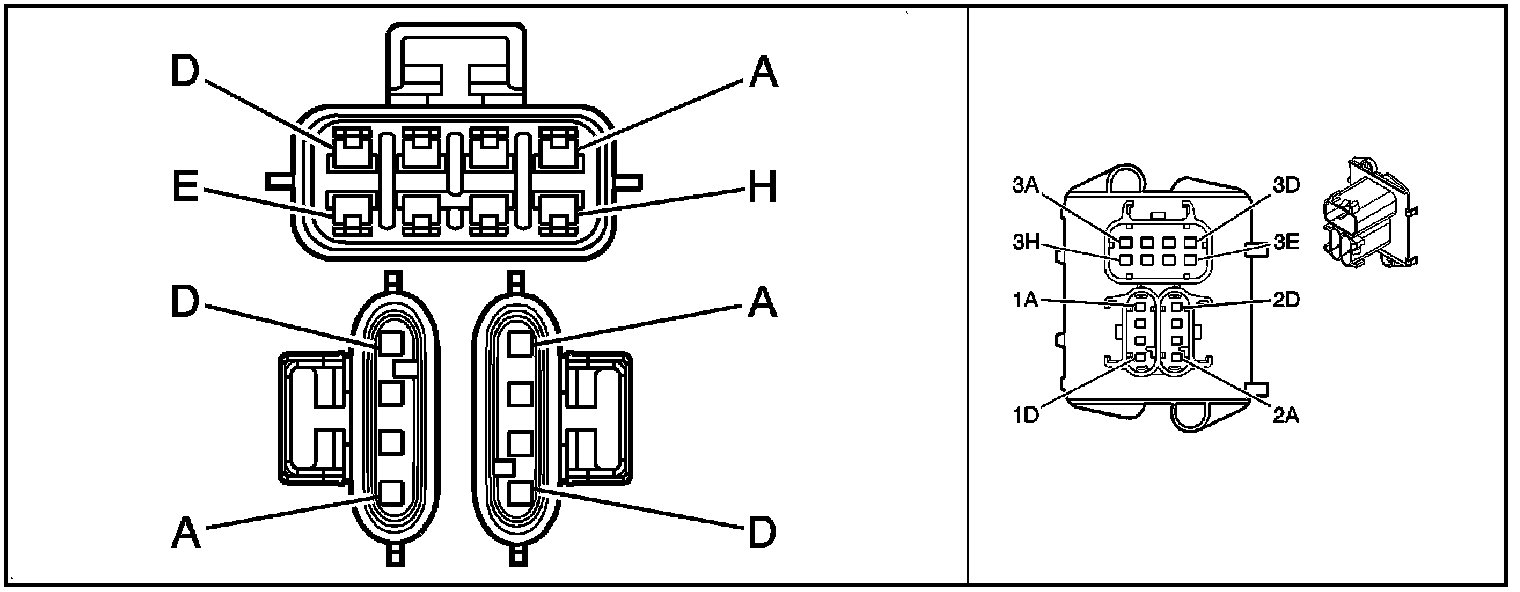

Inline Harness Connector End Views

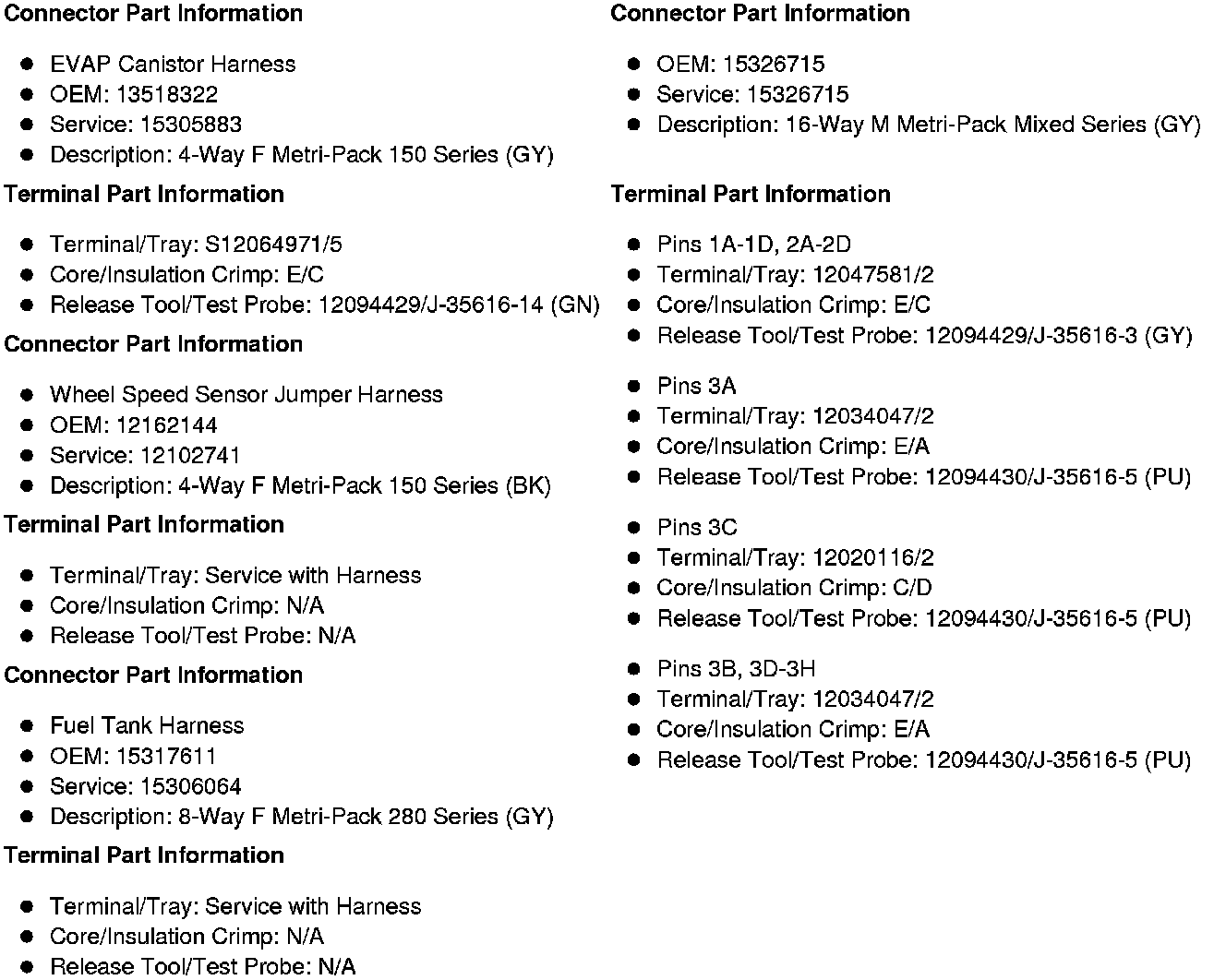

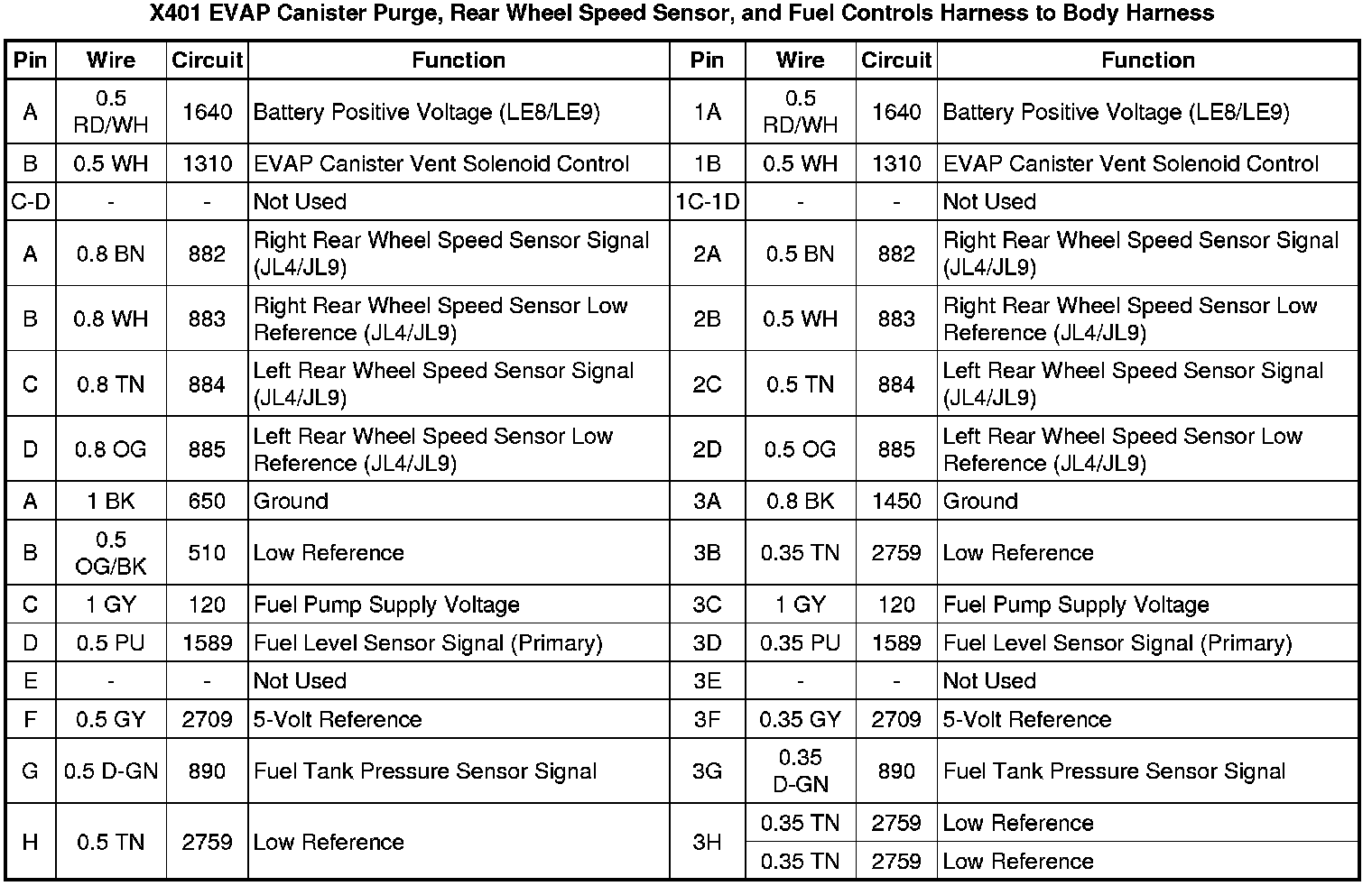

X401 EVAP Canister Purge, Rear Wheel Speed Sensor, and Fuel Controls Harness to Body Harness
