X323
X323

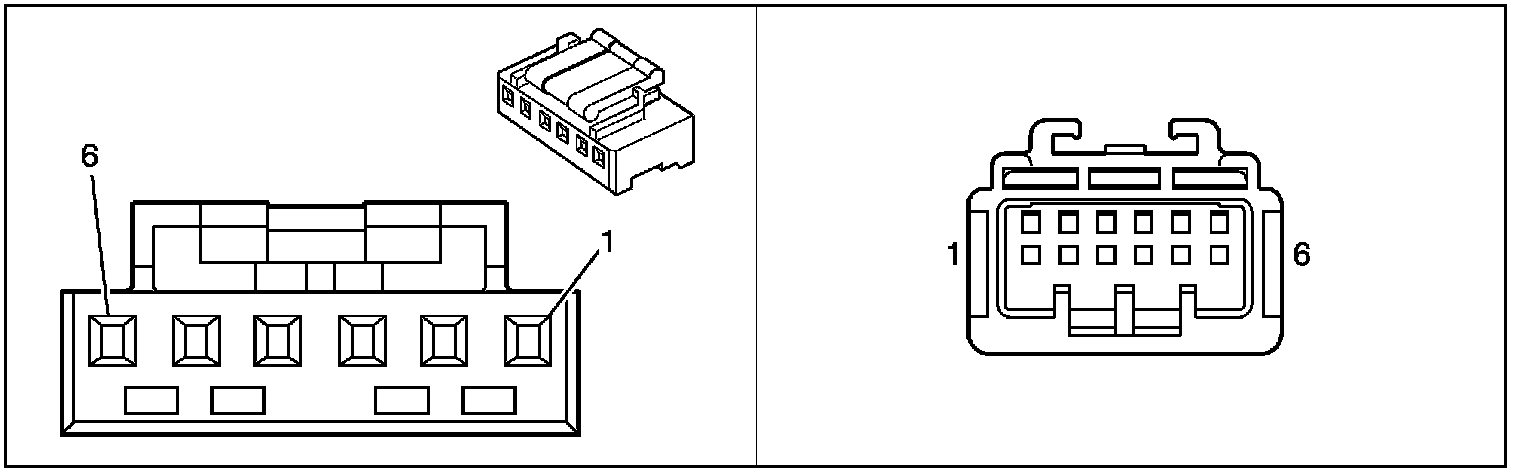

Inline Harness Connector End Views

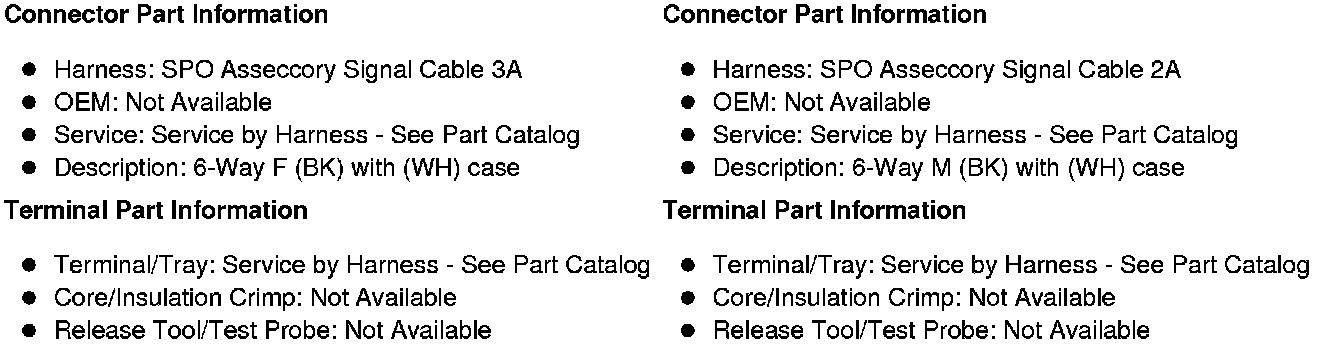

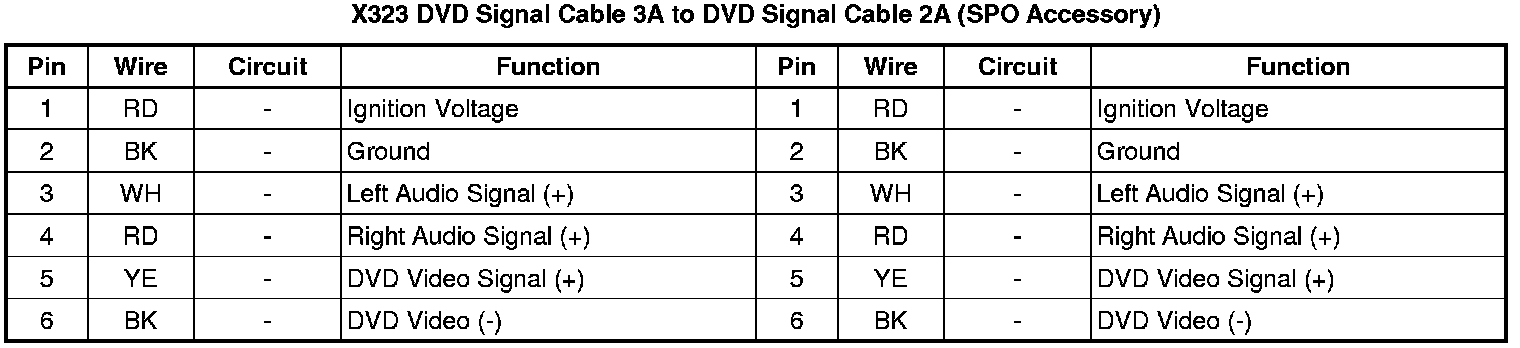

X323 DVD Signal Cable 3A to DVD Signal Cable 2A (SPO Accessory)
