X321
X321

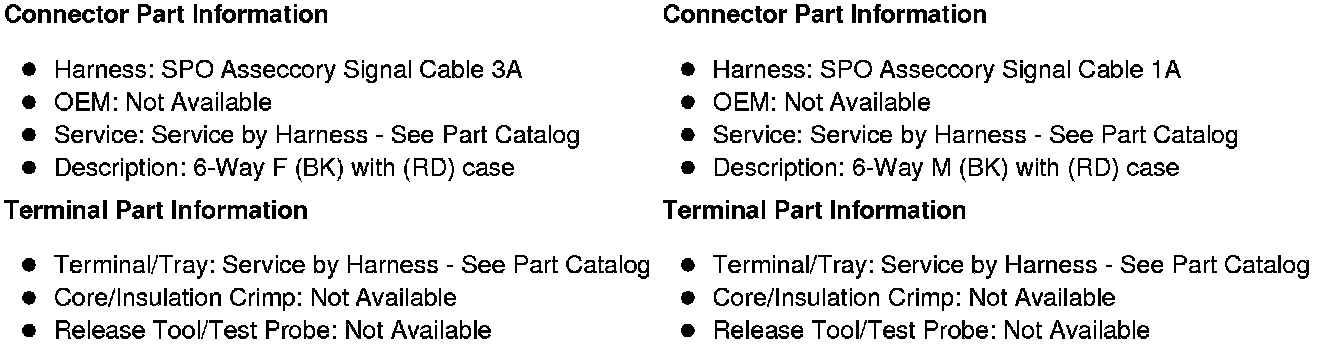

Inline Harness Connector End Views

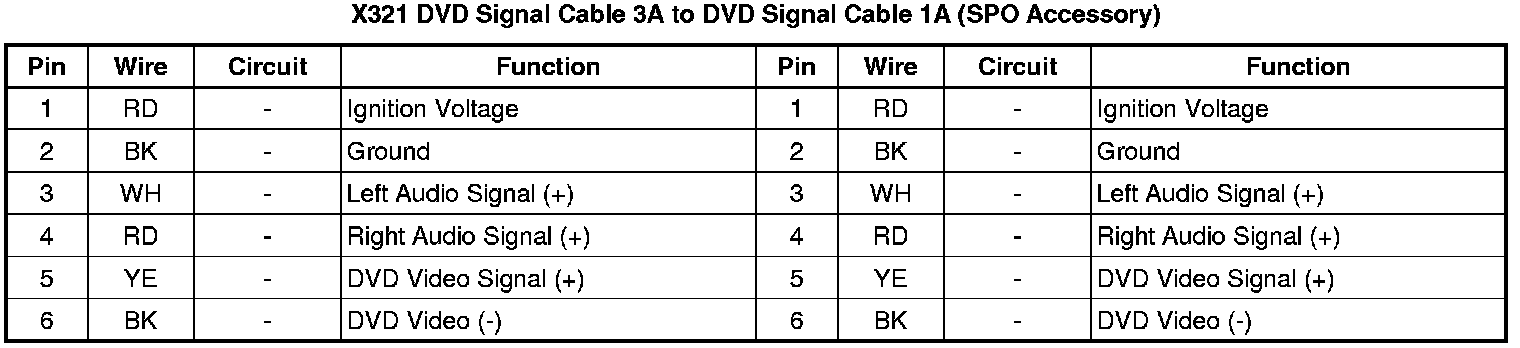

X321 DVD Signal Cable 3A to DVD Signal Cable 1A (SPO Accessory)
