X299
X299
Inline Harness Connector End Views

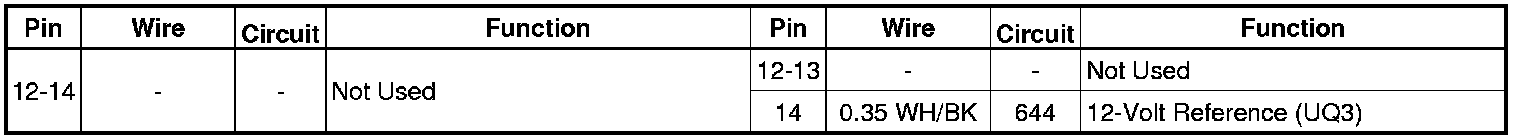

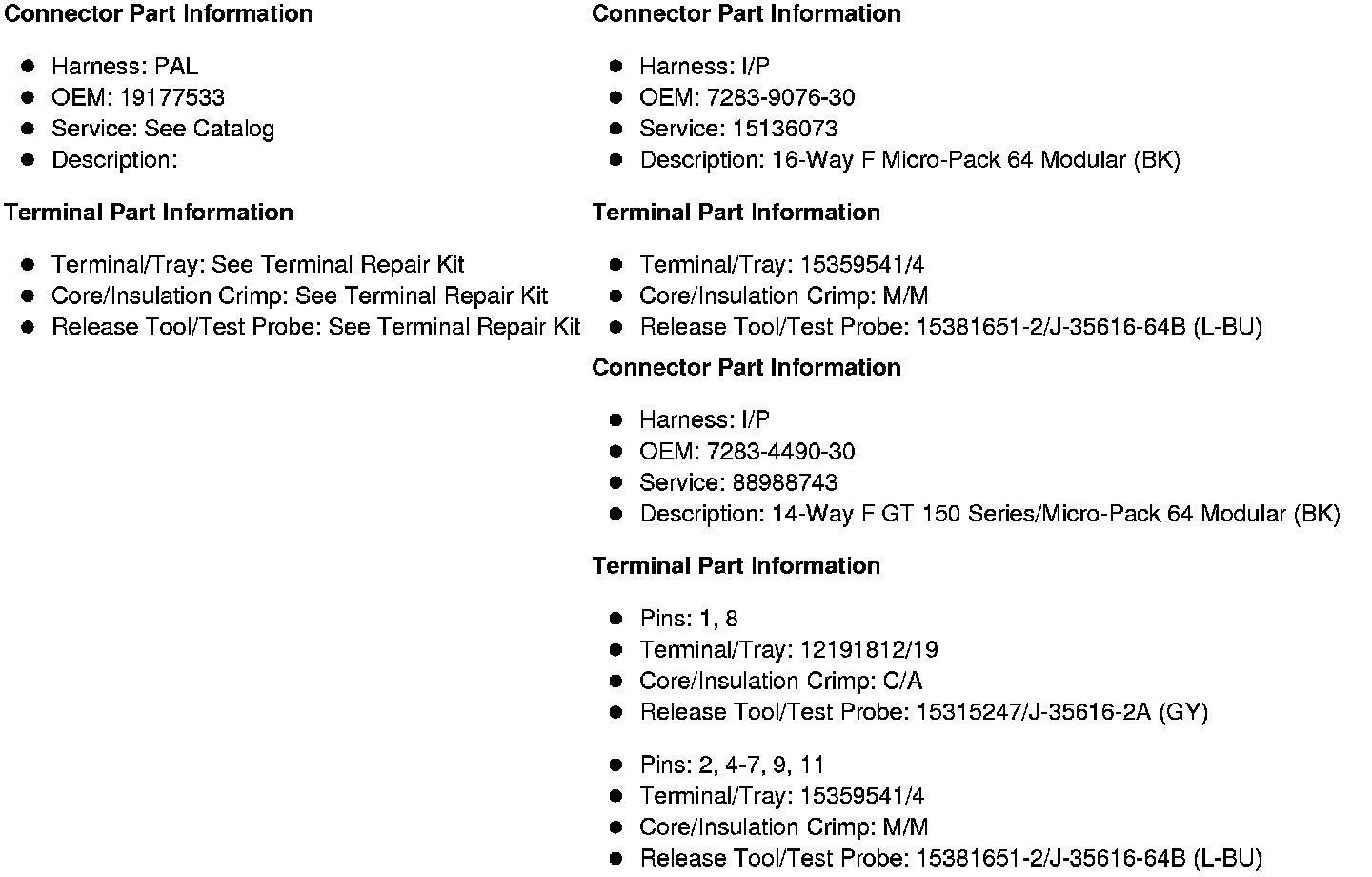

X299 I/P to Personal Audio Link (PAL) Harness (with PAL)
