Seat Belt Tension Sensor: Diagrams




Component Connector End Views

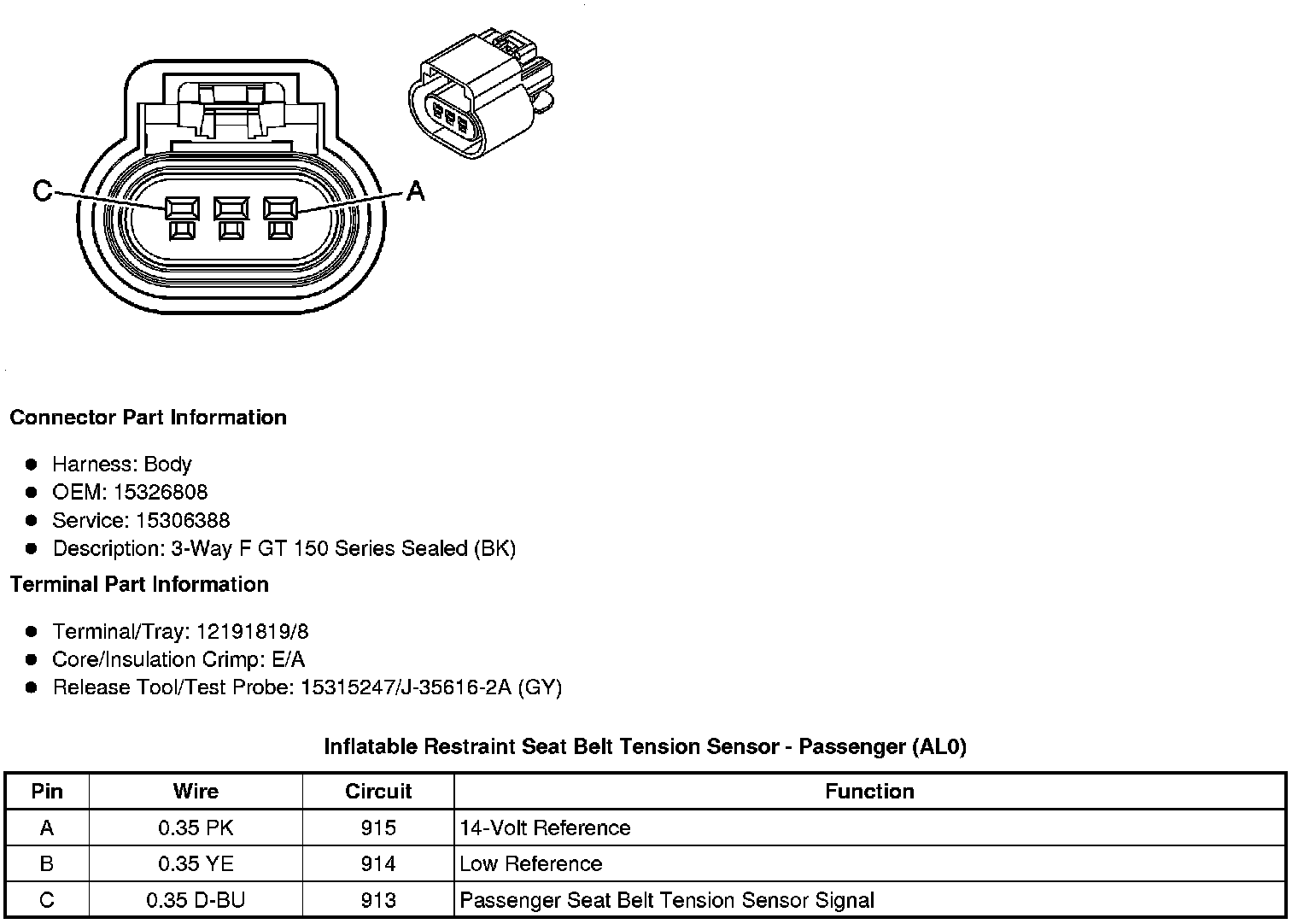

Inflatable Restraint Seat Belt Tension Sensor - Passenger (AL0)
