Powertrain Component Views

Powertrain Component Views

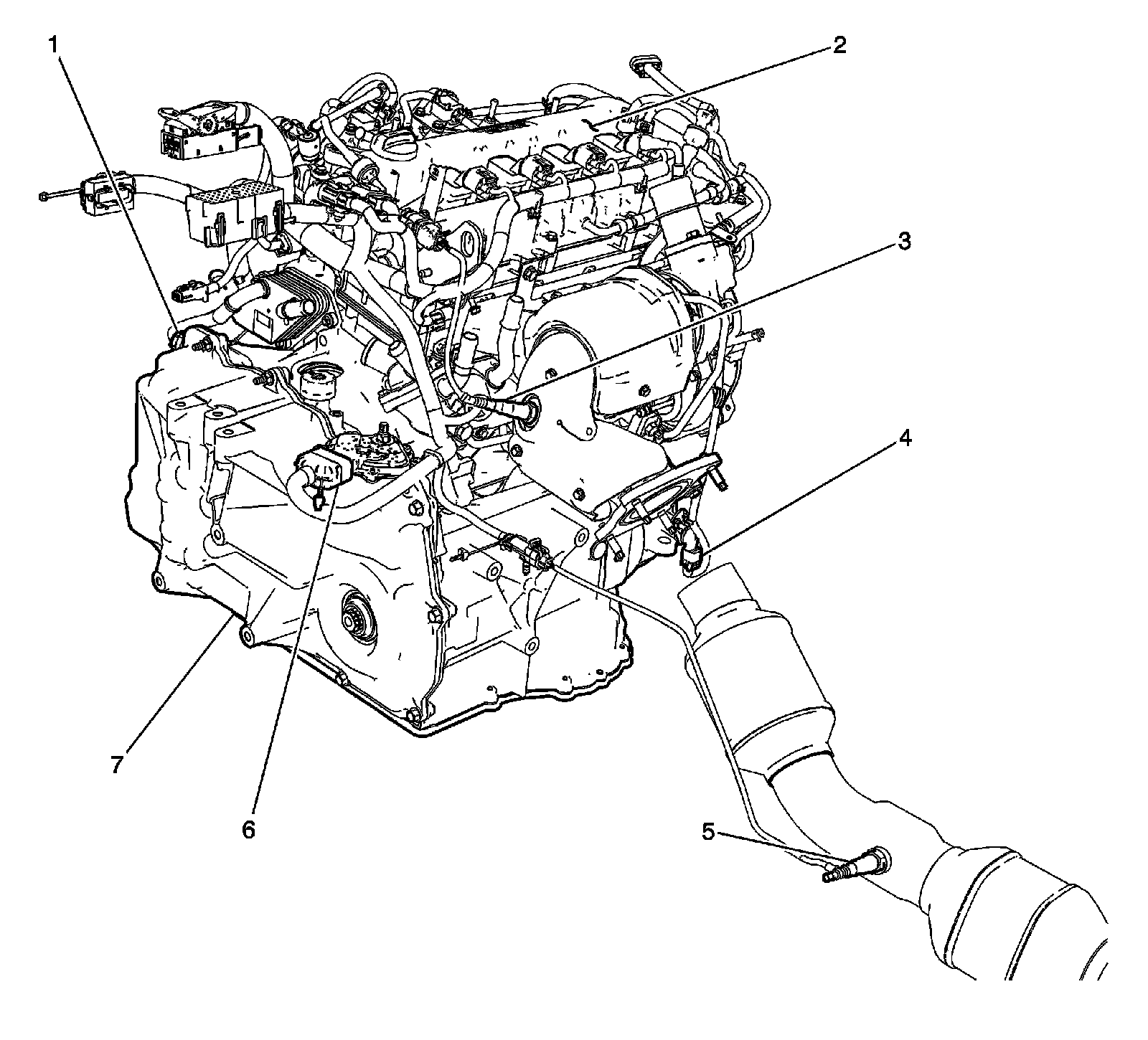

Engine with Transmission (LNF/MN5)




1 - X100 (MN5)
2 - Engine (LNF)
3 - Heated Oxygen Sensor (HO2S) 1
4 - Automatic Transmission Output Speed Sensor (OSS) (MN5)
5 - Heated Oxygen Sensor (HO2S) 2
6 - Park Neutral Position (PNP) Switch (MN5)
7 - Transmission (MN5)
