Information Bus




Data Communication Schematics

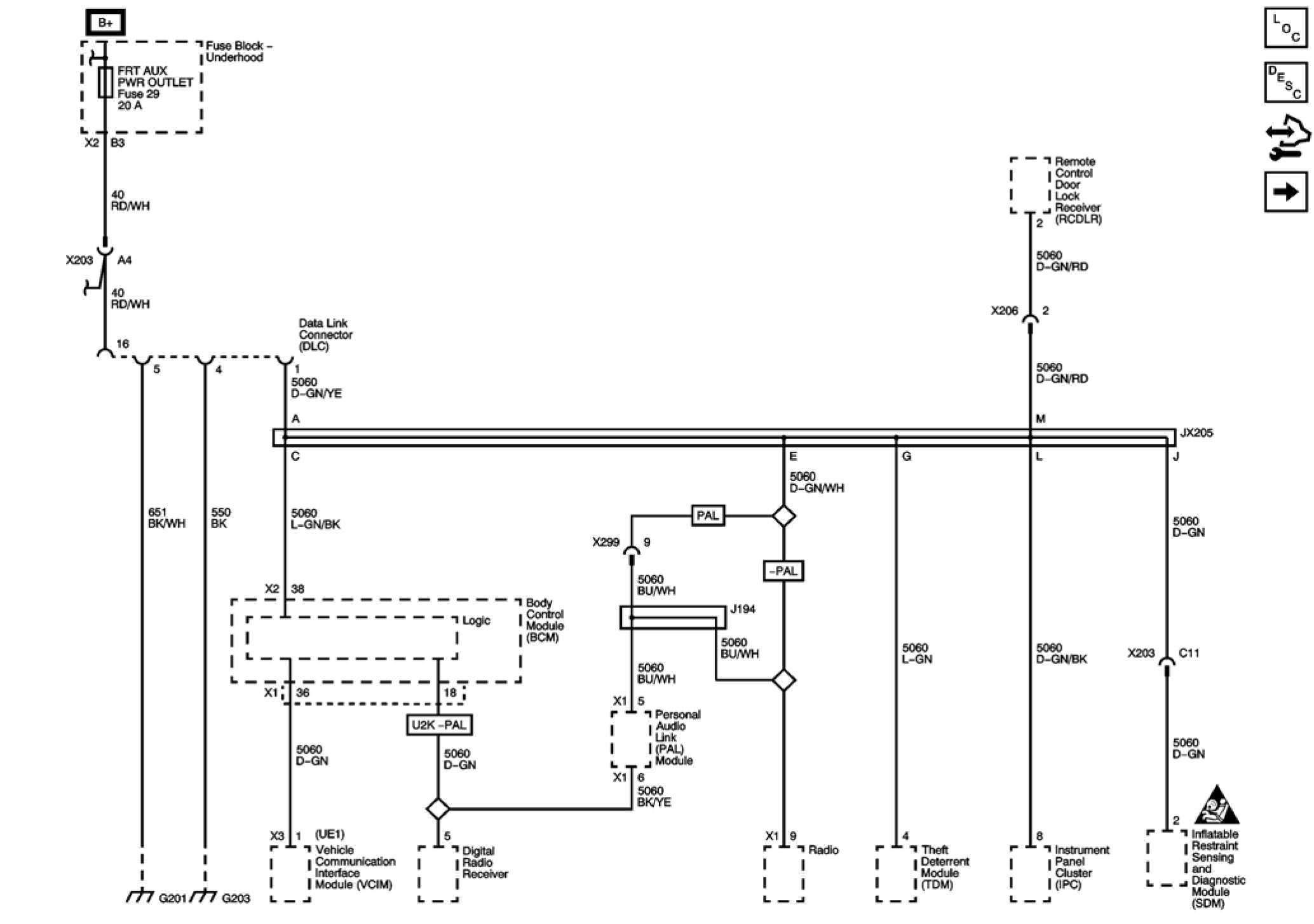

DLC Power, Ground, and Low Speed GMLAN

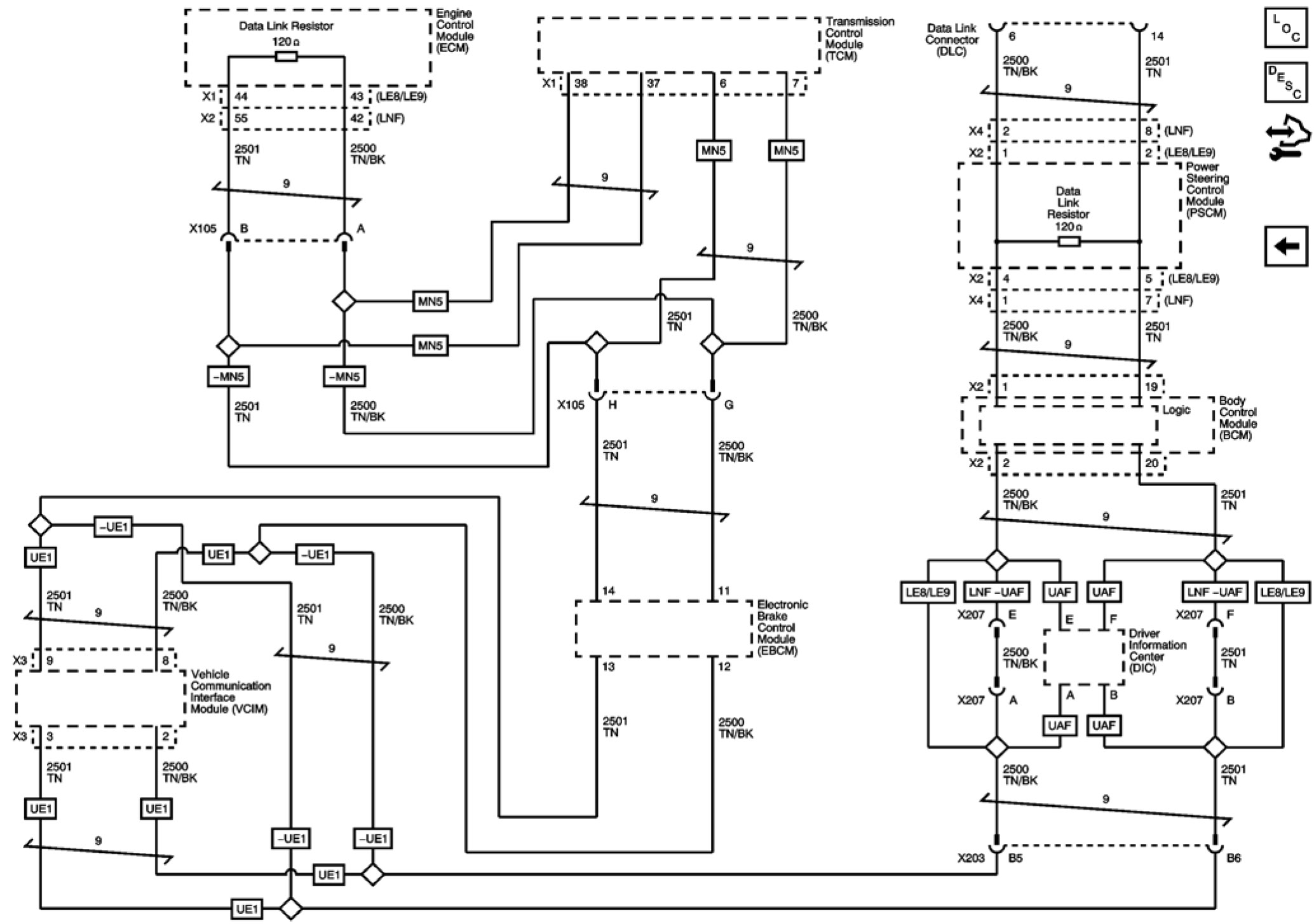

High Speed GMLAN
