Power Moding Schematics




Power Moding Schematics

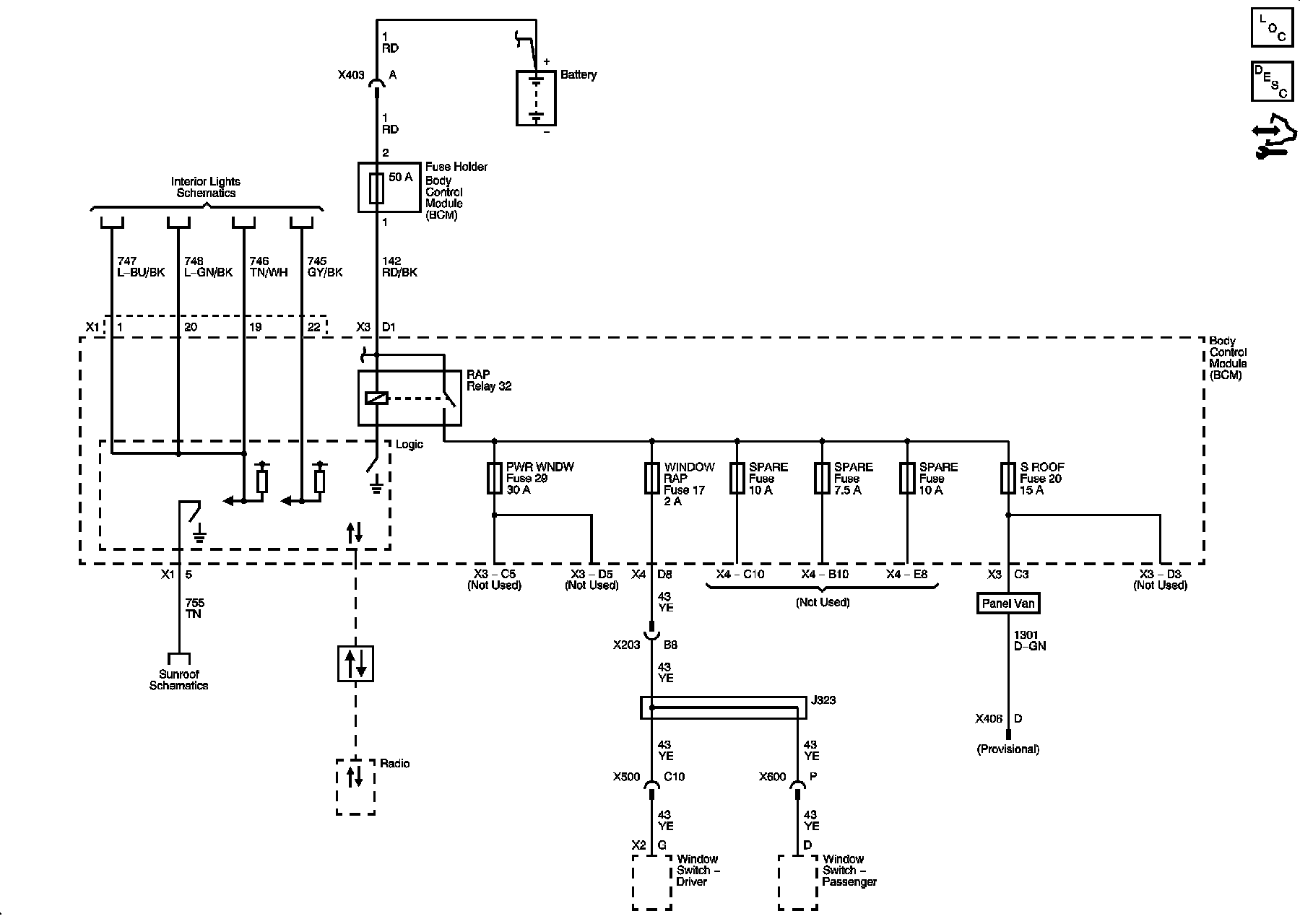

Retained Accessory Power (RAP)





RUN/CRNK Relay
