Power Distribution Schematics
>>
Power Distribution Schematic 3
Power Distribution Schematic 3
Power Distribution Schematics

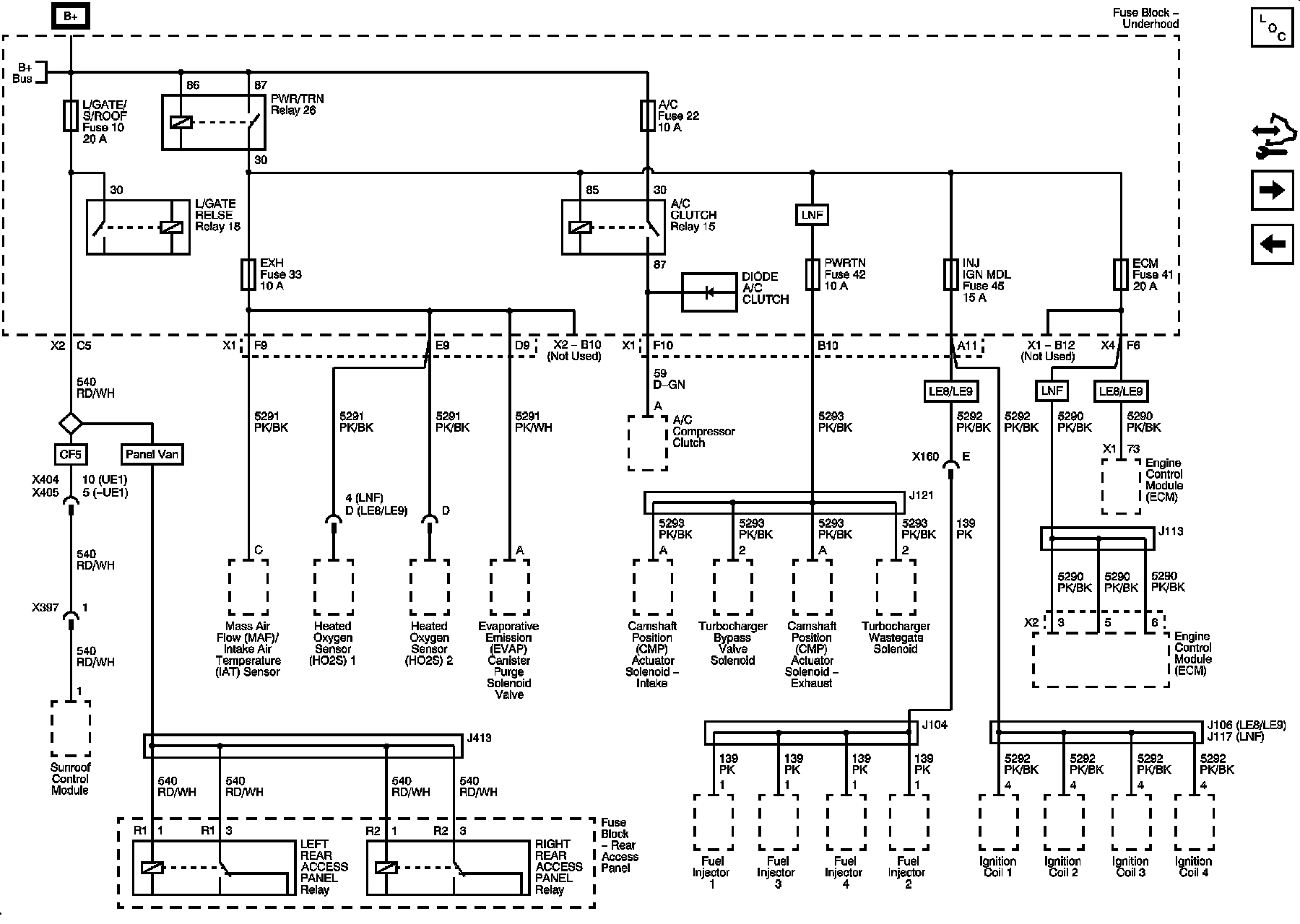

Underhood Fuse Block - L/GATE/S ROOF, EXH, INJ IGN MOD and ECM Fuses
