Driver Information System Schematics

Driver Information System Schematics

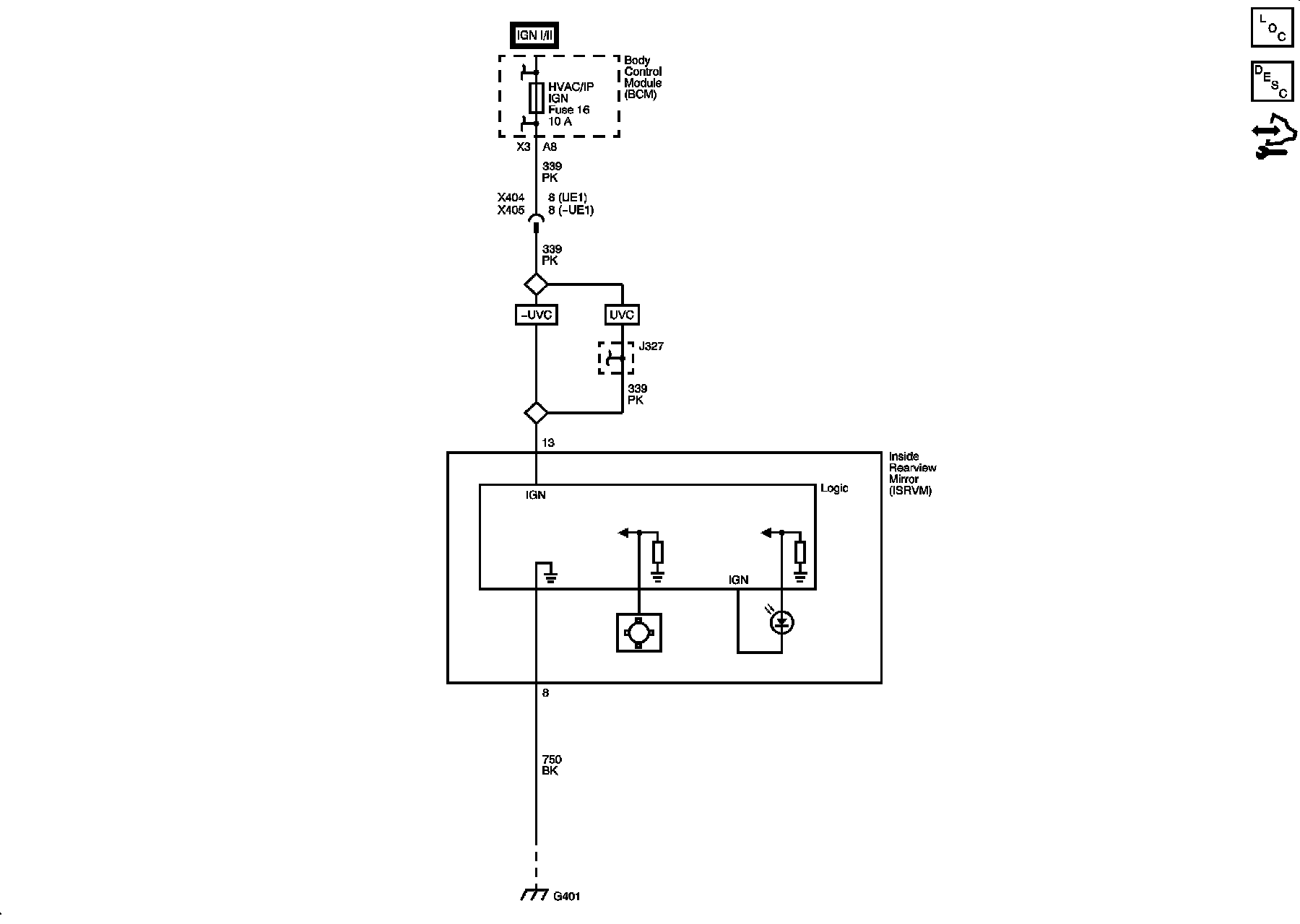

Compass (with DD8)

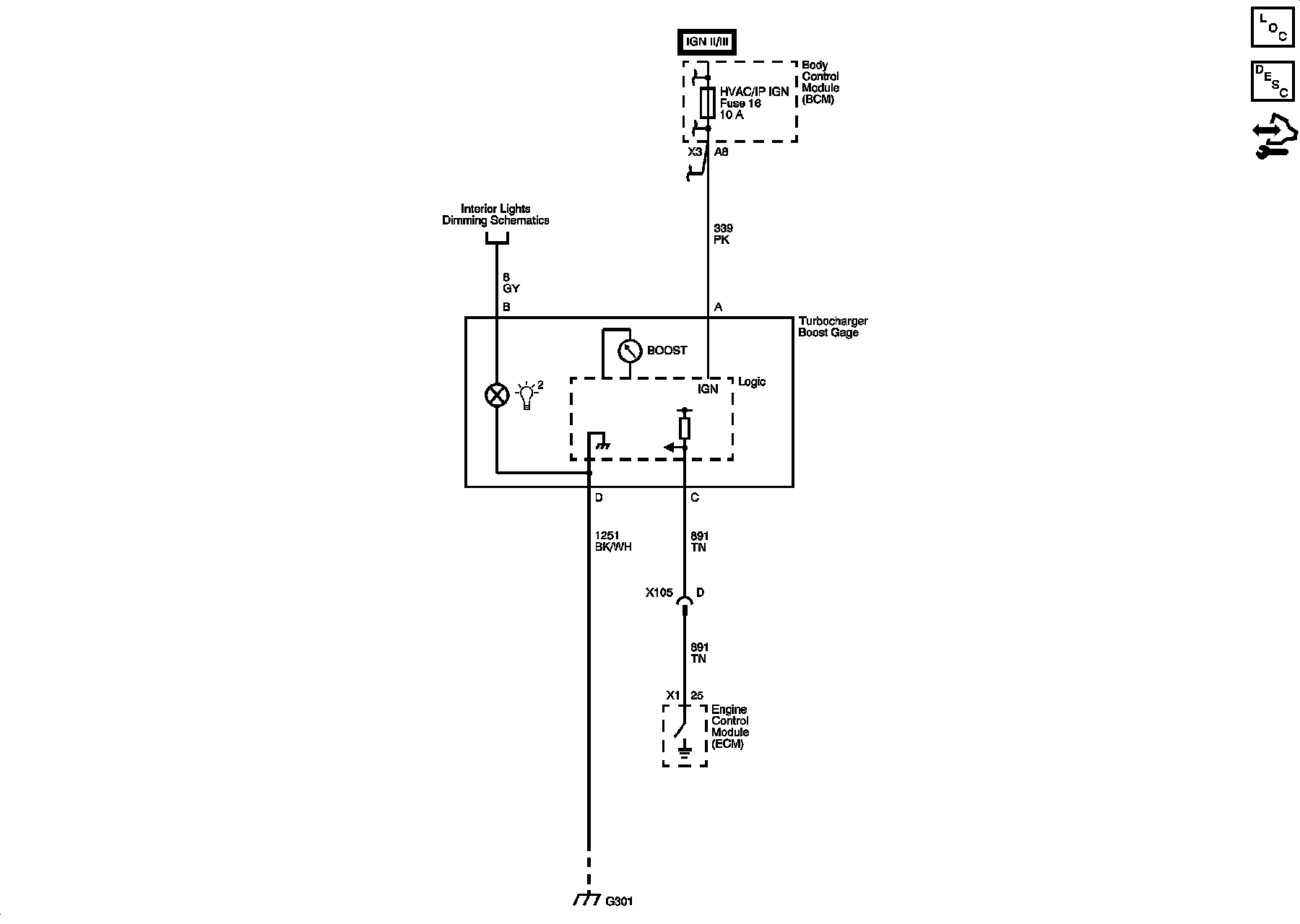

Boost Gage (LNF without UAF)

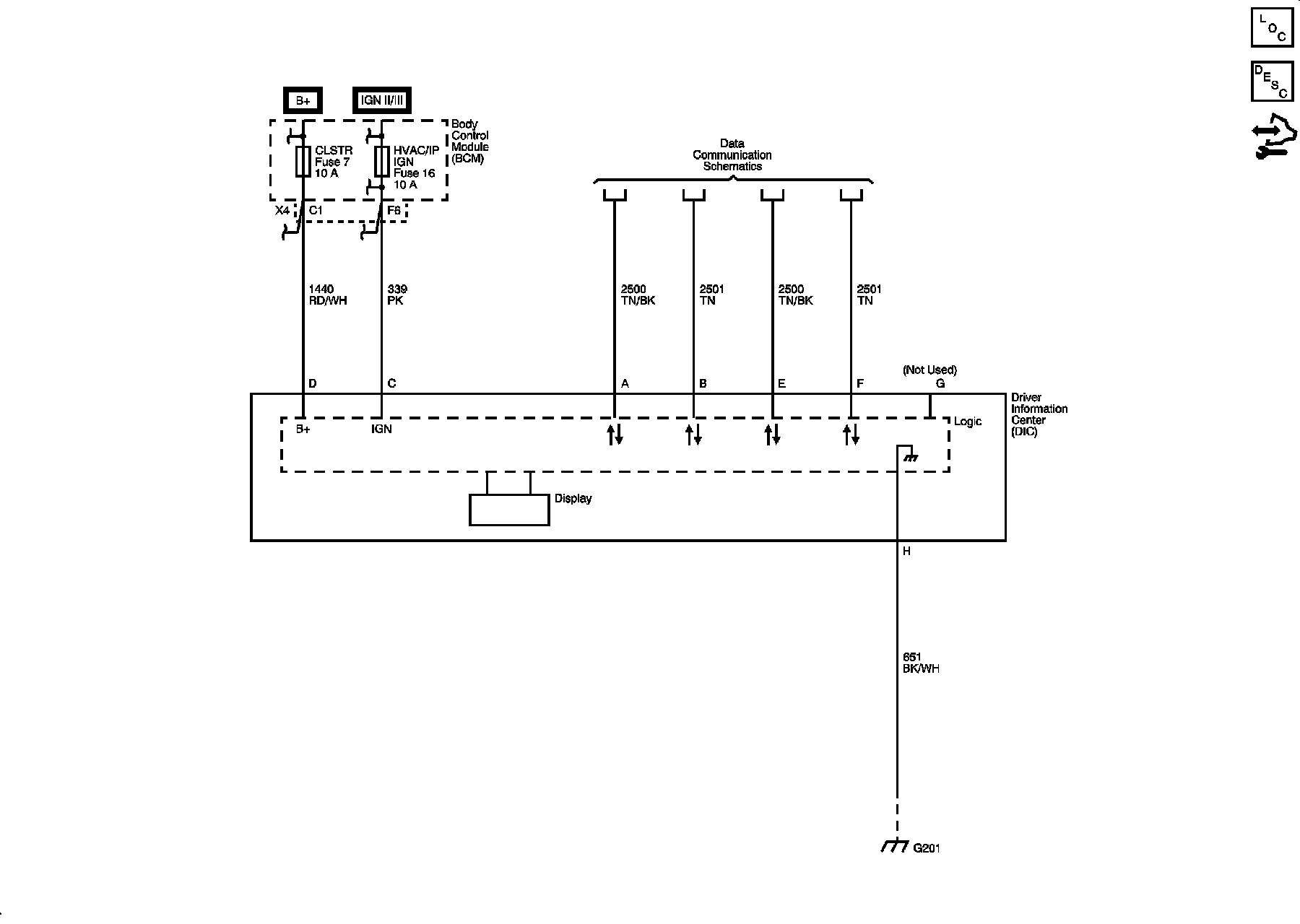

Driver Information Center (DIC) (UAF)
