System Diagram




Automatic Transmission Controls Schematics

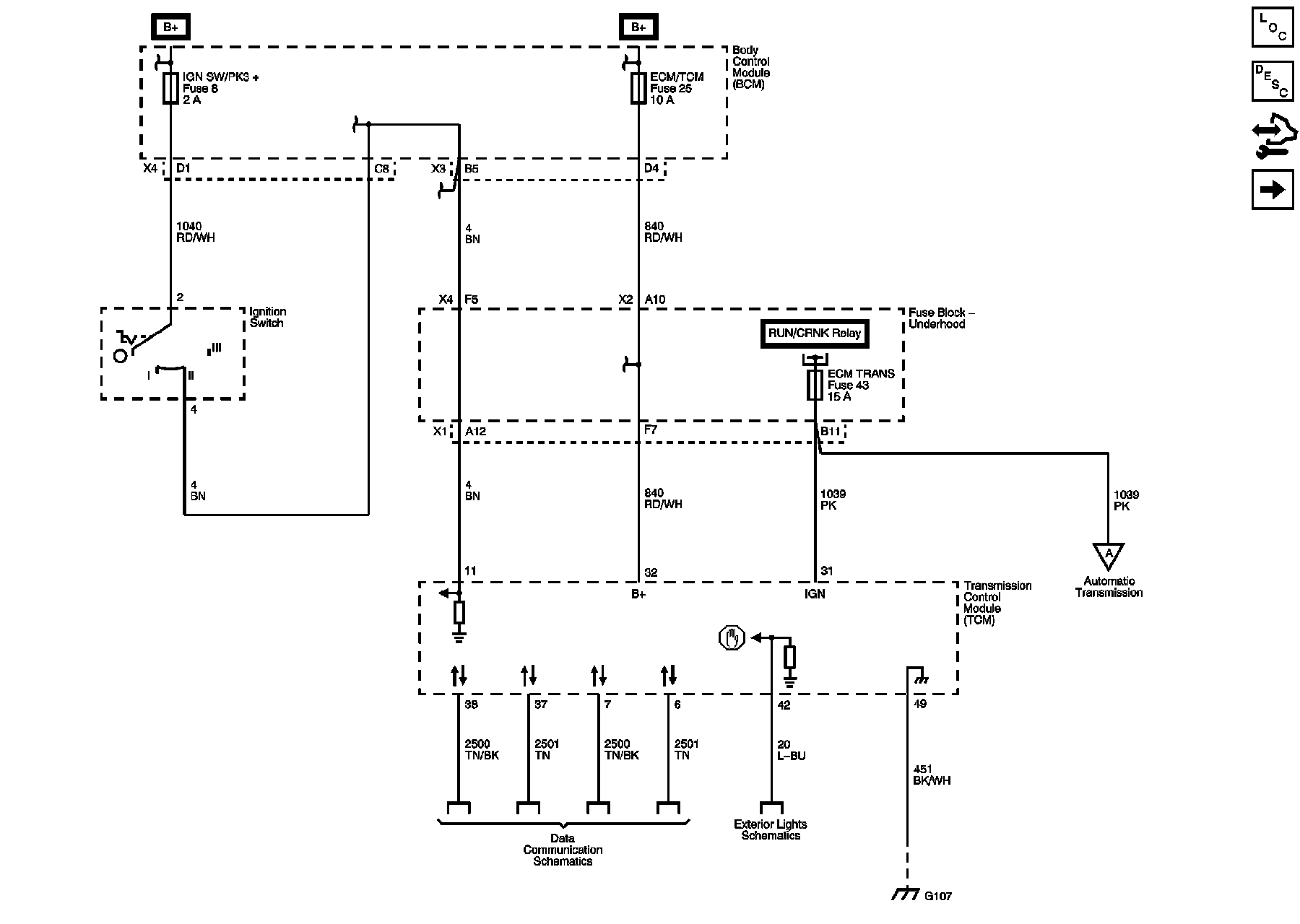

TCM, Power and Ground

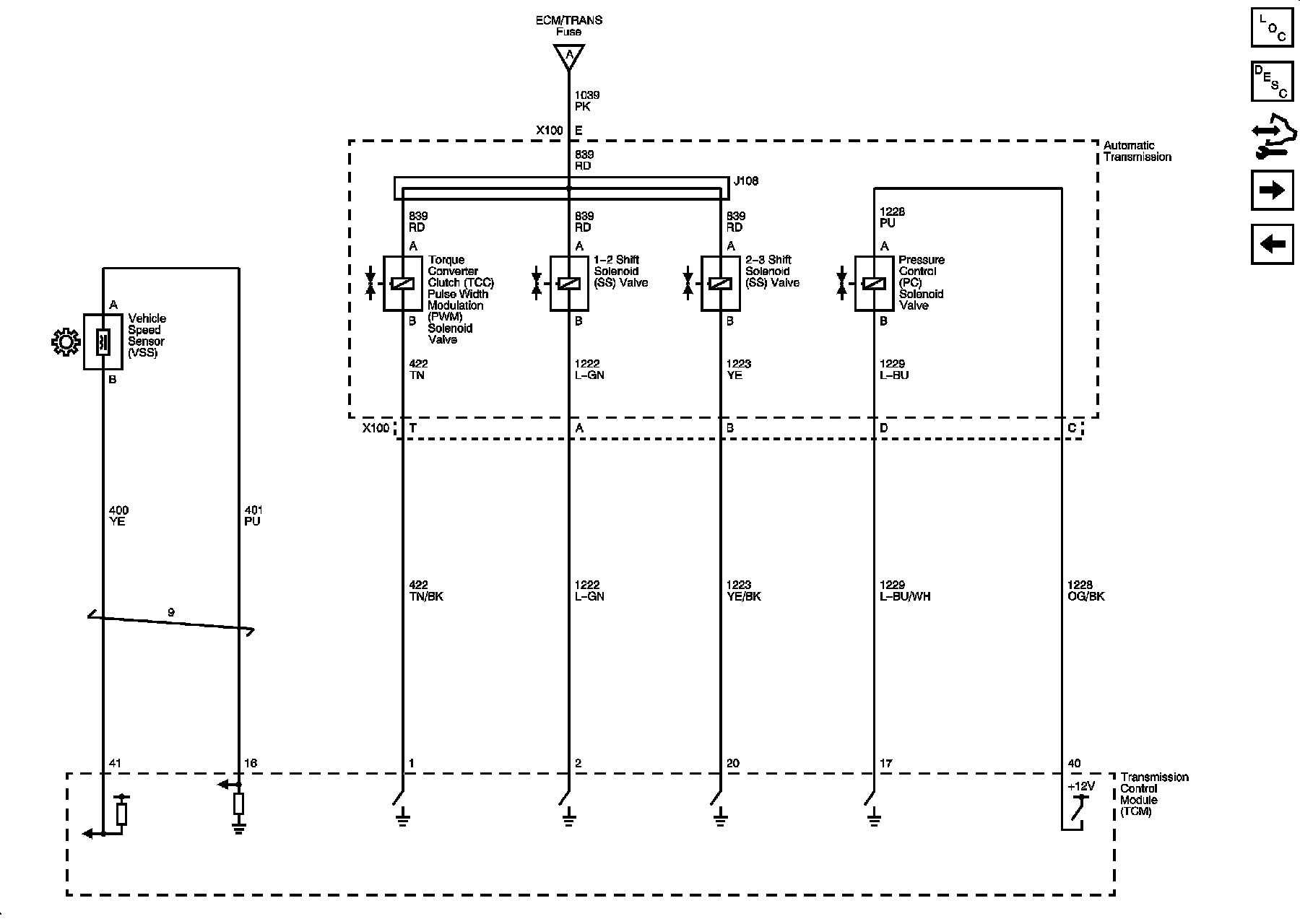

Transmission Solenoid and VSS

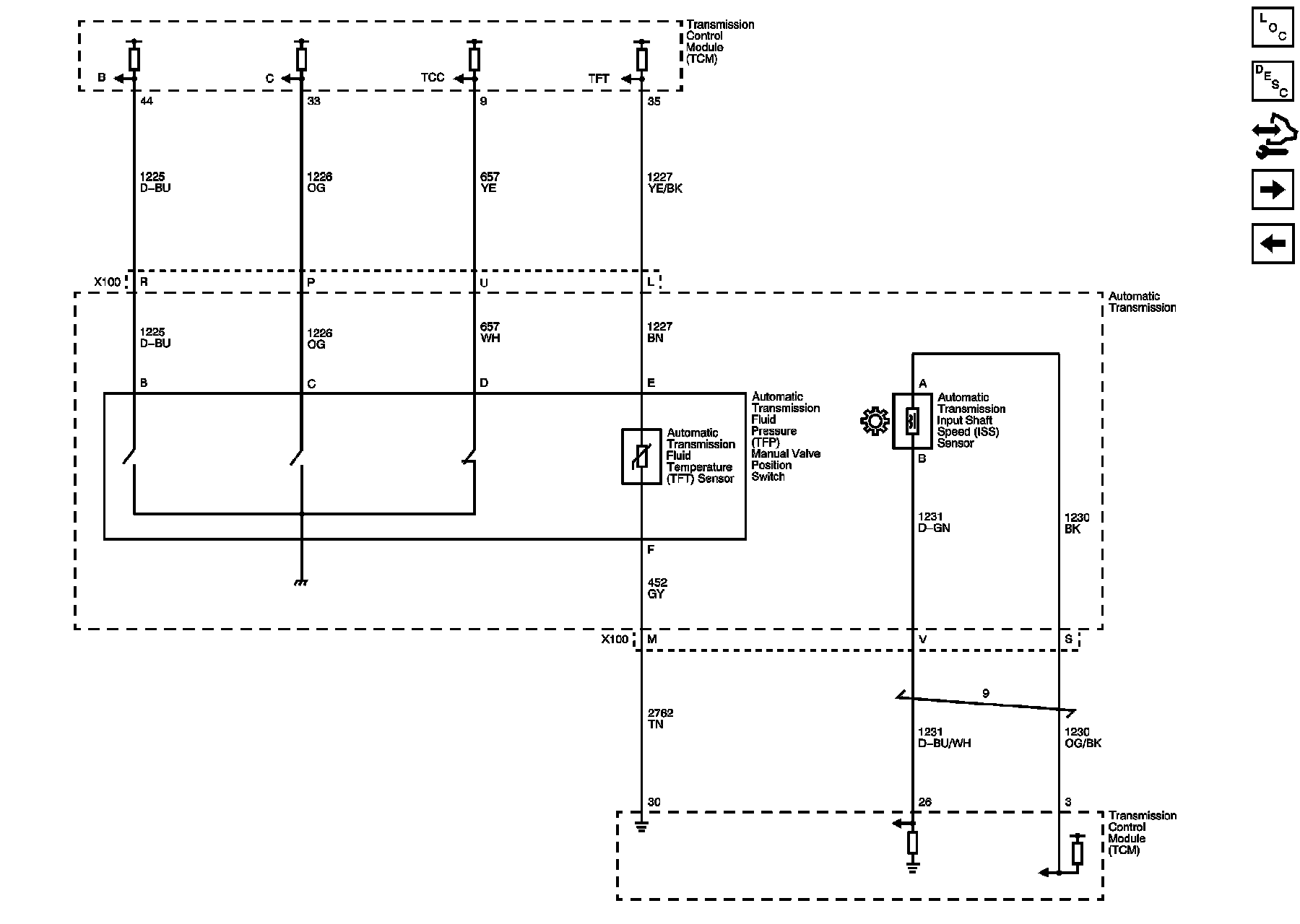

Transmission Switches, TFT and A/T ISS Sensors

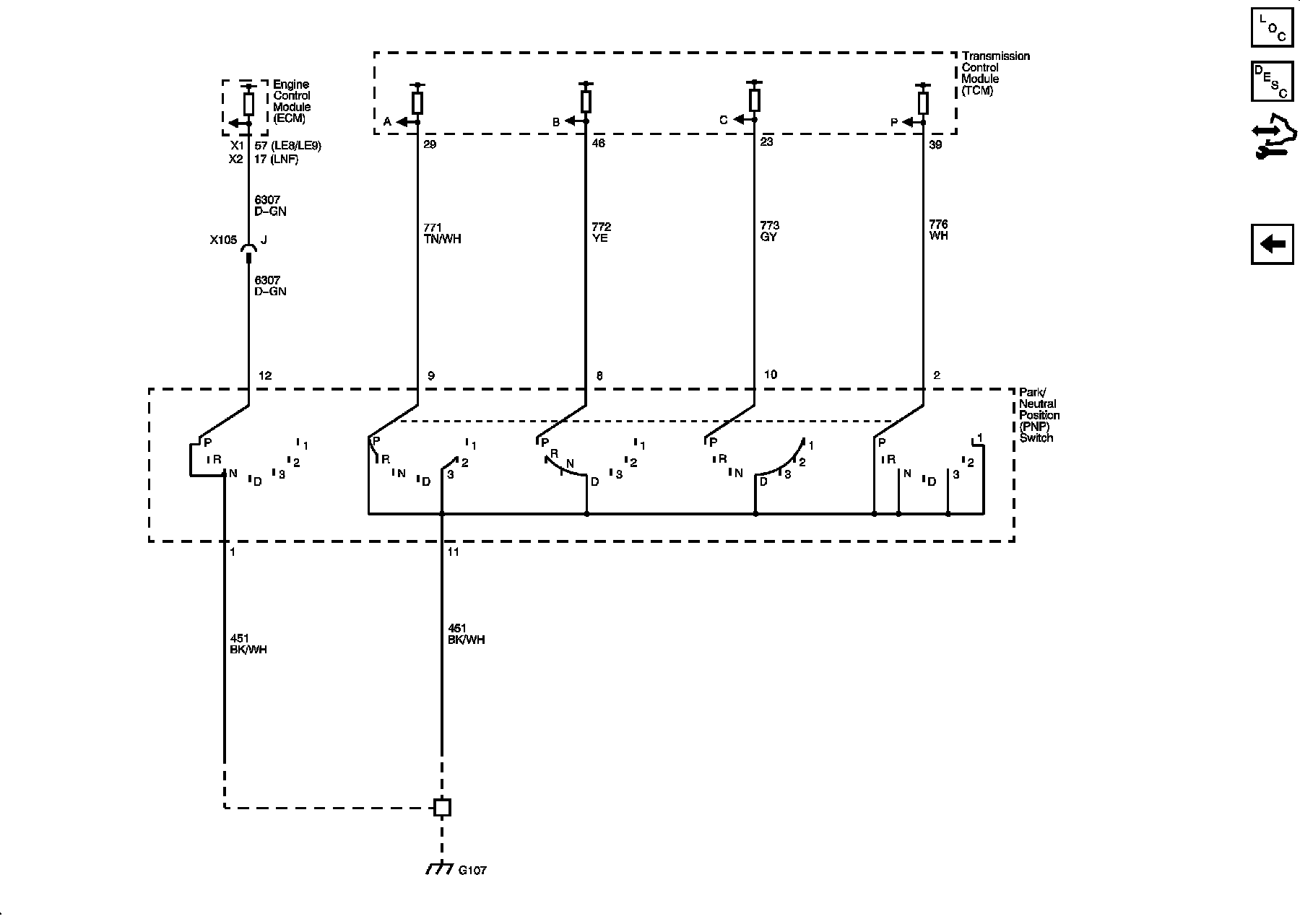

PNP Switch
