Radio/Navigation System Schematics




Radio/Navigation System Schematics

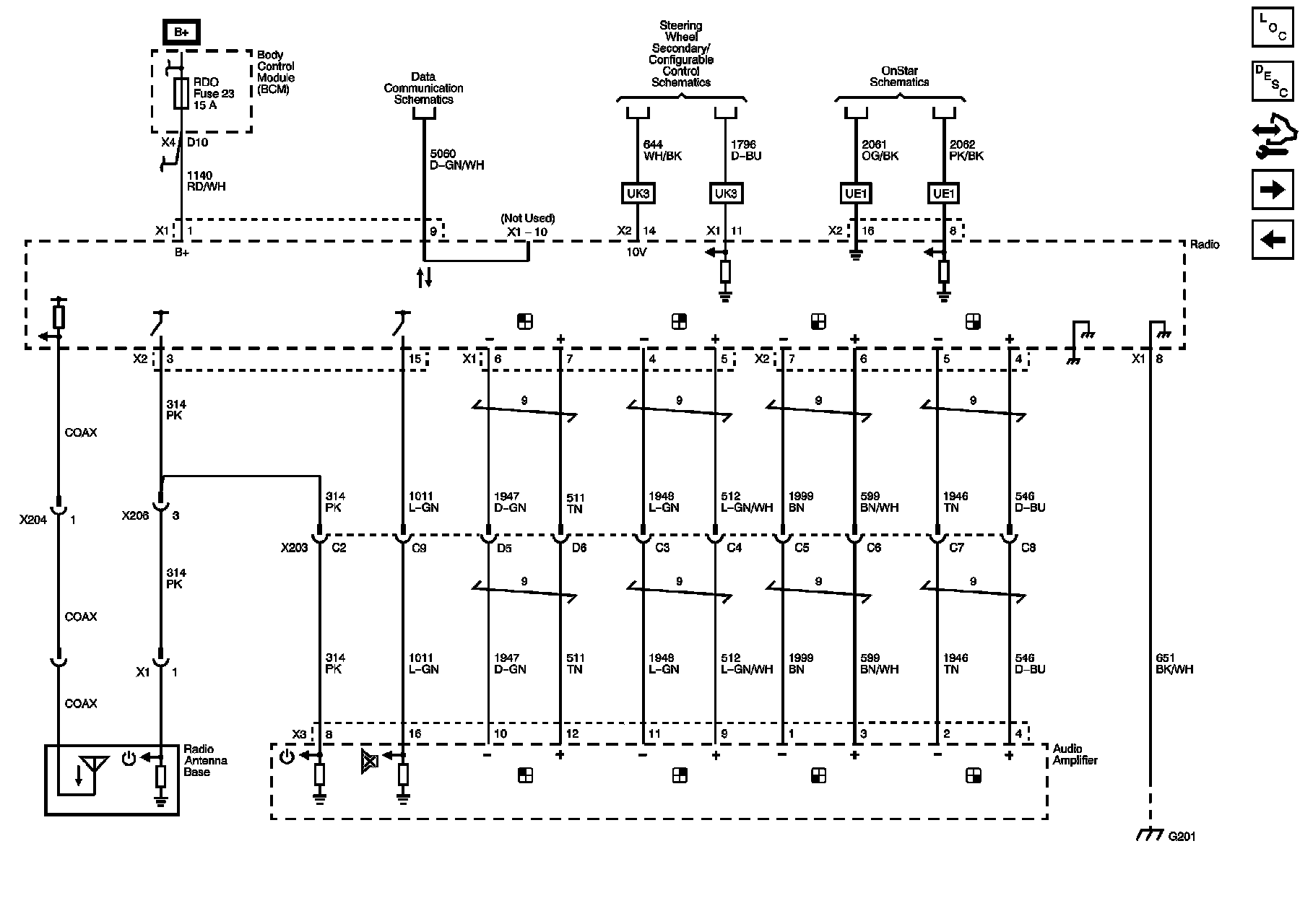

Radio (UW5)

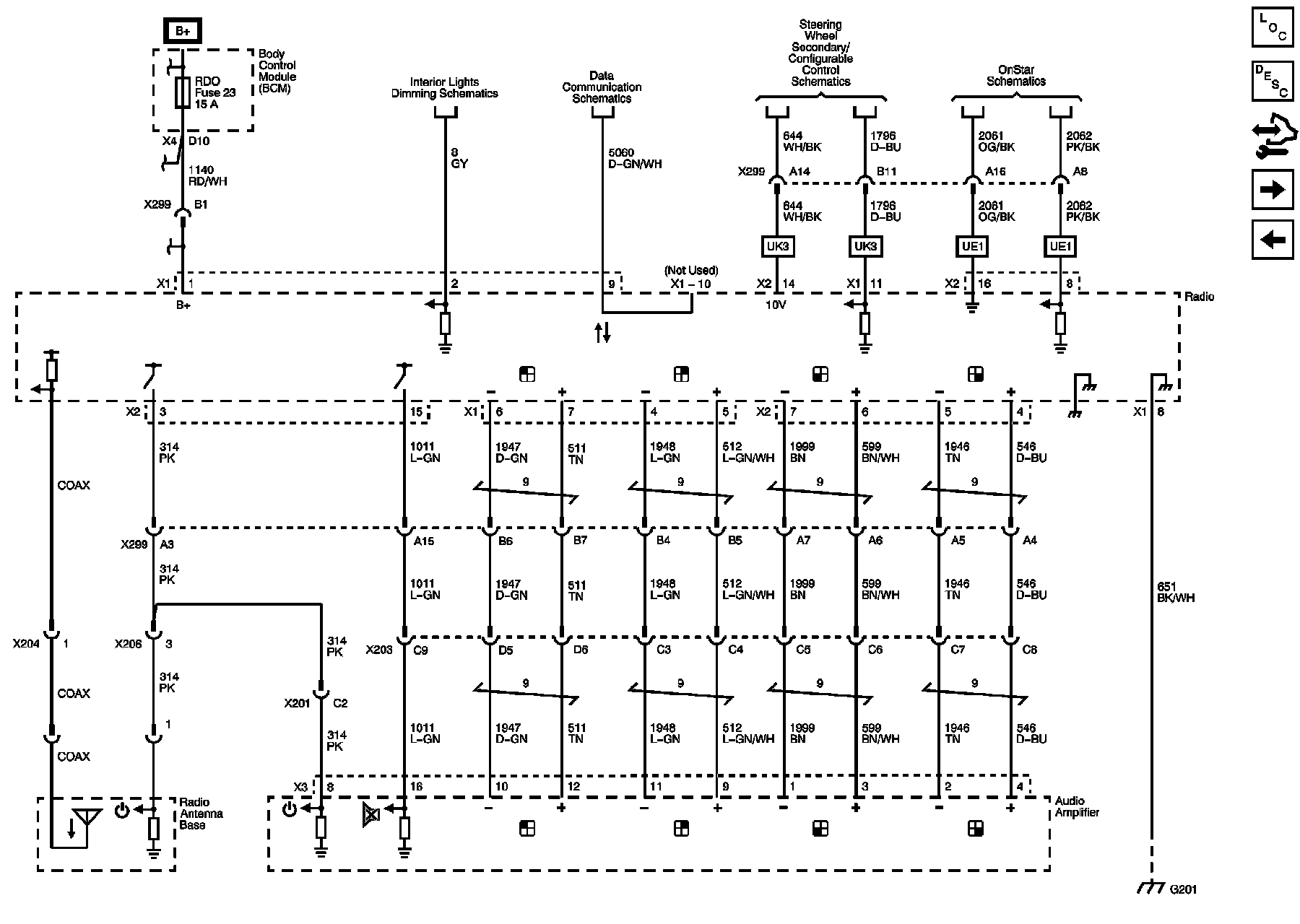

Radio (UQ3)





Radio (UQ3 with PAL)

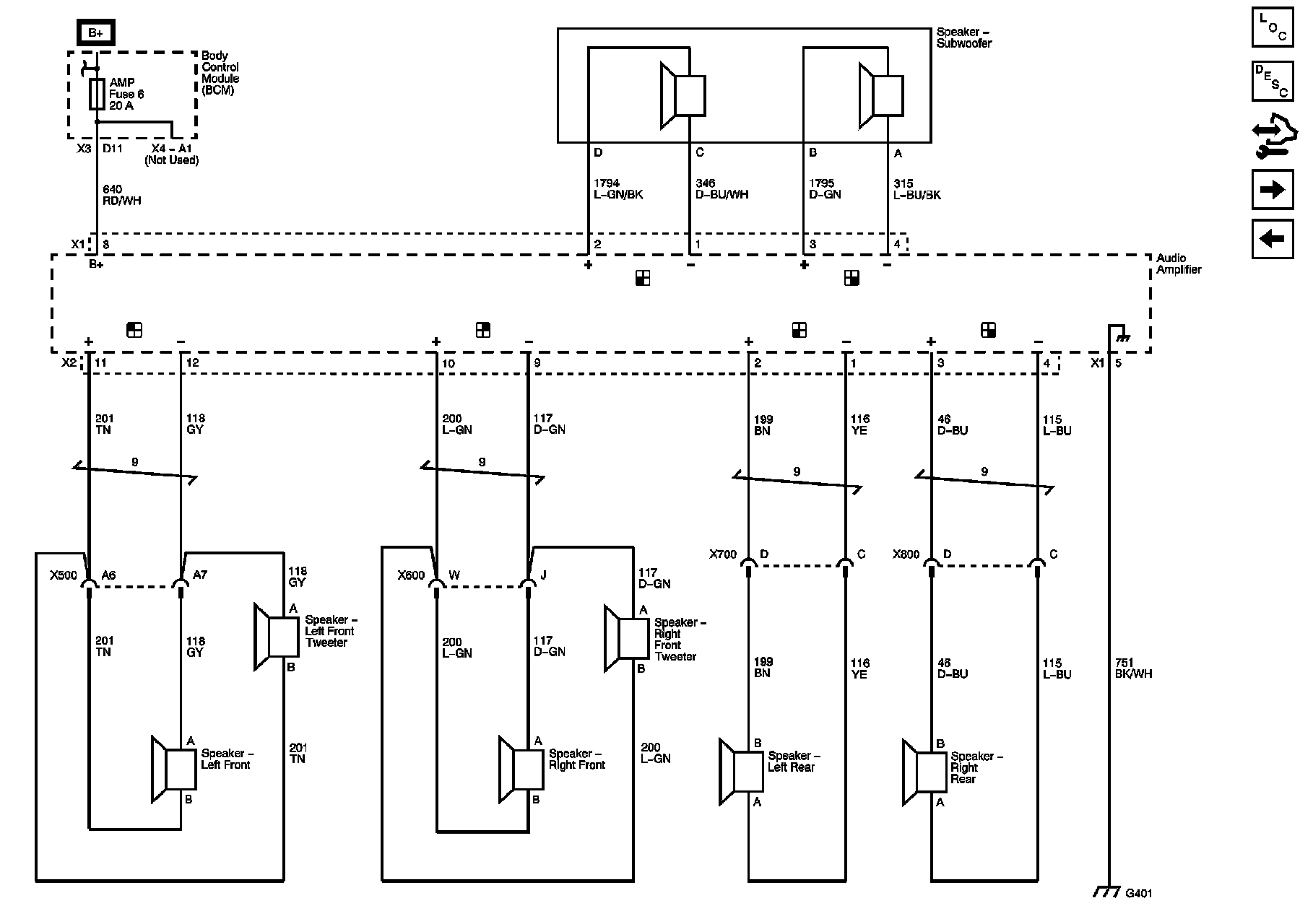

Amplifier (UQ3)

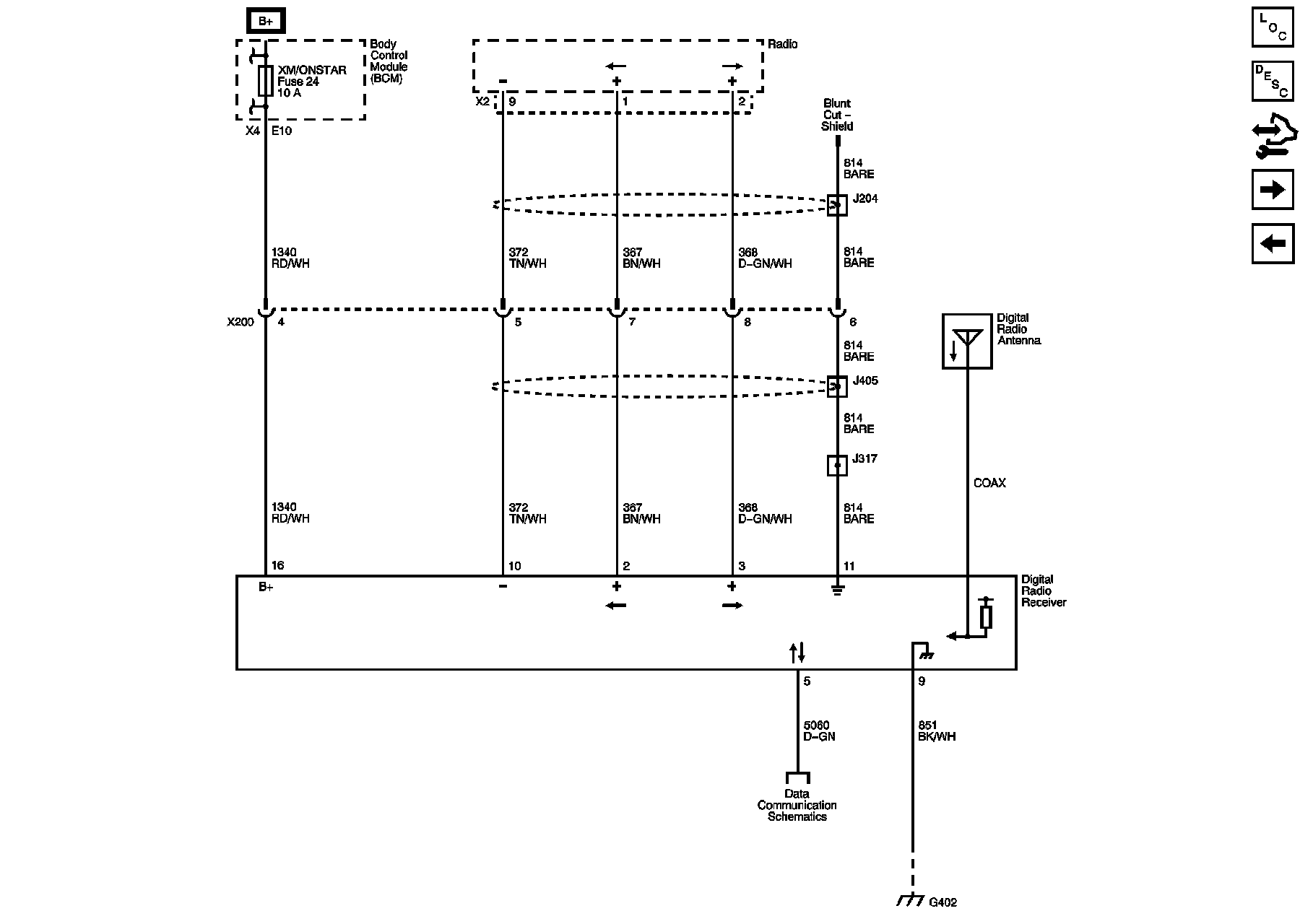

Digital Radio Receiver (U2K)

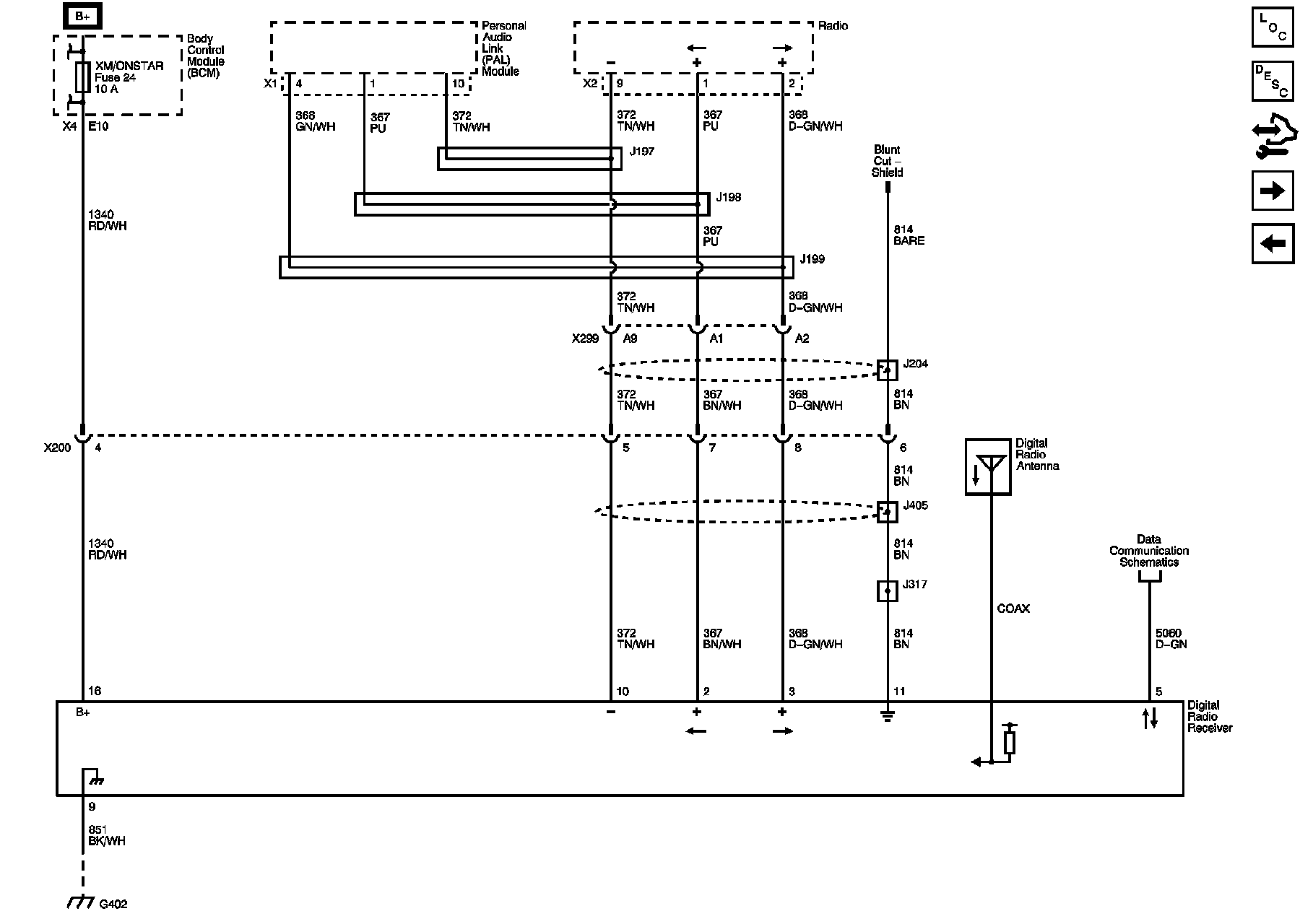

Digital Radio Receiver (U2K with PAL)





Personal Audio Link (PAL)
