2010
>>
HHR L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
System Diagram
System Diagram
Component Connector End Views
Radio X1 (without PAL)

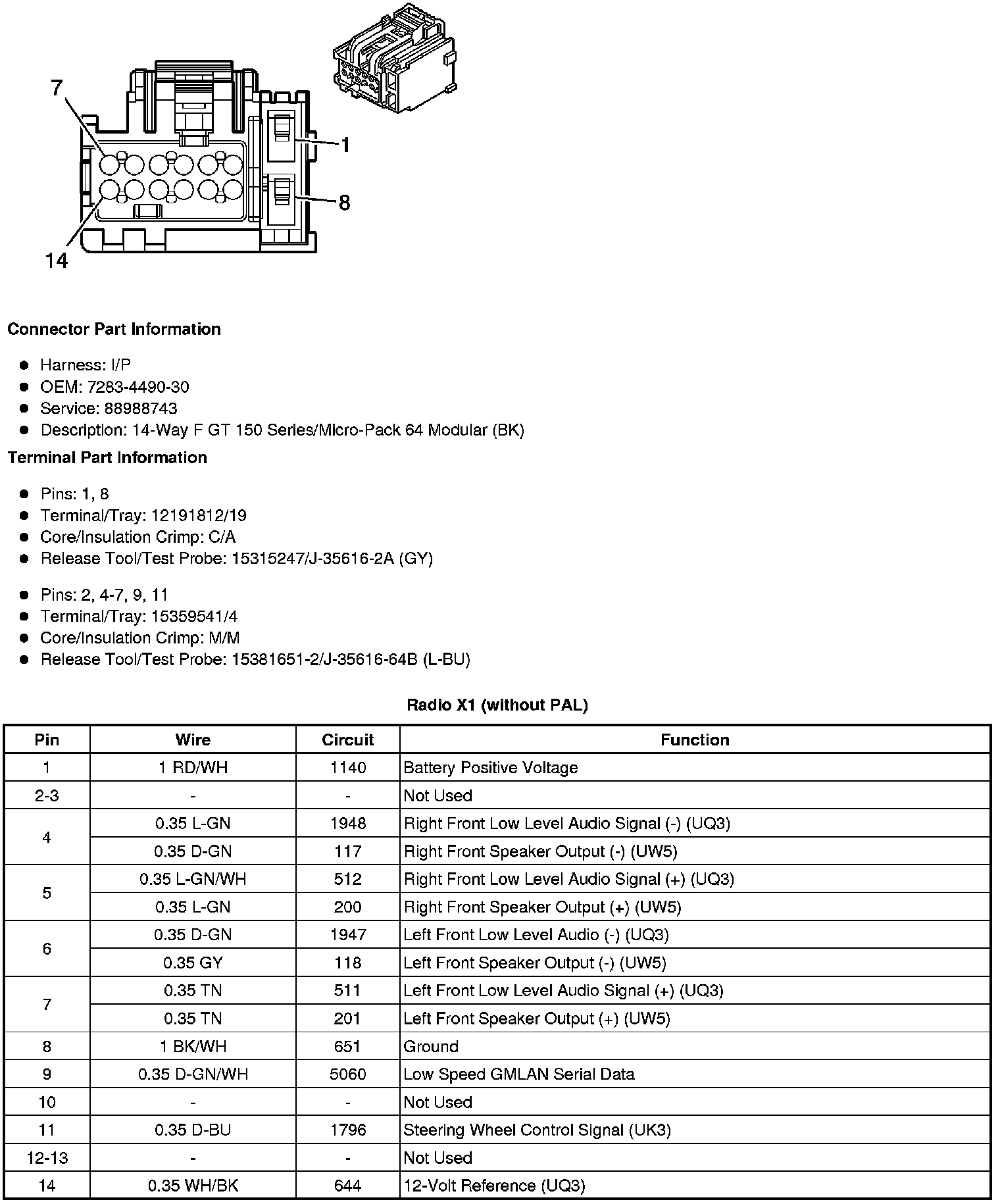

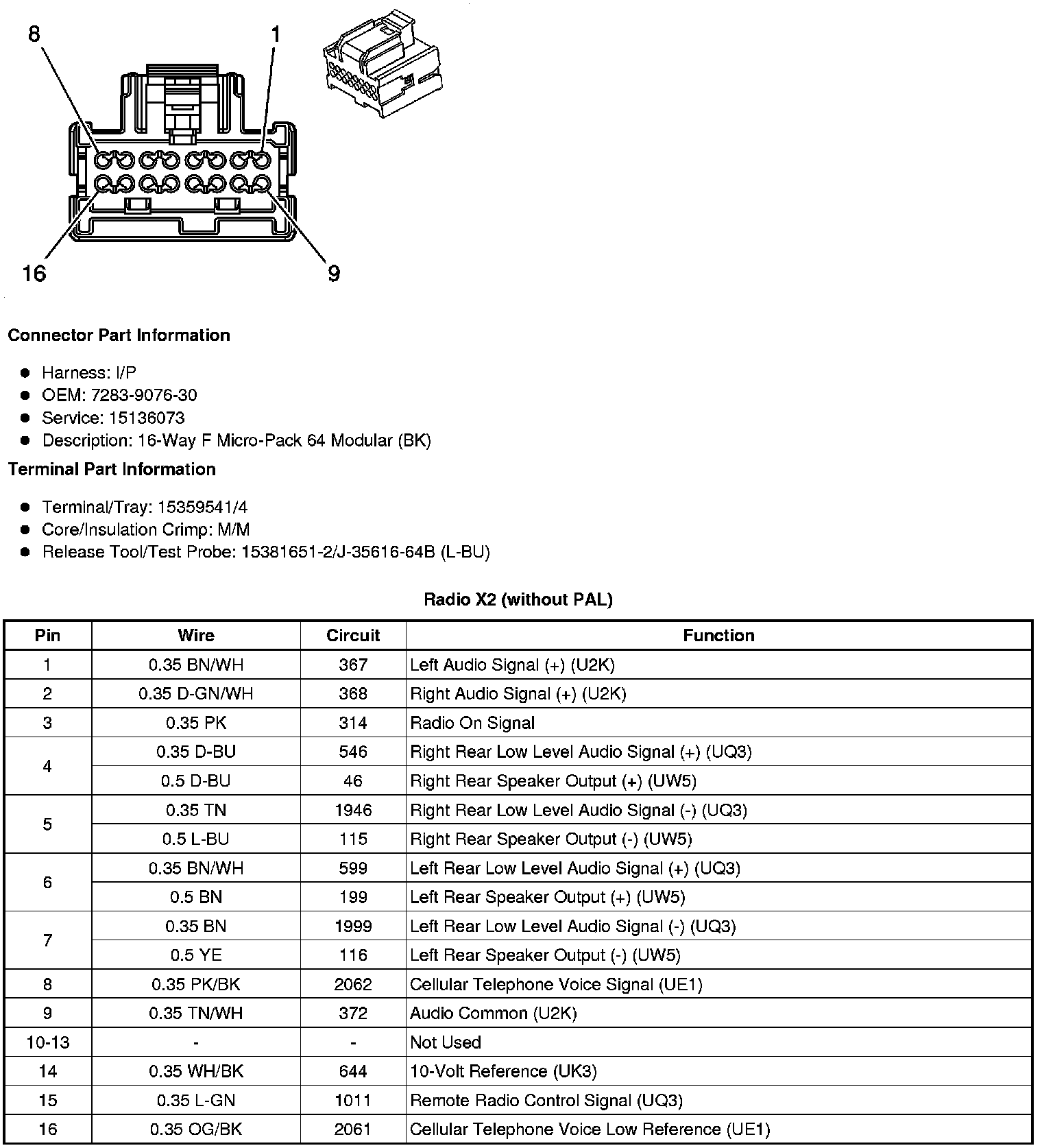

Radio X2 (without PAL)

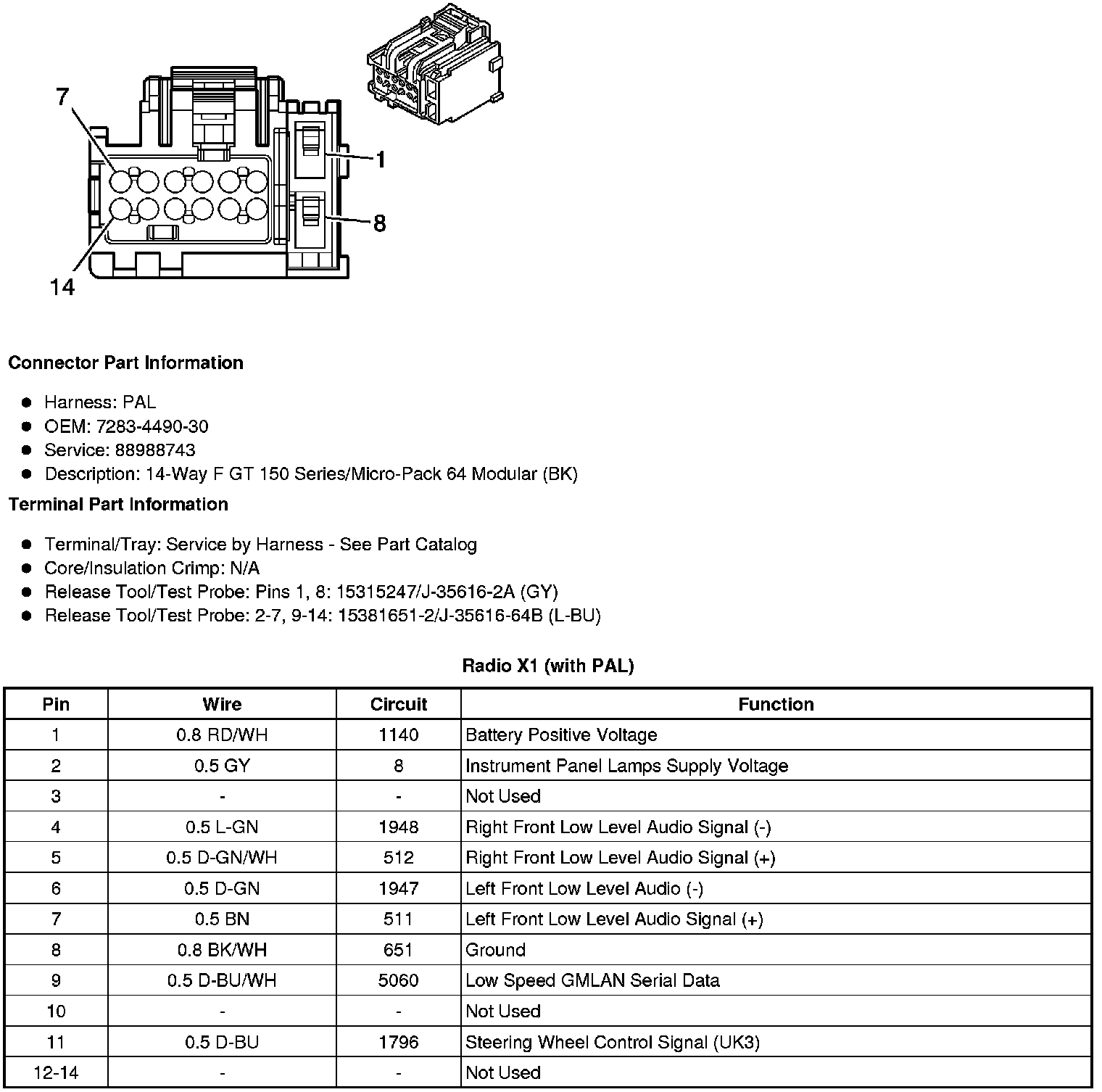

Radio X1 (with PAL)

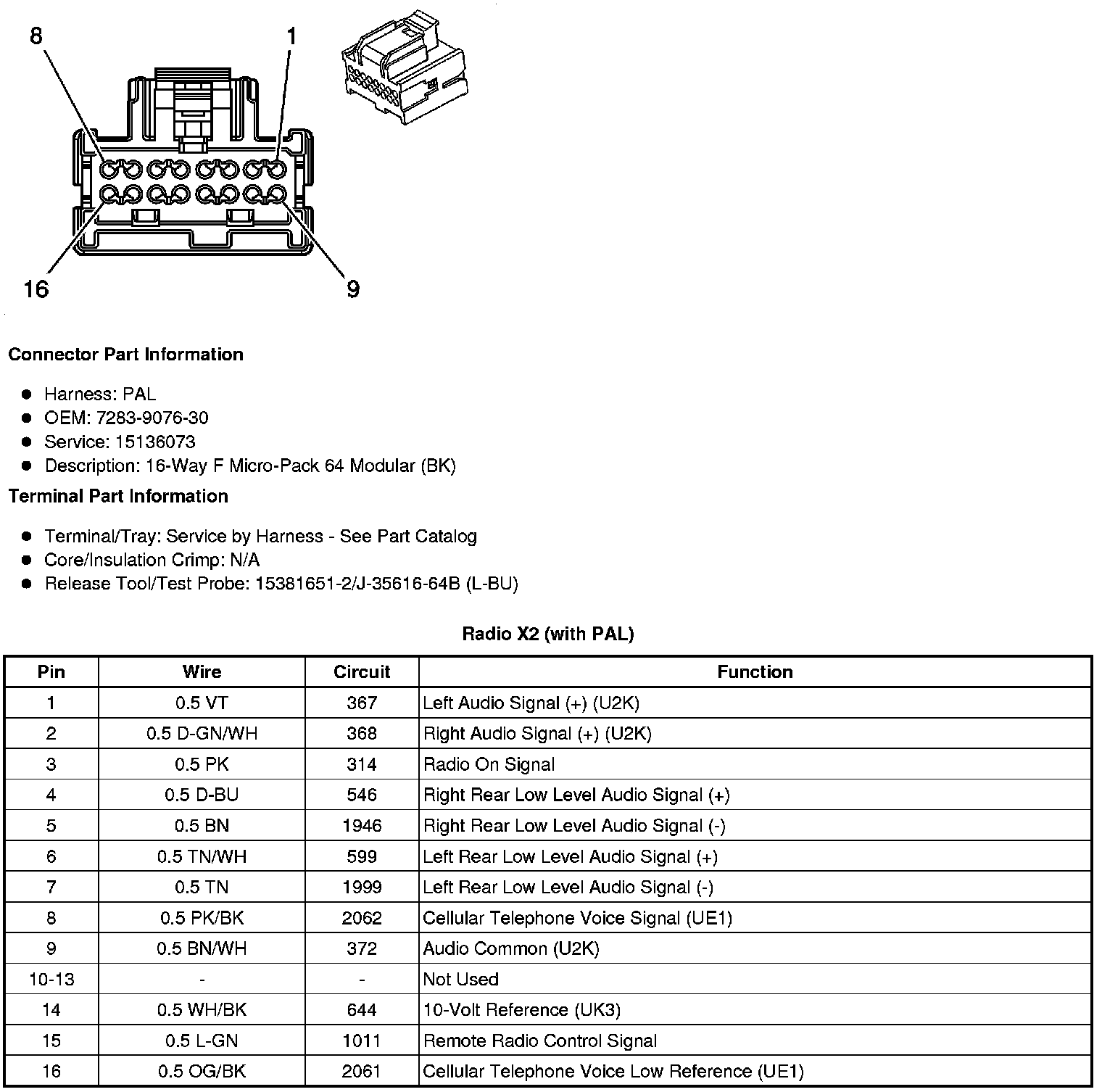

Radio X2 (with PAL)
