Radiator Cooling Fan
>>
Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module
Component Connector End Views

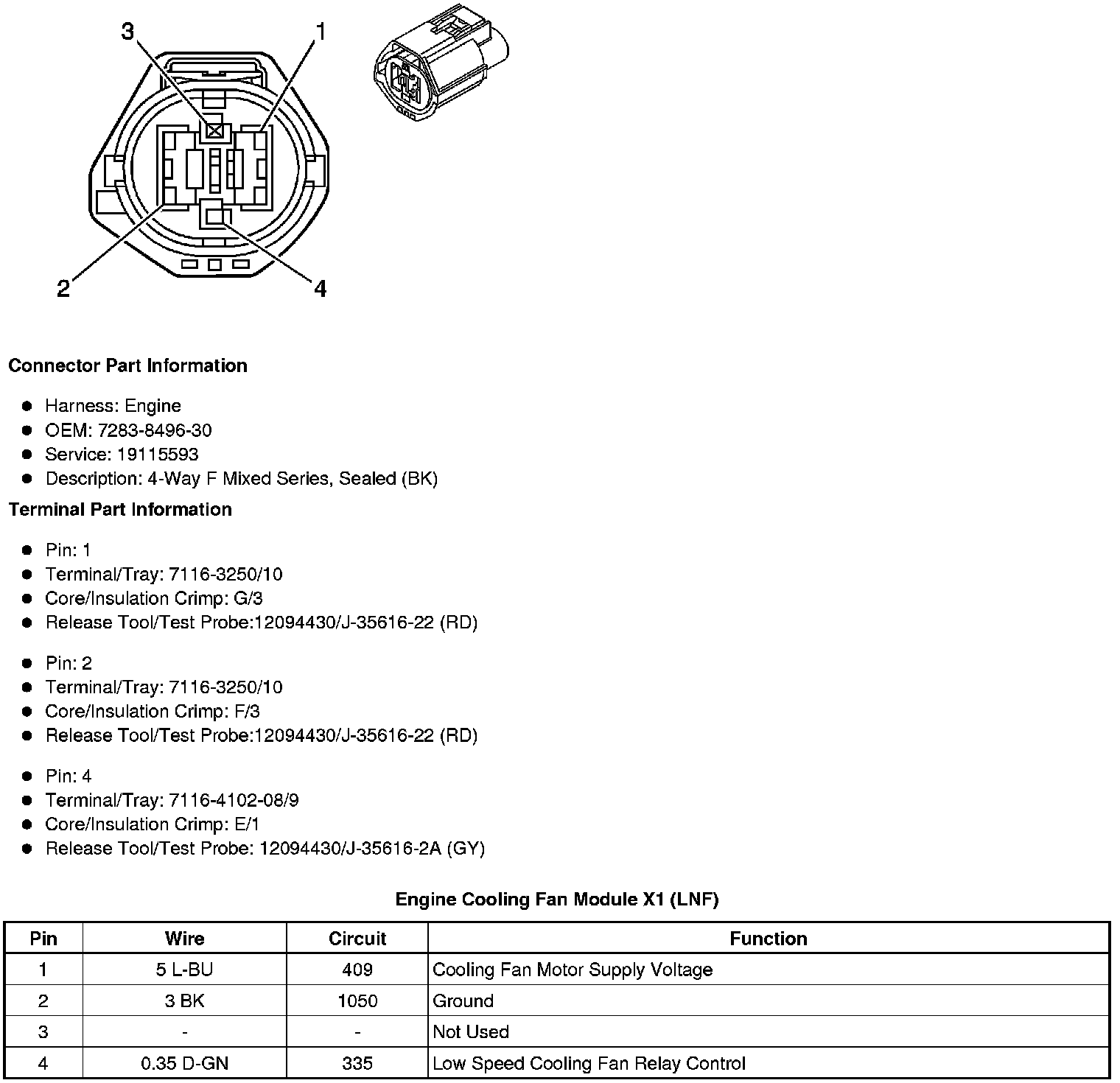

Engine Cooling Fan Module X1 (LNF)

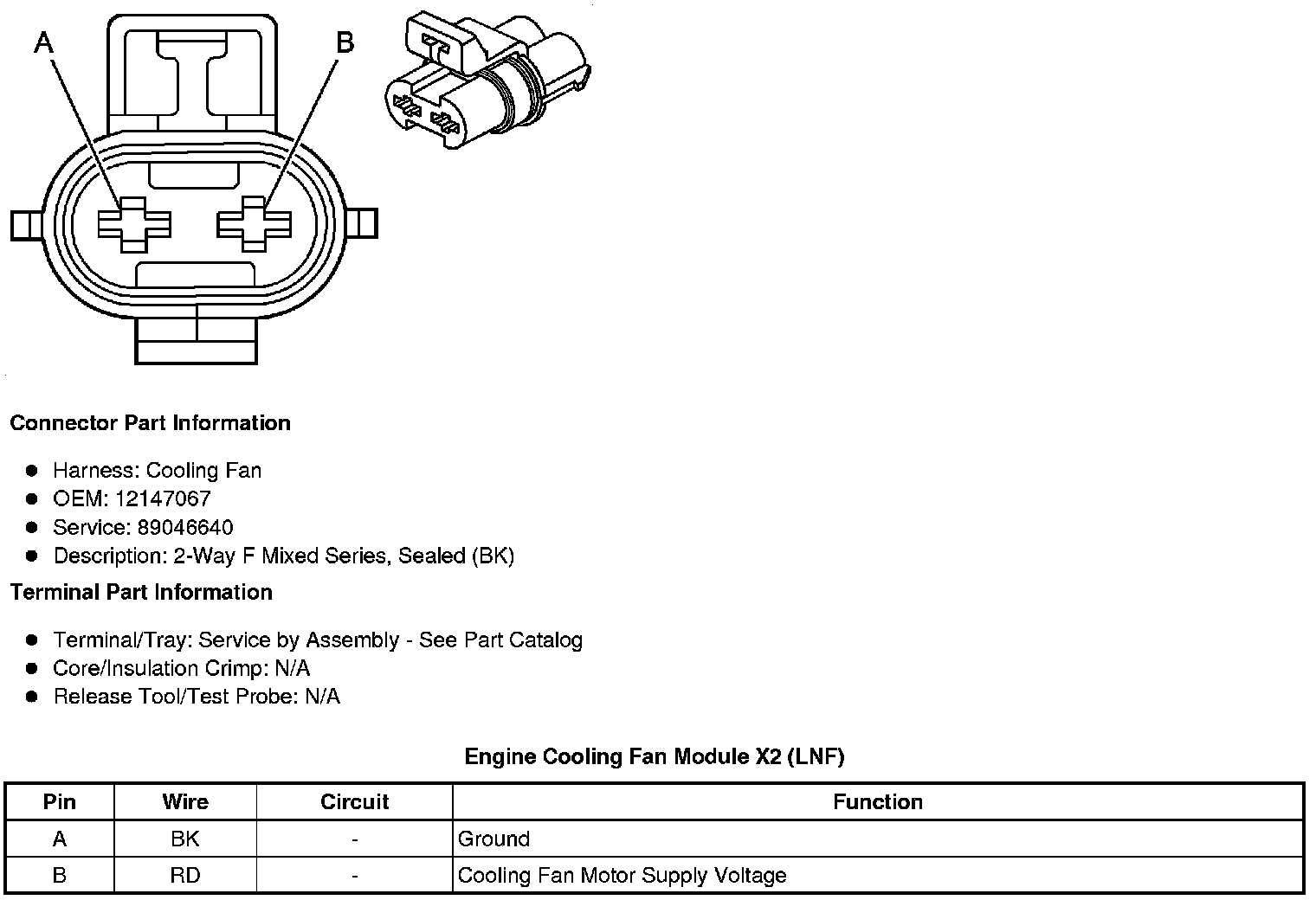

Engine Cooling Fan Module X2 (LNF)
