Components




Master Electrical Component List

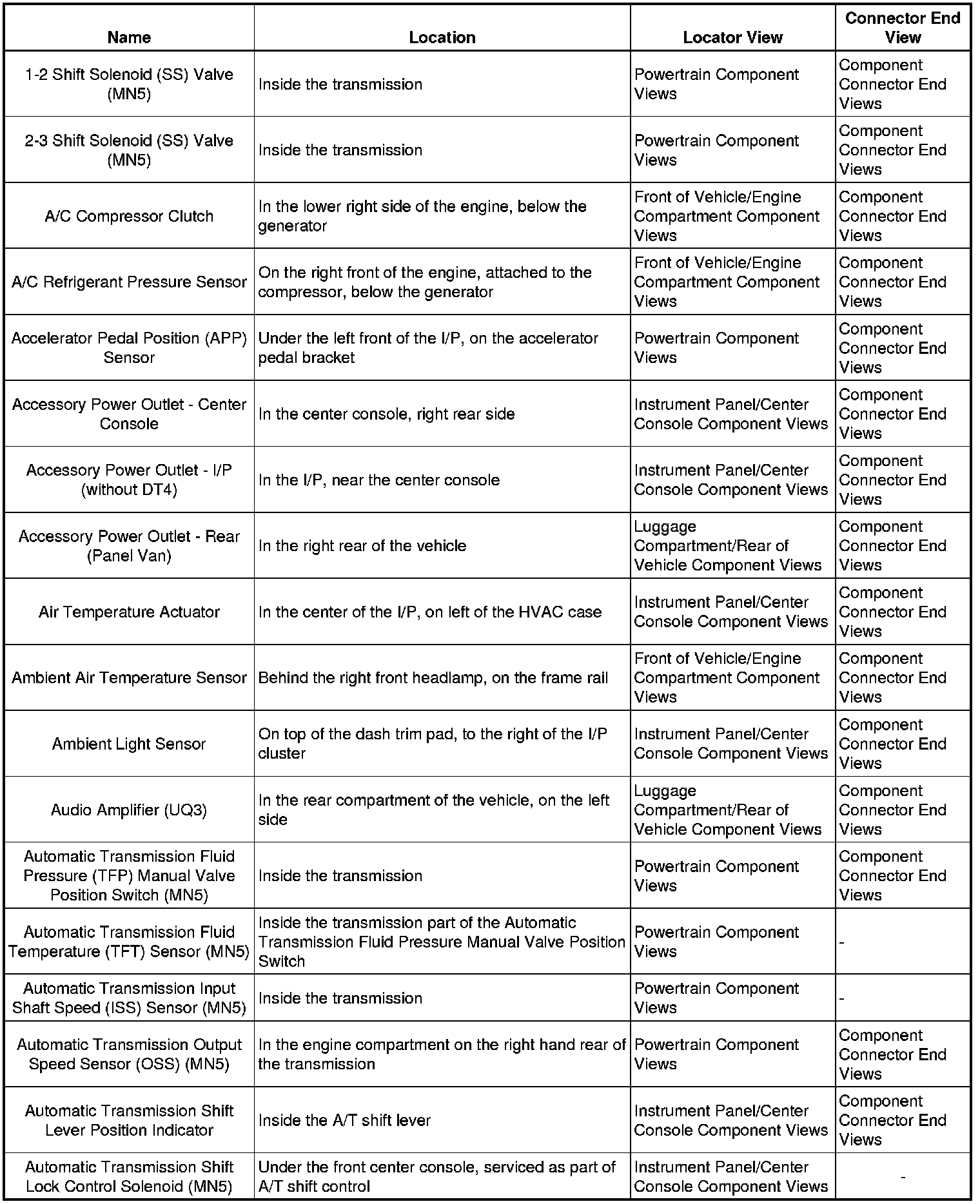

1-2 Sh - Au:





Ba - Ce:





Ce - Do:

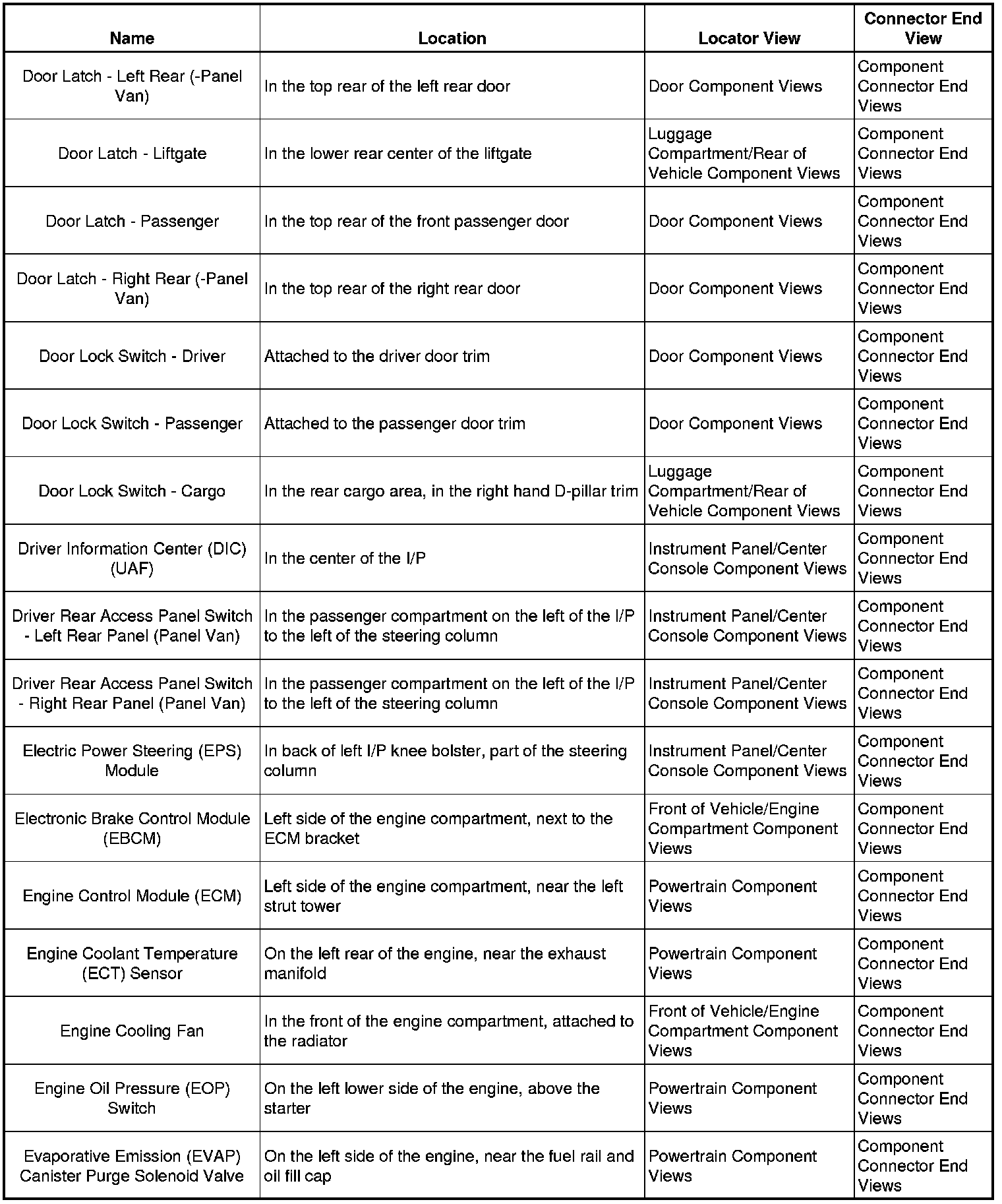

Do - Ev:

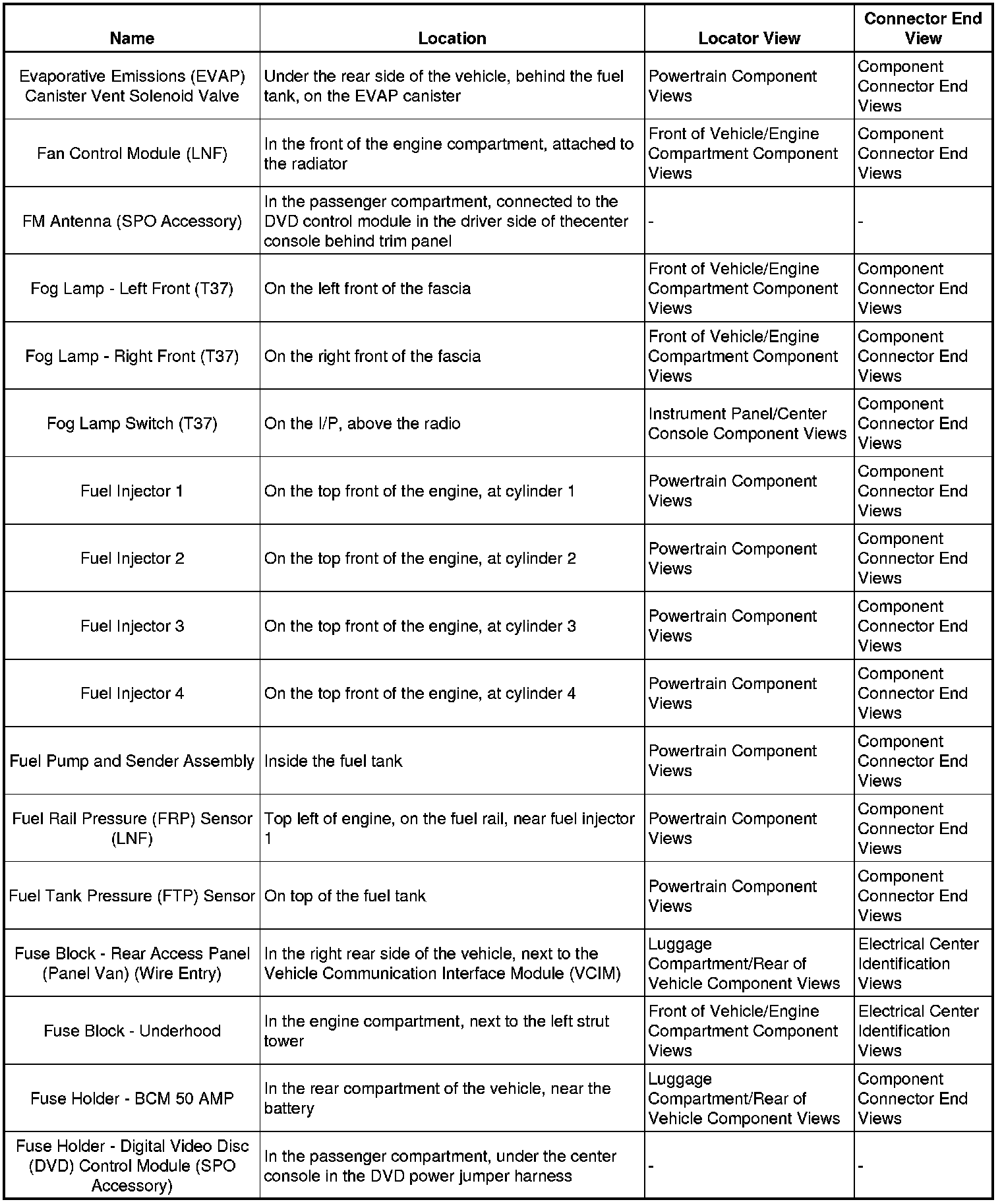

Ev - Fu:

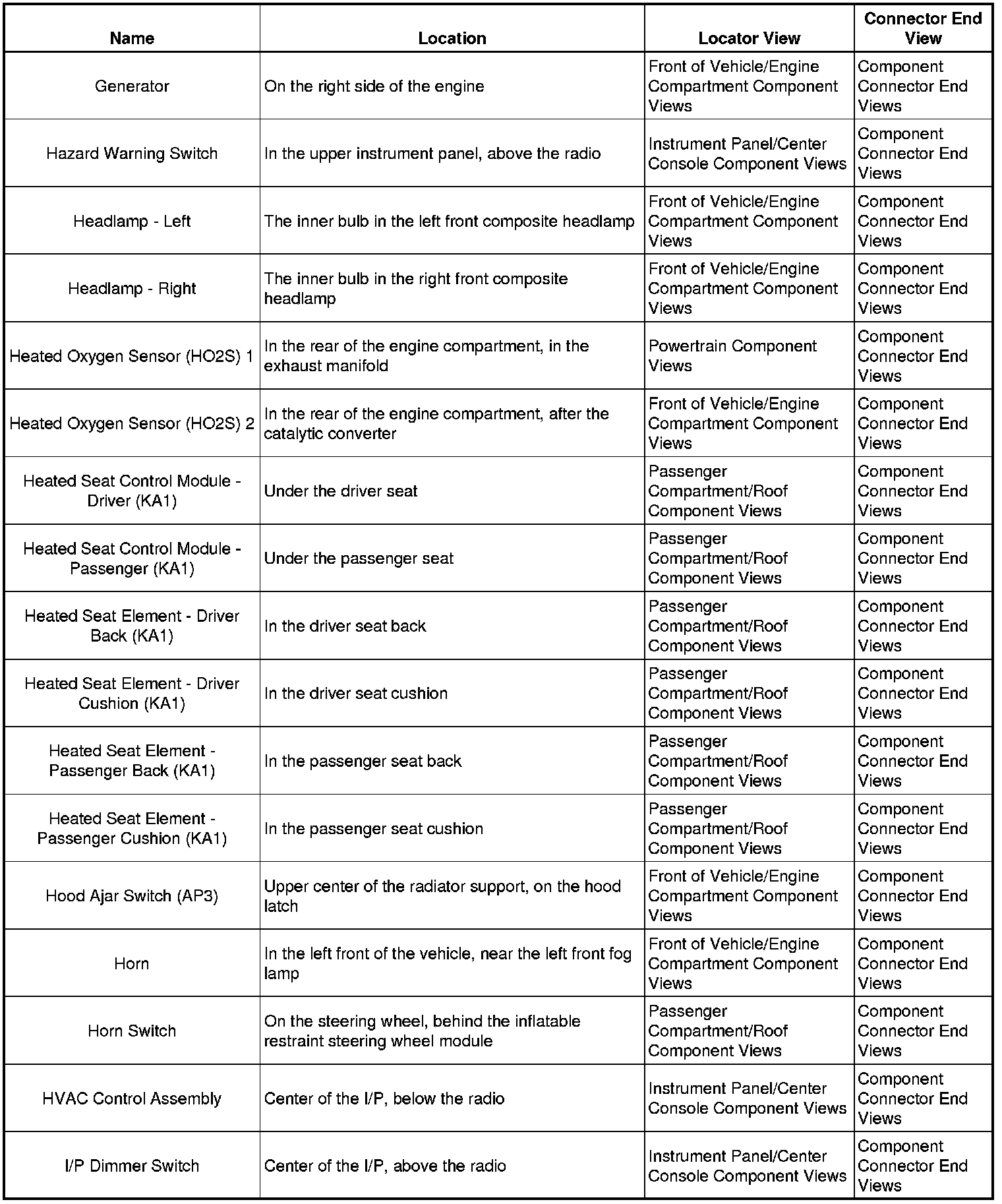

Ge - I/P:

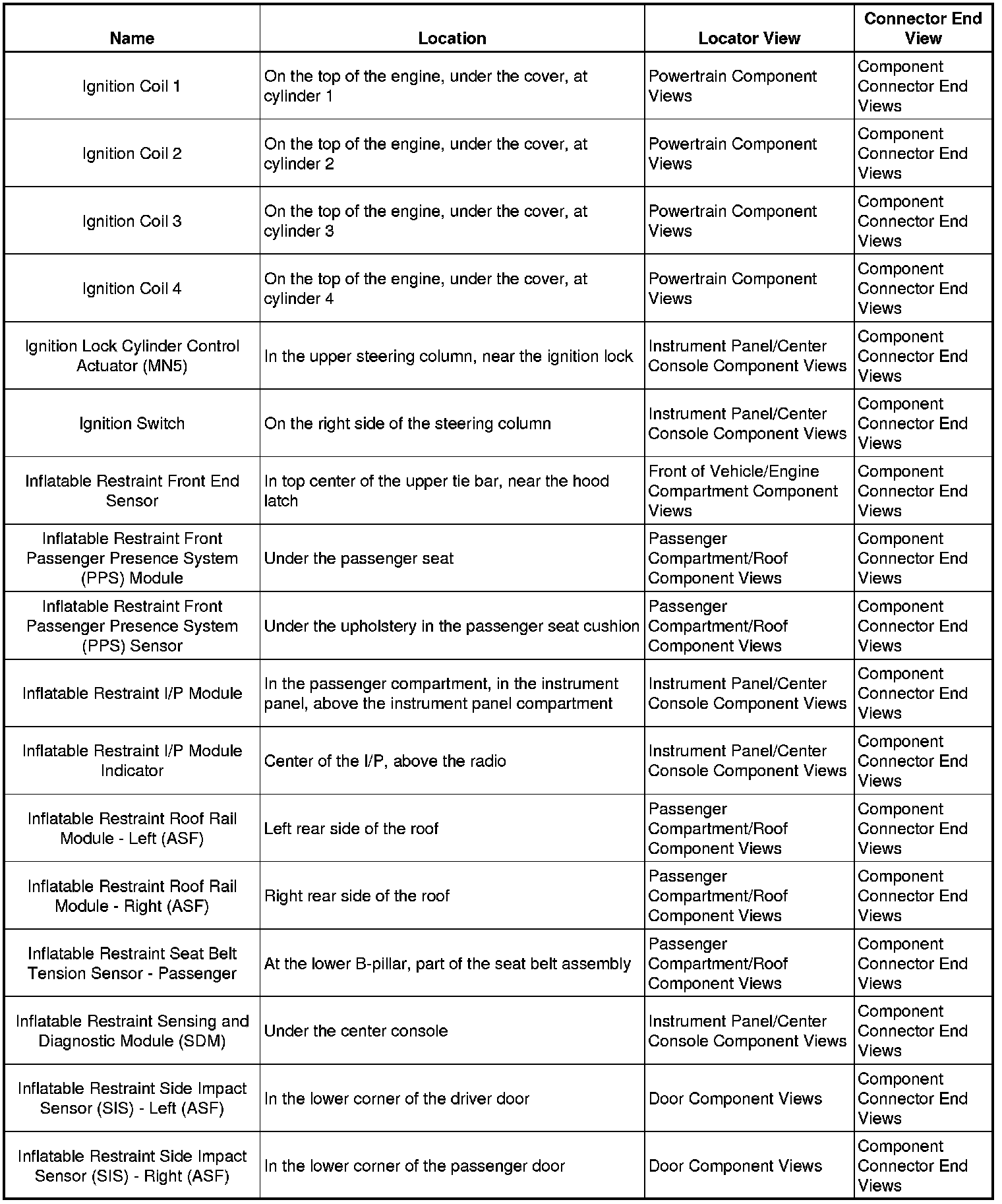

Ig - In:

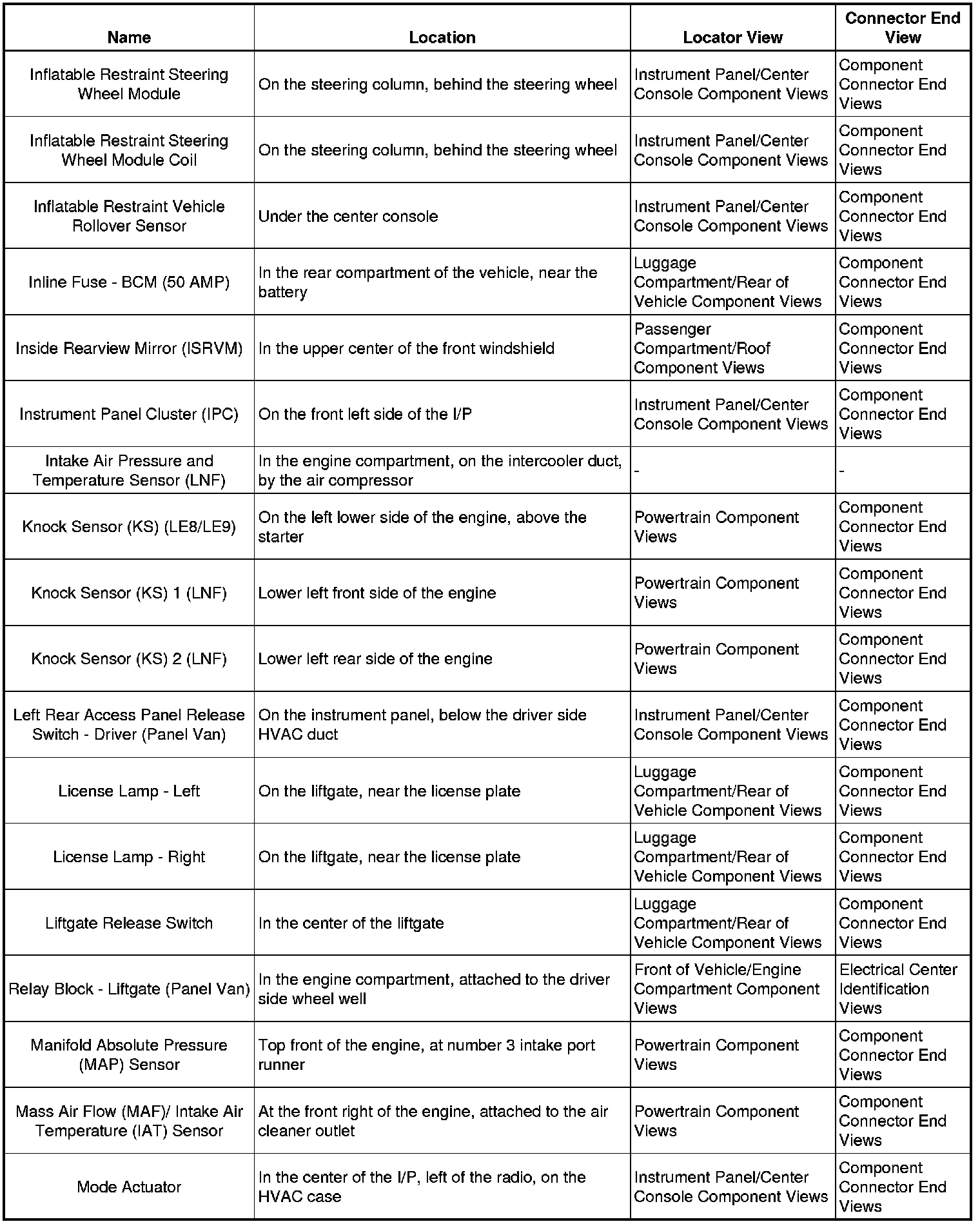

In - Mo:

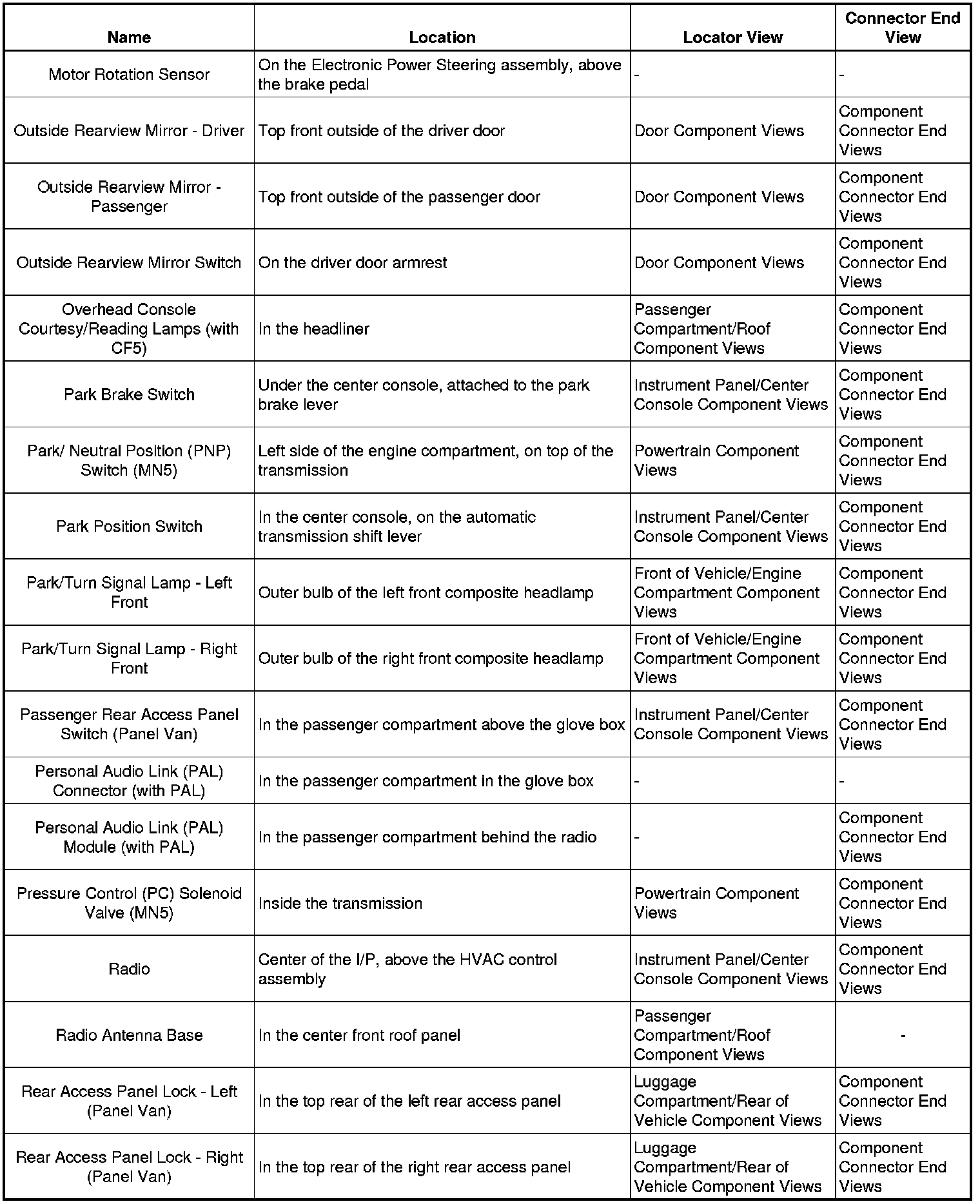

Mo - Re:

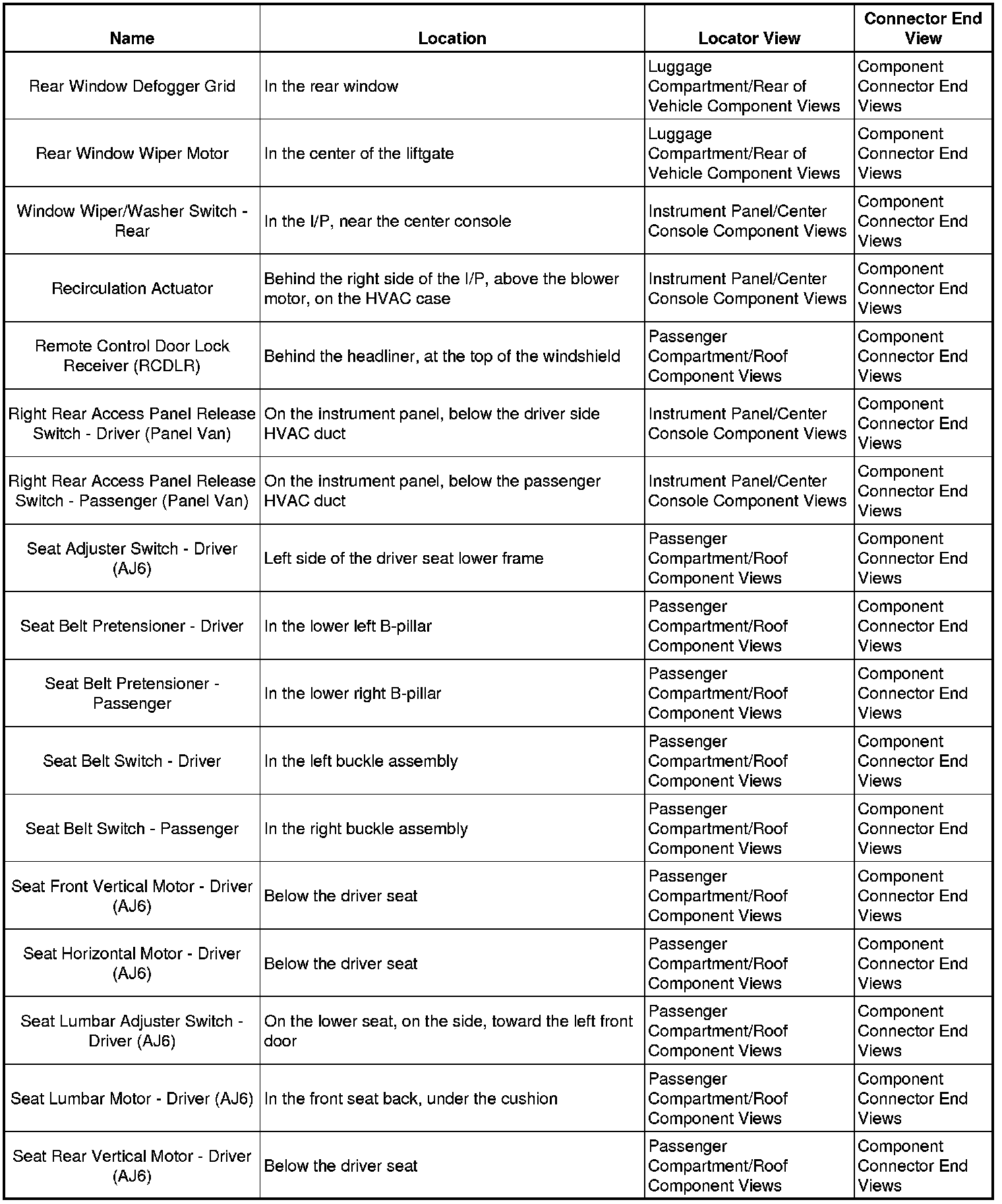

Re - Se:

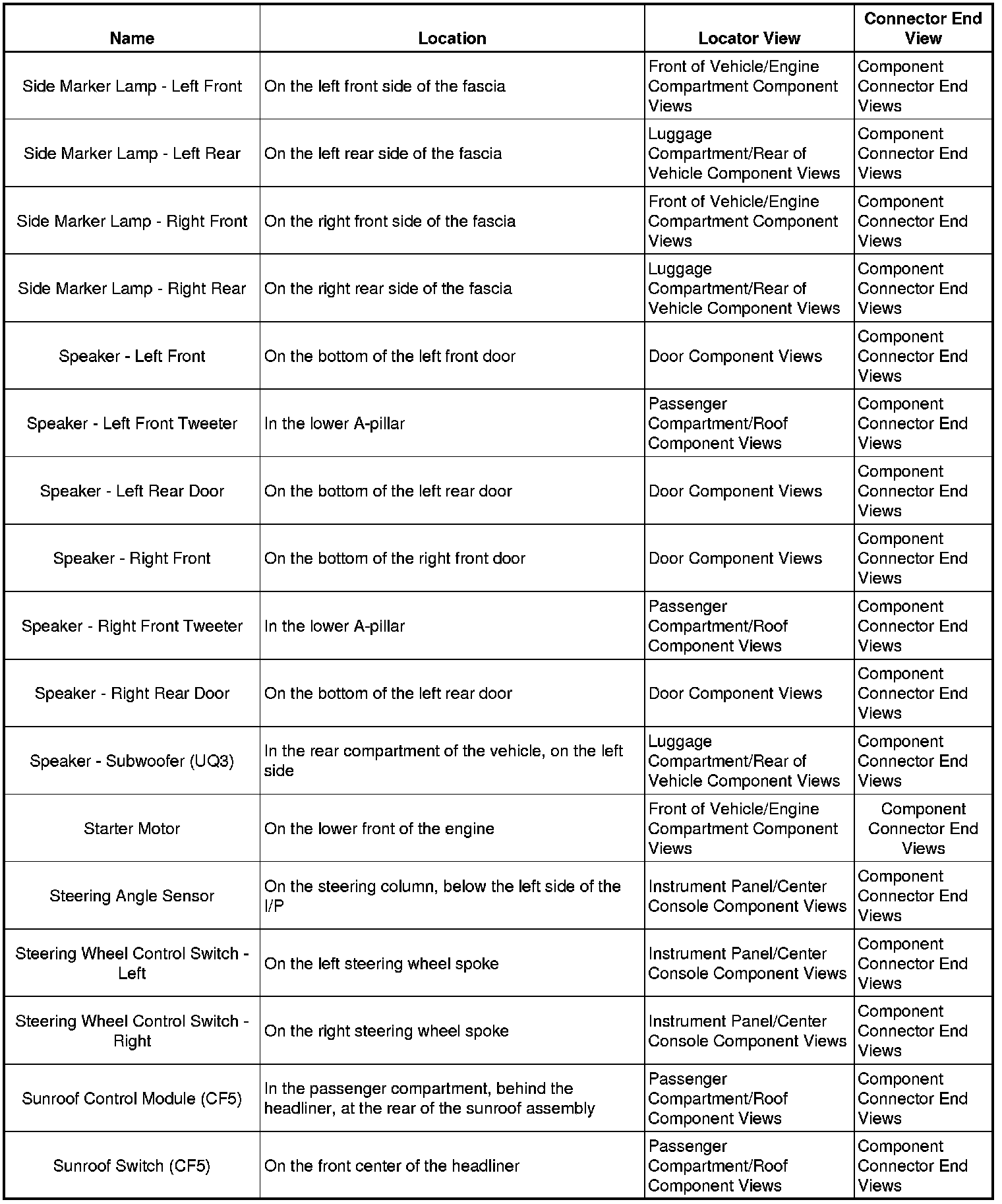

Si - Su:

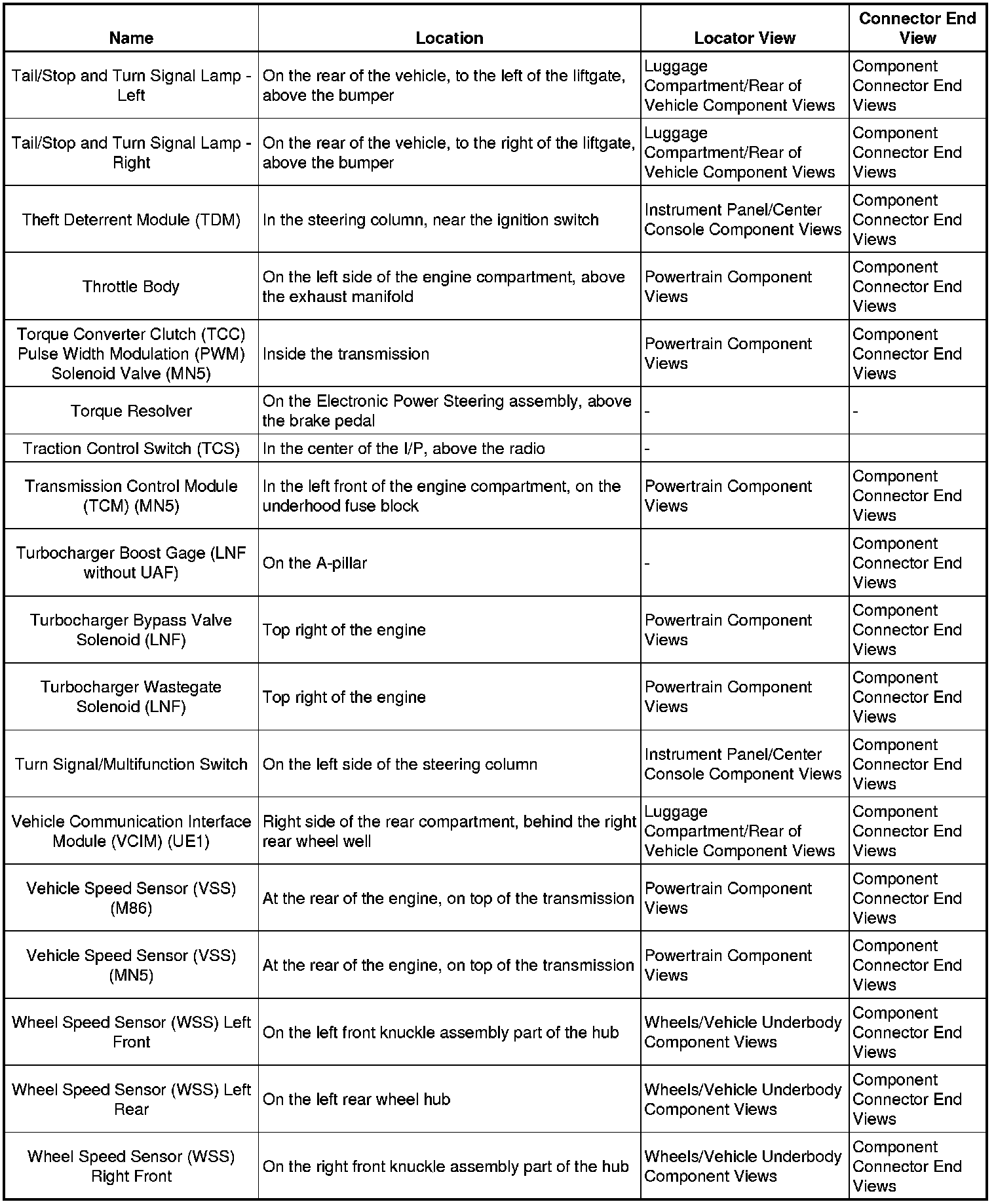

Ta - Wh:

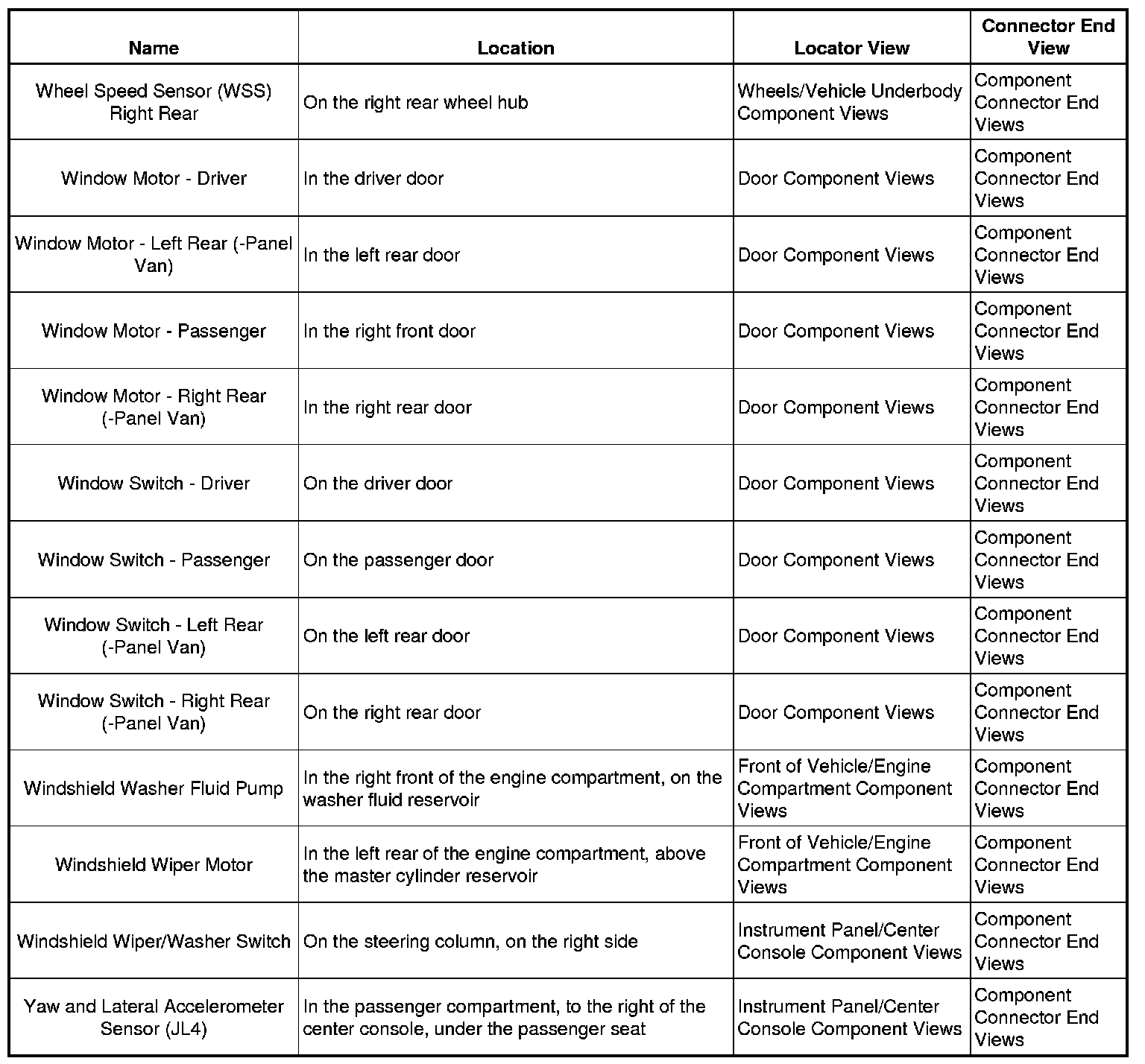

Wh - Ya:
