Harness Routing Views




Harness Routing Views

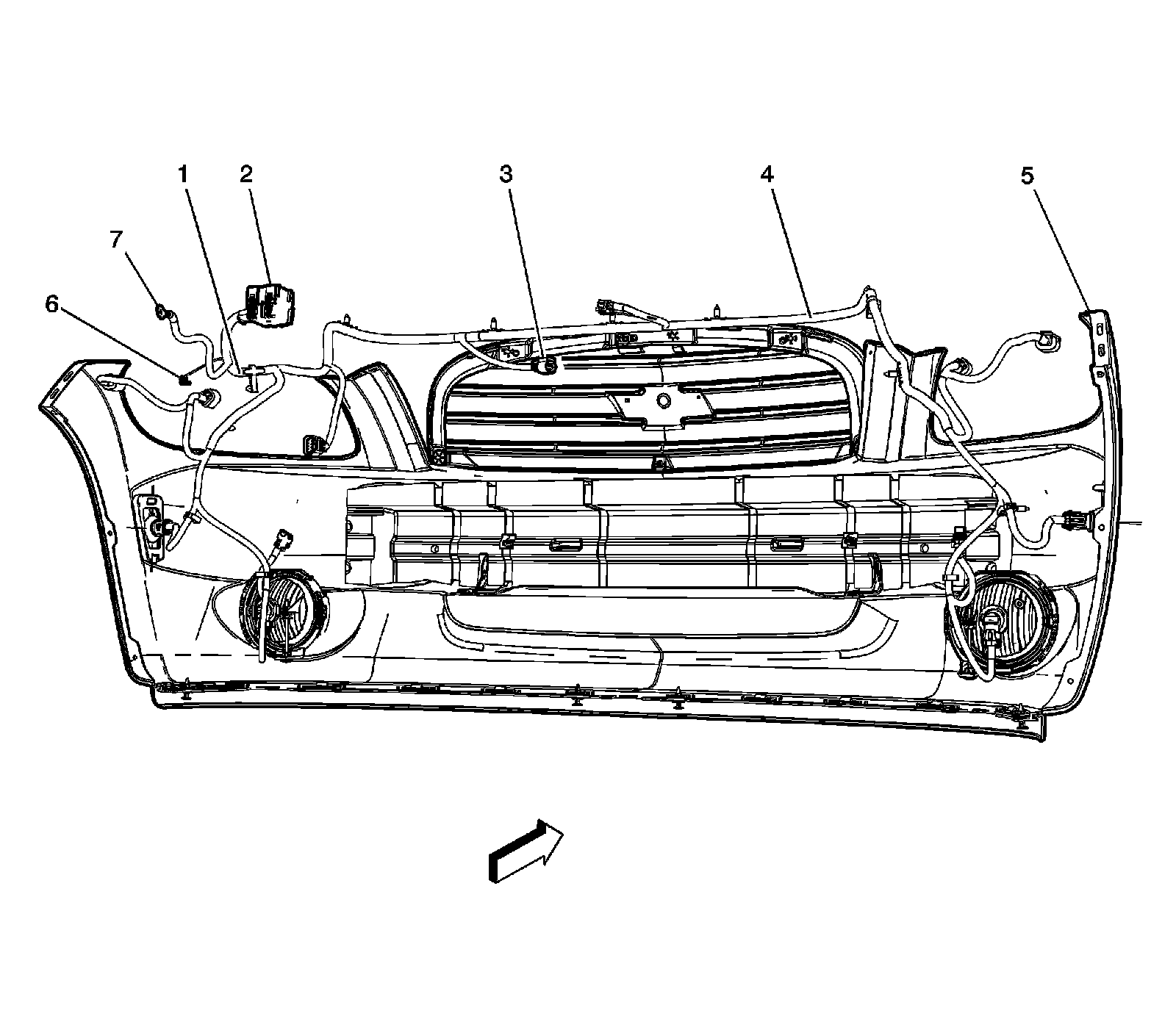

Forward Lamp Harness




1 - J101
2 - Fuse Block - Underhood X3
3 - Hood Ajar Switch
4 - J102
5 - Fascia
6 - G111
7 - G109
