Front Door Latch: Diagrams




Component Connector End Views

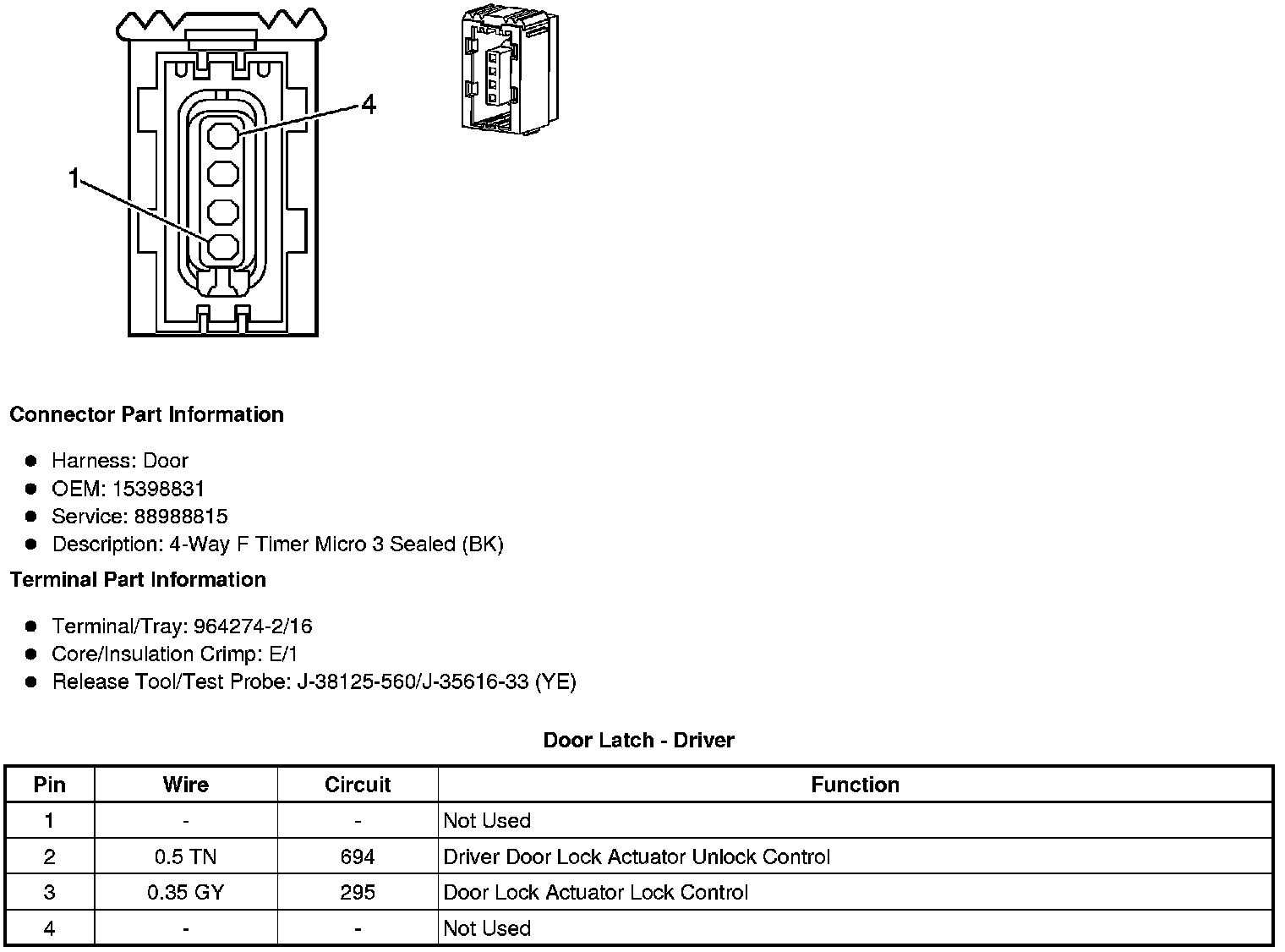

Door Latch - Driver

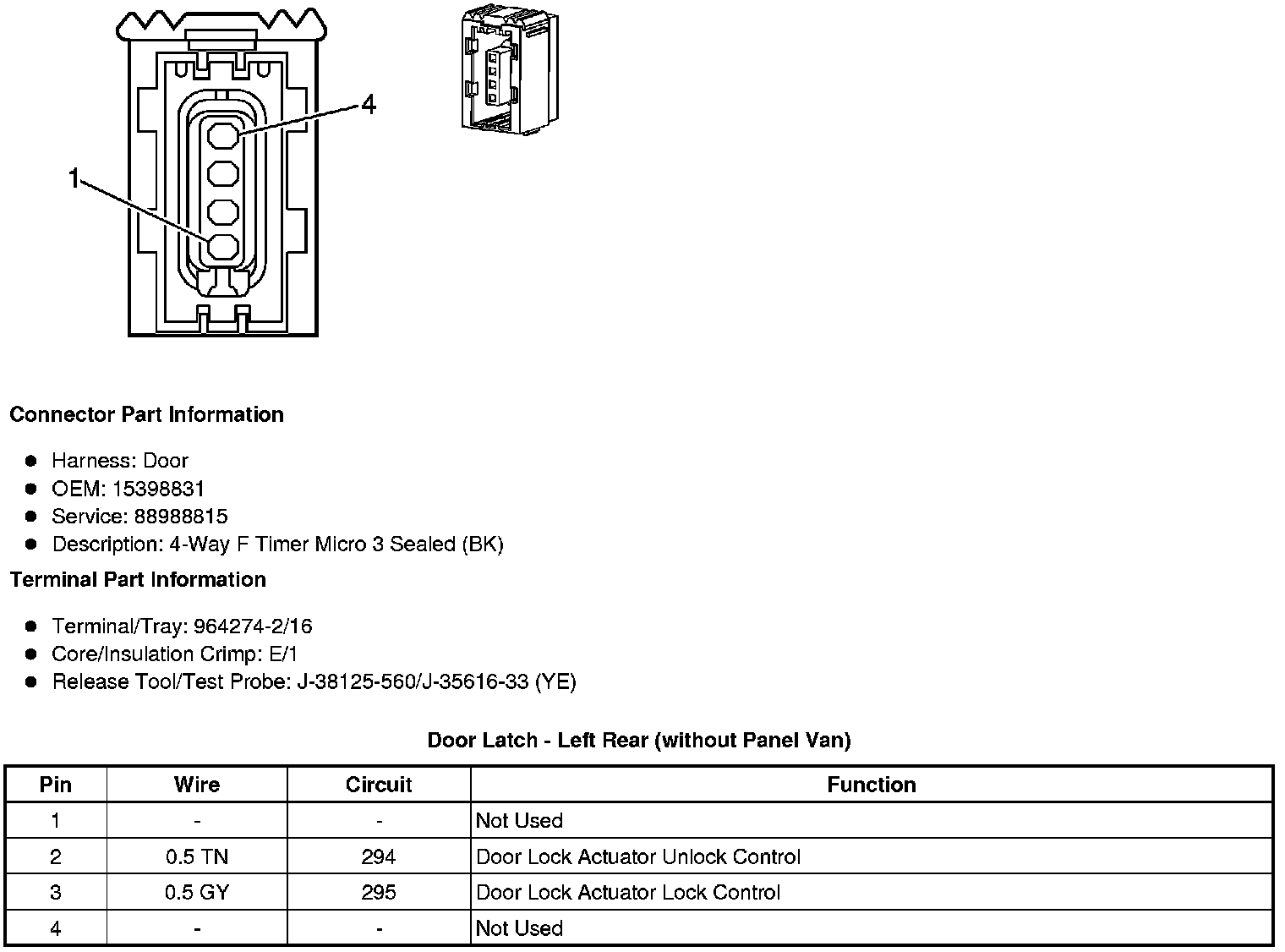

Door Latch - Left Rear (without Panel Van)






Door Latch - Liftgate

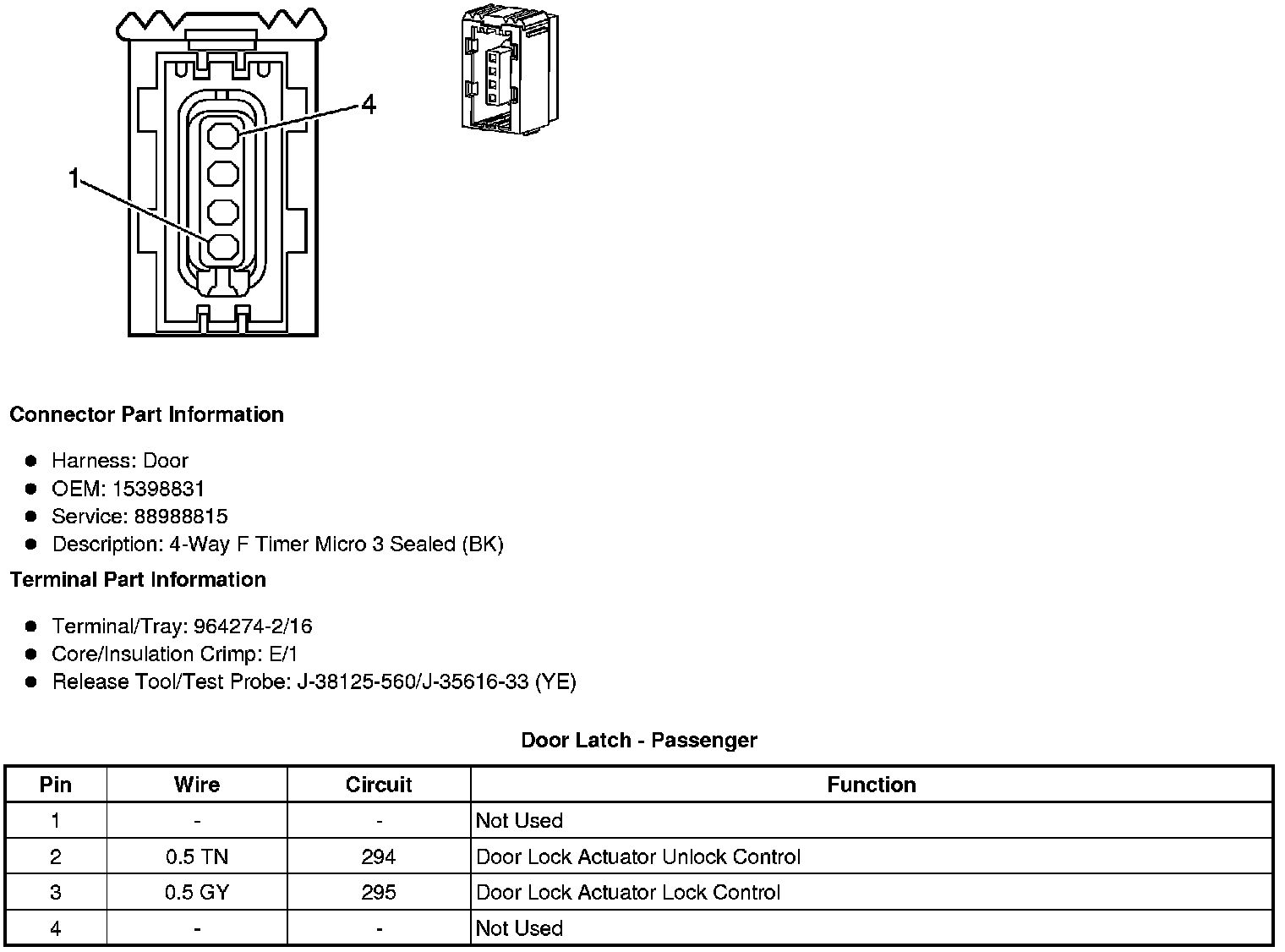

Door Latch - Passenger






Door Latch - Right Rear (without Panel Van)
