5. Torque Converter Housing with Fluid Pump Removal

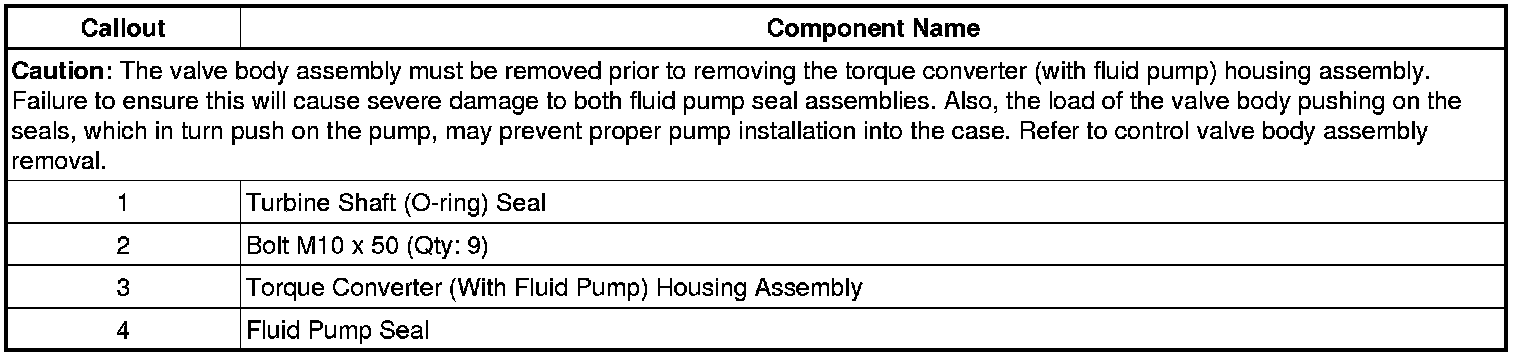

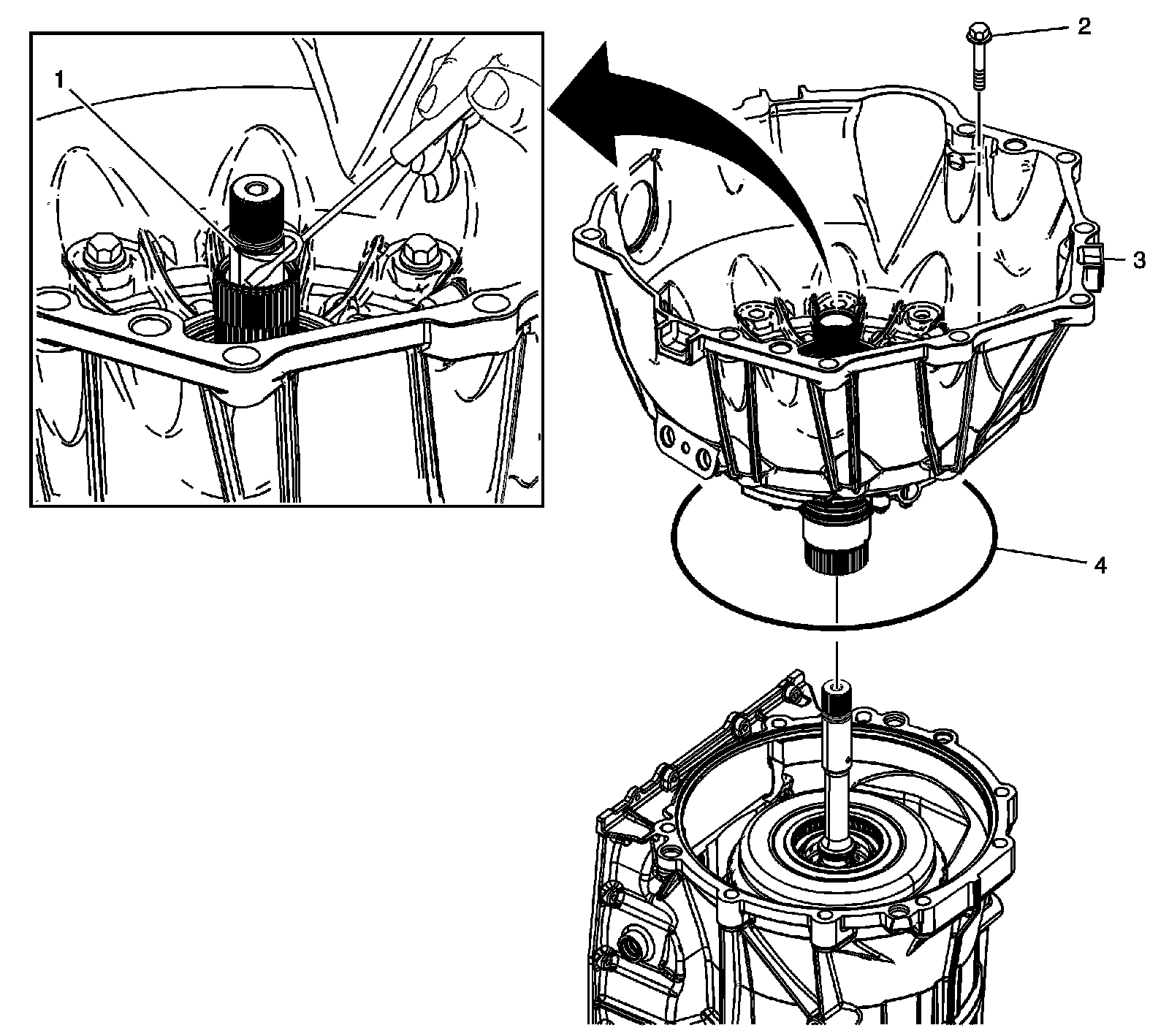

Torque Converter Housing with Fluid Pump Removal
