VIN L

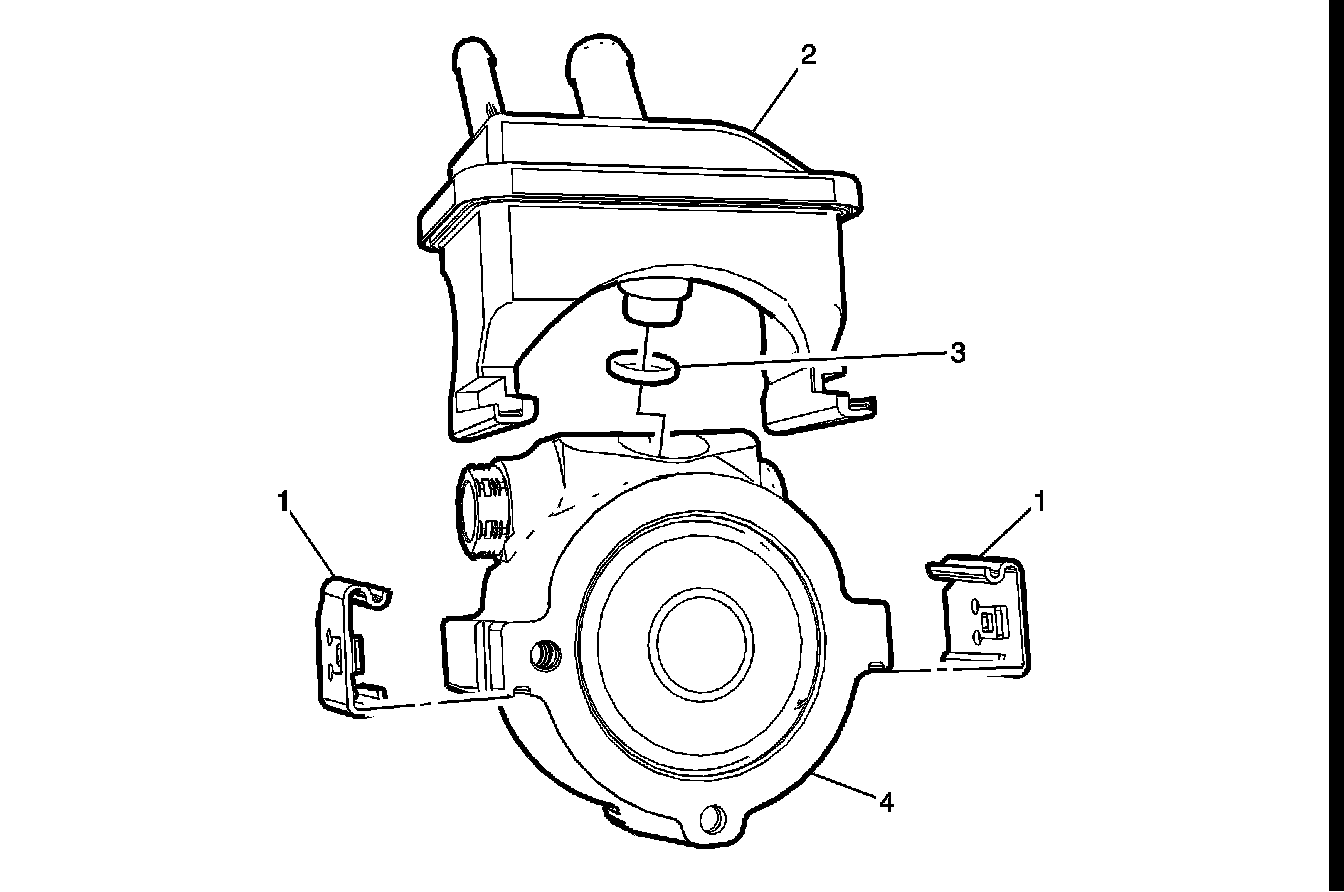

Power Steering Pump Disassembled View (LGH)




1 - Power Steering Fluid Reservoir Clip
2 - Power Steering Fluid Reservoir
3 - Power Steering Pump Seal
4 - Power Steering Pump
