X101

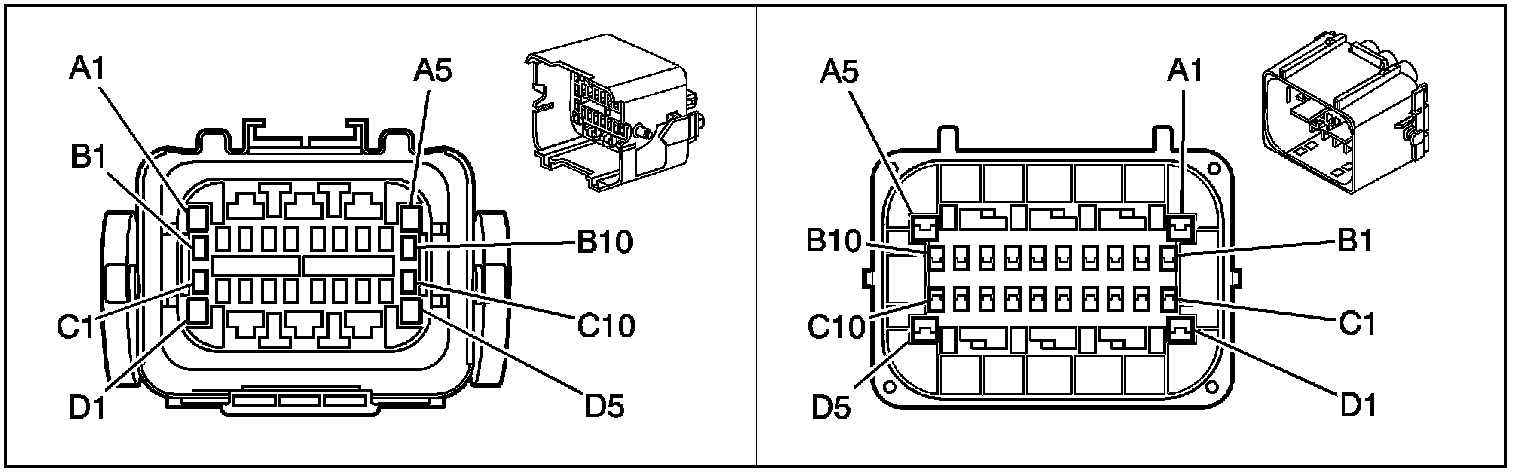

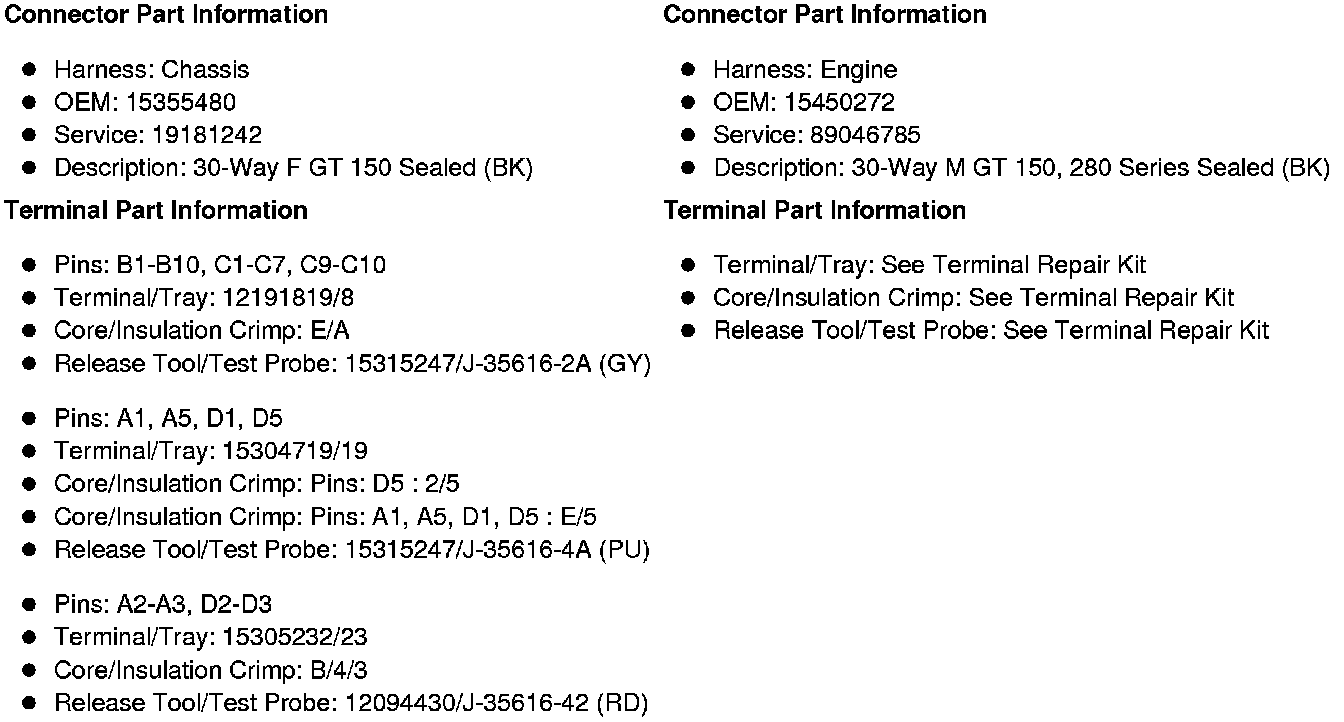

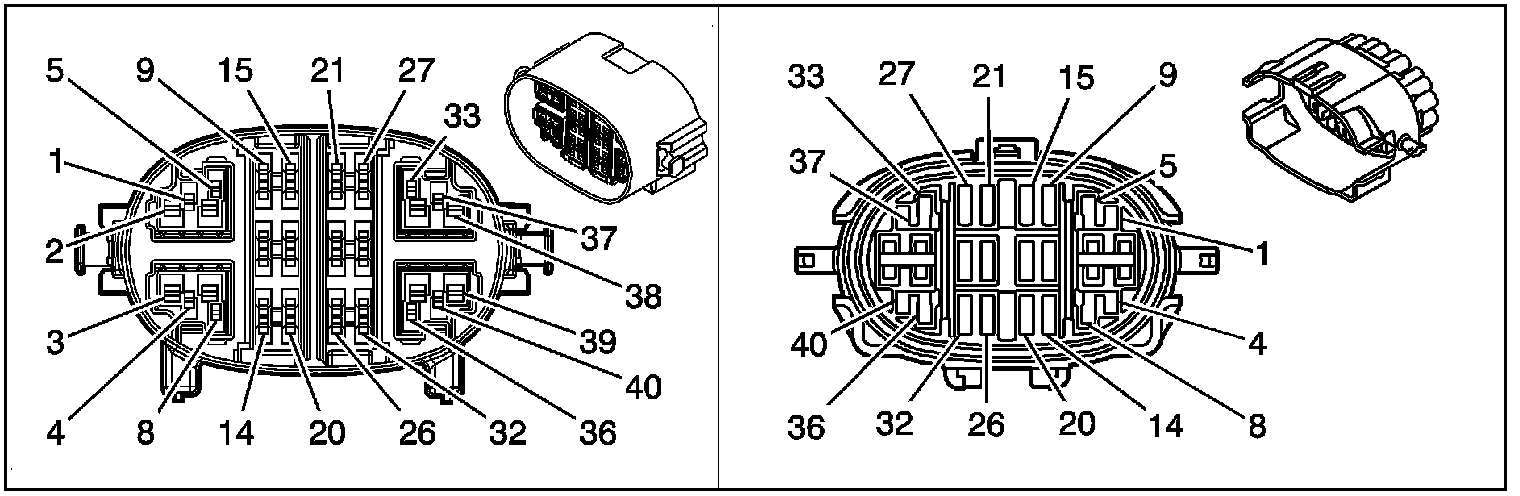

Inline Harness Connector End Views

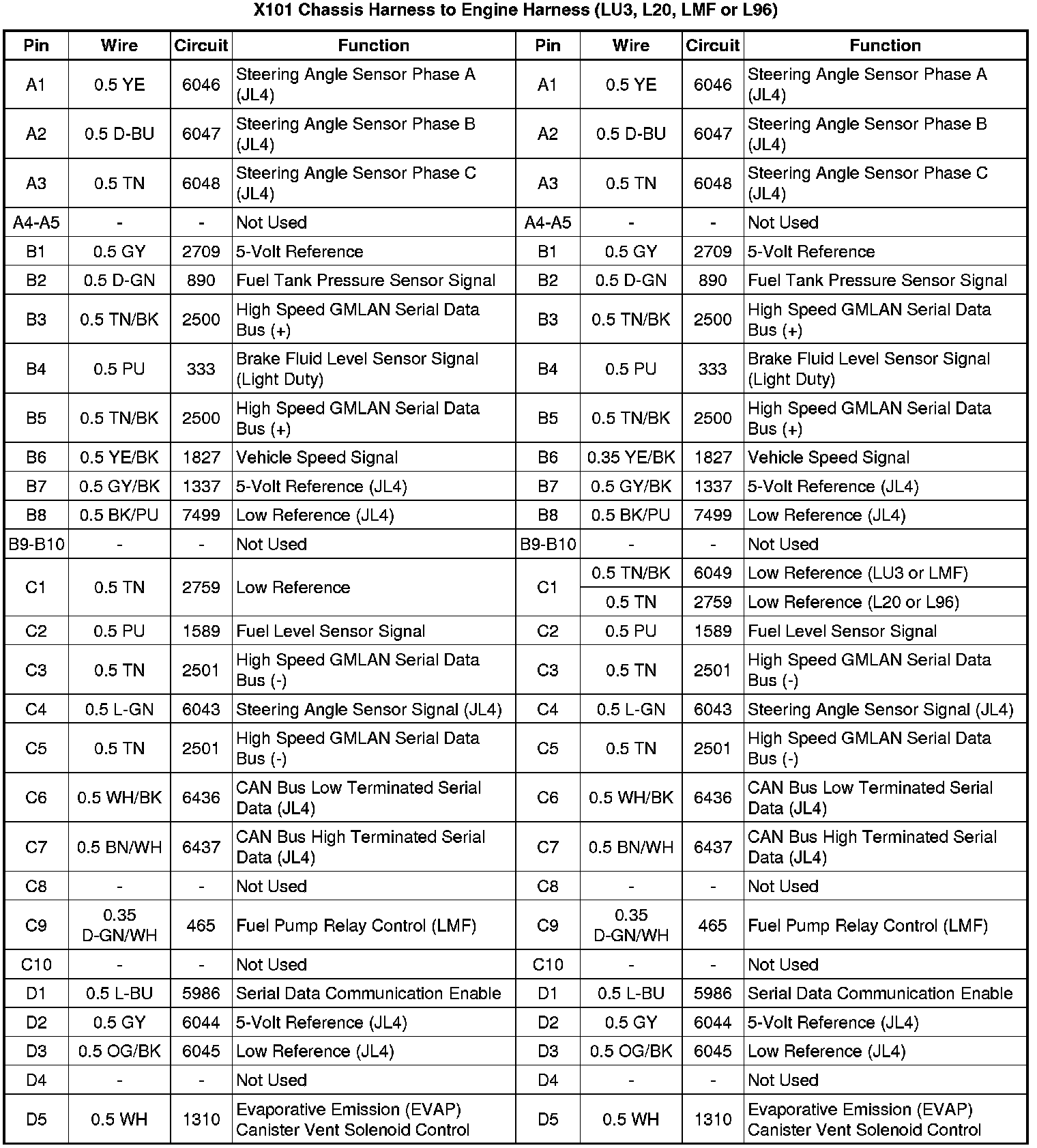

X101 Chassis Harness to Engine Harness (LU3, L20, LMF or L96)

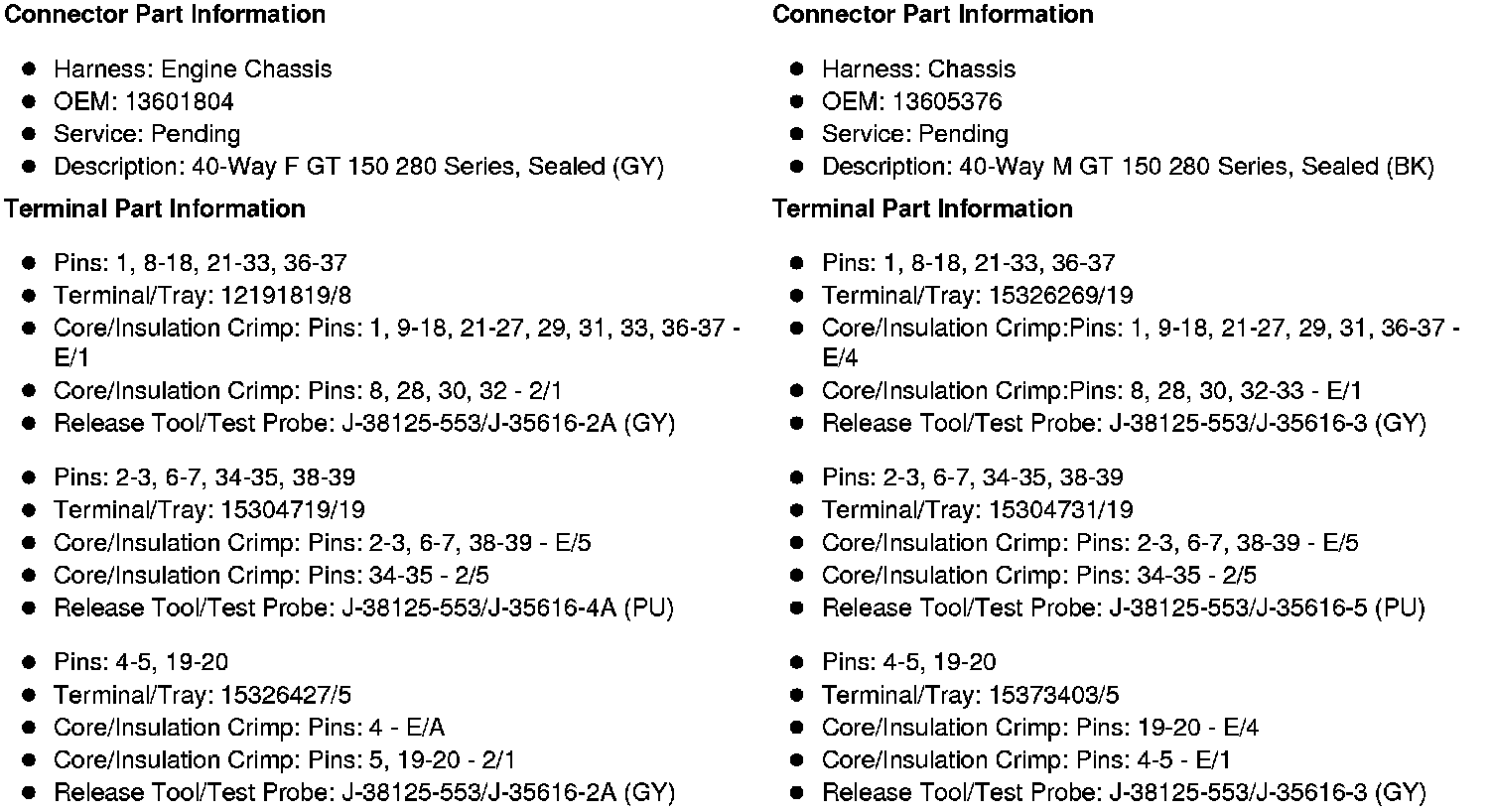

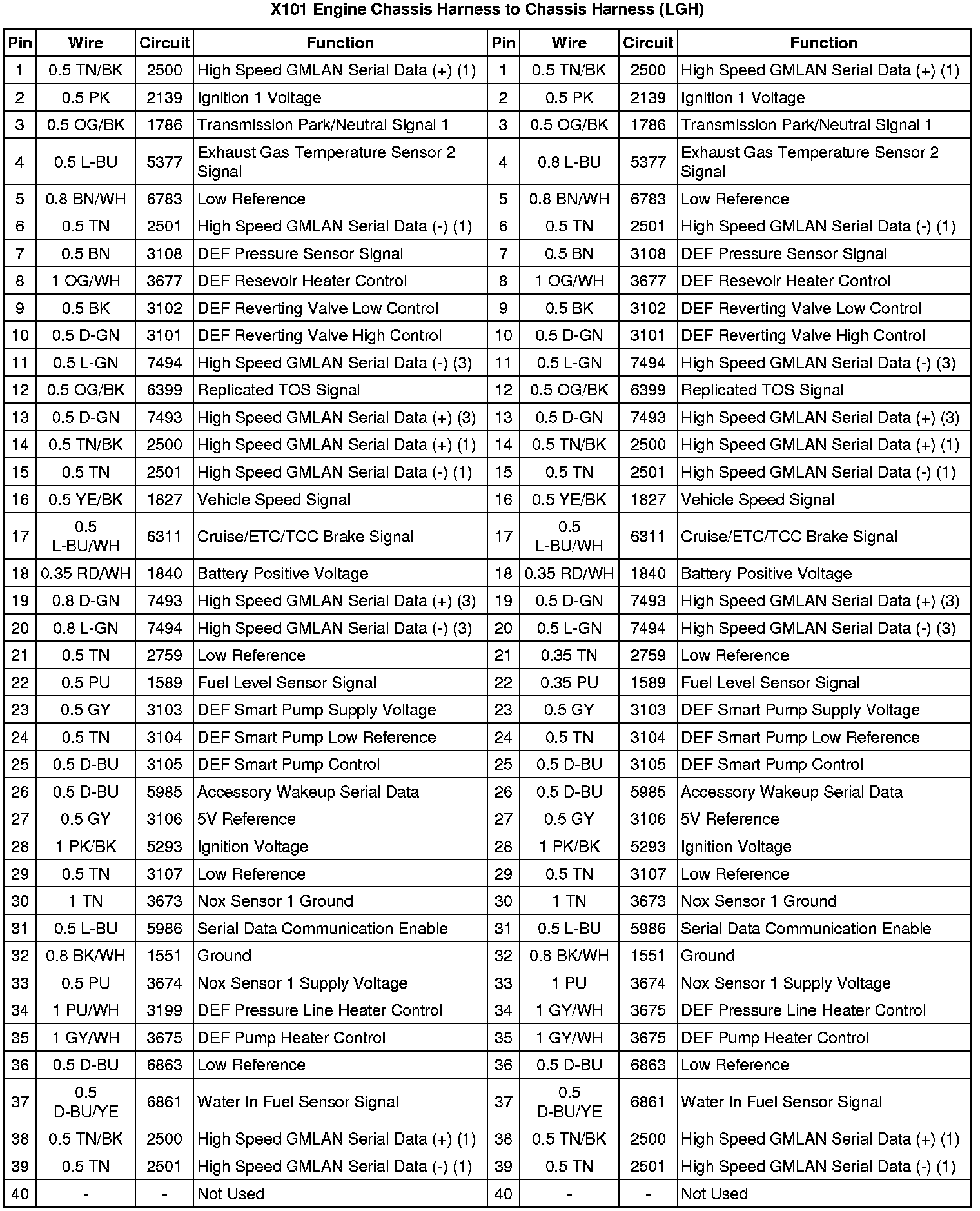

X101 Engine Chassis Harness to Chassis Harness (LGH)

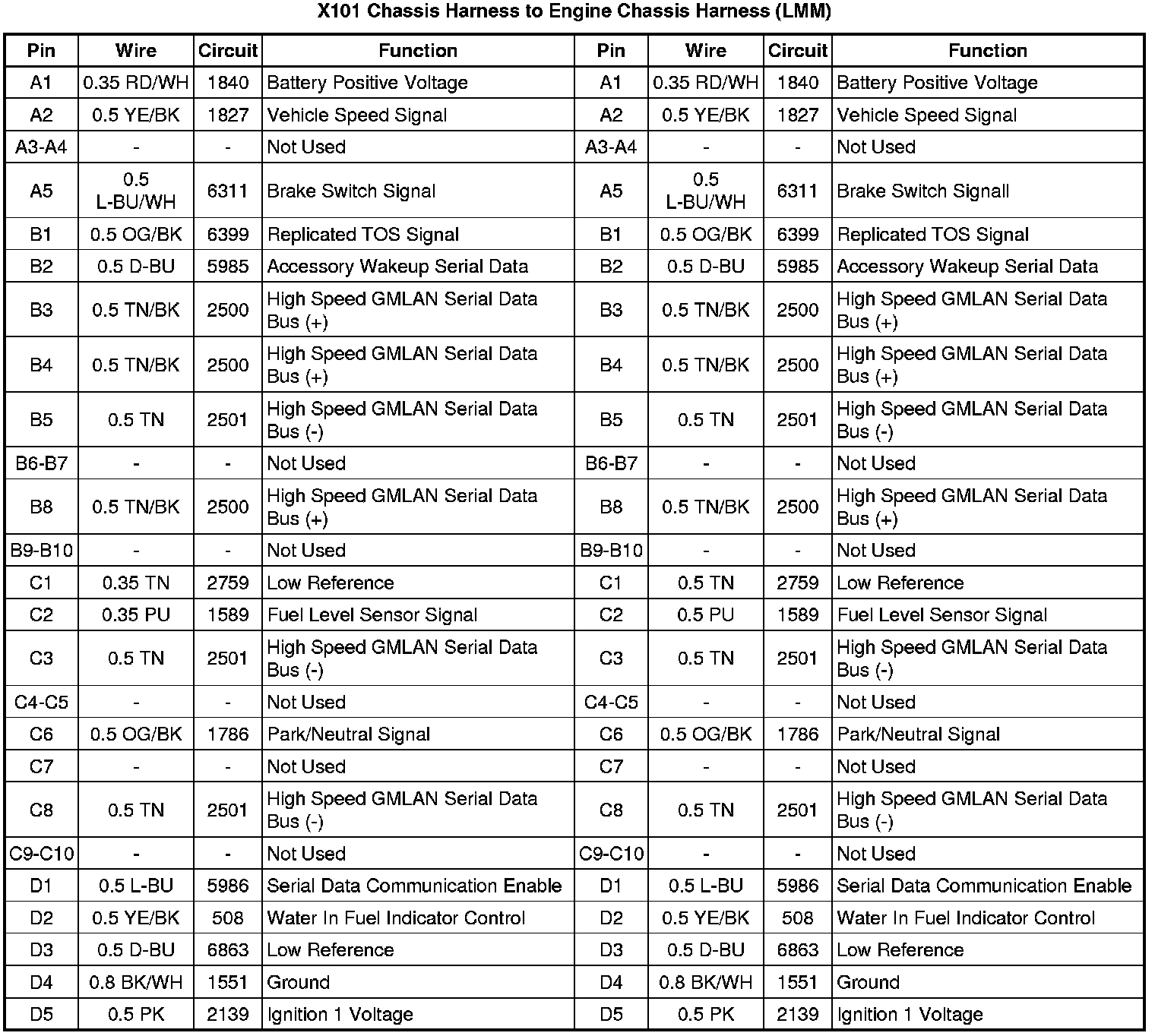

X101 Chassis Harness to Engine Chassis Harness (LMM)
