Diesel Emissions Fluid Filter: Service and Repair

Exhaust Particulate Filter Replacement (LMM)

Removal Procedure




1. Remove the tail pipe. Refer to Tail Pipe Replacement (6.6L) (Tail Pipe Replacement).
2. Remove the exhaust temperature sensors. Refer to Exhaust Temperature Sensor Replacement - Position 1 (Exhaust Temperature Sensor Replacement - Position 1) and Exhaust Temperature Sensor Replacement - Position 2 (Exhaust Temperature Sensor Replacement - Position 2).
3. Remove the exhaust pressure differential sensor pipe. Refer to Exhaust Pressure Differential Sensor Pipe Replacement (Exhaust Pressure Differential Sensor Pipe Replacement).

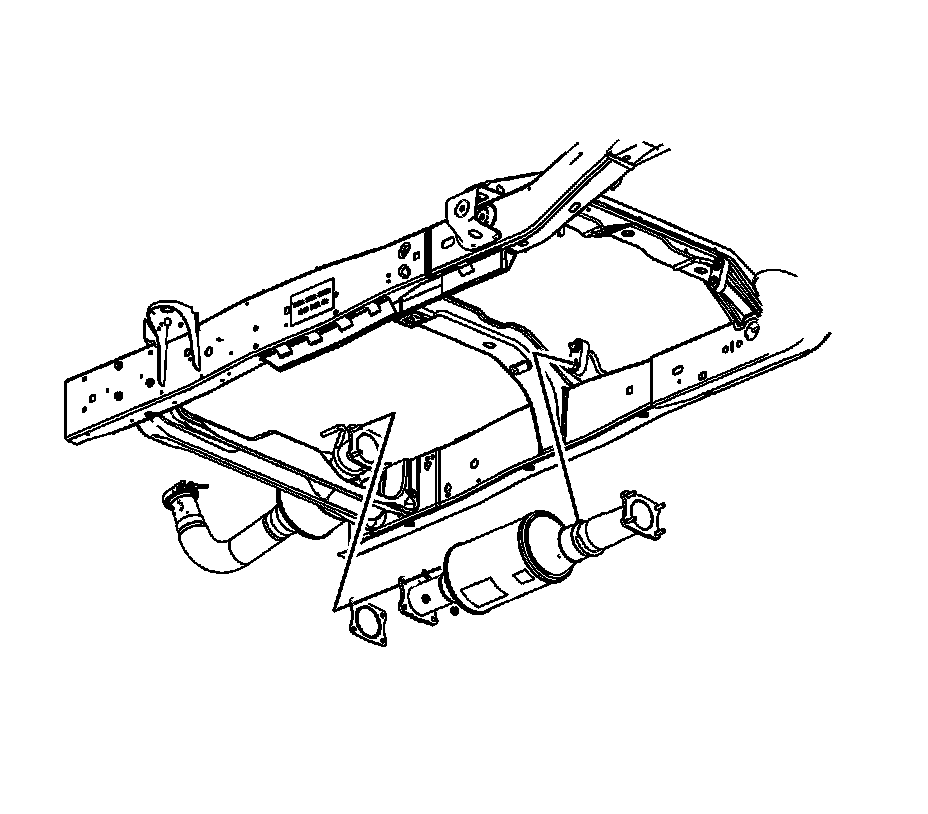

4. Remove the catalytic converter to particulate filter nuts.
5. Remove the exhaust particulate filter.
6. Remove and discard the exhaust particulate filter gasket.

Installation Procedure




1. Install a NEW gasket onto the catalytic converter studs.
2. Install the exhaust particulate filter.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the catalytic converter to particulate filter nuts and tighten to 40 Nm (30 lb ft).
4. Install the exhaust pressure differential sensor pipe. Refer to Exhaust Pressure Differential Sensor Pipe Replacement (Exhaust Pressure Differential Sensor Pipe Replacement).
5. Install the exhaust temperature sensors. Refer to Exhaust Temperature Sensor Replacement - Position 1 (Exhaust Temperature Sensor Replacement - Position 1) and Exhaust Temperature Sensor Replacement - Position 2 (Exhaust Temperature Sensor Replacement - Position 2).
6. Install the tail pipe. Refer to Tail Pipe Replacement (6.6L) (Tail Pipe Replacement).
7. Perform a DPF service regeneration. Refer to Diesel Particulate Filter (DPF) Service Regeneration (Diesel Particulate Filter (DPF) Service Regeneration)
