Engine Coolant Thermostat Housing Installation

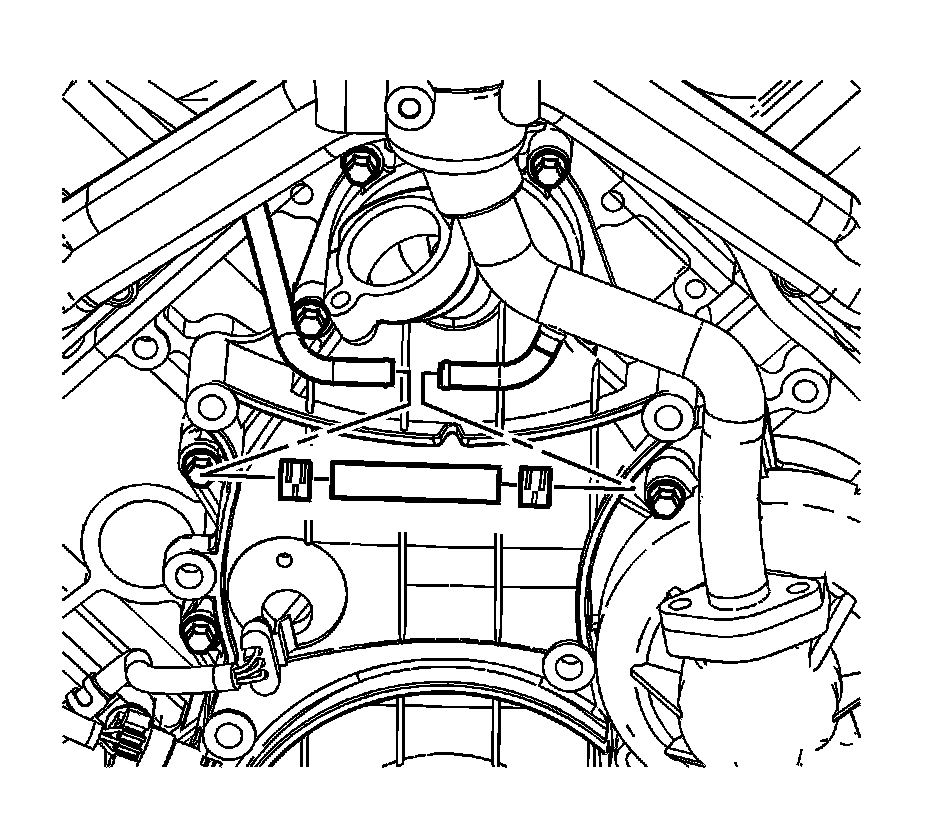

1. Install the thermostat housing.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the thermostat housing bolts and nuts and tighten to 25 Nm (18 lb ft).




3. Install the fuel pipe bracket bolt and tighten to 25 Nm (18 lb ft).

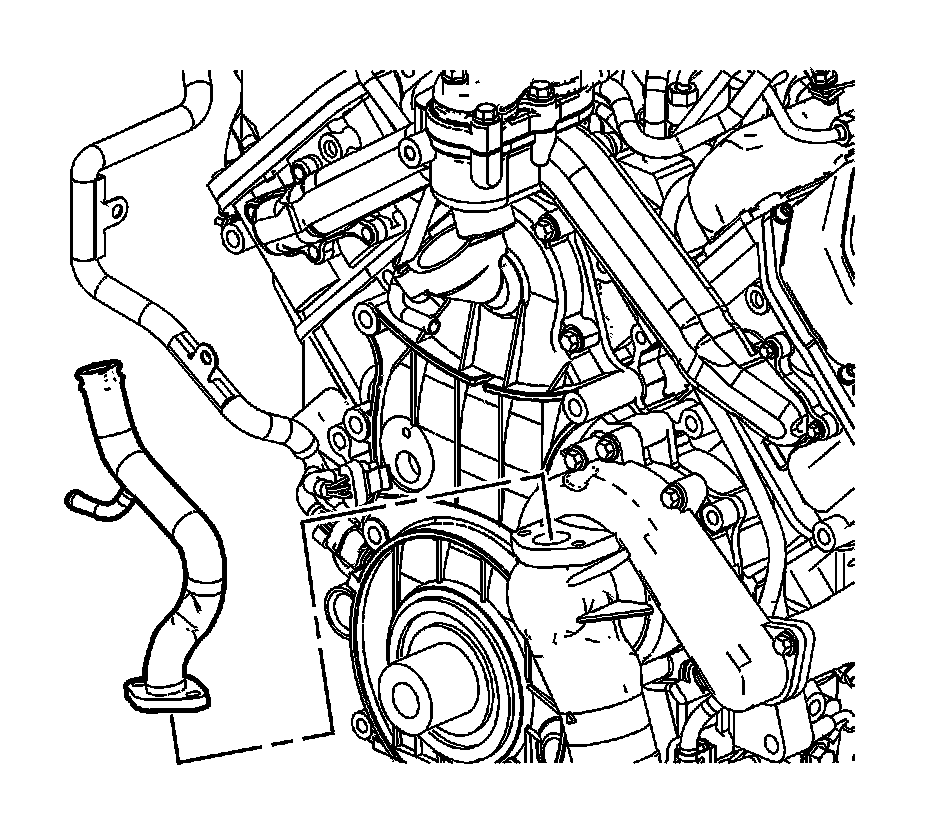

4. Install the water pump inlet pipe.

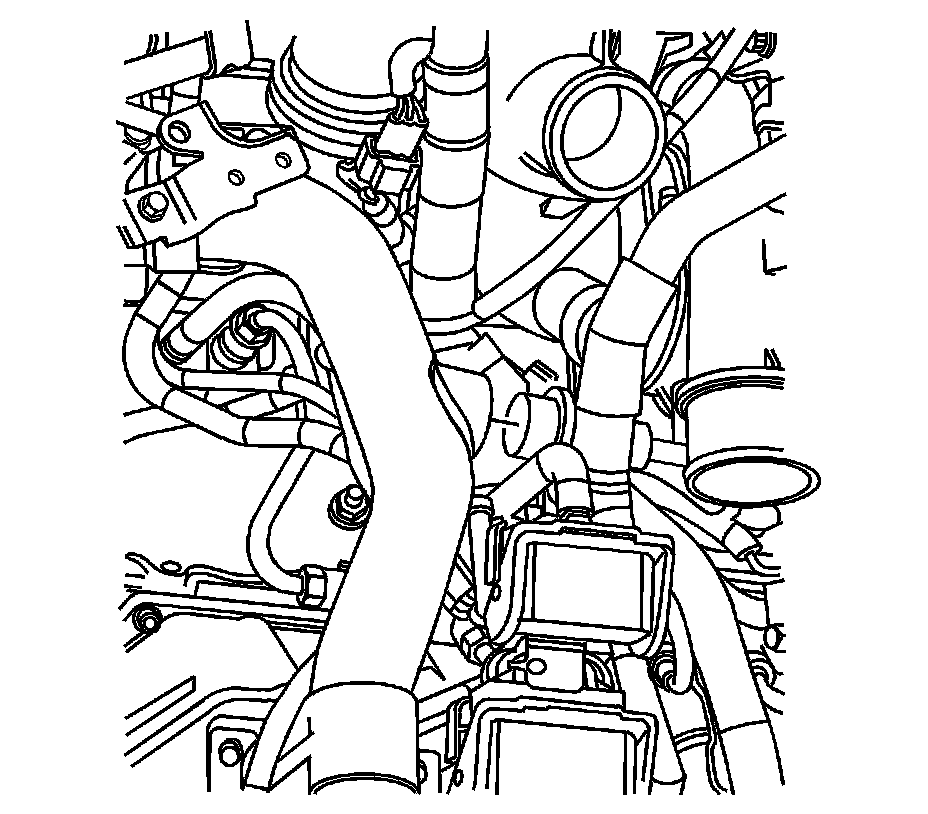

5. Install the turbocharger coolant outlet hose and clamps.




6. Install the water pump inlet pipe bolts and tighten to 25 Nm (18 lb ft).




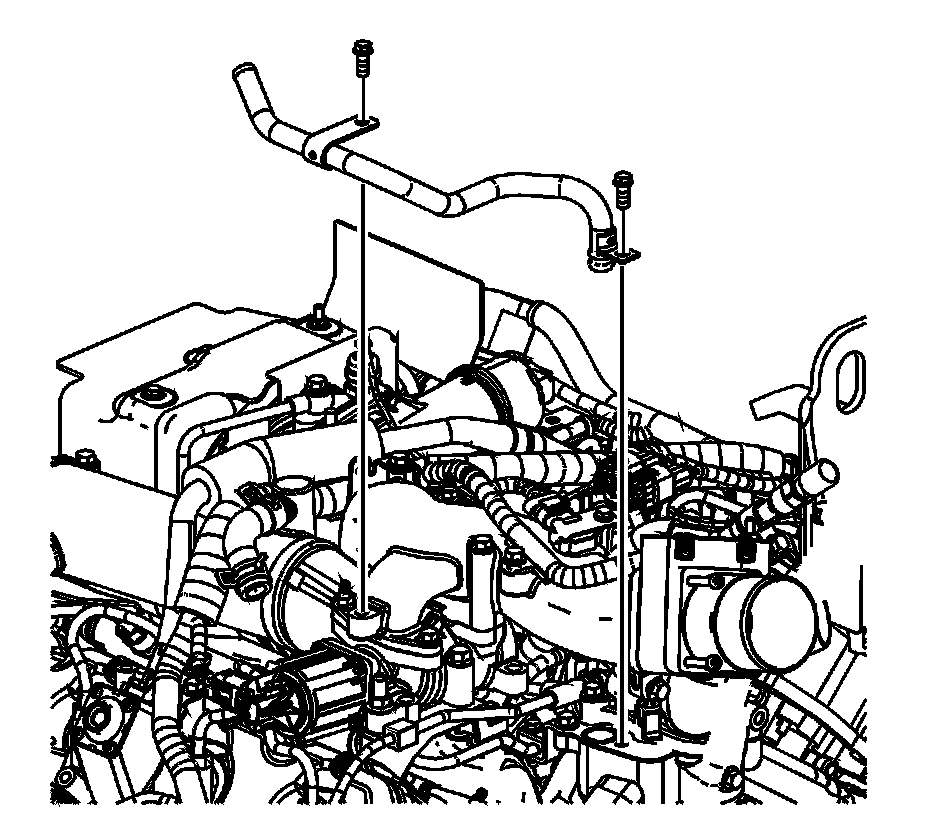

7. Install the exhaust gas recirculation (EGR) coolant pipe.
8. Install the EGR coolant pipe bolts and tighten to 25 Nm (18 lb ft).

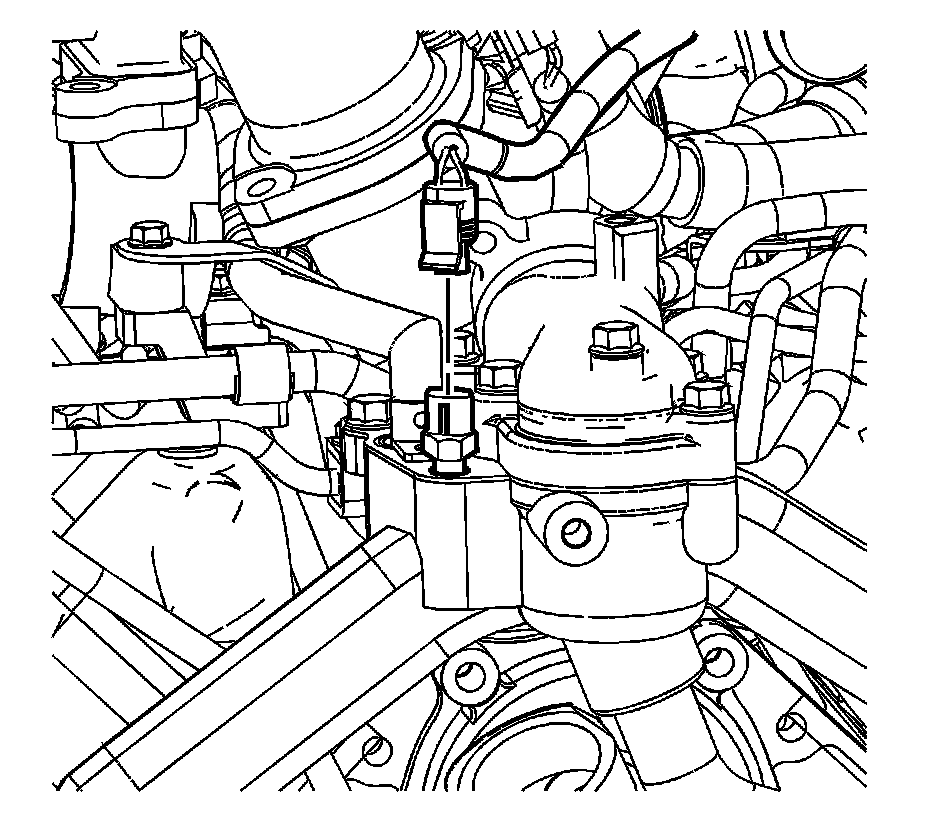

9. Connect the coolant temperature sensor.

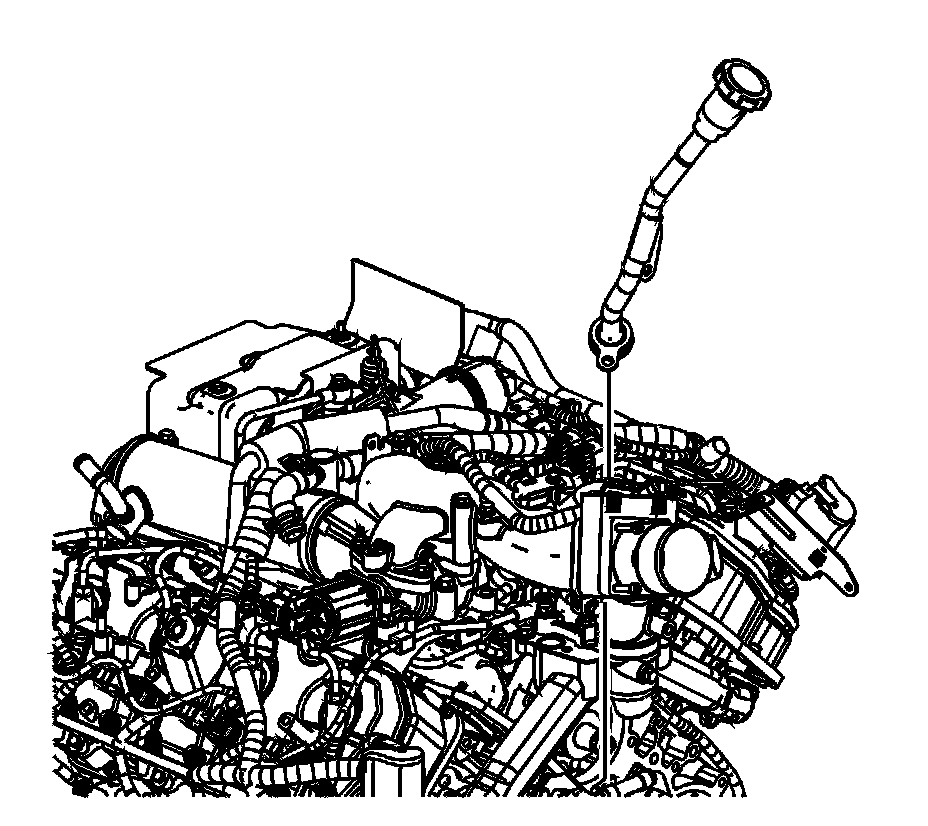

10. Install the oil fill tube.




11. Install the oil fill tube bolts and tighten to 25 Nm (18 lb ft).

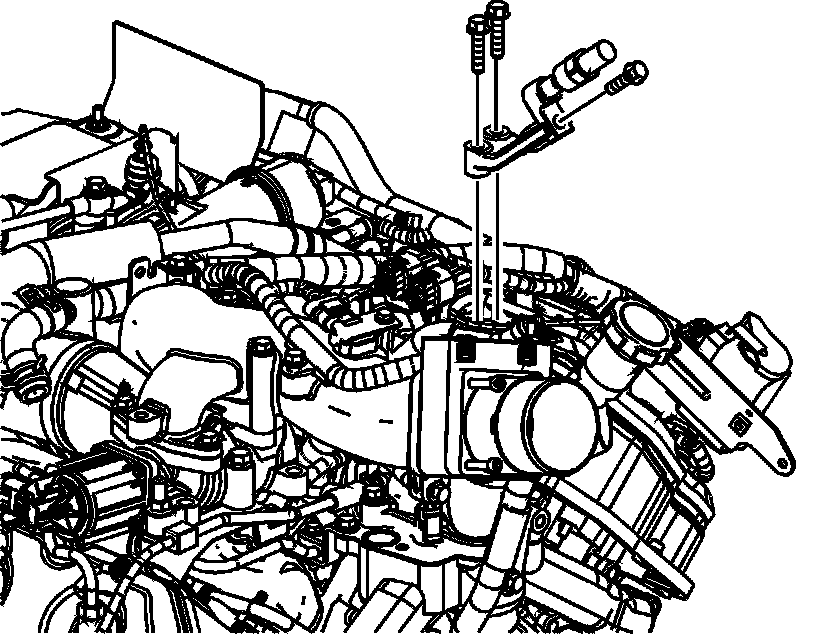

12. Install the fuel and electrical harness bracket.
13. Install the fuel and electrical harness bracket bolt and tighten to 10 Nm (89 lb in).




14. Connect the turbocharger coolant inlet hose.




15. Connect and install the turbocharger vane position sensor.
