VIN 6

Drive Belt Idler Pulley Replacement

Removal Procedure




1. Remove the drive belt. Refer to Drive Belt Replacement (Service and Repair).

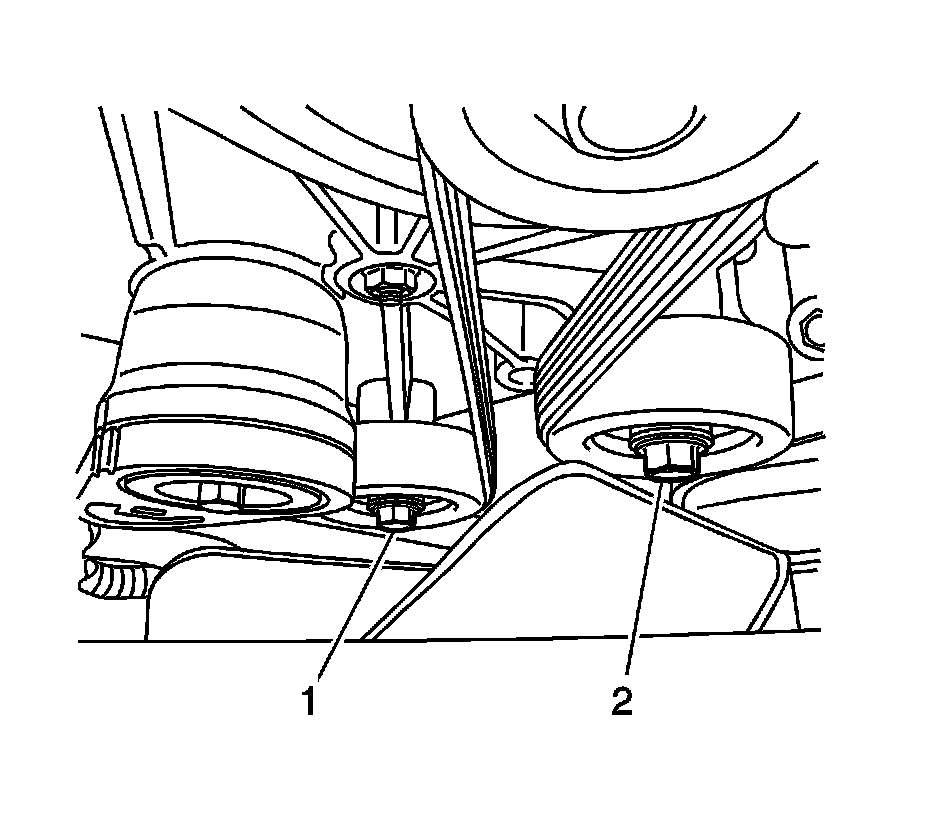

2. Remove the bolt (1) from the right side idler pulley.
3. Remove the idler pulley.
4. Remove the bolt (2) for the center idler pulley.
5. Remove the idler pulley.
6. If equipped with dual generators, remove the bolt from the left side idler pulley.
7. If equipped with dual generators, remove the idler pulley.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the right side idler pulley and bolt (1) and tighten to 50 Nm (37 lb ft).
2. Install the center idler pulley and bolt (2) and tighten to 50 Nm (37 lb ft).
3. If equipped with dual generators, install the left side idler pulley and bolt and tighten to 50 Nm (37 lb ft).
4. Install the drive belt. Refer to Drive Belt Replacement (Service and Repair).
