VIN 6
DTC P0182 or P0183
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.
DTC Descriptors
DTC P0182
- Fuel Temperature Sensor Circuit Low Voltage
DTC P0183
- Fuel Temperature Sensor Circuit High Voltage

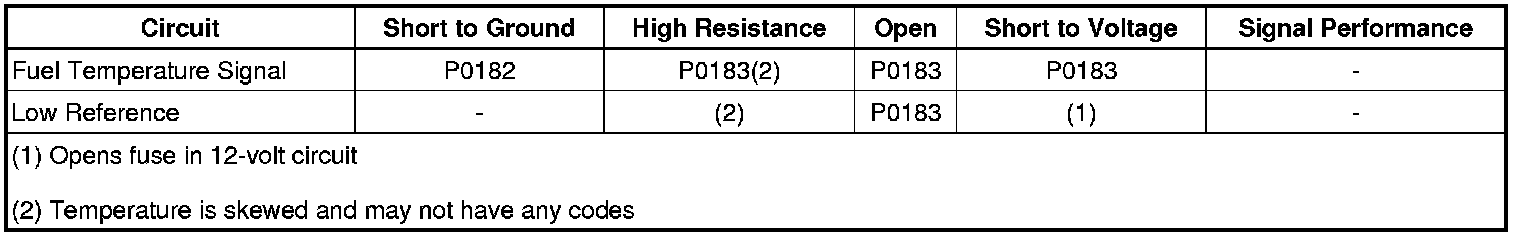

Diagnostic Fault Information

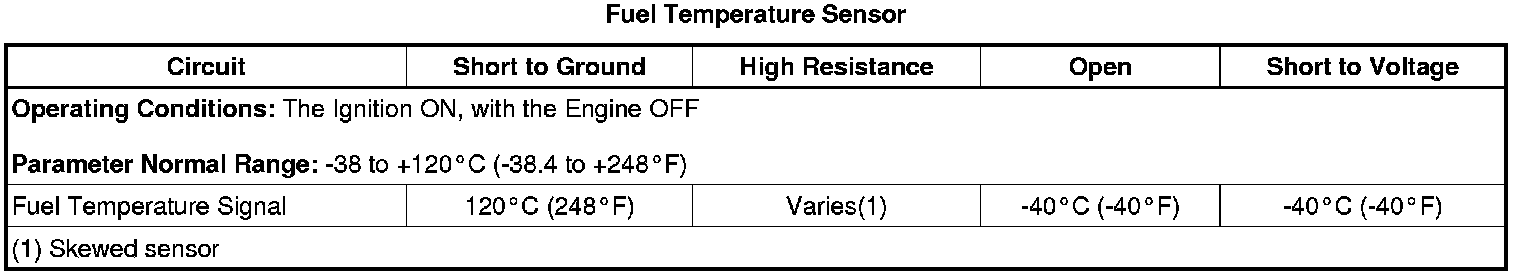

Typical Scan Tool Data
Circuit/System Description
The fuel temperature sensor is a thermistor. The engine control module (ECM) supplies the fuel temperature sensor a bias voltage of 5 volts on the signal circuit and also provides a low reference circuit to the sensor. When the fuel temperature sensor is cold, the resistance is high. The fuel temperature sensor signal voltage remains near the 5 volt bias voltage cold and decreases as the sensor warms. The ECM monitors the fuel temperature sensor signal circuit in order to calculate the temperature of the fuel entering the engine.
Conditions for Running the DTC
P0182
* The ignition is ON.
* DTC P0182 runs continuously within the enabling conditions.
P0183
* The ignition is ON.
* DTC P0183 runs continuously within the above enabling conditions.
Conditions for Setting the DTC
P0182
The fuel temperature sensor is more than 120°C (248°F) for 1 second.
P0183
The fuel temperature sensor is less than -38°C (-38.4°F) for 1 second.
Action Taken When the DTC Sets
DTCs P0182 and P0183 are Type A DTCs.
Conditions for Clearing the MIL/DTC
DTCs P0182 and P0183 are Type A DTCs.
Diagnostic Aids
* A short to a separate or different 5-volt source may set a DTC P0183.
* A skewed sensor could result in poor driveability concerns.
Reference Information
Schematic Reference
Engine Controls Schematics ([1][2]Electrical Diagrams)
Connector End View Reference
Component Connector End Views (Connector End Views By Name)
Electrical Information Reference
* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)
* Temperature Versus Resistance (Fuel Temperature Sensor) (Temperature Versus Resistance (Fuel Temperature Sensor)) Temperature Versus Resistance (ECT Sensors) (Temperature Versus Resistance (ECT Sensors)) Temperature Versus Resistance (IAT Sensor 1) (Temperature Versus Resistance (IAT Sensor 1)) Temperature Versus Resistance (IAT Sensor 2) (Temperature Versus Resistance (IAT Sensor 2)) Temperature Versus Resistance (EGT Sensors) (Temperature Versus Resistance (EGT Sensors)) Temperature Versus Resistance (EGR Temperature Sensors) (Temperature Versus Resistance (EGR Temperature Sensors))
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Powertrain Diagnostic Trouble Code (DTC) Type Definitions)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Verification
1. Turn ON the ignition and observe the Fuel Temperature Sensor parameter with a scan tool. The fuel temperature parameter should be within the operating range of -38 to +120°C (-38.4 to +248°F).
2. Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the fuel temperature sensor.
2. Test for less than 5 ohms of resistance between the low reference circuit terminal 2 and ground.
• If greater than the specified value, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the ECM.
3. Ignition ON, verify the scan tool Fuel Temperature Sensor parameter is less than -39°C (-38°F).
• If warmer than the specified value, test the signal circuit terminal 1 for a short to ground. If the circuit tests normal, replace the ECM.
4. Install a 3A fused jumper wire between the signal circuit terminal 1 and the low reference circuit terminal 2. Verify the scan tool Fuel Temperature parameter is greater than 120°C (248°F).
• If less than the specified value, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the ECM.
5. If all circuits test normal, test fuel temperature sensor.
Component Testing
Measure and record the resistance of the fuel temperature sensor at various ambient temperatures and compare those measurements to the Temperature vs. Resistance table. Refer to Temperature Versus Resistance (Fuel Temperature Sensor) (Temperature Versus Resistance (Fuel Temperature Sensor)) Temperature Versus Resistance (ECT Sensors) (Temperature Versus Resistance (ECT Sensors)) Temperature Versus Resistance (IAT Sensor 1) (Temperature Versus Resistance (IAT Sensor 1)) Temperature Versus Resistance (IAT Sensor 2) (Temperature Versus Resistance (IAT Sensor 2)) Temperature Versus Resistance (EGT Sensors) (Temperature Versus Resistance (EGT Sensors)) Temperature Versus Resistance (EGR Temperature Sensors) (Temperature Versus Resistance (EGR Temperature Sensors)).
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Fuel Temperature Sensor Replacement (Service and Repair)
* Control Module References (Programming and Relearning) for ECM replacement, setup, and programming
