6L45/6L50/6L80/6L90 - Automatic Transmission
>>
6L80 - Automatic Transmission
>>
27. 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring Installation (6L80/90)
27. 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring Installation (6L80/90)

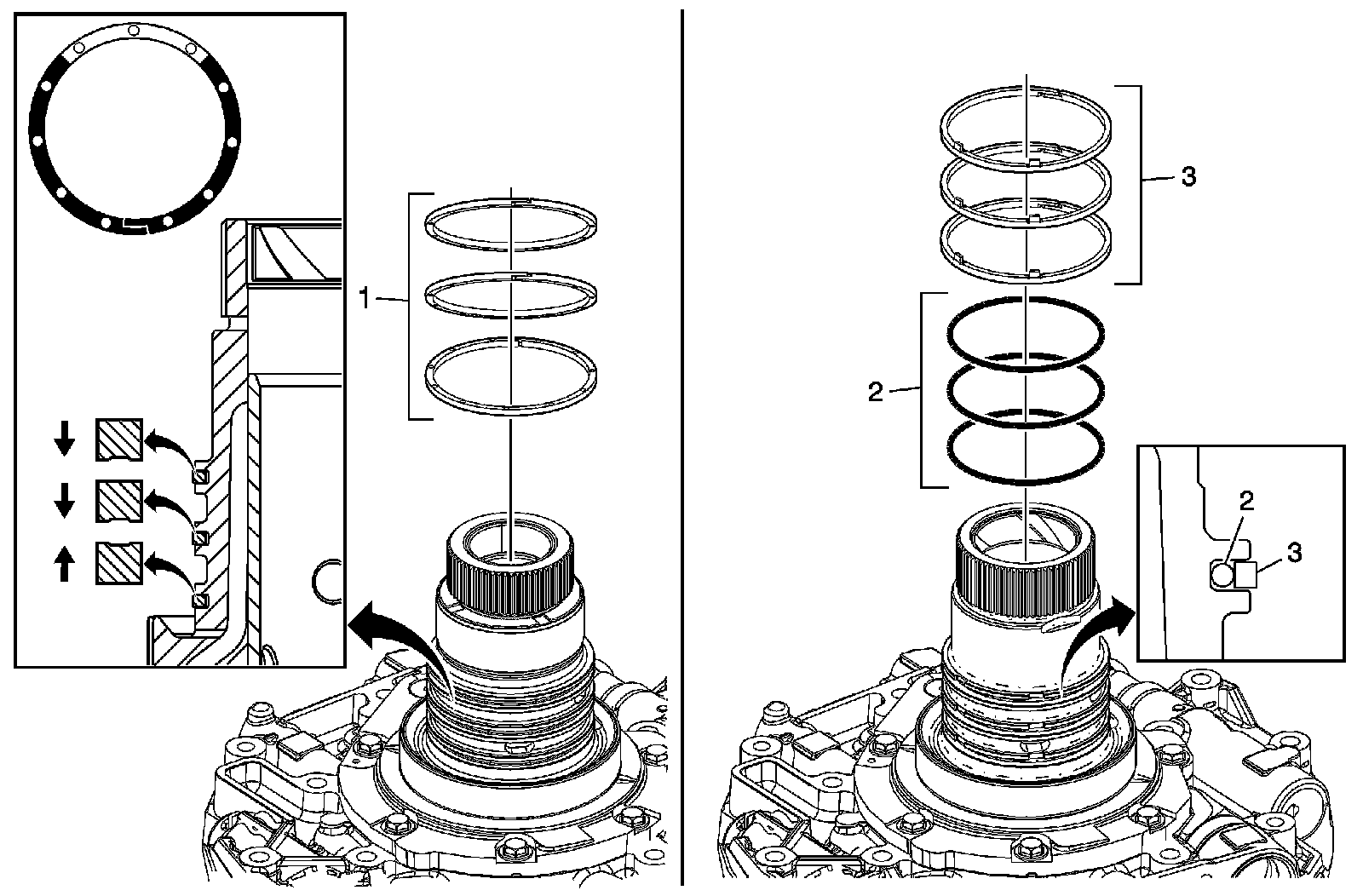

1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring Installation (6L80/90)
