Home >> Chevy Truck >> 2010 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6L45/6L50/6L80/6L90 - Automatic Transmission >> 6L45 - Automatic Transmission >> 35. Automatic Transmission Electrical Connector Passage Sleeve Installation

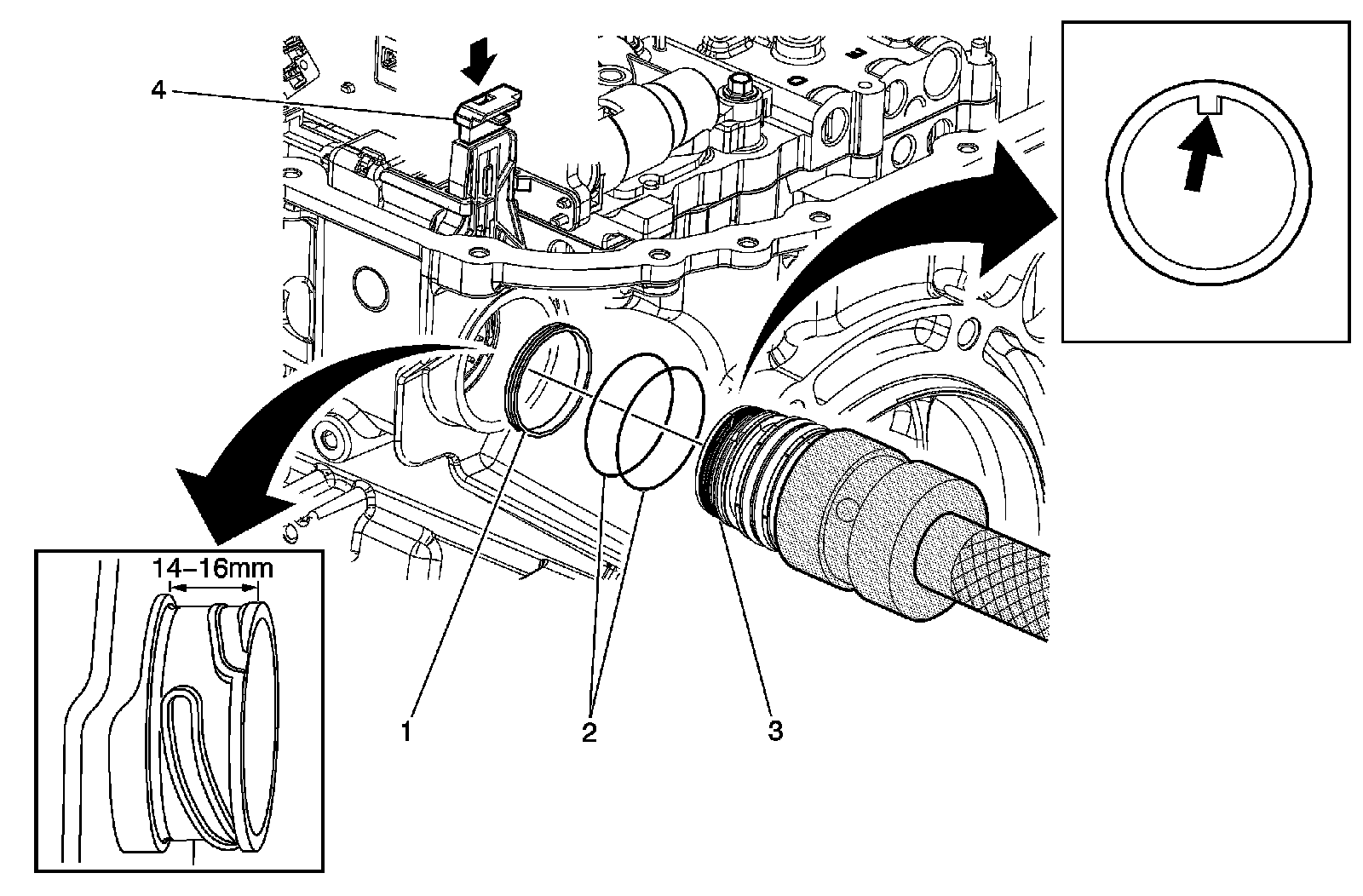

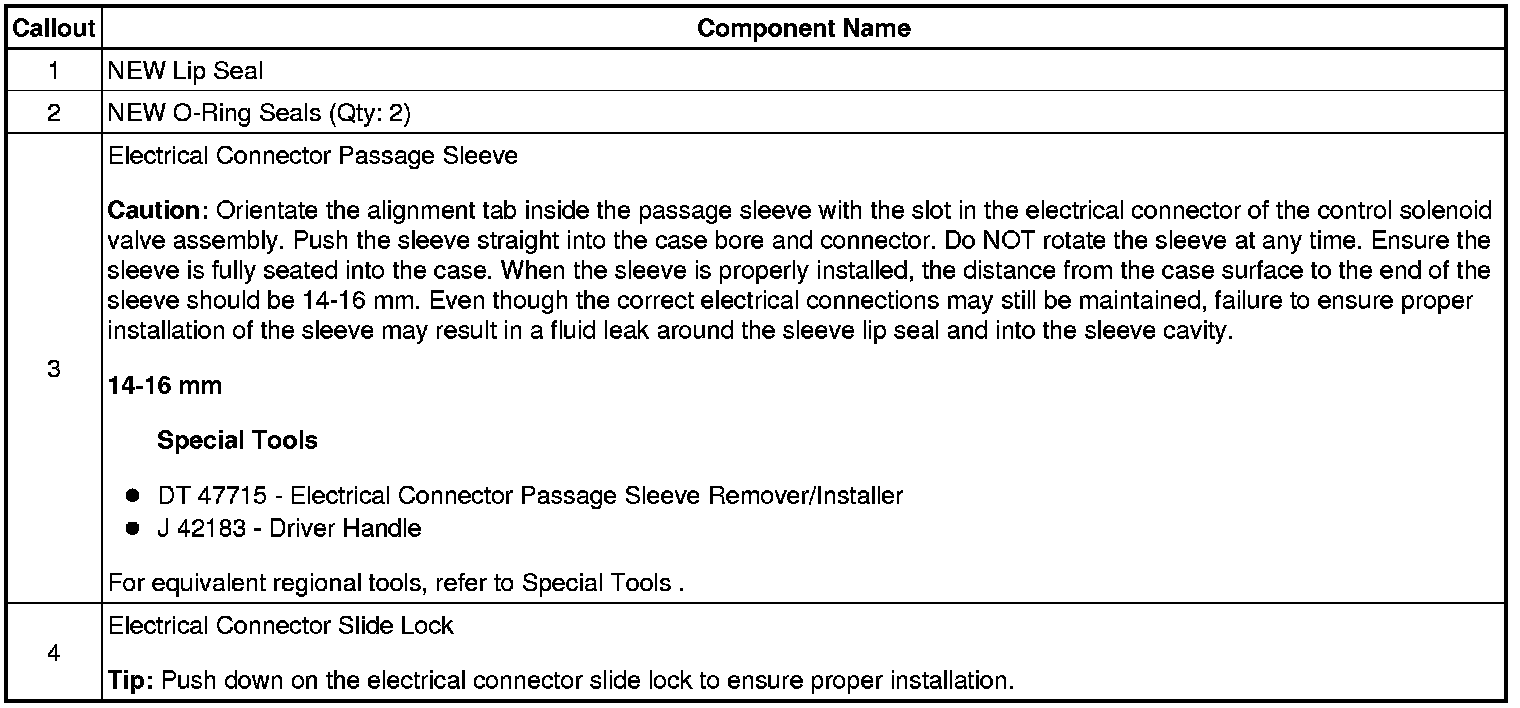

35. Automatic Transmission Electrical Connector Passage Sleeve Installation




Automatic Transmission Electrical Connector Passage Sleeve Installation
