19. 1-2-3-4 Clutch Backing Plate Retaining Ring Measurement




1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

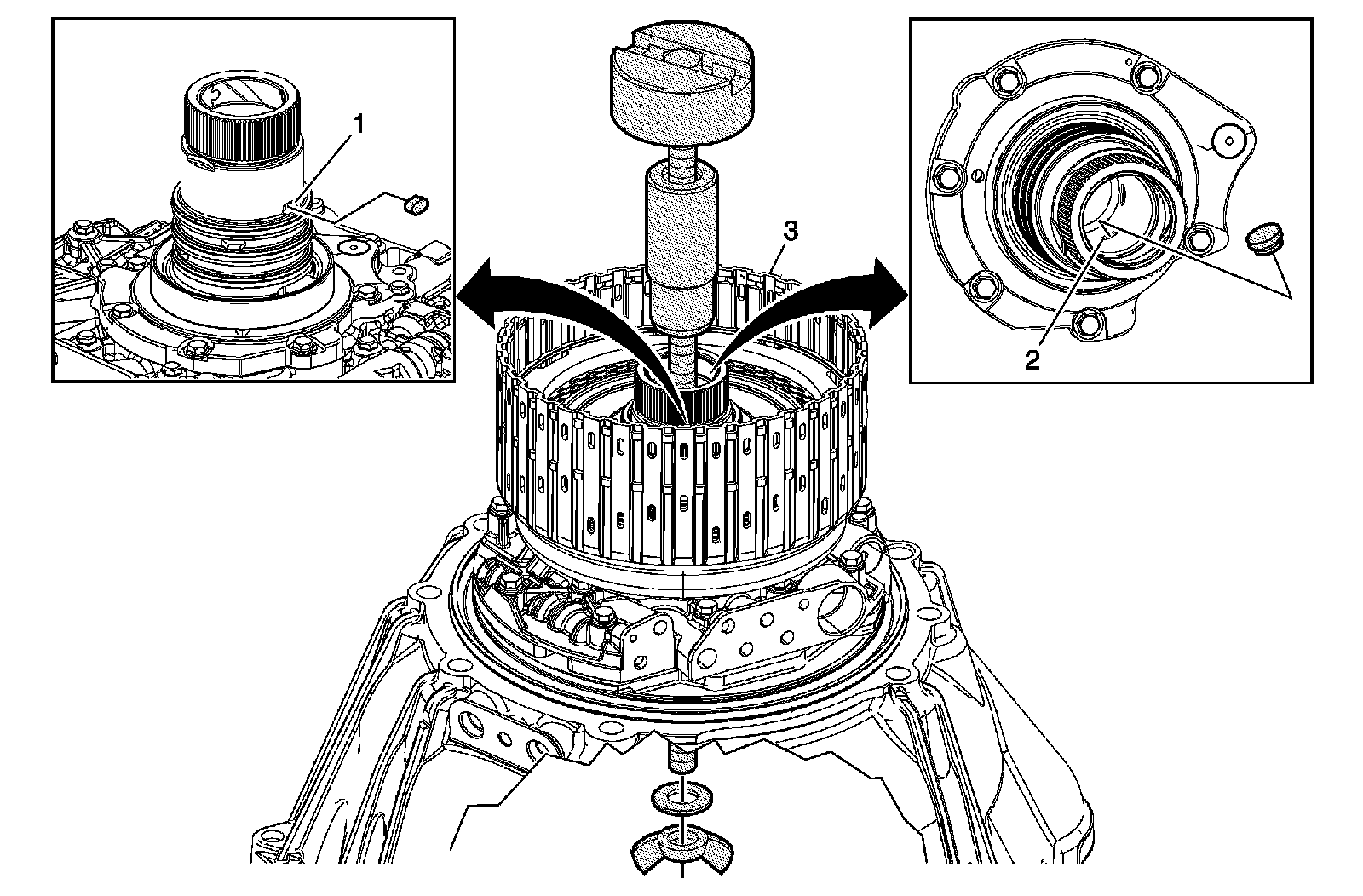

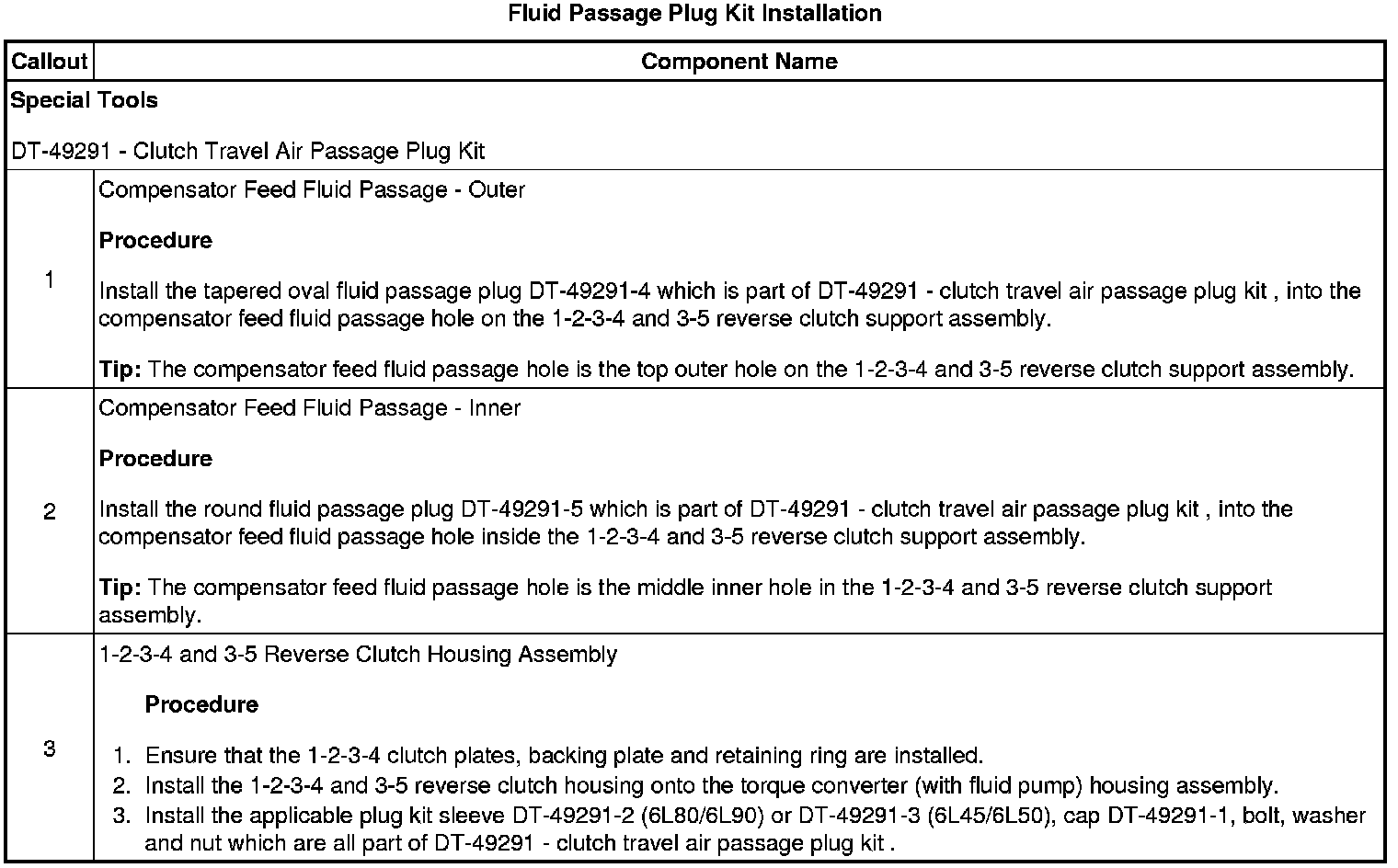

Fluid Passage Plug Kit Installation

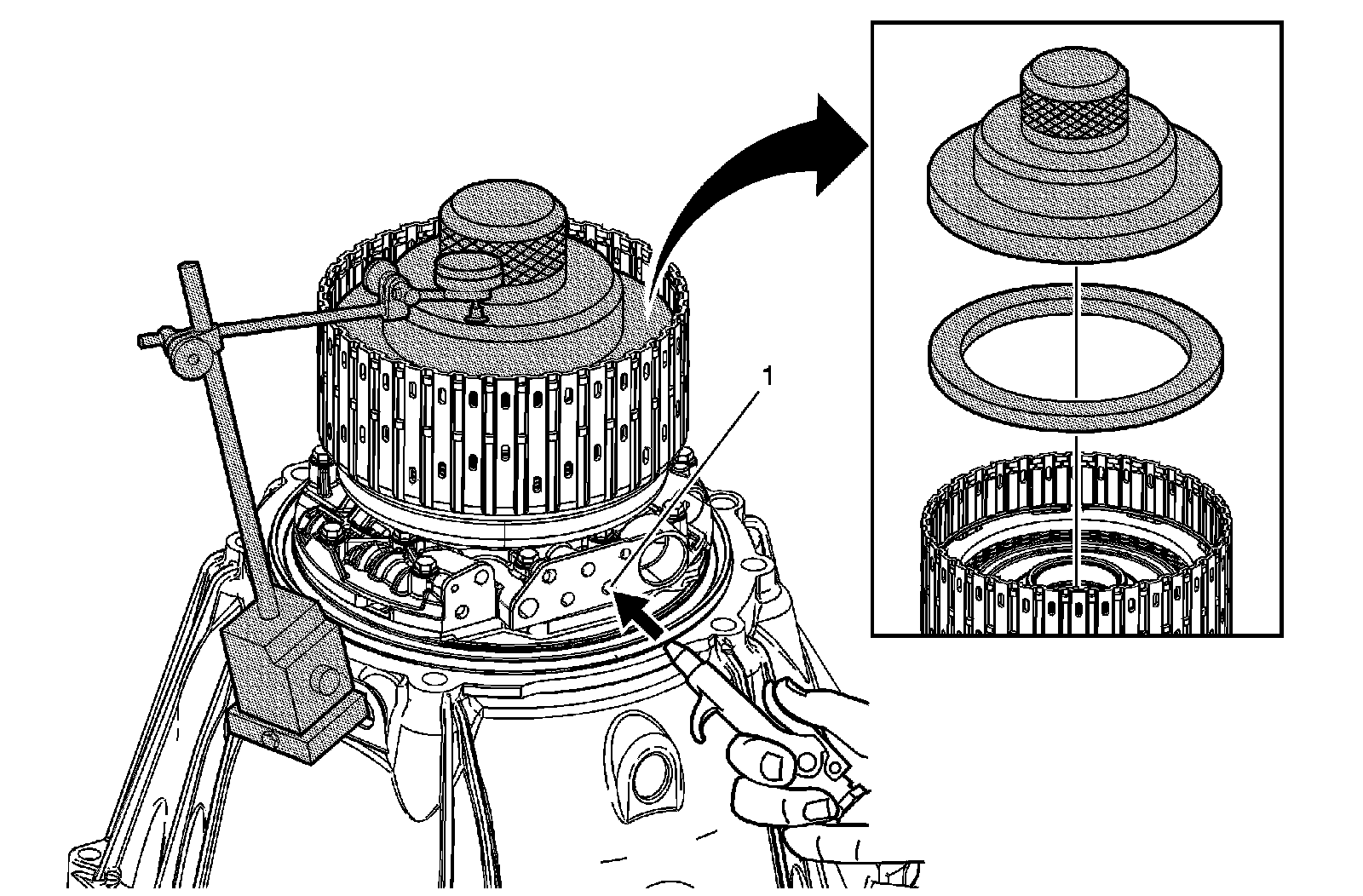

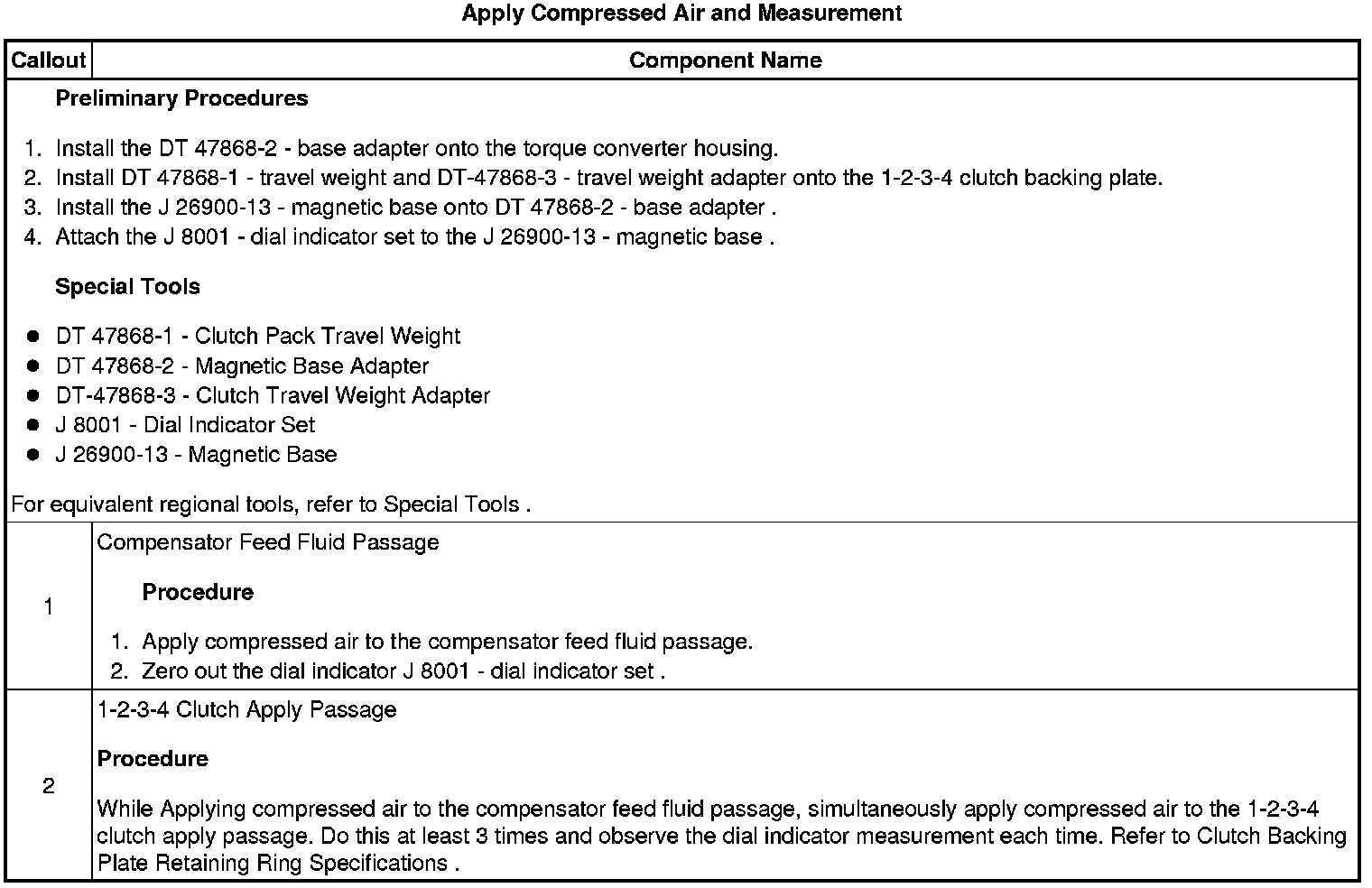

Apply Compressed Air and Measurement
