Home >> Chevy Truck >> 2010 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6L45/6L50/6L80/6L90 - Automatic Transmission >> 6L45 - Automatic Transmission >> 15. 4-5-6 Clutch Dampener Overhaul

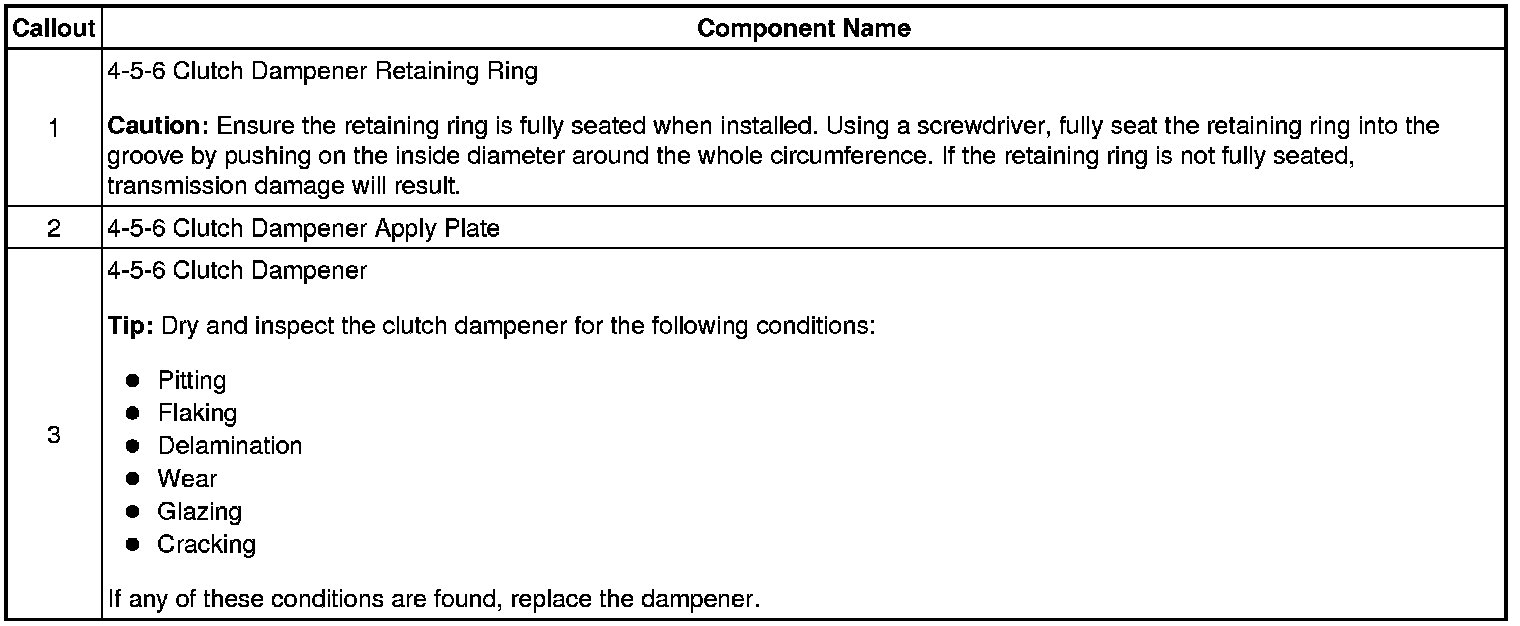

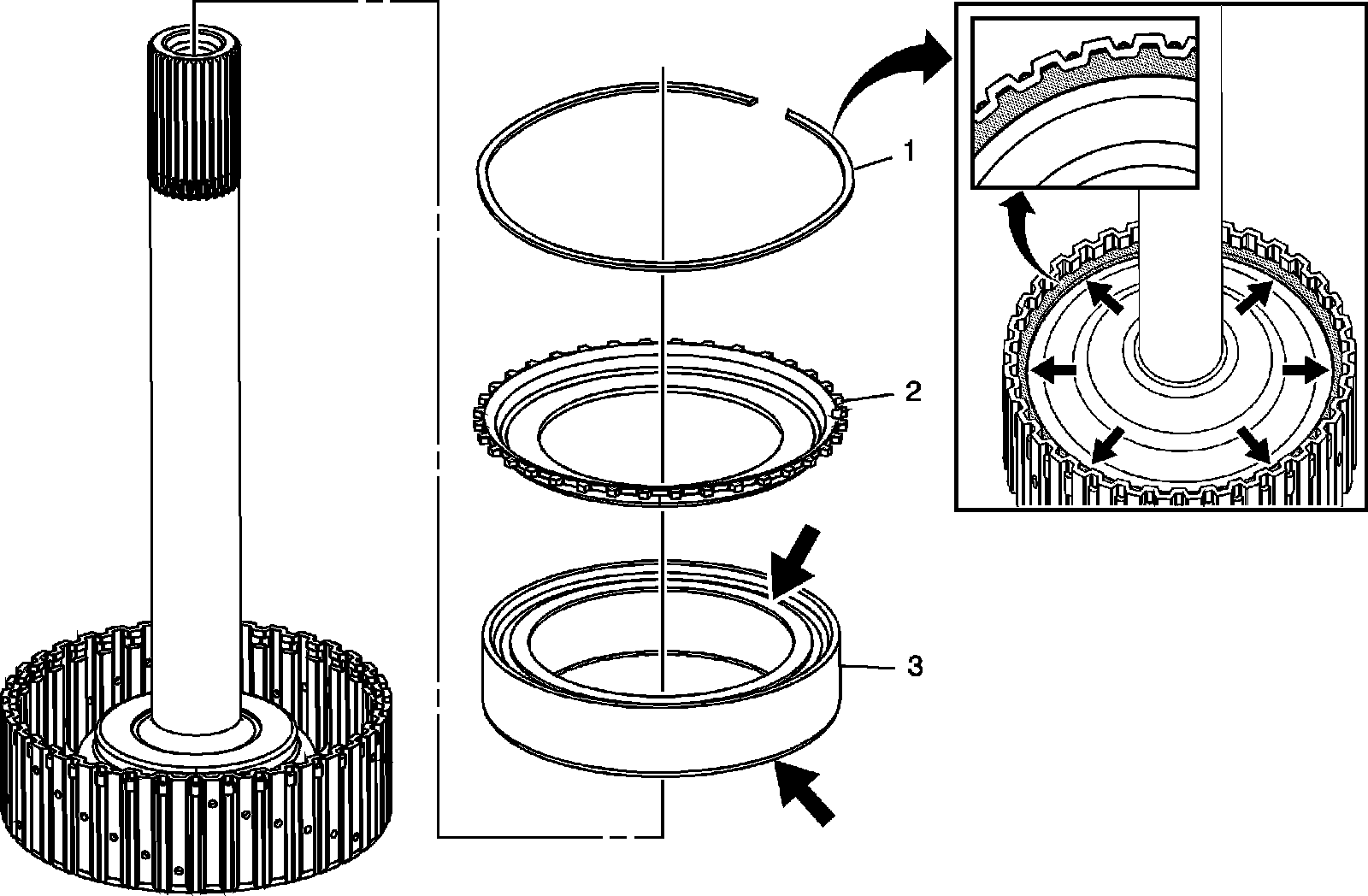

15. 4-5-6 Clutch Dampener Overhaul




4-5-6 Clutch Dampener Overhaul (6L50/80/90)
