X601
X601

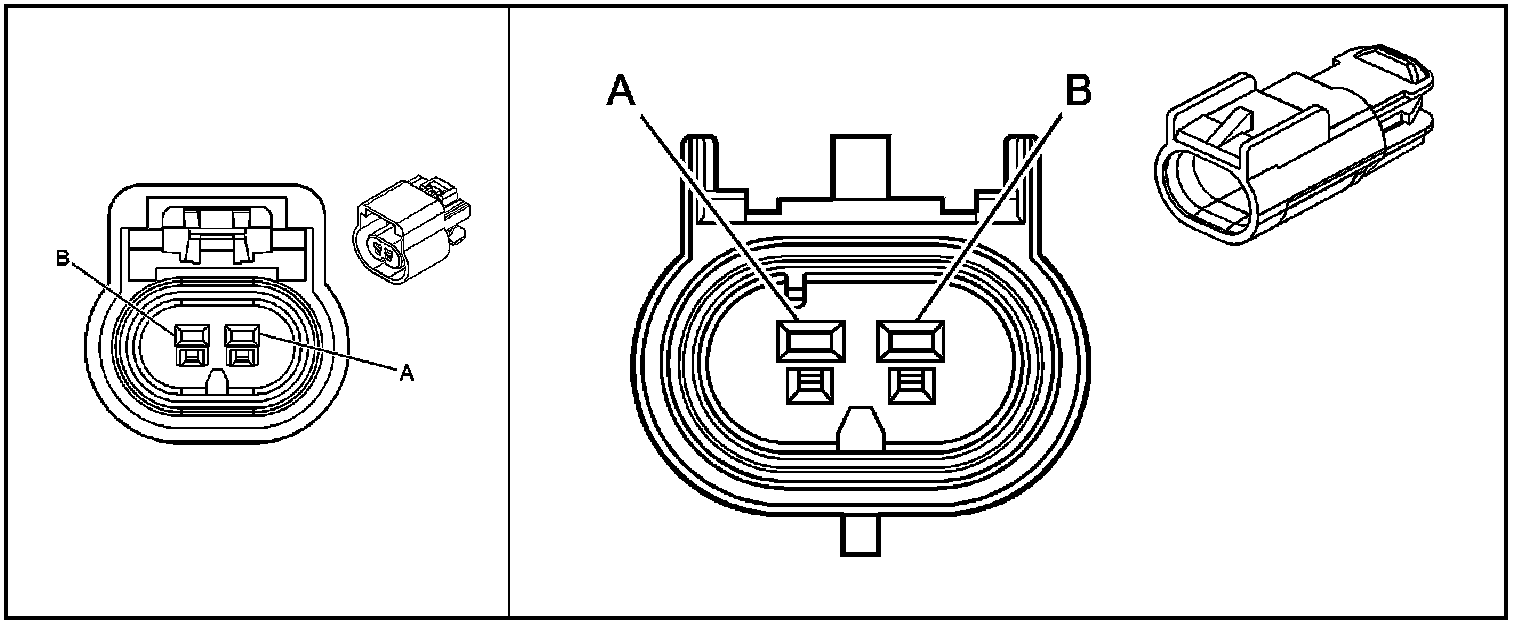

Inline Harness Connector End Views

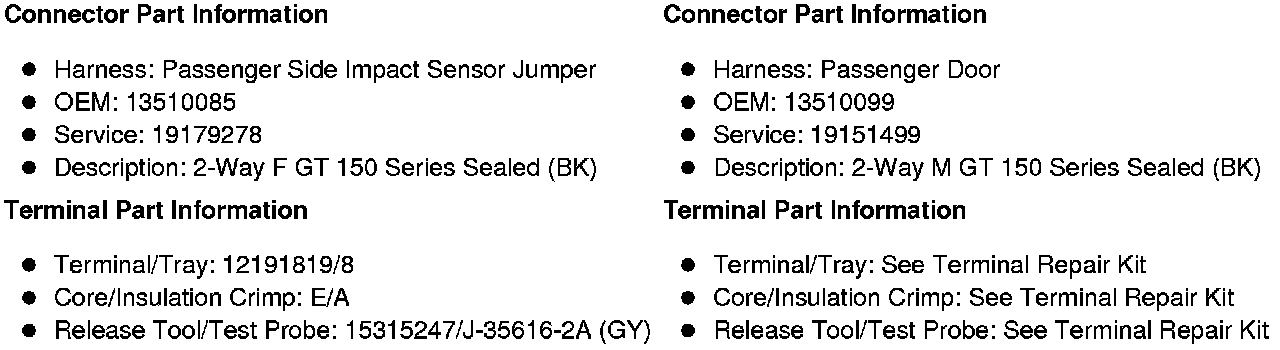

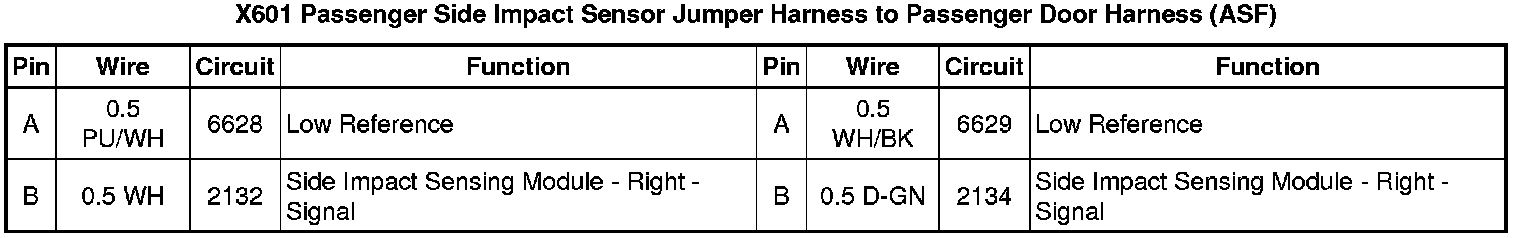

X601 Passenger Side Impact Sensor Jumper Harness to Passenger Door Harness (ASF)
