Express 3500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Number
>>
X300 - X399
>>
X316
X316
Inline Harness Connector End Views

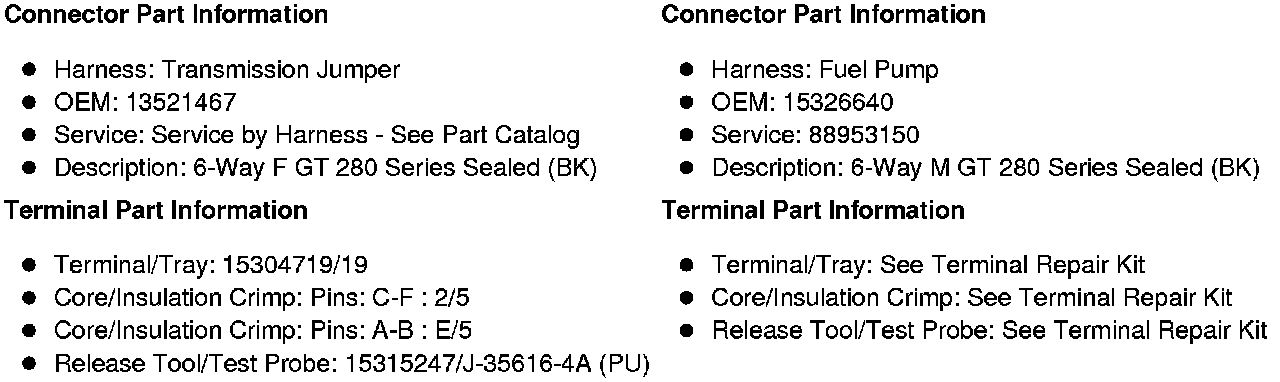

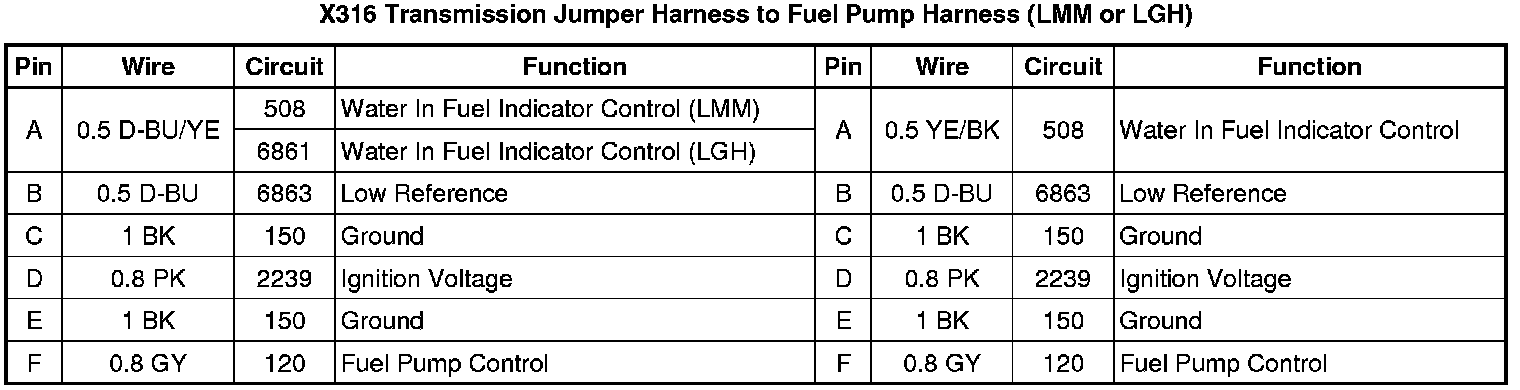

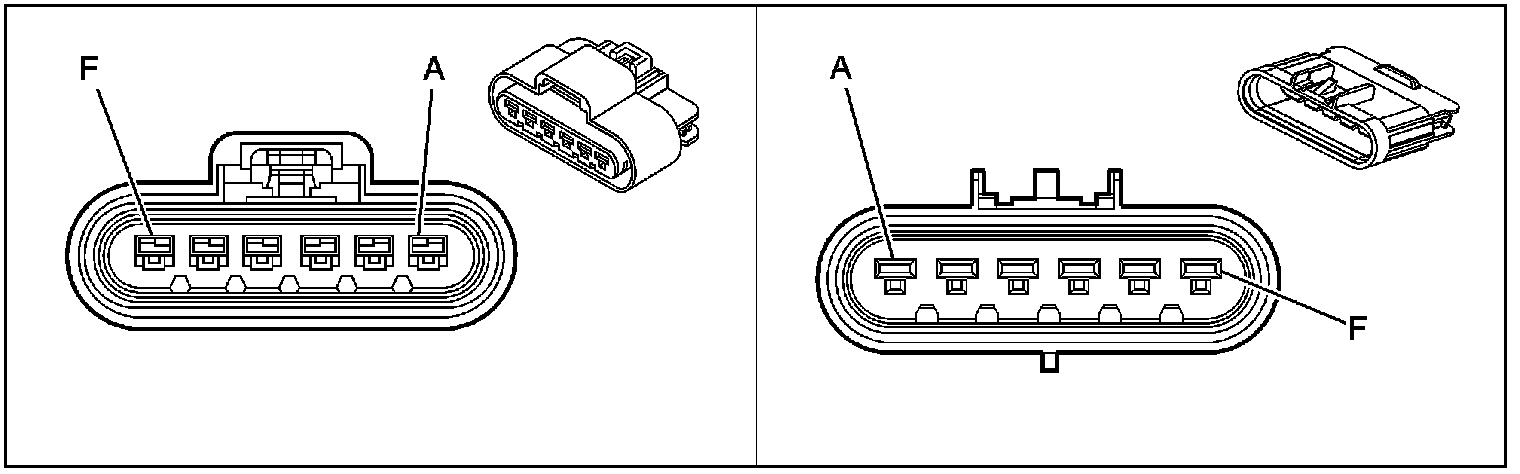

X316 Transmission Jumper Harness to Fuel Pump Harness (LMM or LGH)
