X127
X127
Inline Harness Connector End Views

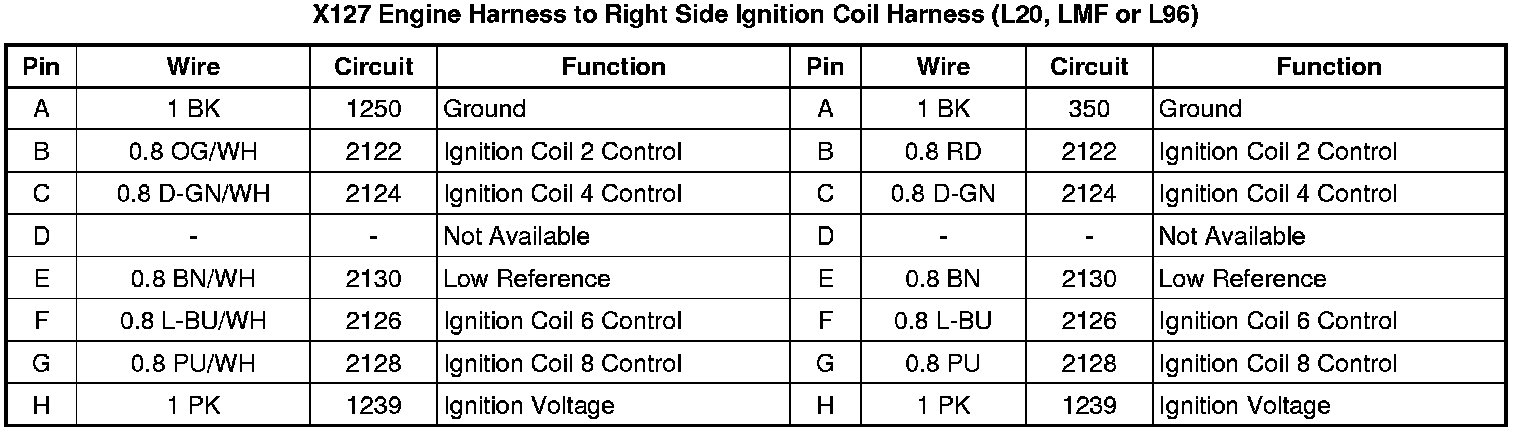

X127 Engine Harness to Right Side Ignition Coil Harness (L20, LMF or L96)
