X115




Inline Harness Connector End Views

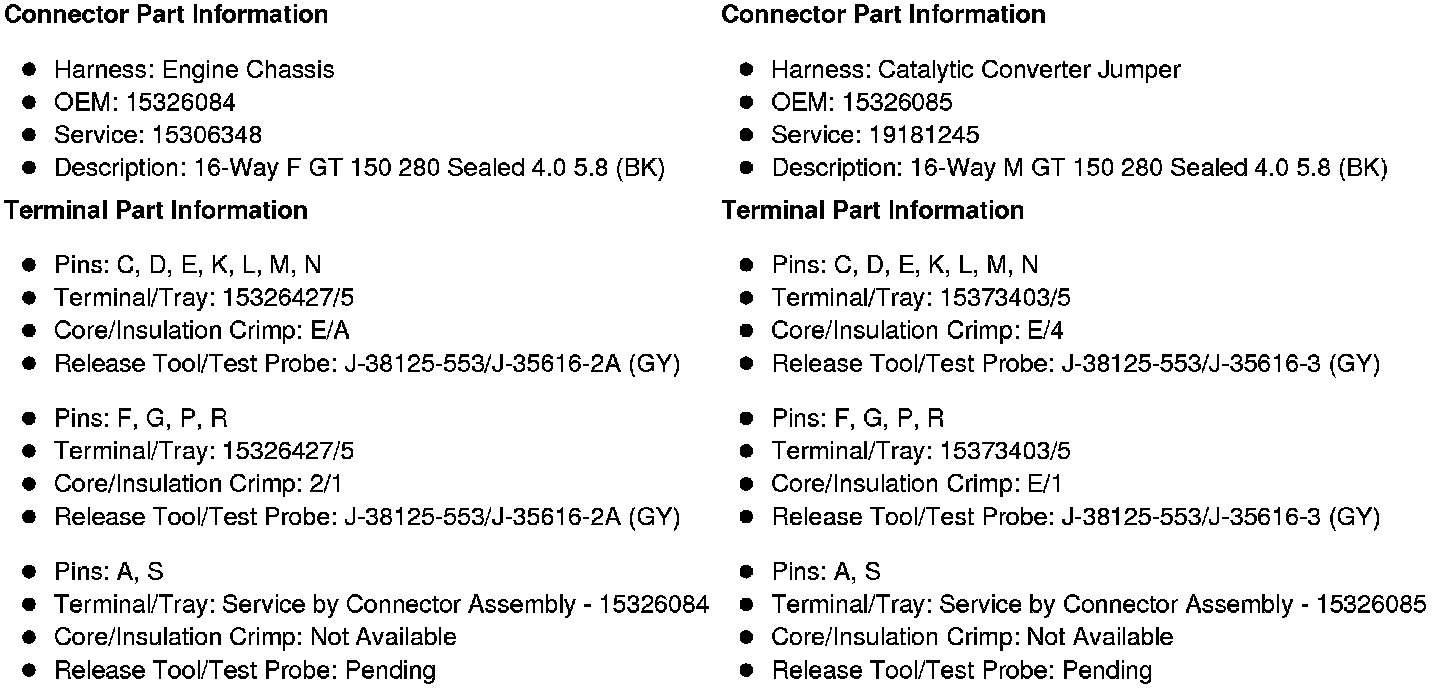

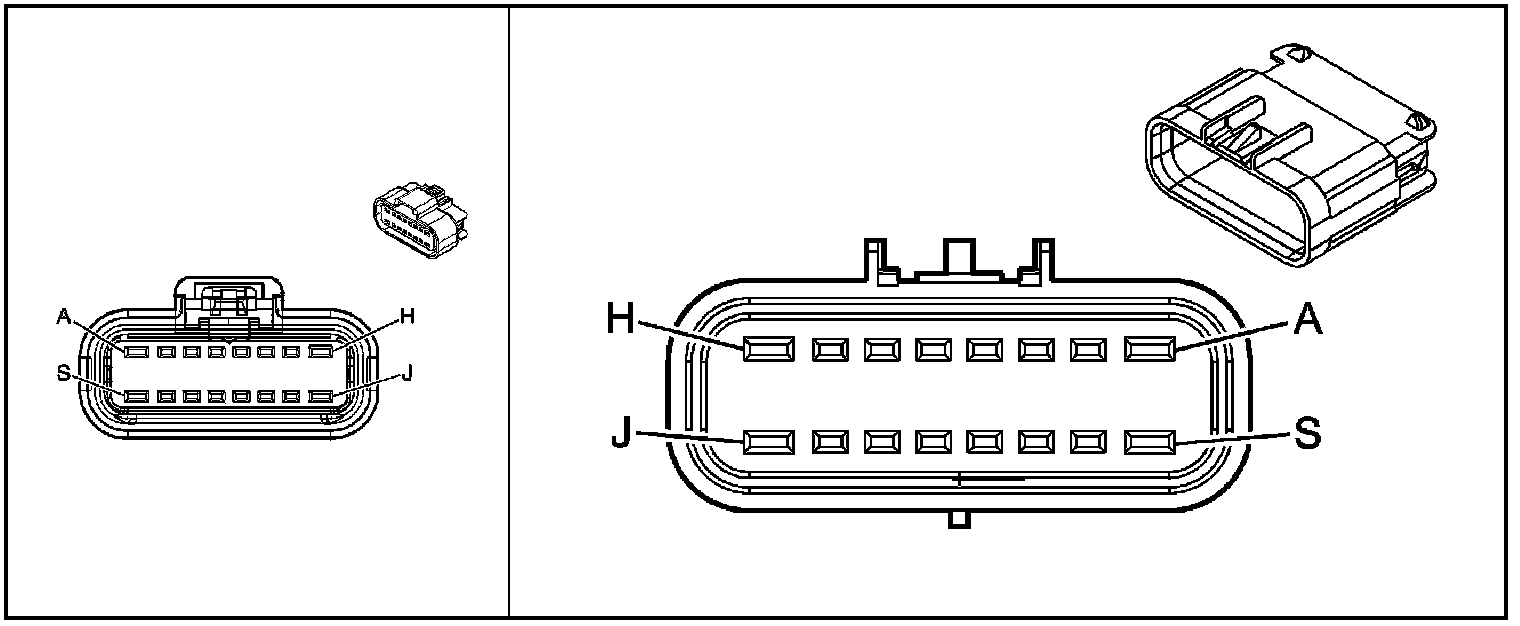

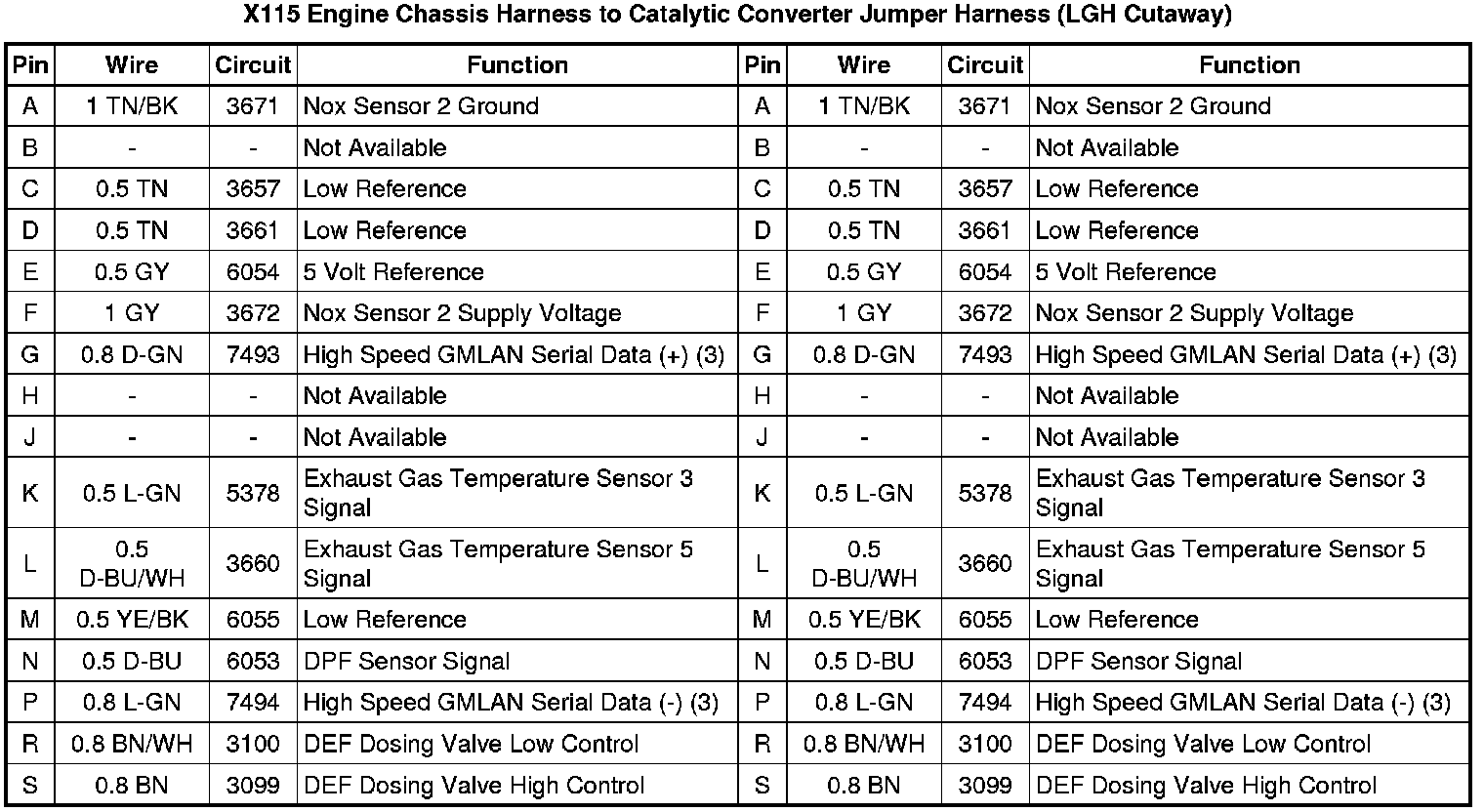

X115 Engine Chassis Harness to Catalytic Converter Jumper Harness (LGH Cutaway)

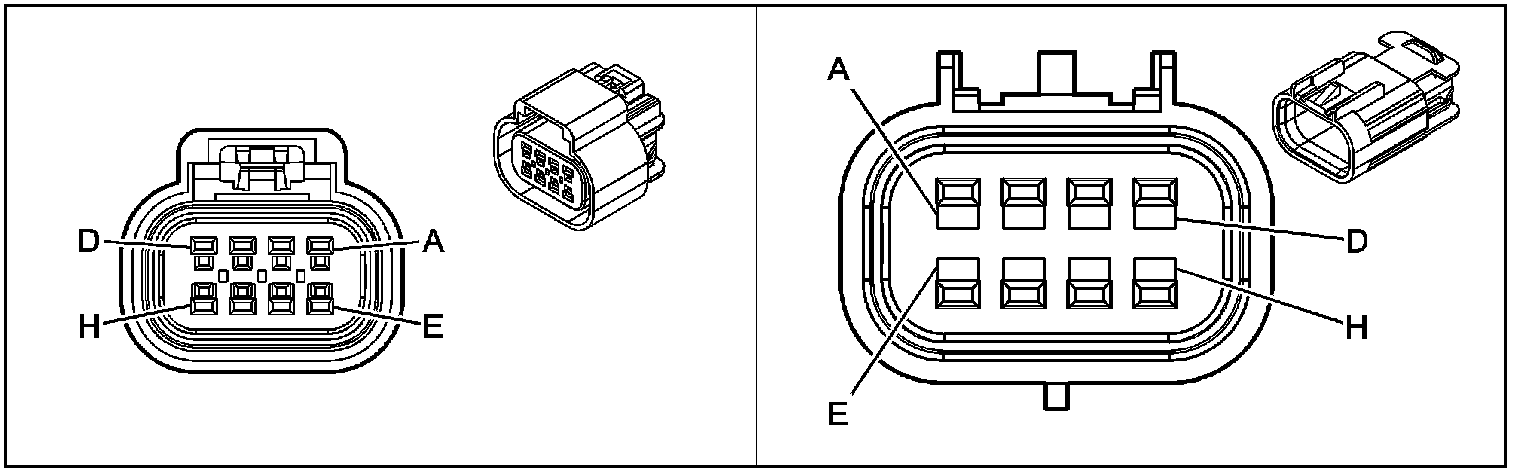

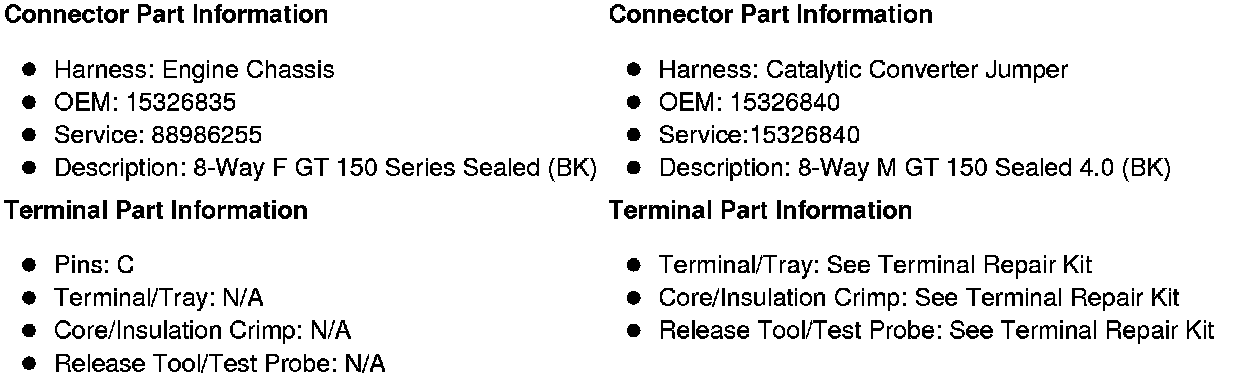

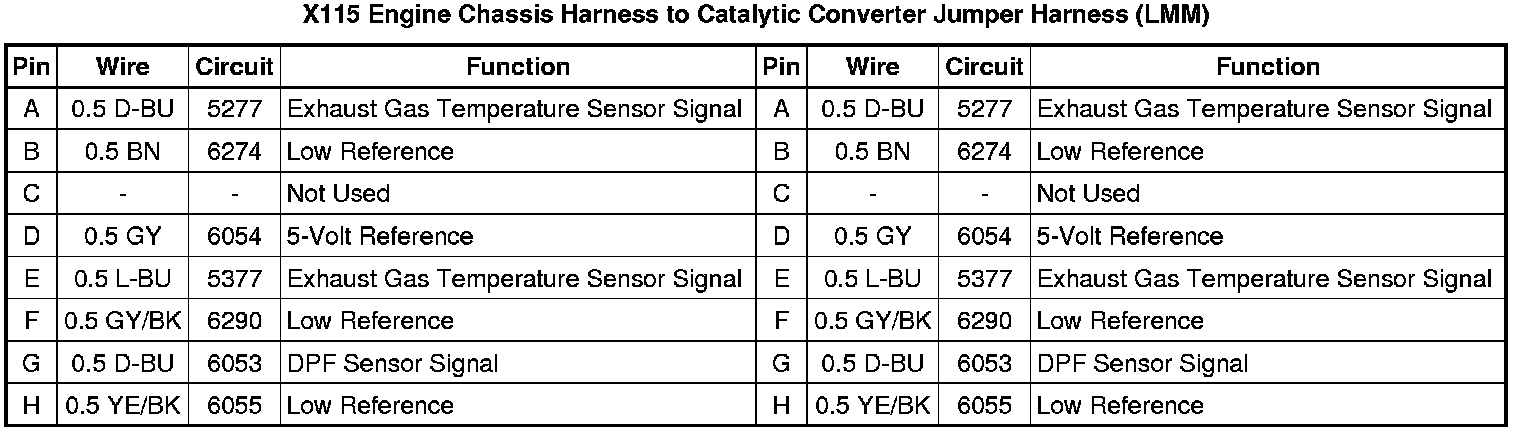

X115 Engine Chassis Harness to Catalytic Converter Jumper Harness (LMM)
