Battery Negative Cable Replacement (LMM -Primary)

Removal Procedure

1. Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnection and Connection (Battery Negative Cable Disconnection and Connection).

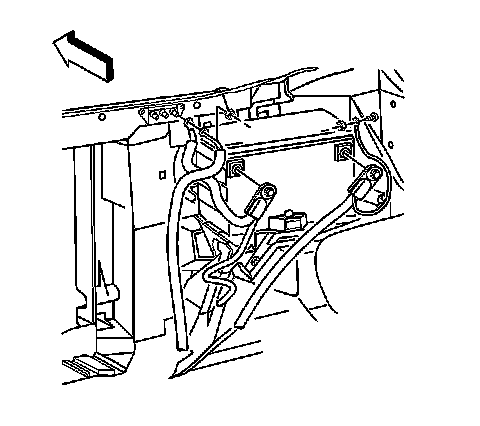

2. Disconnect the battery negative cable lead from the inner fender panel.

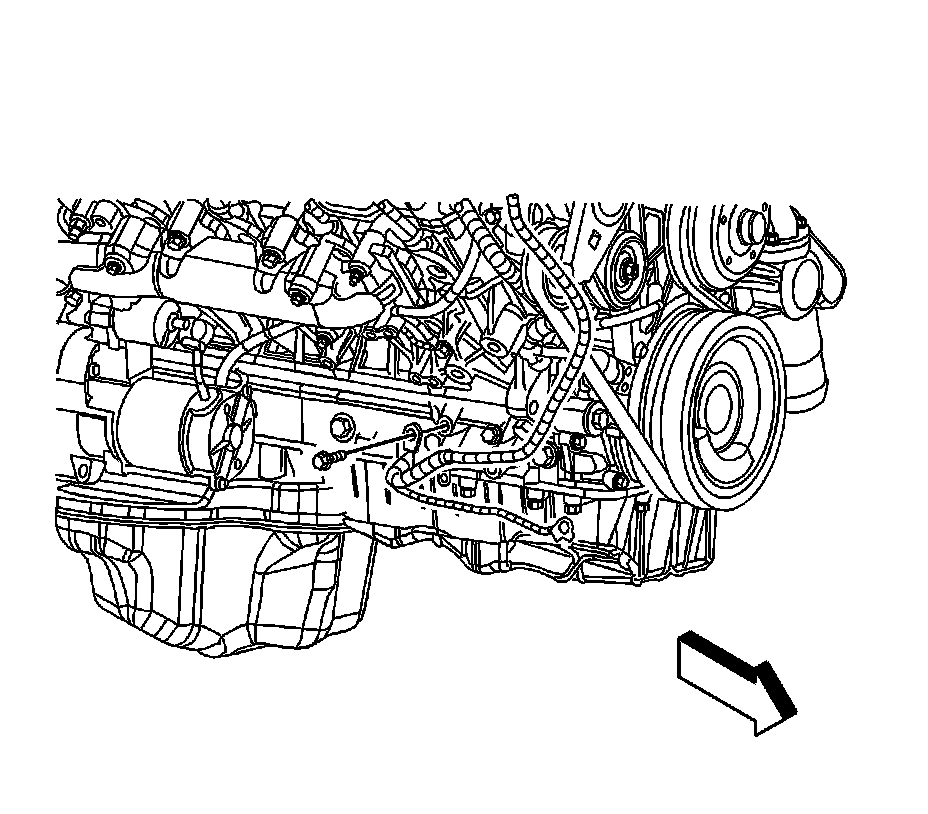

3. Disconnect the battery negative cable lead from the engine block.
4. Remove the battery negative cable from the vehicle.

Installation Procedure




1. Install the battery negative cable to the vehicle.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Connect the battery negative cable lead to the engine block and tighten to 25 Nm (18 lb ft).




3. Connect the negative cable lead to the inner fender panel.

Tighten the nut that retains the negative cable to the inner fender well to 10 Nm (89 lb in).

4. Connect the negative cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Battery Negative Cable Disconnection and Connection).

Tighten the negative cable terminal bolt to 14 Nm (123 lb in).
